Fisher Paykel Ci804ctb1 Induction Hob, 80cm, 4 Zones User Guide (+ PDF)

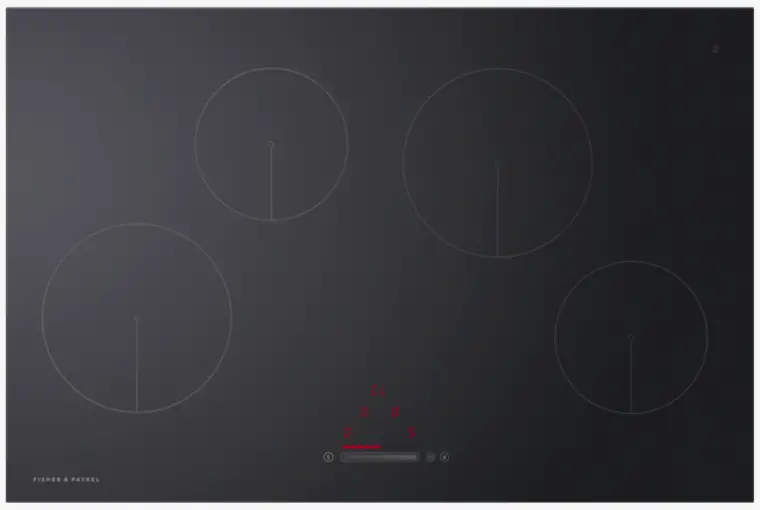

FISHER PAYKEL CI804CTB1 Induction Hob, 80cm, 4 Zones

Instant response and cool-to-touch safety in a large cooktop area, with zones designed for different sized pots and pans.

Child and pet safe – cooktop remains cool to touch until a pot or pan is placed on the surface
PowerBoost activates a very high heat, bringing liquid to boil in less than a minute
Touch&Slide controls easily control each cook zone

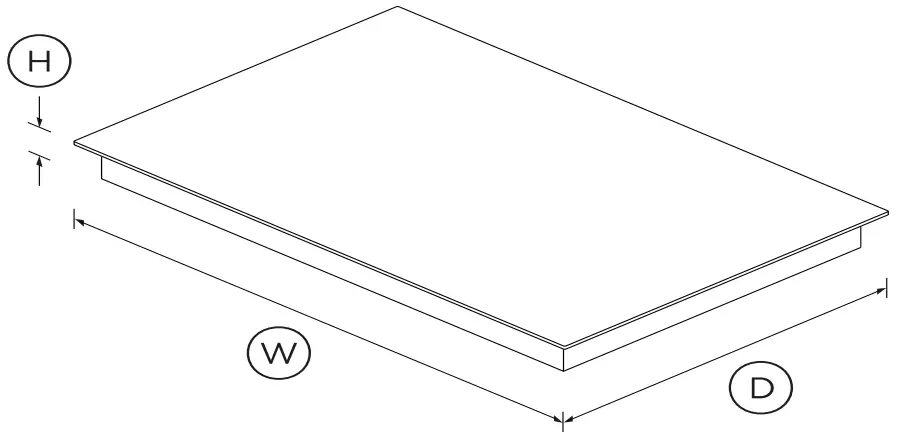

DIMENSIONS

Height	57mm
Width	800mm
Depth	530mm

FEATURES & BENEFITS

Instant response

Go from a boil to a simmer in seconds. Fisher & Paykel Touch&Slide controls react immediately when you adjust the temperature so you don’t waste time in the kitchen.

Safer choice

Induction hobs only start heating your pot or pan once you’ve placed it on the ceramic surface and stop as soon as you remove it – so you don’t have to worry about curious little fingers or leaving an element on.

Easy cleaning

The surface around your cookware stays cool when you cook, preventing baked-on spills and making cleaning up a breeze. The durable ceramic hob surface just needs a quick wipe after use to maintain its good looks.

Enhanced features

Power Boost and Gentle Heat deliver either very high or very low heat fast for specialised cooking tasks such as searing meat and melting chocolate. An integrated timer keeps you on track.

Superior efficiency

No heat is wasted during induction cooking because only the cookware is heated, not the surface of the hob. This makes induction hobs more energy-efficient than electric or gas hobs

Precision Control

Fisher & Paykel induction hobs offer extremely accurate, consistent temperature control from very high to very low heats, so you can sear, sauté and temper like a pro.

SPECIFICATIONS

Cleaning
Flat easy clean glass surface	•
Pan detection system	•
Controls
Auto cut-off timer for each	•
Minute timer	•
Soft-touch electronic controls	•
Touch and slide controls	•
Performance
Gentle heat	•
Heat settings	9
Induction cooking technology	•
Power Boost	•
Power requirements
Amperage	32A
Supply voltage	220 – 240V
Product dimensions
Depth	530mm
Height	57mm
Width	800mm
Safety
Keylock	•
Pan detection system	•
Safety time out	•
Spillage auto off	•
Surface hot indicators	•
Warranty
Parts and labour	5 years
Zone ratings
Left front	2300W
Left front zone (Power Boost	3000W
Left rear	1200W
Left rear zone (Power Boost	1400W
Power Boost	up to 3000W
Right front	1200W
Right front zone (Power Boost	1400W
Right rear	2300W
Right rear zone (Power Boost	3000W
Zones
Number of elements	4
SKU	81375

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
