QUICK REFERENCE GUIDE > CI905DTB4

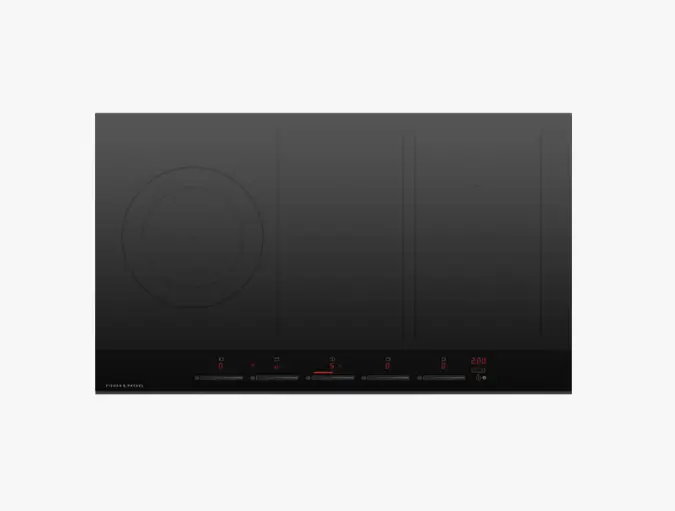

Induction Cooktop, 90cm, 5 Zones with SmartZone
Series 9 | Minimal
Black Glass
This Series 9 cooktop is a joy to use, with the instant response and energy efficiency of induction technology.
- Immediate heat response and extremely accurate temperature control
- Cooktop remains cool to touch until a pot or pan is placed on the surface
- PowerBoost activates a very high heat, bringing liquid to boil in less than a minute
- Easily control each cook zone with Touch&Slide, including pairing cook zones to create a large SmartZone.
DIMENSIONS
Height 54mm
Width 900mm
Depth 530mm
FEATURES & BENEFITS
Complementary design
The subtle black glass and durable matte black detailing are designed to pair with the Minimal style Series 9 Ovens. With premium styling and detailing, these cooktops seamlessly blend with other appliances for a cohesive, considered kitchen design.
Enhanced features
PowerBoost and GentleHeat deliver either very high or very low heat, fast. Perfect for specialised cooking tasks such as searing meat and melting chocolate. An integrated timer ensures a great result every time
Instant response
Go from a boil to a simmer in seconds. Touch&Slide controls react immediately when you adjust the temperature so you don’t waste time in the kitchen.
Safer choice
Induction cooktops only start heating your pot or pan once you’ve placed it on the ceramic surface and stop as soon as you remove it – so you don’t have to worry about curious little fingers or leaving a cook surface on.
Easy cleaning
The surface around your cookware stays cool when you cook – preventing baked-on spills and making cleaning up a breeze. The ceramic cooktop surface, including anodised detailing for durability, just needs a quick wipe after use to maintain its good looks.
Superior efficiency
Less heat is wasted during induction cooking because only the cookware is heated, not the cooktop surface. This makes induction cooking more energy-efficient than electric or gas cooktops.
LARGE, FLEXIBLE COOKING AREA
SmartZone links two cooking zones and controls them as one, giving you the flexibility to use large pans and griddles and easily handle bigger food items such as a whole fish. This cooktop comes with a small pot support and wok stand to complement different cooking styles.
SPECIFICATIONS
Accessories
Joiner kit Part 534731 (required to join
Cleaning
Flat easy clean glass surface •
Pan detection system •
Controls
Auto cut-off timer for each •
Minute timer •
Soft-touch electronic controls •
Touch and slide controls •
Performance
Auto heat reduce •
Dual zones •
Gentle heat •
Heat settings 9
Induction cooking technology •
PowerBoost •
Zone bridging •
Power requirements
Amperage 43A
Supply voltage 220 – 240V
Product dimensions
Depth 530mm
Height 54mm
Width 900mm
Safety
Keylock •
Pan detection system •
Safety time out •
Spillage auto off •
Surface hot indicators •
Warranty
Parts and labour 2 years
Zone ratings
Centre 1850/2600W
Centre front 2100W
Left front zone (PowerBoost 2100W (3700W)
Left rear zone (PowerBoost 2100W (3700W)
PowerBoost up to 5500W
Right front zone (PowerBoost 2100W (3700W)
Right rear zone (PowerBoost 2100W (3700W)
SKU 81979
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
