INDUCTION COOKTOP
CI926DTB4 FP AA
PRODUCT CODE: 82220-A
PARTS MANUAL
AA
INTRODUCTION
| BRAND | VOLTAGE |
| Fisher & Paykel | 220-240V 50Hz |
| MODEL | PRODUCT CODE |
| CI926DTB4 FP AA | 82220-A |
MODELS
The models covered by this manual are listed on the front cover.
The information detailed in this manual is subject to change without notice. The latest version is indicated by the reprint date and replaces any earlier editions.
KIT PARTS
Where a part number is shown against the descriptions for kit components, they are also available as separate items. In addition, some parts may be supplied with these kits that are not available as separate items, and are therefore either not listed, or a part number is not shown against the part description in this manual.
PARTS LIST KEY
| NI | As a part reference, indicates the part is not illustrated on the diagram. |
| NOT USED | As a part number, indicates the diagram part reference is not used in this manual. |
| NS | As a part number, indicates the part is not servicable. |

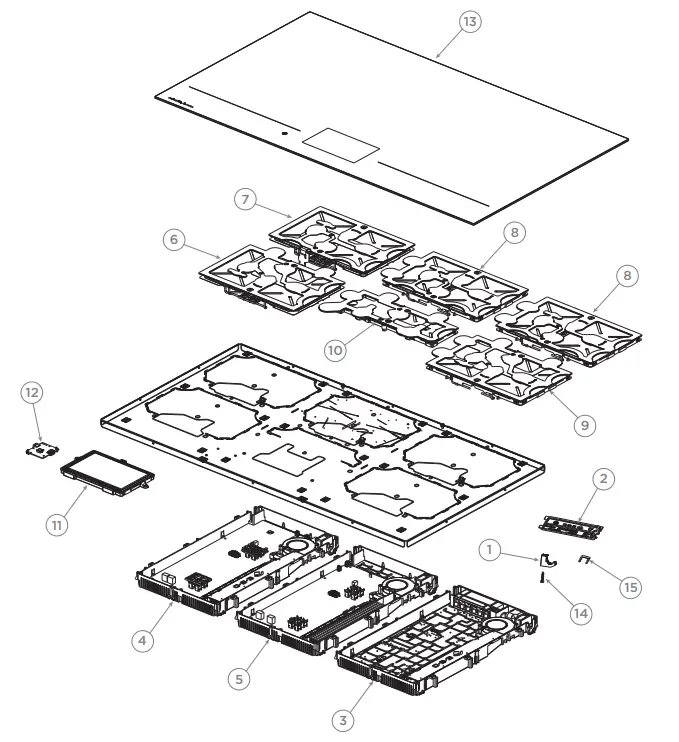

HOBTOP COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | 534689 | CLAMP CABLE CI 2 |
| NI | 793285 | TAPE ADHESIVE FOAM INSTALLATION |
| 2 | 793273 | COVER TERMINAL HOUSING |
| 3 | 793274 | GENERATOR MASTER W/TERM BLOCK |
| 4 | 793275 | GENERATOR SLAVE W UI PWR SUPPLY |
| 5 | 793276 | GENERATOR SLAVE NO PWR SUPPLY |
| 6 | 793277 | INDUCTOR ASSY FRONT LEFT |
| 7 | 793278 | INDUCTOR ASSY REAR LEFT |
| 8 | 793279 | INDUCTOR ASSY REAR MID REAR RH |
| 9 | 793280 | INDUCTOR ASSY FRONT RH |
| 10 | 793281 | INDUCTOR ASSY FRONT MID |
| 11 | 793282 | UI LUMIO TC |
| 12 | 793283 | BUTTON SMART KII |
| 13 | 793284 | GLASS INCL. MOUNTING BRACKETS |
| NI | 793286 | SCREW (PACK OF 10) |
| 14 | 534691P | SCREW CABLE CLAMP (PKT 10) |
| 15 | 534690 | BRIDGE CONNECTION |
| NI | 537240 | BK UG FULL SURFACE CI92 NZ AU BI SG |
| NI | 592301 | BK IG FULL SURFACE CI92 NZ AU BI SG |
