QUICK REFERENCE GUIDE > CI926DTB4

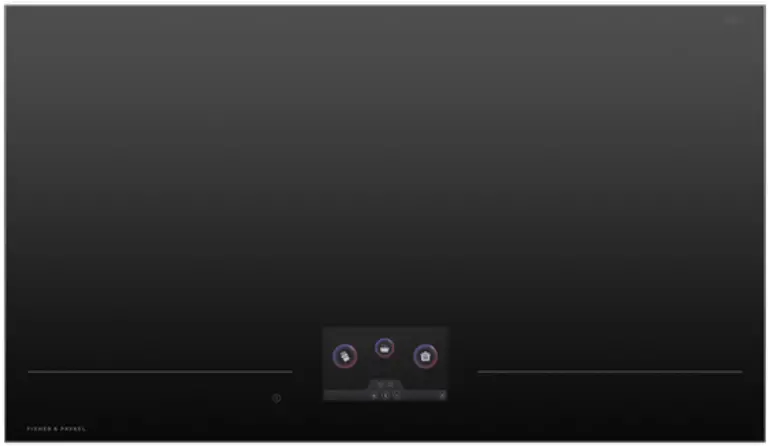

Induction Cooktop, 92cm, Full Surface
Series 11 | Minimal
Black Glass
With precise induction control, this full-surface cooktop brings ultimate flexibility, with the ability to place cookware anywhere on the surface.
- Place up to six pots or pans at once, with even heating anywhere within the cooking zone
- Large, high-resolution touchscreen displays the positions of the cookware
- Immediate heat response and extremely accurate temperature control
- Cooktop remains cool to touch until a pot or pan is placed on the surface

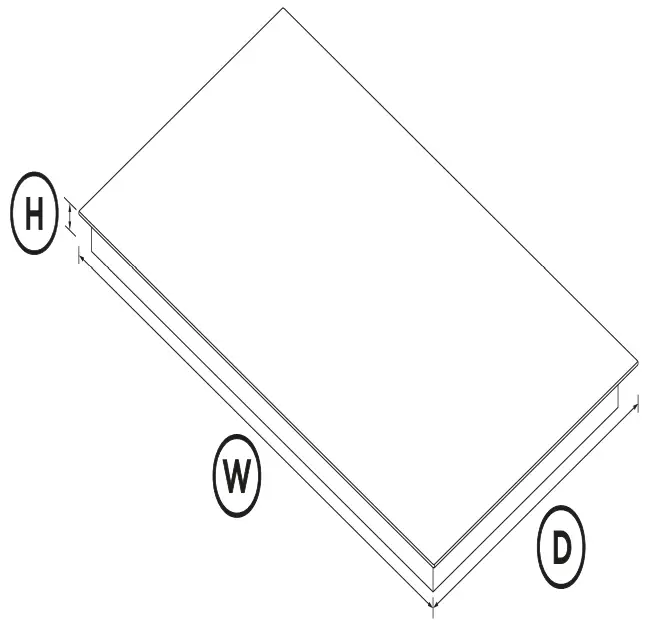

DIMENSIONS
| Height | 52mm |
| Width | 920mm |
| Depth | 530mm |
FEATURES & BENEFITS
COOKING WITHOUT BOUNDARIES
A large, seamless cooking surface allows you to arrange up to six pots or pans of any size and shape, anywhere within the cooking zone. Power can be individually adjusted using intuitive touchscreen controls and if a pot is moved, the display automatically updates.
ENHANCED FEATURES
PowerBoost and gentle heat functions deliver either very high or very low heat, fast, for specialised cooking tasks such as searing meat and melting chocolate. Every piece of cookware has an independent zone timer to keep you on track and help ensure food doesn’t overcook or burn.
COOK WITH CONFIDENCE
Our large, high-resolution touchscreen provides an intuitive overview of cookware position, timers and heat settings, no matter where cookware is placed on the surface.
SAFER CHOICE
Induction cooktops only start heating your pot or pan once you’ve placed it on the ceramic surface and stop as soon as you remove it – so they are safer for everyone.
EASY CLEANING
The surface around your cookware stays cool when you cook, preventing baked-on spills and making cleaning up a breeze. The durable ceramic cooktop surface just needs a quick wipe after use to maintain its good looks.
SUPERIOR EFFICIENCY
Less heat is wasted during induction cooking because only the cookware is heated, not the hob surface. This makes induction cooking more energy-efficient than electric or gas hobs.
COMPLEMENTARY DESIGN
This full-surface induction cooktop complements the Fisher & Paykel kitchen appliance family. Able to be installed raised or flush, it has a sleek, single ceramic glass surface with intuitive touchscreen controls.
SPECIFICATIONS
Cleaning
| Flat easy clean glass surface | • |
| Pan detection system | • |
Controls
| Auto cut-off timer for each | • |
| Intuitive touchscreen display | • |
| Minute timer | • |
| Multi-language display | • |
Performance
| Auto heat reduce | • |
| Gentle heat | • |
| Heat settings | 17 |
| Induction cooking technology | • |
| PowerBoost | • |
Power requirements
| Amperage | 48A |
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240V |
Product dimensions
| Depth | 530mm |
| Height | 52mm |
| Width | 920mm |
Safety
| Keylock | • |
| Pan detection system | • |
| Safety time out | • |
| Spillage auto off | • |
| Surface hot indicators | • |
Warranty
| Parts and labour | 2 years |
Zone ratings
| PowerBoost | up to 3700W |
Zones
| Number of elements | 1 |
| SKU | 82220 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
