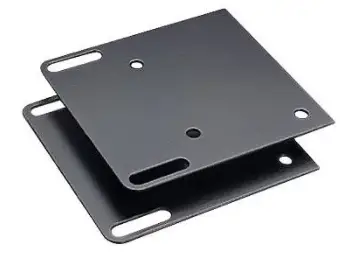

BOGEN RPK86 M-Class & Black Max Rack Mounting Kit
Installation
For greater rear support when rack mounting an M-Class or Black Max amplifier, the RPK86 Rack Mounting Kit can be attached to the rear of the amplifier by following the steps below.
- Remove and save the three cover screws from the chassis of the amplifier.

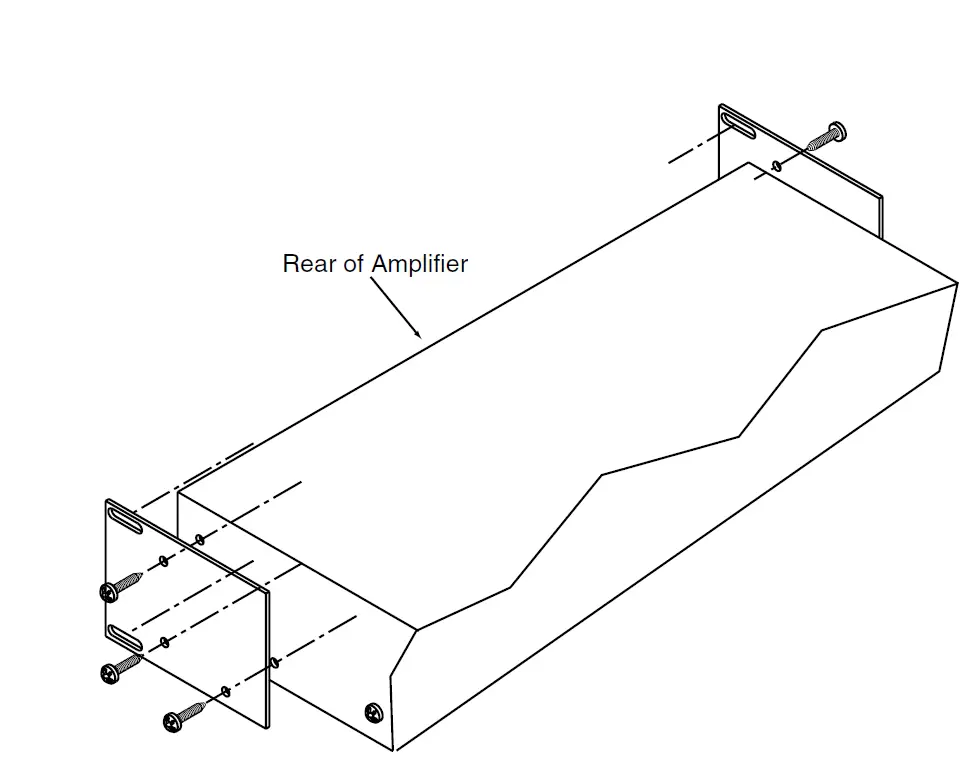

- Position the rack attachment as shown.
- Replace and tighten the three cover screws to secure the rack attachments.
Specifications subject to change without notice.
© 2001 Bogen Communications, Inc.
Part No. 54-2064-01R1 Printed in USA. 0105
