ABB-1012
INDOOR/OUTDOOR
STEEL BELL BOX
ABB-1012 Indoor/Outdoor Steel Bell Box
- 18 gauge cold rolled steel
- UL Listed motor driven low current bell (100mA at 12V DC)
- Dual-wired, UL Listed reed tamper switches
- Salt spray and rust resistance
- 12V DC operating voltage
- Durable, weather-resistant powder coat paint
- Suitable for use with most control panels
- Evenly spaced louvers for a higher sound output
- Overall size 14” x 14” x 4”
- More space for your company logo
- Exterior color is beige

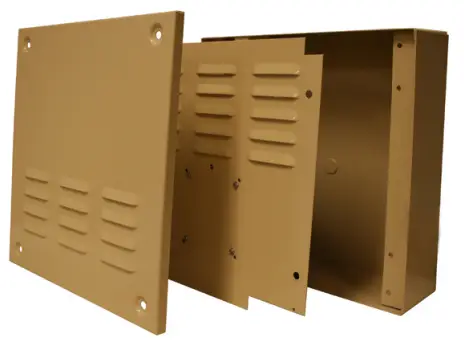

The ABB-1012 is a rugged indoor/outdoor slim-line bell box, designed to withstand harsh environment conditions. The box is constructed of a heavy interlocking welded 18 gauge steel with a durable beige powder coat finish to prevent corrosion. It operates on 12V DC and draws a low 100mA. The ABB-1012 implements an exclusive UL Listed, low current, patented motor driven bell mounted to a removable inner baffle plate and generates a sound ouput of 100 plus decibles. Two UL approved reed tamper switches are designed into the bell box to provide complete tamper protection.
Exclusive Motor Driven Bell
Specifications
| Model Number | Stock Number | Rated Voltage | Rated Current | Sound Output | Starting Voltage | Bell Gong Size | Tamper Switching Current | Total Weight (lbs.) |
| ABB-1012 | 4010002 | 12 | 100 | 100 | 8 | 10 | 0.3A | 15 1/2 |

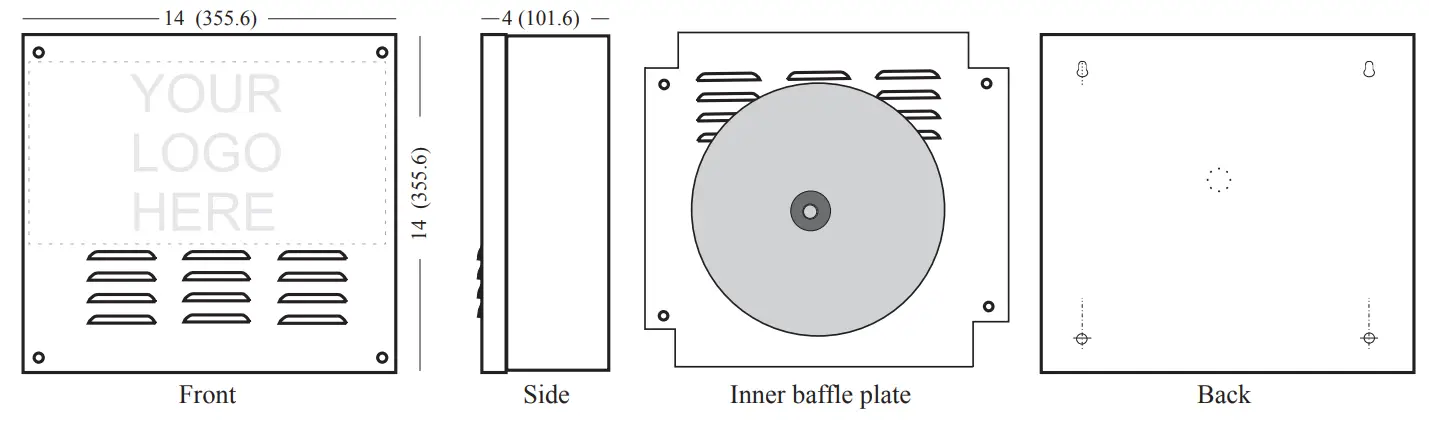

Dimensions: inches (mm)
Potter Electric Signal Co., LLC
• St. Louis, MO
• Cust Service: 866-240-1870
• Tech Support: 866-956-1211
• Canada 888-882-1833
• www.pottersignal.com
PRINTED IN USA
MKT. #8850057 – REV B
1/10
