ABB-1033
12VDC MOTOR BELL AND BOX

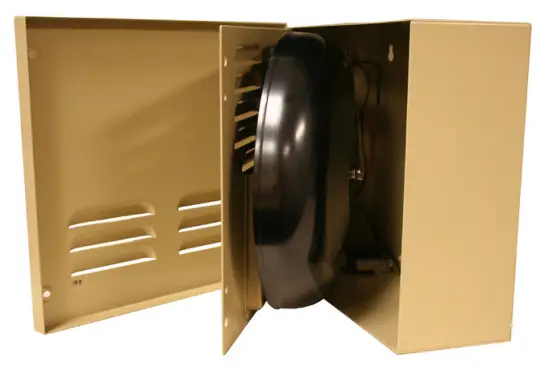

ABB-1033 12VDC Motor Bell And Box
- Low current motor driven bell (60mA at 12V DC)
- 2 reed tamper switches (PSW-1) for outer covers, inner baffle plate, and back of box
- 12V DC operating voltage
- Durable, weather resistant powder coating paint
- Suitable for use with most control panels
- Evenly spaced louvers for a higher sound output
- Exterior color: Beige
Stock number – 4010009
The ABB-1033 box is constructed of steel with a durable beige powder coating finish to prevent corrosion. It operates on 12V DC and draws a low 60mA. The ABB-1033 implements an exclusive low current patented motor driven bell mounted to a removable inner baffle plate and generates a sound output of 85 dB at 10 ft. in the open field. Two reed plunder switches (PSW-1) are designed into the bell box to provide complete tamper protection.

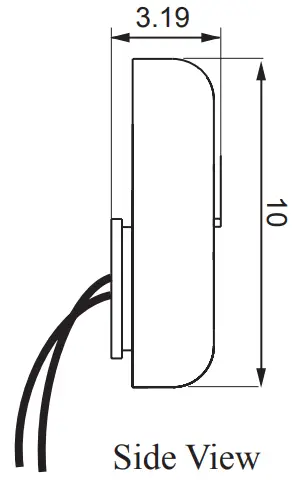

Bell Dimensions: inches (mm)
Specifications
| Operating Voltage | 8-17.5V DC |
| Rated Current at 12V DC | 60mA |
| Sound Output dBA at 10 ft. | 85dBA |
| Starting Voltage | 8V DC |
| Tamper Switch Current | 0.3A |
| Bell Gong Size | 10 in. |

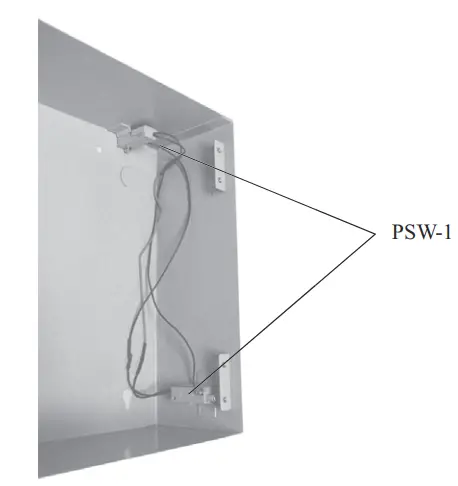

Bell Box Inside view
Bell Box Dimensions: inches (mm)
Potter Electric Signal Co., LLC
• St. Louis, MO
• Cust Service: 866-240-1870
• Tech Support: 866-956-1211
• Canada 888-882-1833
• www.pottersignal.com
PRINTED IN USA
MKT. #8850059 – REV B
1/10
