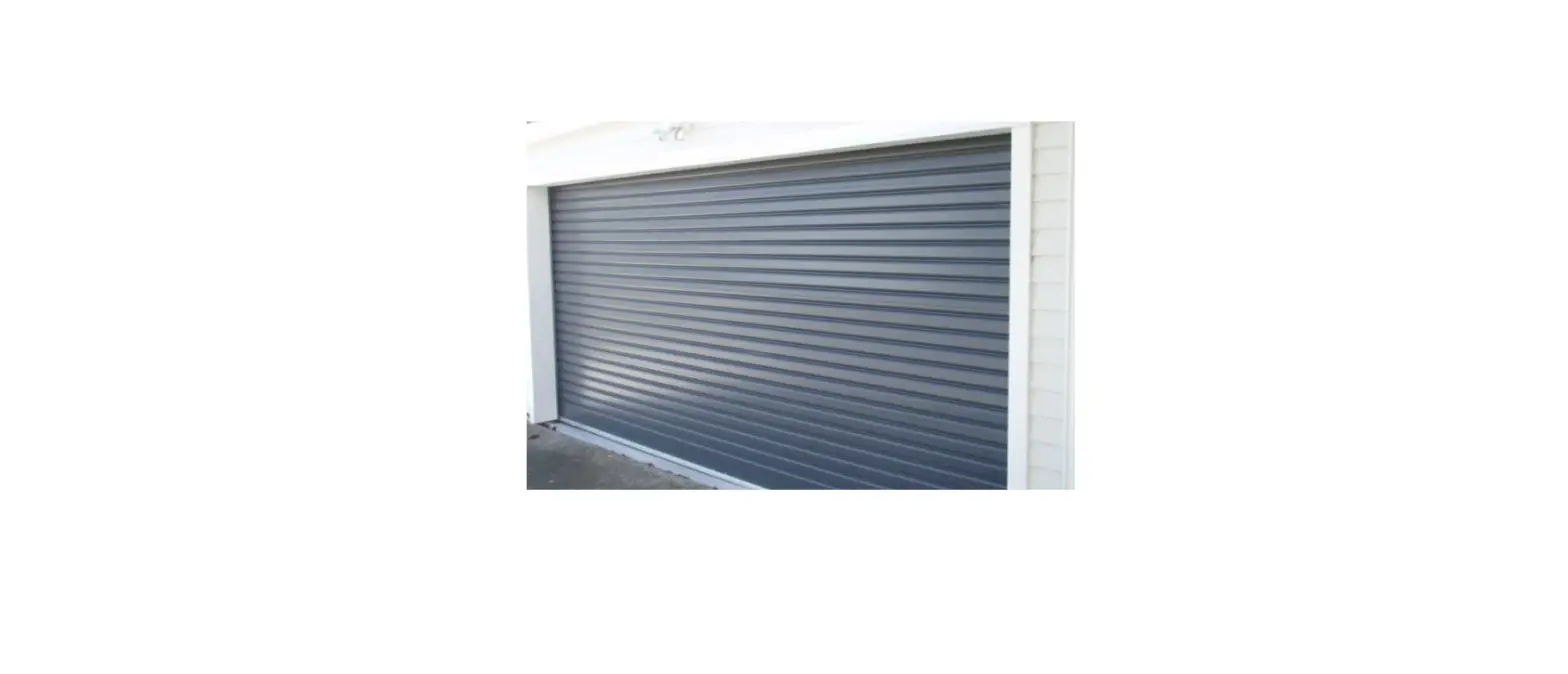

Garador S3 Roll-a-door Framing Instructions

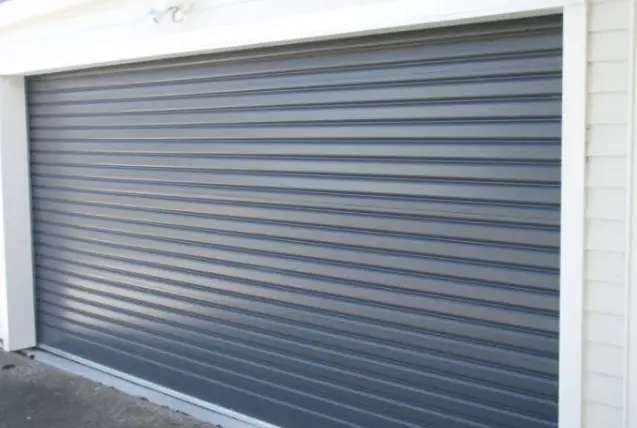

Garador S3 Roll-A-Door Framing

Note: With ongoing product developments, the manufacturer retains the right to change products & specifications without notification. If a specification is critical to the end use, please discuss with your Local Dealer first. Illustrations are not accurate representations of product, and are for illustrative purposes only, not to scale. All measurements should be made by your Local Dealer for clarification.

DIMENSIONS

• A Denotes sideroom/fixings required for installation of an opener when mounted on the door bracket. (Garador Openers only)
• B Denotes non geared end of curtain
• B1 Denotes geared end of curtain
• C1 & E1
• C & E Is recommended.

Fixing (shown shaded) must be solid timber, masonry or steel. All masonry must be solid bricks or core filled. Steel must be of a suitable thickness. If unsure consult with your engineer.

All measurements are in millimetres and are minimum unless otherwise shown.

Note: Installations with only minimal clearances may incur additional costs. Consult your Dealer.
