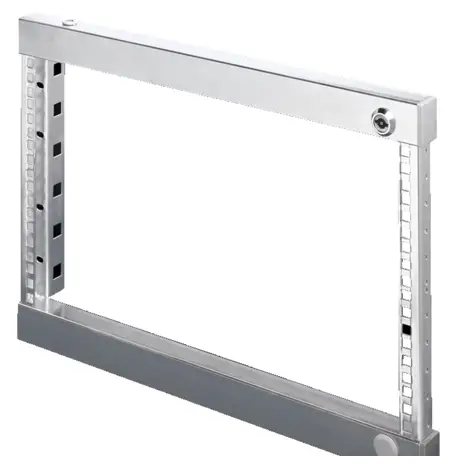

SR 2377.180 Swing Frame
Instructions
SR 2377.180
Swing frame, small
State: 06/10/2022 (Source: rittal.com/com-en)
SR 2377.180 – Swing frame, small for TS, VX SE, 600 mm and 800 mm wide enclosures
Installation for TS, 600 mm and 800 mm wide enclosures, 3 – 18 U, for mounting 482.6 mm (19″) equipment.
Features
| Model No. | SR 2377.180 |
| Product description | For mounting 482.6 mm (19″) equipment. |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Cam with double-bit lock insert Parts for attaching to the installation kit |
| Assembly instruction | Depending on the mounting situation, PS punched sections without mounting flanges 23 x 73 mm are required |
| Note | For further installation options, see “Technical details” |
| To fit | Enclosure type: TS VX SE Width: = 600 mm = 800 mm |
| Units | 18 U |
| Packs of | 1 pc(s). |
| Weight/pack | 4.55 kg |
| Copper weight (kg per piece) | 0 |
| Customs tariff number | 94039910 |
| EAN | 4.02818E+12 |
| ETIM 7.0 | EC002620 |
| ECLASS 8.0 | 27189261 |
Approvals
| Approvals | GOST |
