Nordic Play 805-627 Swing Set Instructions

Play 805-627 Swing Set
InstructionsMade in EU
Art no. 805-627/805-628

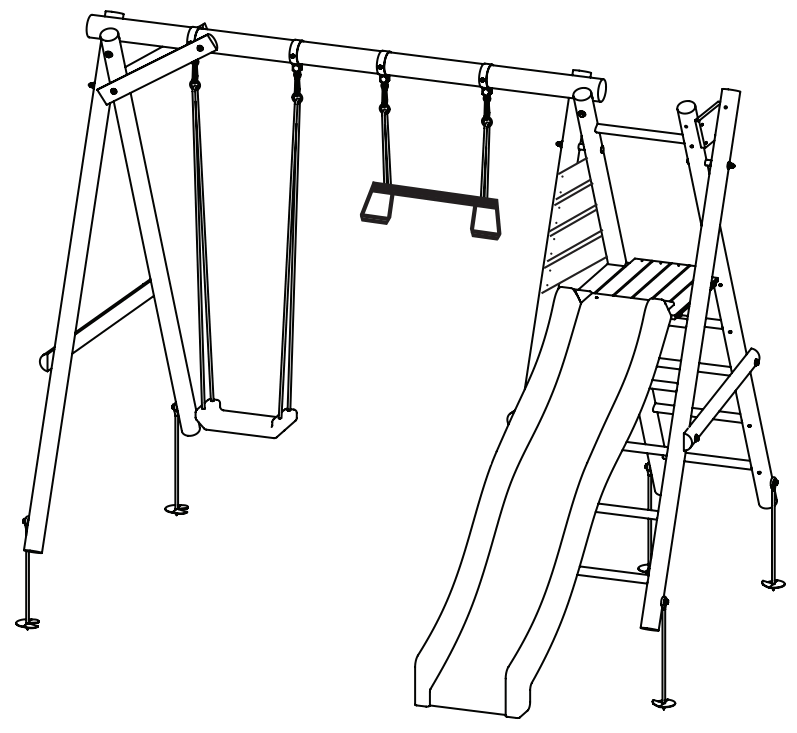

805-627 Swing Set

Before installation

Carefully read this instruction before use.

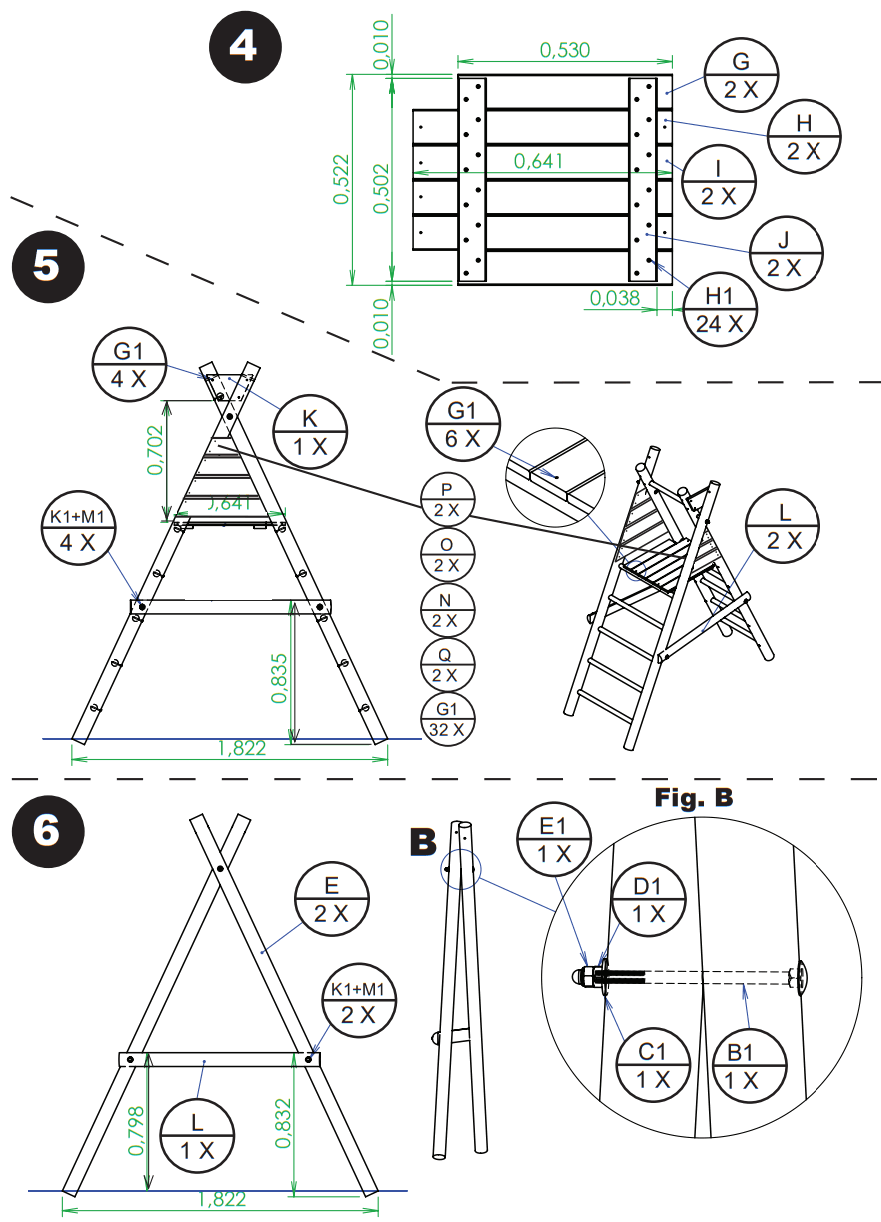

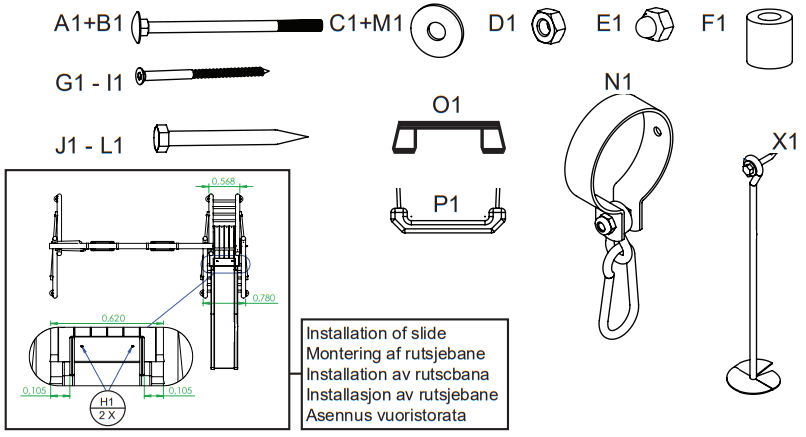

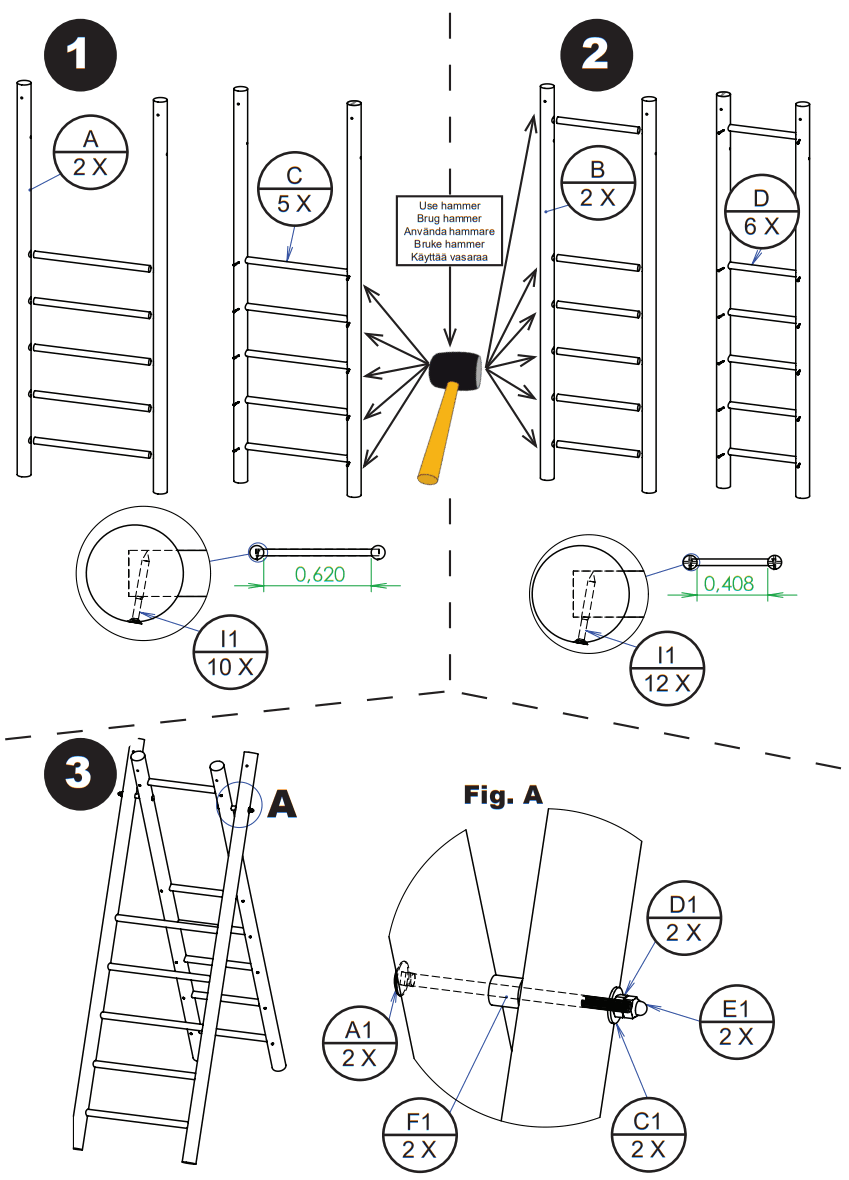

Before setting up and installing it is recommended to sort the wood parts, brackets screws and bolts in part numbers. Then follow the assembly instructions step by step.
The swing frame is made of wood – a natural product that works depending on temperature and humidity.
This means that the wood will expand during periods of high humidity and pull together in times of low humidity, which can cause wind scratches and cracks in the surface.  This does not affect the durability of the wood.
If the assembly of the swing set is not completed within a short time, the remaining wood stored away for sunlight and moisture.
Follow the instructions for inspection and maintenance The swing set must be build on a flat surface and at least 2 meters away from other buildings or constructions such as  fences, garages, trees, cloth driers or electrical wires.
The swing set must be secured to the ground. We recommend using 4 ground anchors (not included)
The swing set must not be installed over concrete, asphalt or other hard surfaces. We recommend the installation over grass, sand, gravel, wood chips or synthetic fall  protection.
Distance from the swing seat to ground must be at least 35 cm.
The swing set must be periodically inspected – at least every 3 months and after the winter period. The construction must be inspected for any damage and attack of rot. The  swing set and screws should be checked for stability and tightened if necessary. Swing clamps, swing seat, ropes and other accessories should be checked for wear and  replaced if necessary. If the discovered defects can not be repaired the swing set should be taken down and removed.
All moving metal parts should be lubricated regularly. All screws and sharp edges must be checked and replaced if necessary.

Installation of swing seats

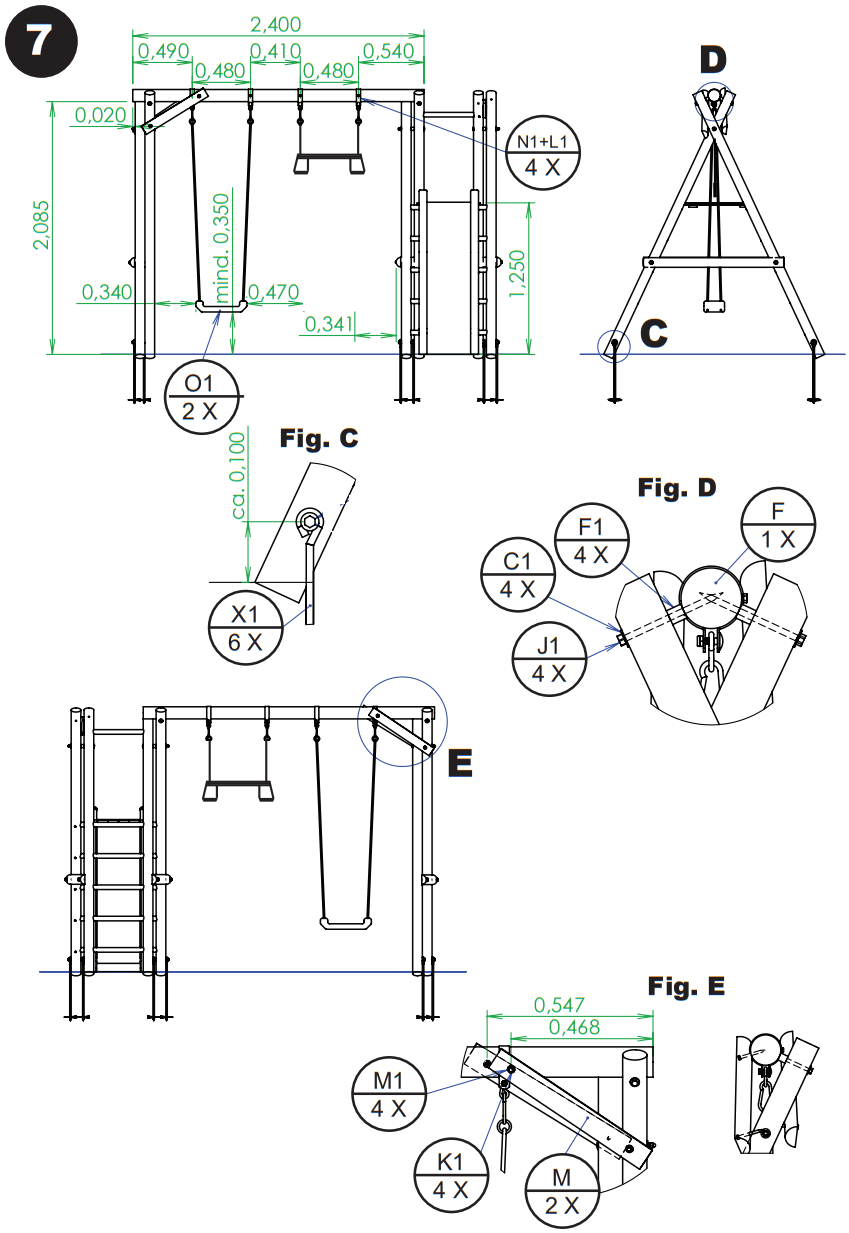

1. Install the swing seats to the swing clamps of the swing set.
   NOTE! The swing next to the slide section must be a trapeze swing with short ropes.
2. Adjust the ropes.
3. The distance between the swing seat (P1) and the ground should be at least 35 cm.
4. The distance between an accessory and the frame, should be at least 30 cm.
5. The distance between the swing clamps should be 45 cm.
6. The distance between swinging accessories, should be 45 cm.
7. Check the swing seats has been installed correctly by hanging in the rope few seconds.
8. Follow the manual for inspection and maintenance.

Warnings!
Only for domestic use.
Only for outdoor use.
Maximum user weight is 50 Kg.
Suitable for children from 3-10 years.
Maximum number of users is 2.

General safety instructions:

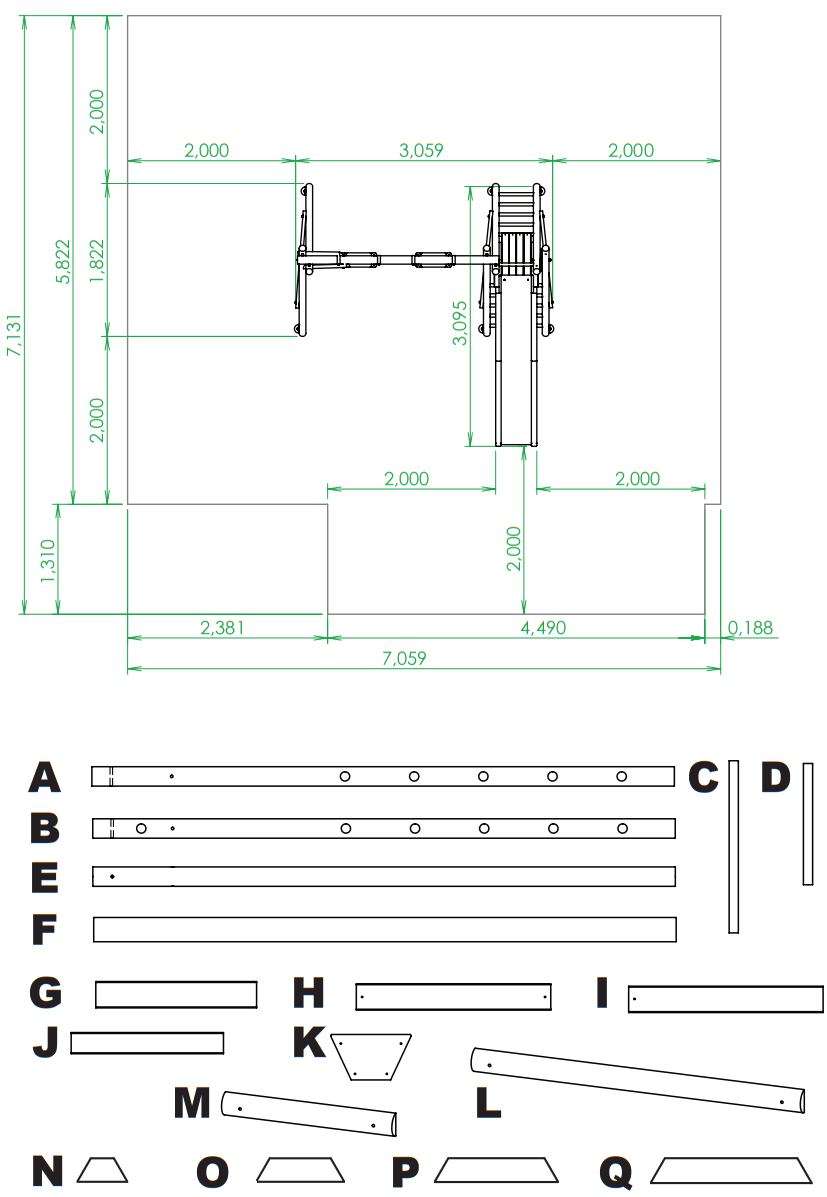

• The safe play area refers to a zone extending 200 cm beyond the play set on all sides. The safe play zone in front of and behind a swinging accessory is 200 cm.
• The safe play area must be free of all structures, fences, garage, house, overhanging branches, laundry lines, electrical wires and other obstacles to ensure safe play.
• Do not situate your play set in the directions of walks or gangways.
• The ground surface must be level. Installing your play set on sloping ground can cause it to lean or “rack”. This leaning puts additional stress on all connections and  joints and in time will cause those connections to loosen and fail.
• Do not install your play set over concrete, gravel asphalt, packed earth, or any other hard surface. A fall onto a hard surface can result in serious injury.
• The following is a list of recommended ground covers.

Safe play:

• On site adult supervision must be provided for children of all ages and at all times.
• Teach the children to play safe.
• Dress children appropriately. Avoid accessories, clothing with drawstrings, loose fitting clothes and stringed items placed
• around the neck, which could become entangled or snagged on equipment. Also bike helmets should be taken off before playing on playground equipment.
• Last but not at least: use common sense to avoid any possible unsafe situations.
• Equipment should not be played upon in wet weather conditions because of potentially slippery surfaces and in periods of frost, even the softest pavement can change  into a very hard surface.
• Accessories should be removed and taken indoors when temperatures drop below 0°C
• Using the playground or the accessories in any other manner than the way intended could lead to damage or injury. Do not
• twist or wrap swings, chains ropes or any other accessories. Twisting will reduce the strength of the accessories and may cause entrapment.
  Caution children no to:
• Jump off swings while they are in motion.
• Swing empty seats or other empty accessories.
• Swing at an angle.
• Hang upside down from any part of the gym set.
• Grasp or stop another child on any moving equipment.
• Walk close to, in front of, between, or behind moving accessories. seat should be allowed.
• Climbing or hanging on the frame of the play set must not be permitted. Serious injuries can be result from fails.
• Caution children to sit in centre of the swings with their full weight on the seats. Only one child per each planned occupant

Inspection and maintenance:

• To ensure the safety of the users of the play set, the play set has to be subjected to the safety inspections mentioned below once at the beginning of each season and  further twice monthly during the usage season.
• Check all hardware to be sure it is tight. Caution: overtightened hardware crushes the fibres of the wood resulting in split boards.
• Check the remaining hardware, brackets and swing clamps also for rust, which can have effect on the strength. Replace when necessary.
• Check the ground anchors to be sure that they are secured. If necessary, reposition or replace.
• Check all coverings for bolts and sharp edges and replace when required.
• Check swing seats and bars for integrity and check swing ropes for fraying or extreme creation of fibre. To examine the rope , open the strands of the rope there where  the fraying occurred and securely check whether the filaments are broken.
• All accessories can be cleaned with warm water and a mild detergent.
• Check the environment for direct danger like overhanging branches, laundry lines and loose materials.
• Check the play sets stability.

Customer responsibilities:

• It is the customer´s responsibility to perform regular inspections and maintenance to ensure that the product is not prematurely ageing. These inspections and  maintenance are mentioned in this manual.
• The customer has to take all precautions to safeguard the safety of the children.

Imported by / Importee af
NSH NORDIC A/S
Virkefeltet 4
DK-8740 Brædstrup
