KEY STEP-UP FEATURES

UNDERSTAND THE MODEL NUMBERS

Use this handy tool to decode the model numbers for KitchenAid brand refrigeration lineup.

KRFF577KPS
BRAND
K : = KitchenAid®

KRFF577KPS
PLATFORM
R : = Freestanding Refrigerator

K RFF577KPS
CONFIGURATION
B = Bottom-Freezer (2 Door)
F = French Door (3 Door)
M = Multi-Door (4+ Door)
S = Side-by-Side

KRFF577KPS
SUITE LEVEL
C : = Counter Depth
F : = Full Depth
R : = Right-Swing Door
L : = Left-Swing Door

KRFF577KPS
FEATURE LEVEL
XX = The higher the number the more features.

KRFF577KPS
WIDTH
0 : = 20 cu. ft.
2 : = 22 cu. ft.
3 : = 23 cu. ft.
4 : = 24 cu. ft.
5 : = 25 cu. ft.
6 : = 26 cu. ft.
7 : = 27 cu. ft.
9 := 19 cu. ft.

KRFF577KP S
YEAR OF LAUNCH
E : = 2015
H : = 2018
K : = 2020
M : = 2022

KRFF577KP S
COLOR
WH : = White
BS : = Black Stainless
PA : = Panel-Ready
PS : = Stainless Steel with PrintShield™ Finish
SS : = Stainless Steel

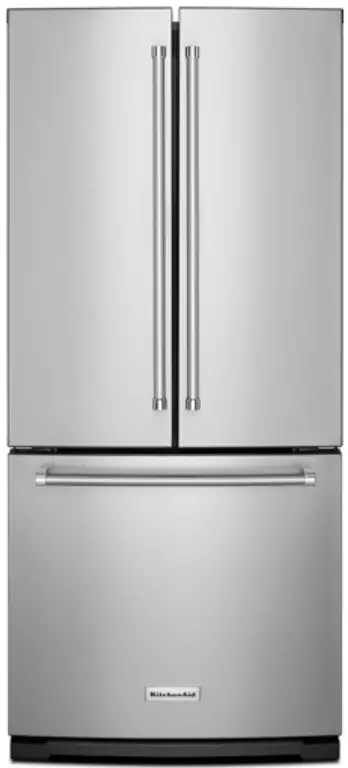

KRFF300E

• 20 cu. ft. / 30″ Wide
• LED Lighting
• Interior Water Dispenser
• Automatic Ice Maker
• ExtendFresh™ Temperature Management System
• Produce Preserver
• FreshChill™ Temperature-Controlled Full-Width Pantry

KRFF302E

• 22 cu. ft. / 33″ Wide
• LED Lighting
• Interior Water Dispenser
• Automatic Ice Maker
• ExtendFresh™ Temperature Management System
• Produce Preserver
• FreshChill™ Temperature-Controlled Full-Width Pantry
• Slide-Away Split Shelf
• Metal Wine Rack
• ENERGY STAR® Certified

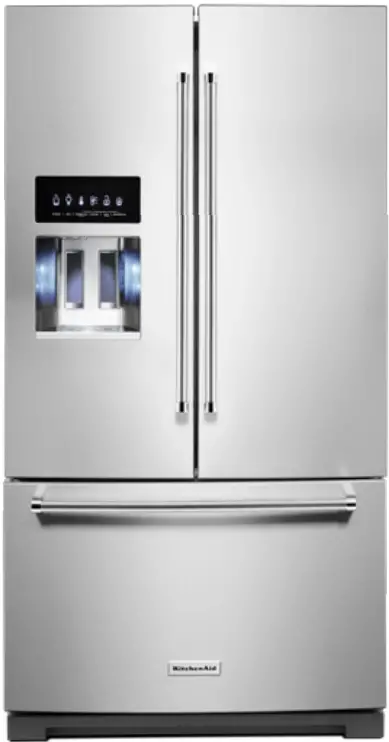

KRFF577K

• 27 cu. ft. / 36″ Wide
• LED Lighting
• In-Door-Ice® System
• FreshChill™ Temperature-Controlled Full-Width Pantry
• ExtendFresh™ Temperature Management System
• Platinum Interior Design
• SatinGlide® Crispers and Pantry
• Sliding Storage Tray with Wood-Look Finish
• 2-Tier Freezer Drawer
• ENERGY STAR® Certified

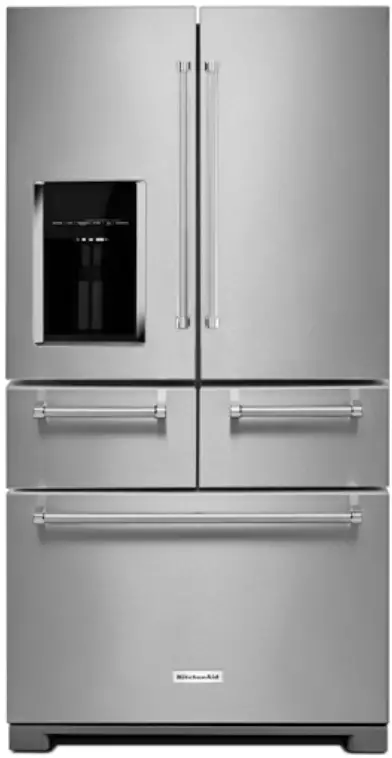

KRMF706E

• 6 cu. ft. / 36″ Wide
• LED Lighting
• In-Door-Ice® System
• Preserva® Food Care System
• Platinum Interior Design
• SatinGlide® Crispers
• 2 Soft-Close Drawers
• 3-Tier Freezer Drawer with Storage Divider
• 5-Door Configuration

COUNTER DEPTH DESIGNS

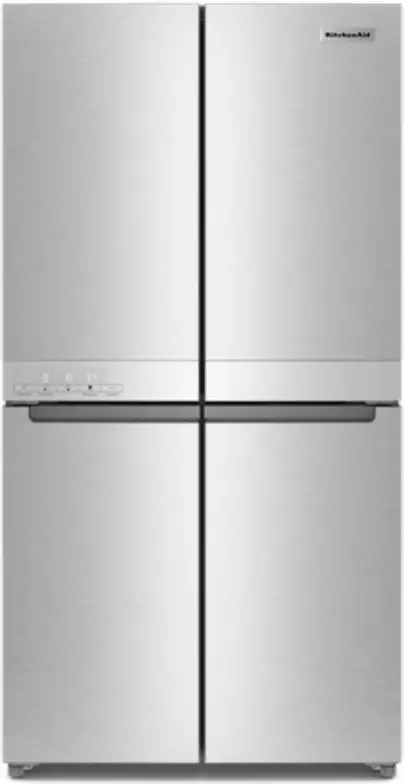

KRQC506M

• 19.4 cu. ft. / 36″ Wide
• LED Lighting
• Automatic Ice Maker with included ice scoop
• ExtendFresh™ Temperature Management System
• Wood-Look Sliding Storage Tray
• Counter Depth Design
• 4-Door Design
• Custom Freeze Zone
• ENERGY STAR® Certified
• ADA Complian

KRFC300E

• 20 cu. ft. / 36″ Wide X 69″ Tall
• LED Lighting
• Interior Water Dispenser
• Automatic Ice Maker
• ExtendFresh™ Temperature Management System
• Humidity-Controlled Crispers
• Max Cool
• Metallic Accents on Shelf Trim
• Metal Wine Rack
• ENERGY STAR® Certified

KRFC302E

• 22 cu. ft. / 36″ Wide X 72″ Tall
• ED Lighting
• Interior Water Dispenser
• Automatic Ice Maker
• ExtendFresh™ Temperature Management System
• SatinGlide® System
• Pull-Out Tri-Level Freezer Drawer
• Custom Panels & Handles Required
• Metal Wine Rack

KRFC704F

• 24 cu. ft. / 36″ Wide X 72″ Tall
• Panoramic LED Lighting
• In-Door-Ice® System
• Platinum Interior Design with Premium Wood Finish Accents
• Full-Extension Self-Close FreshSeal™ Crispers
• Full-Extension Self-Close Pantry Drawer
• Full-Extension Self-Close Pull Out Tray
• Under-Shelf Prep Zone
• 3-Tier Self-Close Freezer Drawer with Extend-Freeze Setting

FRENCH DOOR REFRIGERATION

REFRIGERATOR MODEL	KRFF300E	KRFF302E	KRFF577K	KRMF706E
CAPACITY (CU. FT.)	20.0	22.0	26.8	25.8
AVAILABLE COLORS	SS	SS, B	PS, BS	SS, BS
TYPE	French Door	French Door	French Door	French Door
DESIGN FEATURES
ENERGY STAR® CERTIFIED		•	•	•
LED LIGHTING	•	•	•	•
PRINTSHIELD™ FINISH			•
WATER DISPENSER	Interior	Interior	Exterior	Exterior
WATER FILTER LOCATION	Interior	Interior	Interior	Interior
CONTROL FEATURES
DOOR ALARM	•	•	•	•
CONTROL LOCATION	Interior Up Front	Interior Up Front	Exterior E	Exterior E
CONTROL LOCKOUT
MAX COOL	•	•	•	•
SABBATH MODE				•
WATER FILTER STATUS INDICATOR	•	•	•	•
PERFORMANCE FEATURES
AUTOMATIC DEFROST		•	•	•
ADJUSTABLE SPILL-RESISTANT GLASS SHELVE	•	•	•
AUTOMATIC ICE MAKER	Factory Installed	Factory Installed	Factory Installed	Factory Installed
DISPENSER LIGHT		•	•
EXTENDFRESH™ TEMPERATURE MANAGEMENT SYSTEM	•	•	•	•
FRESHCHILL™ TEMPERATURE CONTROLLED FULL-WIDTH PANTRY	•	•	•
HUMIDITY-CONTROLLED CRISPER	•	•	•
ICE & WATER DISPENSER			•	•
IN-DOOR-ICE® SYSTEM	•			•
MEASURE FILL				•
METAL WINE RACK		•		•
PIZZA POCKET – FREEZER			•
PULL OUT TRAY	•	•		•
PRESERVA® FOOD CARE SYSTEM			•
PRODUCE PRESERVER	•			•
SATINGLIDE® SYSTEM WITH SOFT-CLOSE	•	•		•
SLIDE-AWAY SPLIT SHELF		•	•
DIMENSIONS
HEIGHT X WIDTH X DEPTH (INCLUDING HANDLE)	68-3/8″ X 30-1/8″ X 34-7/8″	70-1/8″ X 32-7/8″ X 34-1/2″	70″ X 35-15/16″ X 35-15/16″	70-1/8″ X 36″ X 36-1/4″

SPECIFICATIONS

REFRIGERATOR MODEL	KRFF300E	KRFF302E	KRFF577K	KRMF706E
CAPACITY (CU. FT.)	20.0	22.0	22.0	25.8
AVAILABLE COLORS	PS	WH, SS, BS	SS, BS, PA	PS, BS
TYPE	4-Door	4-Door	4-Door	4-Door
DESIGN FEATURES
ADA COMPLIANT		•	•	•
LED LIGHTING	•	•	•	•
ENERGY STAR® CERTIFIED			•
WATER DISPENSER	Interior	Interior	Exterior	Exterior
WATER FILTER LOCATION	Interior	Interior	Interior	Interior
CONTROL FEATURES
DOOR ALARM	•	•	•	•
CONTROL LOCATION	Interior Up Front	Interior Up Front	Exterior E	Exterior E
CONTROL LOCKOUT
MAX COOL	•	•	•	•
SABBATH MODE				•
WATER FILTER STATUS INDICATOR	•	•	•	•
PERFORMANCE FEATURES
AUTOMATIC DEFROST		•	•	•
ADJUSTABLE SPILL-RESISTANT GLASS SHELVE	•	•	•
AUTOMATIC ICE MAKER	Factory Installed	Factory Installed	Factory Installed	Factory Installed
DISPENSER LIGHT		•	•
EXTENDFRESH™ TEMPERATURE MANAGEMENT SYSTEM	•	•	•	•
FRESHCHILL™ HUMIDITY-CONTROLLED CRISPER	•	•	•
ICE & WATER DISPENSER	•	•	•
IN-DOOR-ICE® SYSTEM			•	•
METAL WINE RACK	•			•
PIZZA POCKET – FREEZER				•
PULL OUT TRAY		•		•
PULL-OUT TRI-LEVEL FREEZER DRAWERPULL-OUT TRI-LEVEL FREEZER DRAWER			•
PRESERVA® FOOD CARE SYSTEM	•	•		•
PPRODUCE PRESERVER			•
SLIDE-AWAY SPLIT SHELF	•			•
3-TIER SELF-CLOSE FREEZER DRAW	•	•		•
UNDER-SHELF PREP ZONE		•	•
DIMENSIONS
HEIGHT X WIDTH X DEPTH (INCLUDING HANDLE)	69″ X 36″ X 24″	70-1/8″ X 35-3/4″ X 29-3/8″	72″ X 35-3/4″ X 30-1/4″	71-7/8″ X 35-13/16″ X 31-1/2
