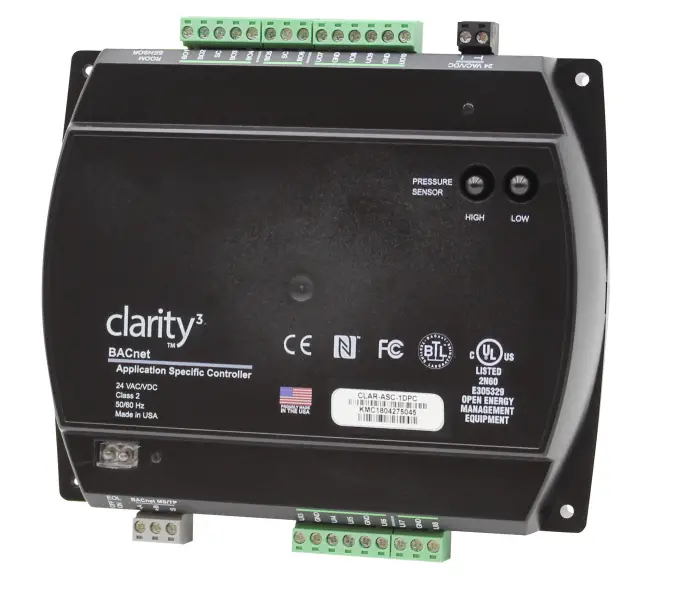

Taco CLAR-ASC-1 Clarity 3 Programmable Controller

DESCRIPTION

Taco Clarity3™ ASC series controllers are designed to operate unitary and terminal equipment. The integrated alarming, scheduling, and trending enable these BACnet Advanced Application Controllers to be powerful edge devices for the modern smart building ecosystem.
The factory-supplied programming covers common unitary applications. The controllers feature simple, menu-driven setup choices using an NS-100/200series digital sensor, which can be installed permanently as the room sensor or used temporarily as a technician’s service tool.
Alternately, quick configuration of controller properties can be done using NFC (Near Field Communication) from a smart phone, tablet, or computer (using TacoVision Lite™ app) while the controller is unpowered.
The Ethernet-enabled models can also be configured by connecting an HTML5-compatible web browser to the built-in configuration web pages.
To meet the most demanding building automation custom requirements, these controllers are also fully programmable. Custom configuration and programming, with wizards for application programming selection/configuration, are enabled by Taco Vision software.
The Taco Programming software additionally provide the capability of creating custom graphical web pages (hosted on a remote web server) to use as a custom user-interface for the controllers.

APPLICATIONS

Can be used with the following types of unitary equipment:

• Air handling units (AHU)
• Chilled beams
• Constant air volume (CAV) with external actuator
• Fan coil units (FCU)
• Heat pump units (HPU)
• Roof top units (RTU)
• Unit ventilators
• Variable air volume (VAV) with external actuator
  (Some applications require custom programming. See also Sample Installation on page 5.)

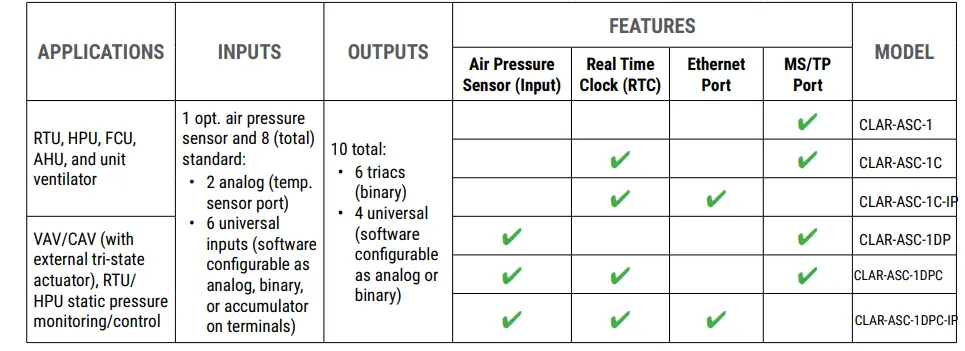

MODELS

SPECIFICATIONS

Inputs and Outputs

Inputs, Universal (6 on Terminal Blocks)

• Universal inputs Configurable as analog, binary, or accumulator objects
• Termination 1K and 10K ohm sensors, 0–12 VDC, or 0–20 mA (without need for an external resistor)
• Resolution 16-bit analog-to-digital conversion
• Protection Overvoltage protection (24 VAC, continuous)
• Wire size 12–24 AWG, copper, in removable screw terminal blocks

Input, Dedicated Room Sensor Port

• Connector Modular connector for STE-9xx1 series digital wall sensors or STE- 6010/6014/6017 analog temperature sensors
• Cable Uses standard Ethernet patch cable up to 150 feet (45 meters)

Input, Integrated Air Pressure Sensor (BAC-9311)

• Pressure range 0 to 2″ wc (0 to 500 Pa)
• Sensor accuracy ±4.5% of the reading or (when near zero) 0.0008″ wc (0.2 Pa), whichever is greater (@ 25° C); internally linearized and temperature compensated
• Connections Barbed for 1/4 inch FR tubing

Outputs, Universal (4 on Terminal Blocks)

• Universal outputs Configurable as an analog (0 to 12 VDC) or binary object (0 or 12 VDC, on/off)
• Power/protection Each short-circuit protected universal output capable of driving up to 100 mA (at 0–12 VDC) or 100 mA total for all outputs
• Resolution 12-bit digital-to-analog conversion
• Wire size 12–24 AWG, copper, in removable screw terminal blocks

Outputs, Triac (6 Binary)

• Triac outputs Optically isolated zero-crossing triac output configured as a binary object
• Power Maximum switching 24 VAC at 1.0 A for each output; maximum total for controller is 3.0 A
• Wire size 12–24 AWG, copper, in removable screw terminal blocks

Communication Ports

• MS/TP (optional) One EIA-485 port (removable terminal block) for BACnet MS/TP, operating at 9.6, 19.2, 38.4, 57.6, or 76.8 kilobaud; max. length of up to 4,000 feet (1,200 meters) of 18 AWG shielded twisted-pair, no more than 51 pf/ft (167 pf/m); use repeaters for longer distances Ethernet (optional) On “E” models only, two 10/100BaseT Ethernet connectors for BACnet IP, Foreign Device, and Ethernet 802.3 (ISO 8802-3); segmentation supported; up to 328 ft (100 m) between controllers (using T568B Category 5 or better cable)
• NFC NFC (Near Field Communication) up to 1 inch (2.54 cm) from the top of the enclosure
• Room sensor Modular STE connection jack for STE-9000 series digital sensors and STE-6010/6014/6017 analog sensors
• Auxiliary One serial port with mini Type B connector (reserved for future use)

Configurability

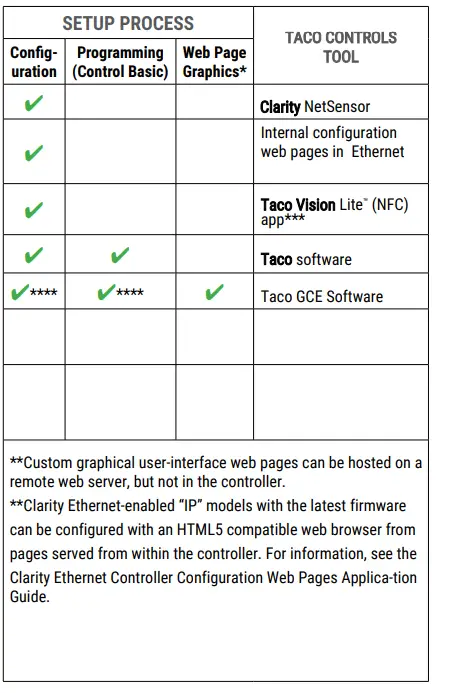

Configuring, Programming, and Designing

Hardware Features

Processor, Memory, and Clock

• Processor 32-bit ARM® Cortex-M4
• Memory Programs and configuration parameters are stored in nonvolatile memory; auto restart on power failure
• RTC Real time clock with (capacitor) power backup for 72 hours (“C” model only) for network time synchronization or full stand-alone operation

Indicators and Isolation

• LED indicators Power/status and MS/TP communication or Ethernet status
• MS/TP bulbs One network bulb assembly indicates reversed polarity and isolates circuit
• Switch EOL (end of line) for MS/TP

Installation

Power

• Supply voltage 24 VAC (50/60 Hz) or 24 VDC; –15%, +20%; Class 2 only; non-supervised (all circuits, including supply voltage, are power limited circuits)
• Required power 8 VA, plus external loads
• Wire size 12–24 AWG, copper, in a removable screw terminal block

Enclosure and Mounting

• Weight 14 ounces (0.4 kg)
• Case material Green and black flame retardant plastic
• Mounting Direct mounting to panels or on DIN rails

Environmental Limits

• Operating 32 to 120° F (0 to 49° C)
• Shipping –40 to 160° F (–40 to 71° C)
• Humidity 0 to 95% relative humidity (non‑condensing)

Warranty, Protocol, and Approvals

Warranty
Taco Limited Warranty 5 years (from mfg. date code)

BACnet Protocol

• Standard: Meets or exceeds the specifications in ANSI/ASHRAE BACnet Standard 135-2010 for Advanced Application Controllers
• Type: BTL-certified as a B-AAC controller type

Regulatory Approvals

• UL UL 916 Energy Management Equip-ment listed
• CE CE compliant
• RoHS 2 RoHS 2 compliant (pending)
• FCC FCC Class A, Part 15, Subpart B and complies with Canadian ICES-003 Class A*

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (NFC operation meets FCC compliance while the controller is in an unpowered state.)

ACCESSORIES

NOTE: For accessory details, see the respective product data sheets and installation guides.

Network Communications

Room Sensors, Analog

• CLAR-RS-W Temperature sensor, white
• CLAR-RS-W-SP Sensor with rotary setpoint dial, white Sensor with rotary setpoint dial and
• CLAR-RS-W-SP/OR  override button, white

Room Sensors, Digital (LCD Display)

• NS-100/200 Series Taco Clarity NetSensor digital room temp. sensors for viewing and configuration and optional humidity, occupancy, and CO2 sensing (see STE-9000 series data sheet for op-tions)
• HPO-9001 NetSensor distribution module (future release)

SUPPORT

Additional resources for installation, configuration, application, operation, programming, upgrading, and much more are available on the web at www.tacocomfort.com.

© 2022 Taco Comfort Solutions Specifications and design are subject to change without notice
