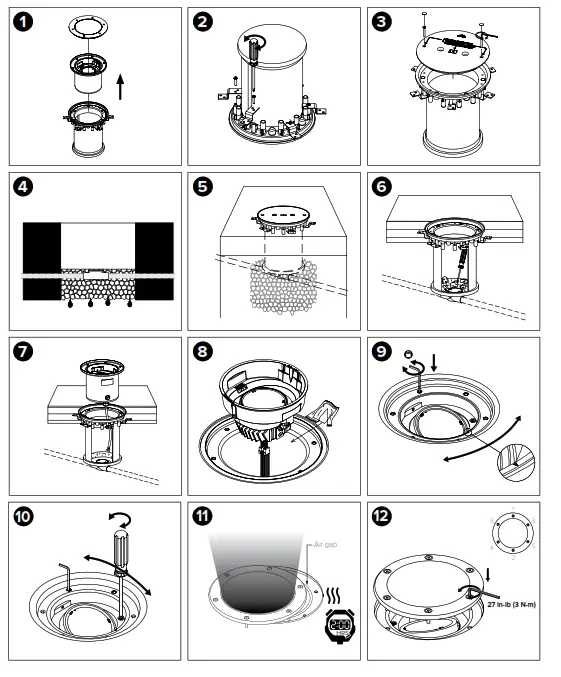

5 Assembly Instructions

6 Wiring Designations

7 Dimensions

8 Documents / Resources

9 Related Posts

LS3060 Evoca In-ground Luminaire

Please read and follow all safety instructions carefully. Failure to do so will void the warranty.
WARNING – Product Warranty is void if the product is not installed as per installation instructions and in compliance with all local and provincial codes.

Ensure installation complies with local electrical rules and regulations.
All electrical work must be performed by a licensed electrician.
Protective earth; protective ground (symbol 7).
All luminaires may become hot. Use discretion on where the luminaire is mounted. Take care when setting the luminaire as it may become hot.
Luminaire should only be used complete with a protective shield. If the protective shield is cracked, immediately stop using luminaire. Isolate light source, keep it dry and immediately contact Lumascape for replacement of the protective shield (symbol 10).
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by Lumascape or their service agent in order to avoid a hazard.
The light source contained in this luminaire shall only be replaced by Lumascape or its service agent.
Do not stare at the operating light source. The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 26’ (8 m) is not expected (symbol 13)
Basic insulation has been maintained between line voltage and the control conductors.
To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Ensure mains input power is surge protected.
Never make or break connections while the circuit is energized.
Do not make modifications or alter the product.
Keep luminaire clean and free of debris.
Only clean with warm water.
Do not use chemicals or abrasives to clean the luminaire as this may void the product warranty.
Connections are to be kept clean and dry at all times.
Suitable for use indoors or outdoors.

CAUTION Risk of Electric Shock

Pre-Install

MODEL	LS3060
PART NUMBER	LS3060 – 25D xxx x x xx xx 23 x 01 PS LS3060 – 25D xxx x x xx xx 23 x 09 PS
INSTALLATION TYPE	INGROUND/IN-GRADE
IP RATING	IP66/67 (Passes IP68 Test)
SUPPLY VOLTAGE	220-240 ~Vac, 50 Hz 120/277 ~Vac, 60 Hz
INSTRUCTIONS COVER	Single Color Dynamic Color (PowerSync)

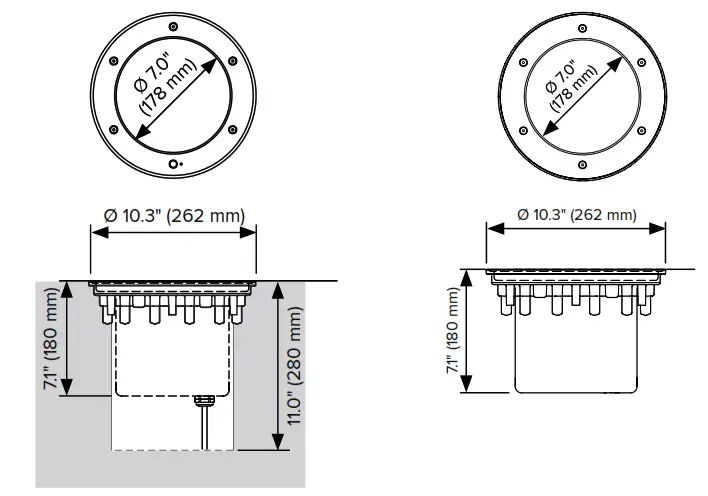

DIMENSIONS (LxWxH)	9.4″ x 7.1 ” (240 x 180 mm)
WEIGHT	8.8 lbs (4.0 kg)
SURFACE TEMPERATURE	< 149 ºF (65 ºC)
STATIC LOAD RATING	9,259 lbs (4,200 kg)

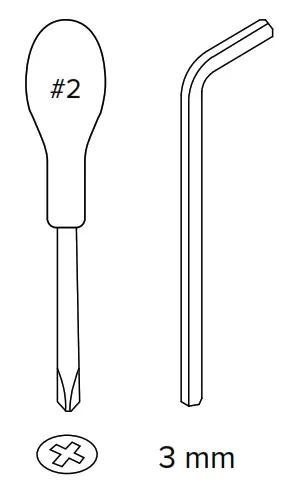

Tools Required

Herramientas necesaria

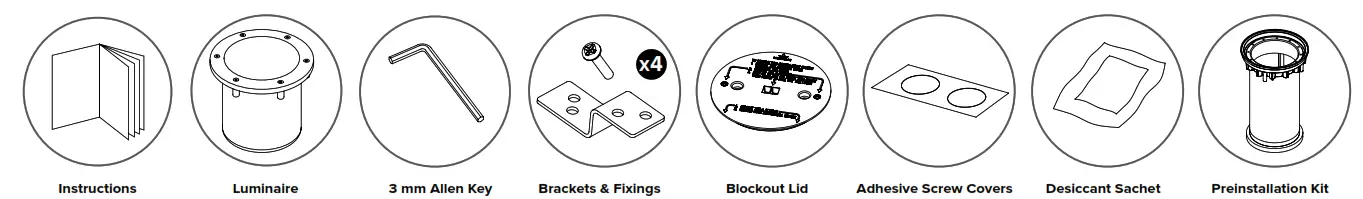

Included Components

Componentes incluidos

	No Downward Force
	Do Not Use Power Tools on Screws
	Keep Electronics Free From Dirt and Moisture
	Do Not Overtighten
	Keep Away from Flammable Materials
	Do Not Hose or Pressure Clean
	Do Not Use Silicone On Outside Surface
	Do Not Cut Cable to the Luminaire
