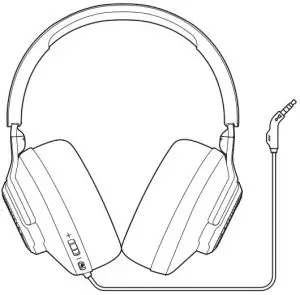

JBL Quantum 100 Headset User Guide
WHAT’S IN THE BOX
- JBL quantum100 headset
- REMOVABLE MIC
- Windshield foam for boom microphone
- QSG | WARRANTY CARD | WARNING CARD

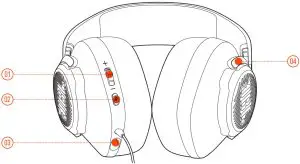

OVERVIEW
- 01 Volume Control
- 02 Microphone Mute/unMute
- 03 2.5mm jack for boom microphone
- 04 Flat-fold ear cup
SETUP
MICROPHONE
TECH SPEC
Driver size: 40 mm Dynamic drivers
Frequency response: 20 Hz – 20 kHz
Max input power: 20 mW
Sensitivity: 96 dB @ 1 kHz / 1 mW
Impedance: 32 ohm
Microphone frequency response: 100 Hz – 10 KHz
Microphone sensitivity: -42 dBV @ 1 kHz / Pa
Microphone pickup pattern: Directional
Microphone type: Detachable boom
Cable length: 1.2 m
Weight: 220 g
