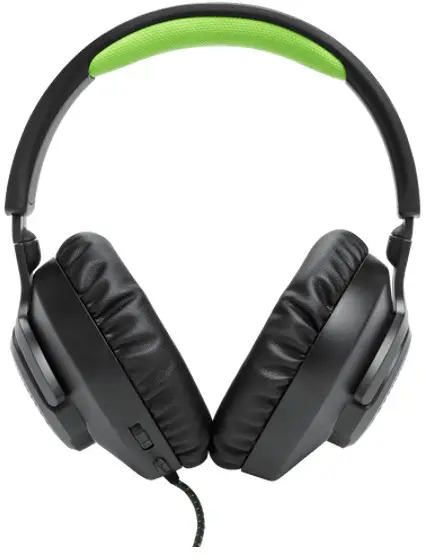

100X Console Wired Over-Ear Gaming Headset
User Guide

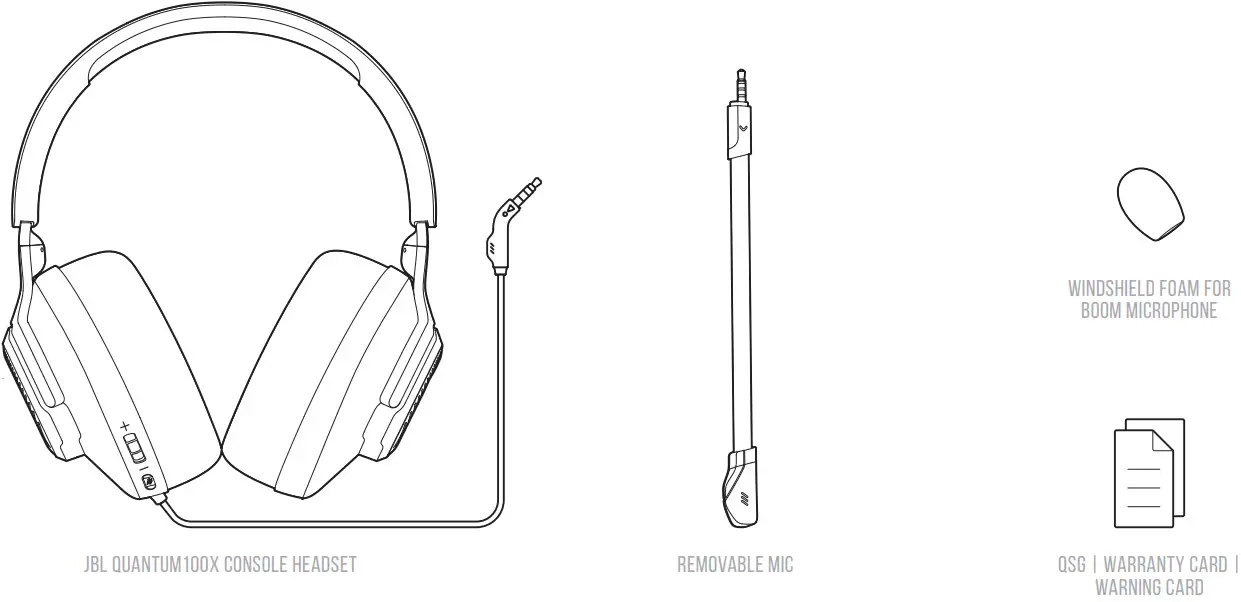

WHAT’S IN THE BOX
https://register.jbl.com/utm_medium=US&utm_source=QSG

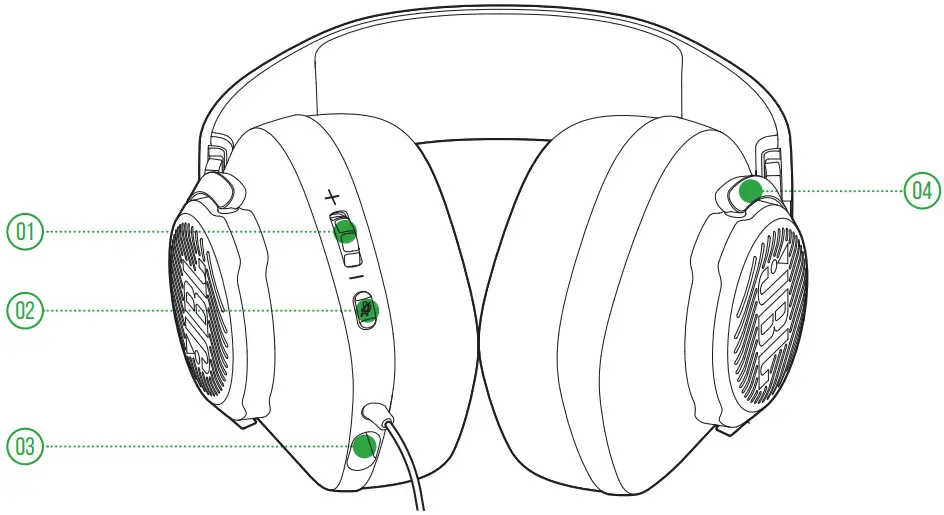

OVERVIEW
Volume Control- Microphone Mute/unMute
- 2.5mm jack for boom microphone
- Flat-fold ear cup

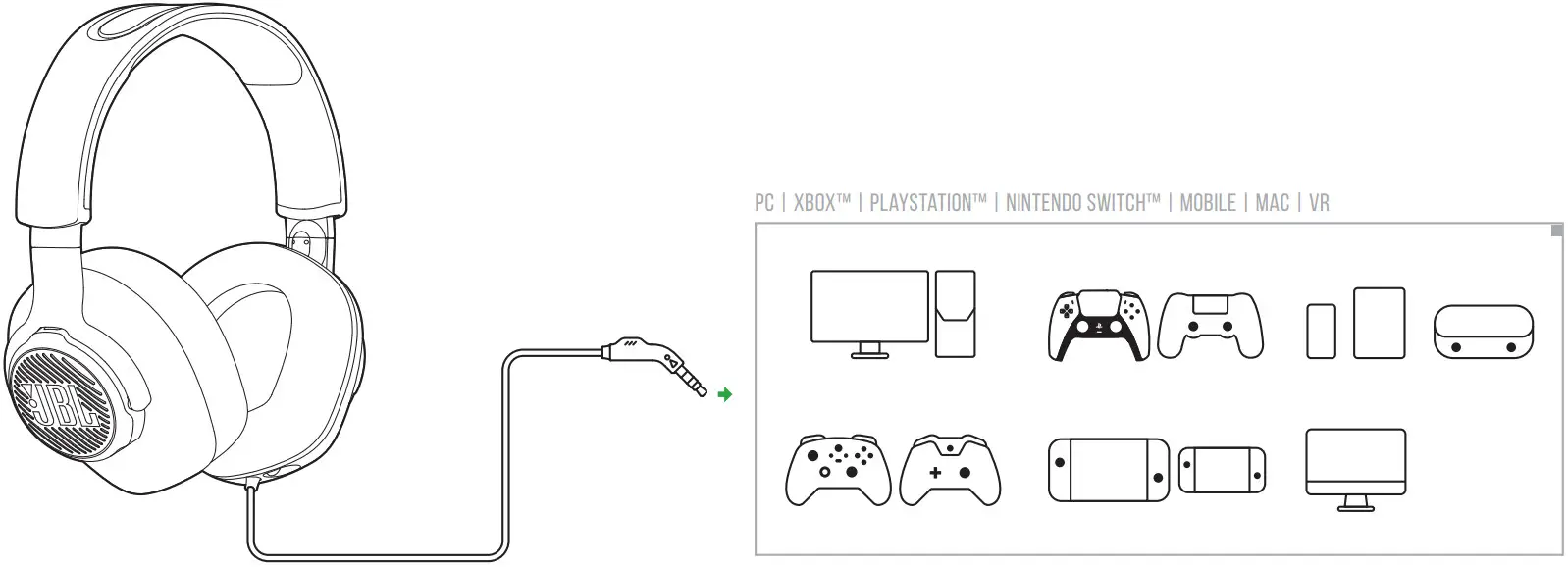

Volume ControlSETUP

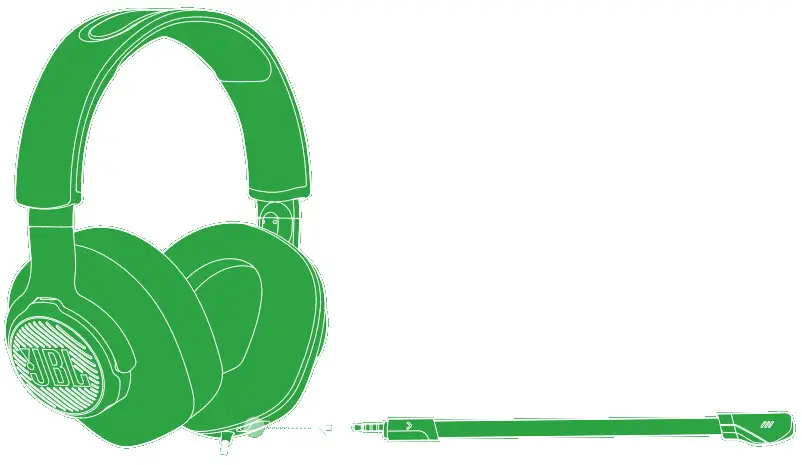

MICROPHONE
TECH SPEC
| Driver size: | 40 mm Dynamic drivers |
| Frequency response: | 20 Hz – 20 kHz |
| Max input power: | 20 mW |
| Sensitivity: | 96 dB @ 1 kHz / 1 mW |
| Impedance: | 32 ohm |
| Microphone frequency response: | 100 Hz – 10 KHz |
| Microphone sensitivity: | -42 dBV @ 1 kHz / Pa |
| Microphone pickup pattern: | Directional |
| Microphone type: | Detachable boom |
| Cable length: | 1.2 m |
| Weight: | 220 g |
JBL_HP_Q100X Console_QSG_SOP_V2
