Jbl Quantum 100 Blauw Wired Over-ear Gaming Headphones User Guide

Jbl Quantum 100 Blauw Wired Over-ear Gaming Headphones User Guide

JBL-logo

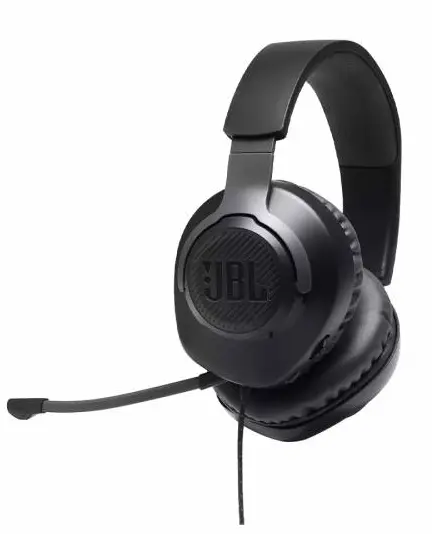

JBL Quantum 100 Blauw Wired Over-Ear Gaming HeadphonesJBL-Quantum-100-Blauw-Wired-Over-Ear-Gaming-Headphones-product

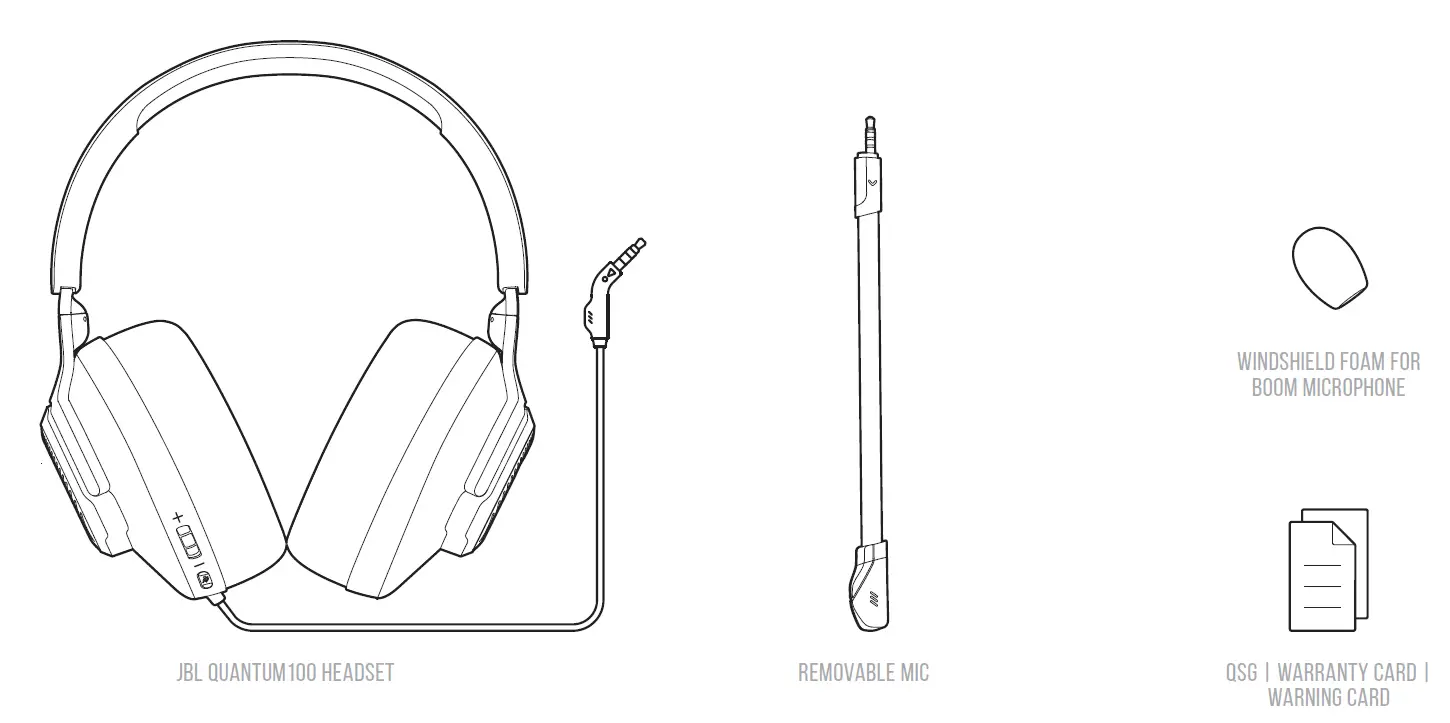

WHAT’S IN THE BOXJBL-Quantum-100-Blauw-Wired-Over-Ear-Gaming-Headphones-fig-1

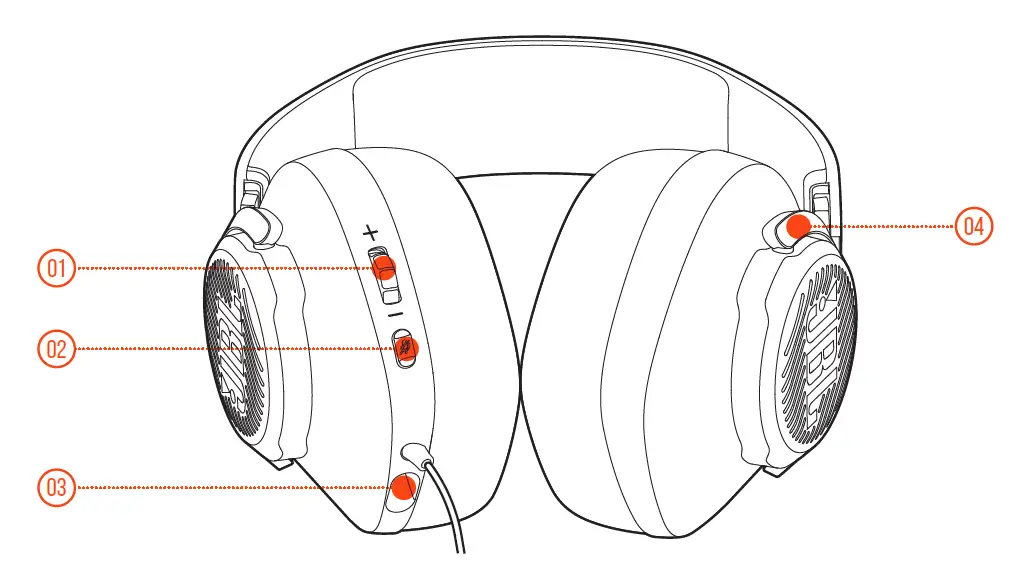

OVERVIEW

  1. Volume Control
  2. Microphone Mute/unMute
  3. 2.5mm jack for boom microphone 04 Flat-fold ear cupJBL-Quantum-100-Blauw-Wired-Over-Ear-Gaming-Headphones-fig-2

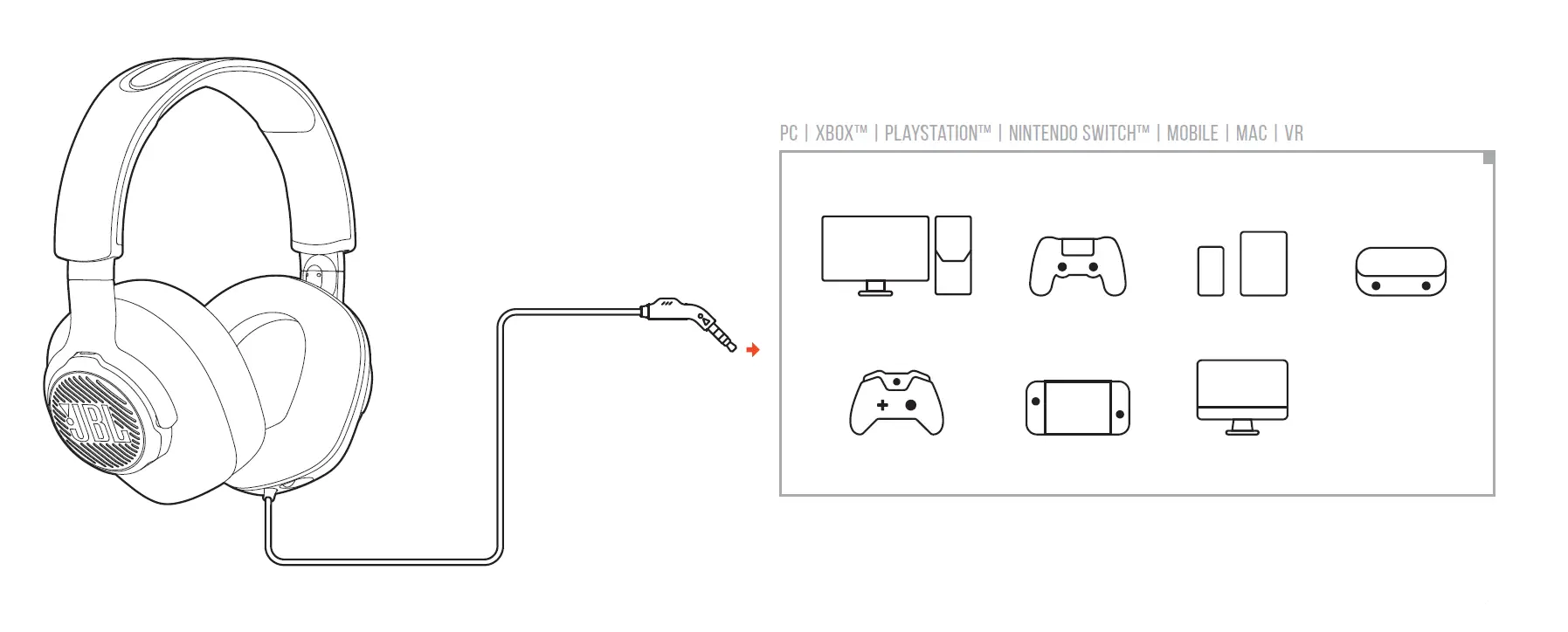

SETUPJBL-Quantum-100-Blauw-Wired-Over-Ear-Gaming-Headphones-fig-3

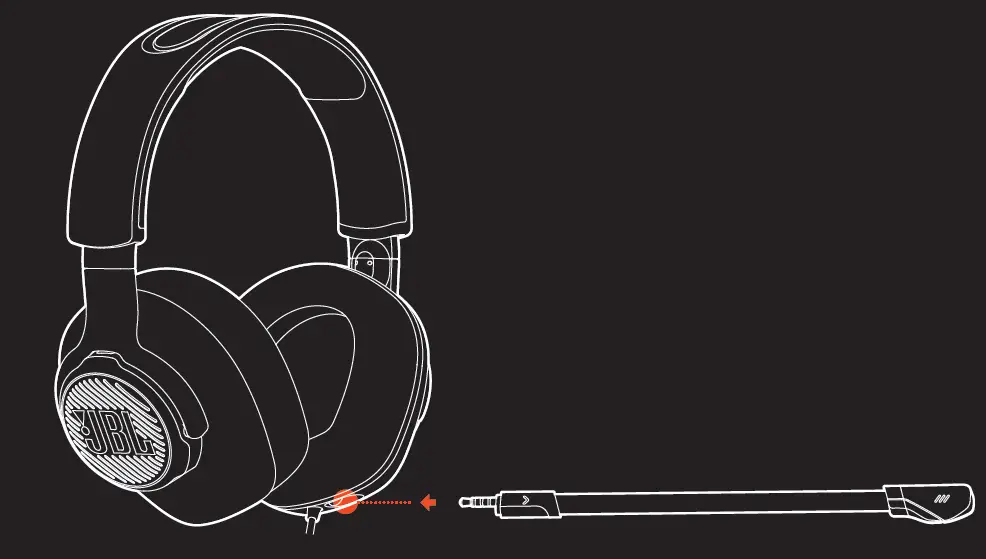

MICROPHONEJBL-Quantum-100-Blauw-Wired-Over-Ear-Gaming-Headphones-fig-4

TECH SPEC

  • Driver size: 40 mm Dynamic drivers
  • Frequency response: 20 Hz – 20 kHz
  • Max input power: 20 mW
  • Sensitivity: 96 dB @ 1 kHz / 1 mW
  • Impedance: 32 ohm
  • Microphone frequency response: 100 Hz – 10 KHz
  • Microphone sensitivity: -42 dBV @ 1 kHz / Pa
  • Microphone pickup pattern: Directional
  • Microphone type: Detachable boom
  • Cable length: 1.2 m
  • Weight: 220 g

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
