NEMO STUDIO UZRO16A20G15 Zirkol O-D LED Pendant

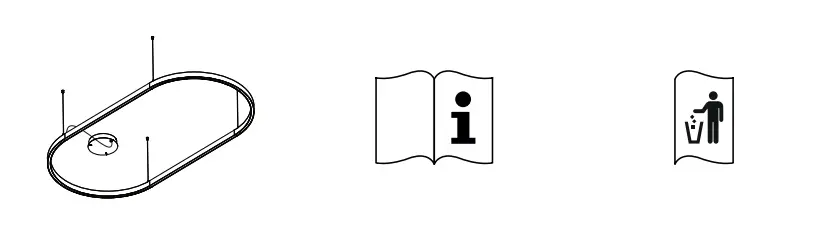

Box contents

Installation

Downlight

• Split
• Electrical cable
• Iron cable

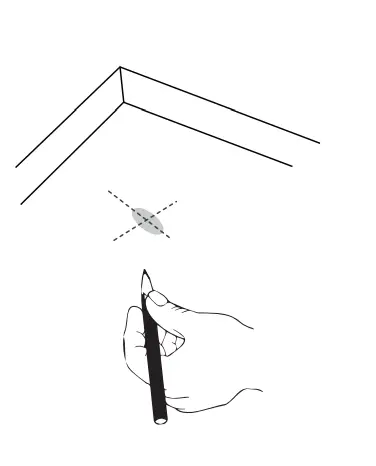

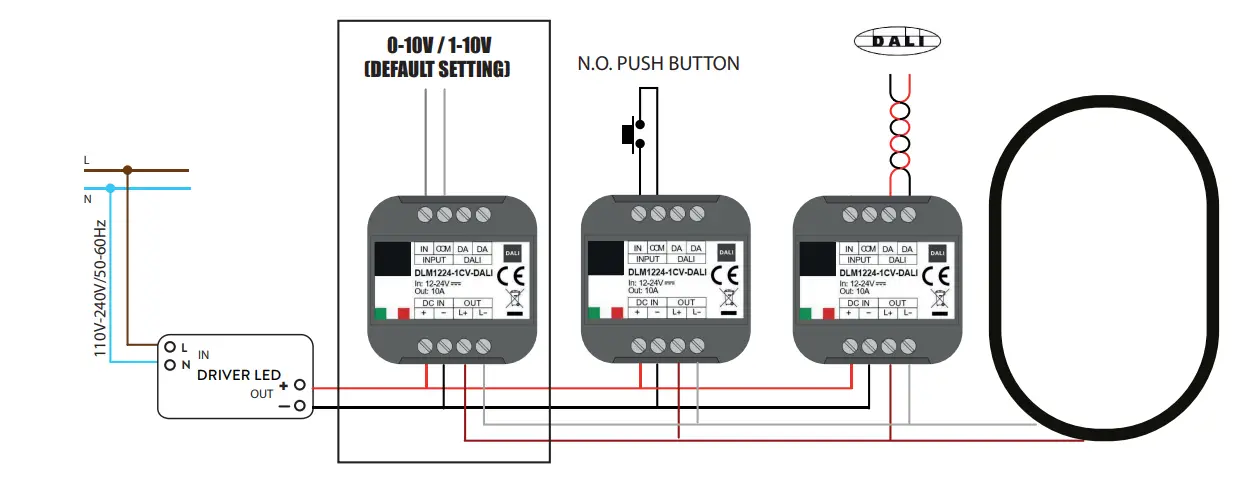

1. Disconnect the electrical power before to install the lamp and draw the suspension points Example of connection

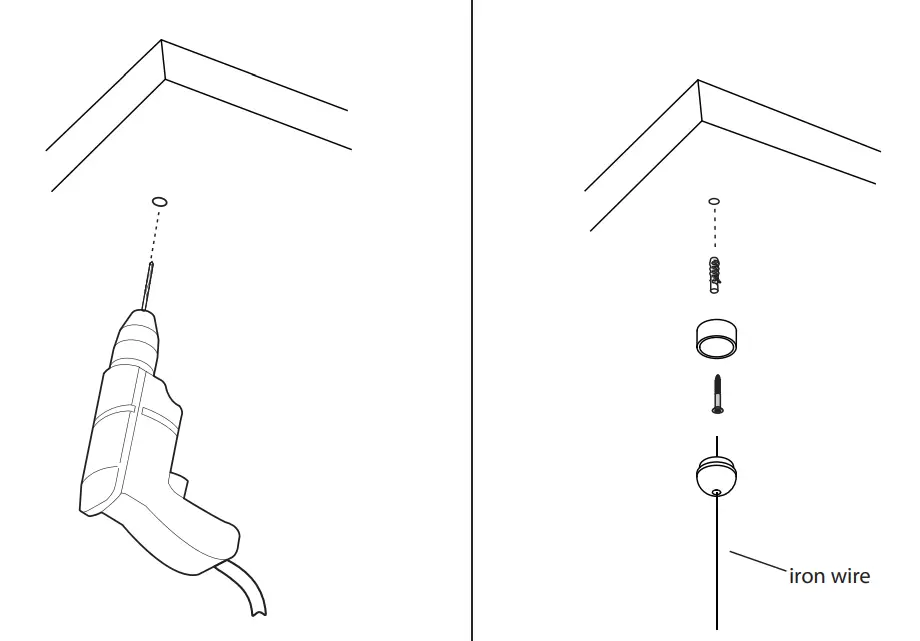

2. Make the holes for the dowels in the correct position
3. Fix the lamp with wall dowels (not included) and the little roses.

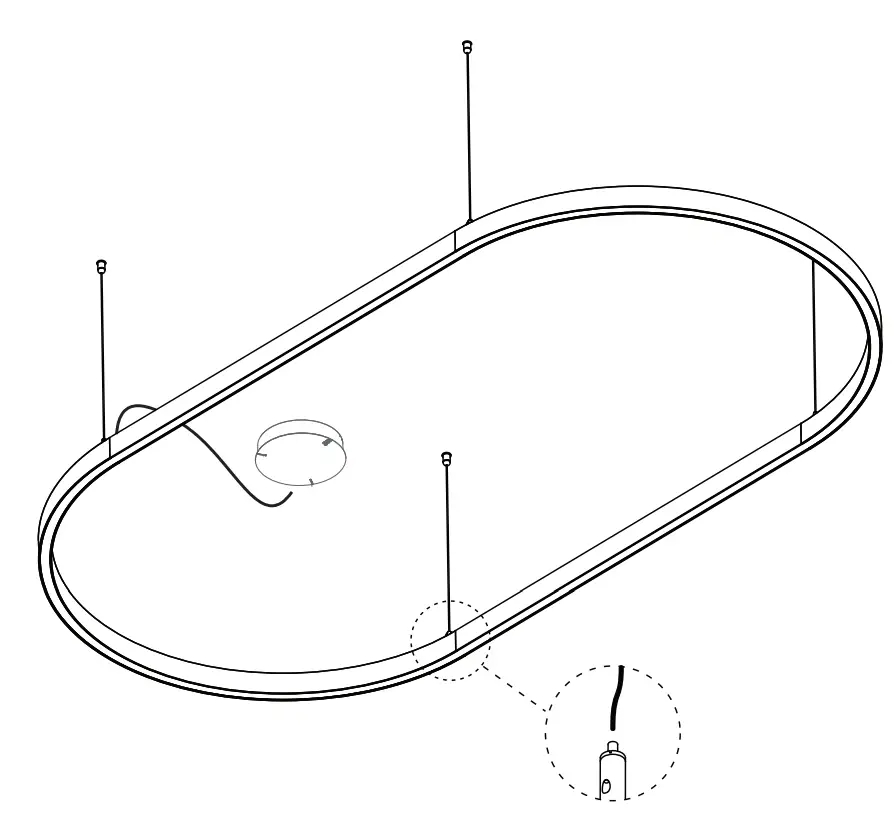

4. Fix the lamp with the wire gripper

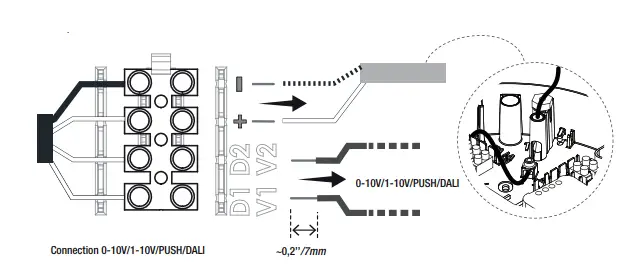

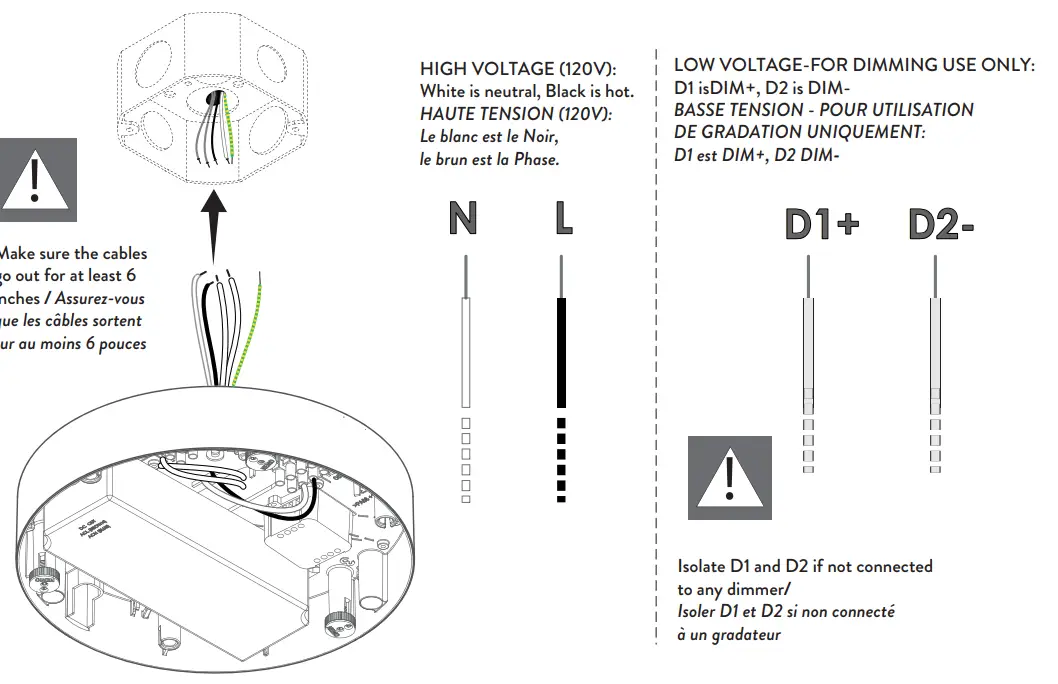

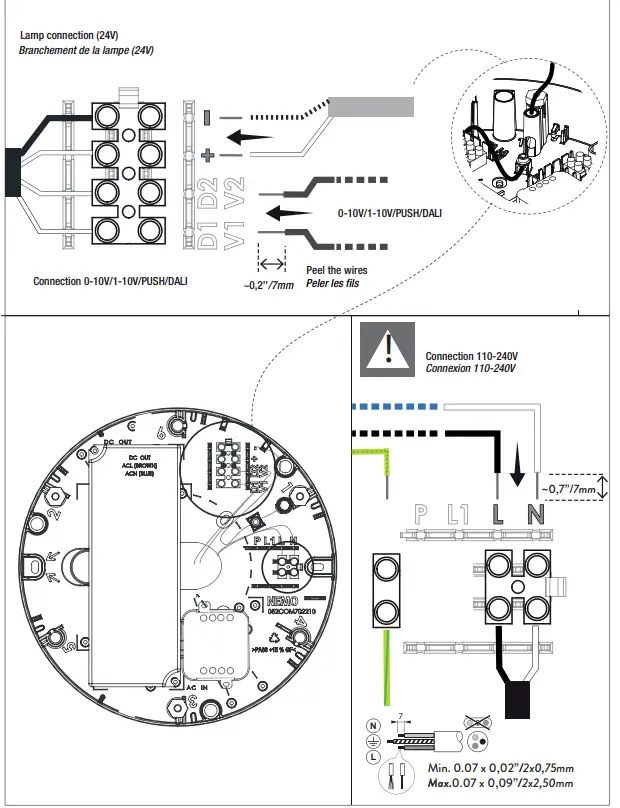

5. Connection to residential wire ( wires that come out from the canopy)

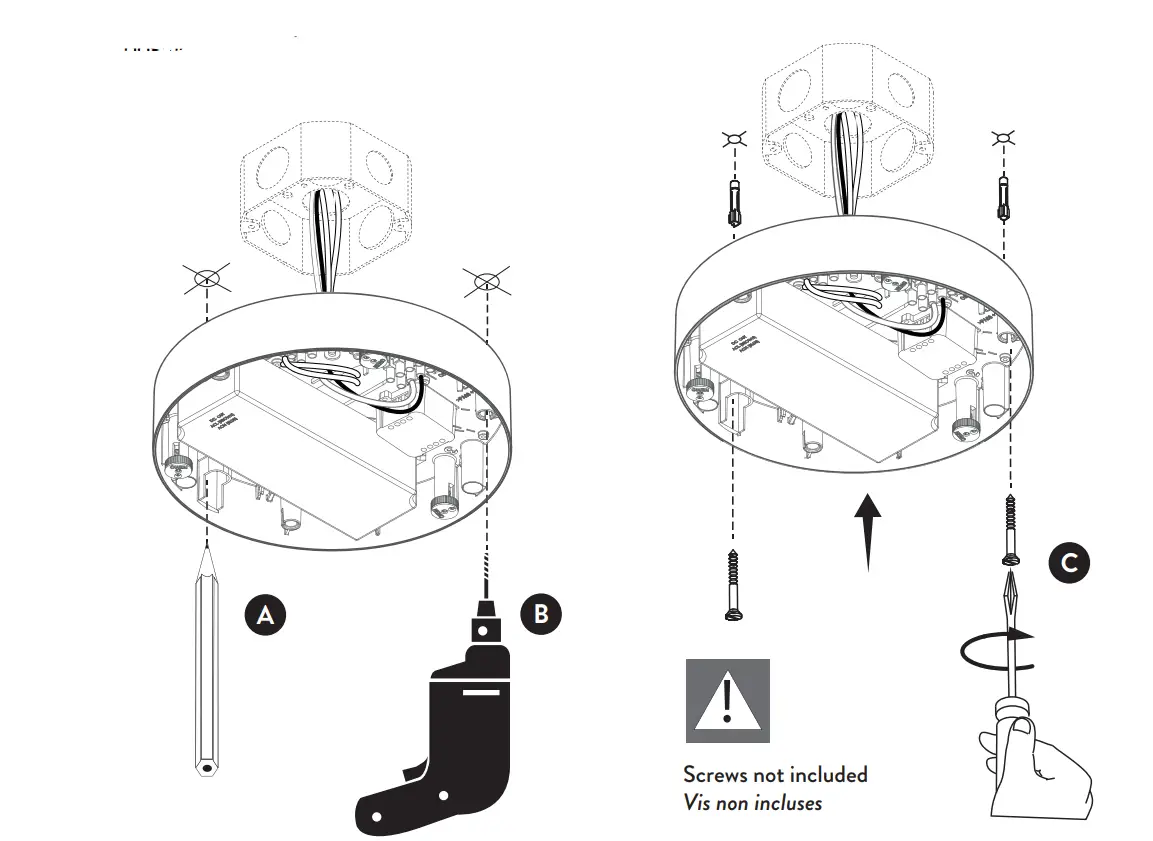

6. Drill the holes for the dowels in the correct position.
7. Insert the power cable in turret 1 of the canopy

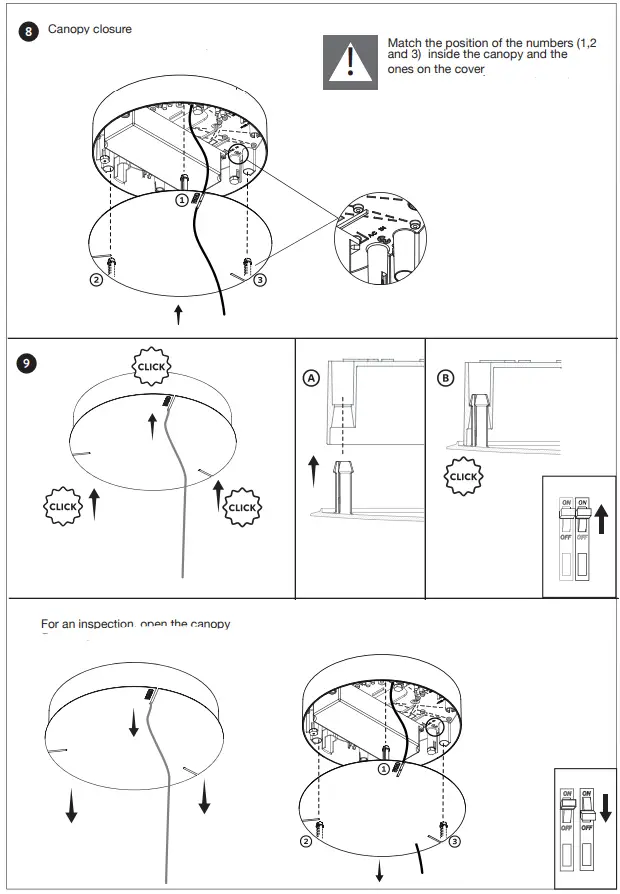

8. Canopy closure
9. Remove electrical cables

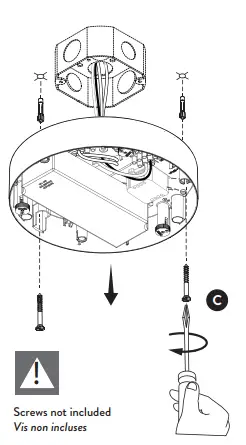

10. Unscrew the canopy

CAUTION
INDOOR LUMINAIRE Installation should be carried out by a suitable quality installer. / Disconnect main voltage before maintenance operation / All wiring and maintenance must be performed with the main switch in the OFF position / Don’t open the luminaire.
Connect the fitting to the power supply only after connecting all LED to the driver (when expected) / In case of failure, upon a return authorization of NEMO Studio, the product will be not either open or dismounted / Make the wiring using a system that guarantees at least the IP grade of the spot. /
Se previsto, use only bulbs of a suitable type and power specified in the label / Do not install fixture in an environment with the presence of chlorine, salt air or aggressive agents, if not expressly mentioned. / The color temperature (CCT) of LED sources can be differ-ent from the declared nom-inal value within a range of ±5%. / NEMO reserves the right to make any technical or formal alterations to its products without giving prior notice, especially for LED sources. / We recommend you to keep instruc-tions for further consultations.

• Remove the dust surface layer with latex gloves and soft electrostatic lint-free cloth.
• Clean with a soft and moist cloth with circular movements.
• Avoid using aggressive detergents. Use only neutral products (PH 7).
  Note: for plastic parts use only antistatic alcohol-free soap. For aluminum parts, clean with a soft cloth.
