NDE Series
NDE80/NDEB/NDEBSi
Service manual

Introduction

This manual contains a complete listing of NDE/NDEB-Series cylindrical lock parts and assemblies manufactured by the Schlage Lock Company. This edition lists components of NDE/NDEB-Series locks manufactured after November 2014.
This manual provides exploded views of each lock chassis and trims assembly with an accompanying chart to identify parts for replacement purposes, along with lock trim ordering procedures, general cylinder information, and all auxiliary components of NDE/NDEB-Series cylindrical locks.

Standard Features

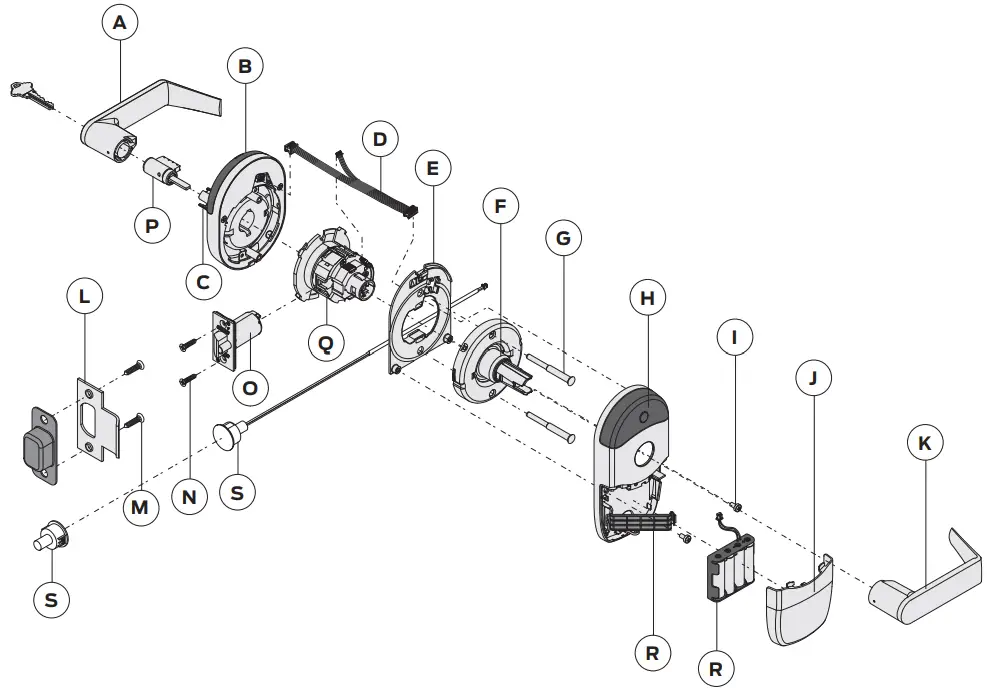

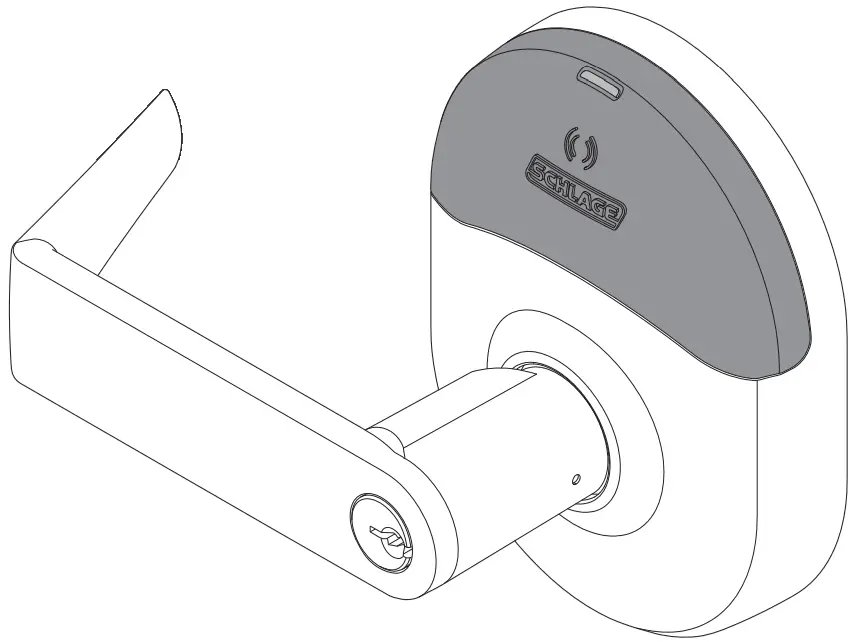

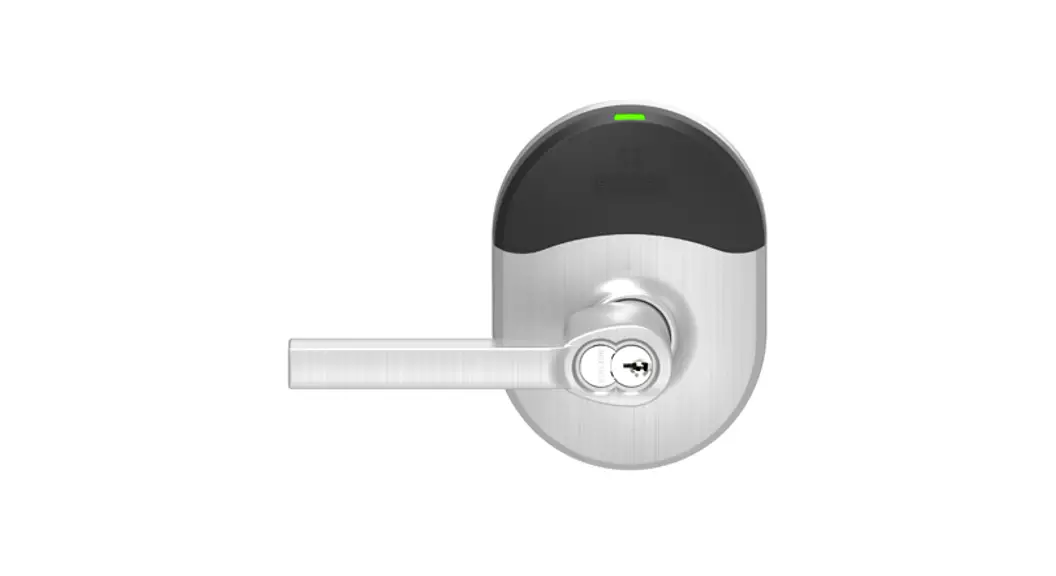

NDEB Grade 1 Cylindrical Wireless Electronic Lock
NDEB

Letter	Description	Part number
A	Outside lever—open	03-231*◊+
B	Outside escutcheon subassembly	N223-045 ‡
C	Outside spring cage	N523-218*
D	Main wire harness	N223-019
E	Baseplate	N623-000
F	Inside spring cage—standard	N523-221 if newer than February 1, 2017
G	Mounting kit screw	N223-049
H	Inside escutcheon assembly with the main PCBA	47278749*+
I	Baseplate securing screw	N223-049

* Has multiple components.
� The standard option is shown. Has multiple options available.
◊ Specify lever
+ Specify finish.
⇒ NOTE: NDE80-specific parts are no longer available.

Letter	Description	Part number
J	Battery cover	N623-007+†
K	Inside lever—closed	03-230 ◊+
L	Strike	10-025 +
M	Strike screw	C603-256+
N	Latch screw	C603-897+
O	Deadlatch	13-247 +
P	Cylinder—6-pin	23-065 +
Q	Motorized Chassis	N223-007
R	Battery holder kit	N223-044*
S	DPS wiring kit	L483-055

‡  Without reader PCBA.
† for just the battery cover screw, refer to the screw mounting kit on page 13.

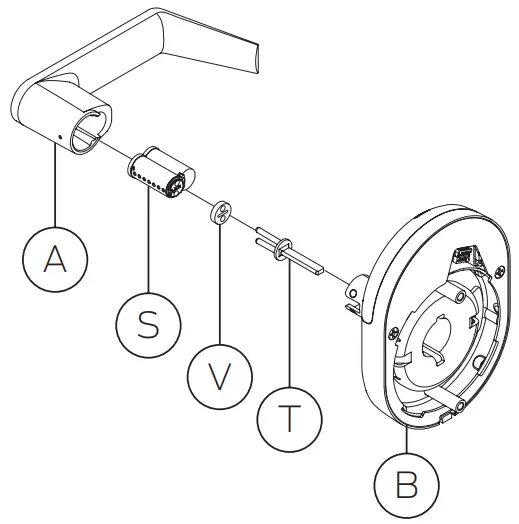

NDE/NDEB Grade 1 Cylindrical Wireless Electronic Lock
Full-size IC and SFIC (small format interchangeable core) configurations

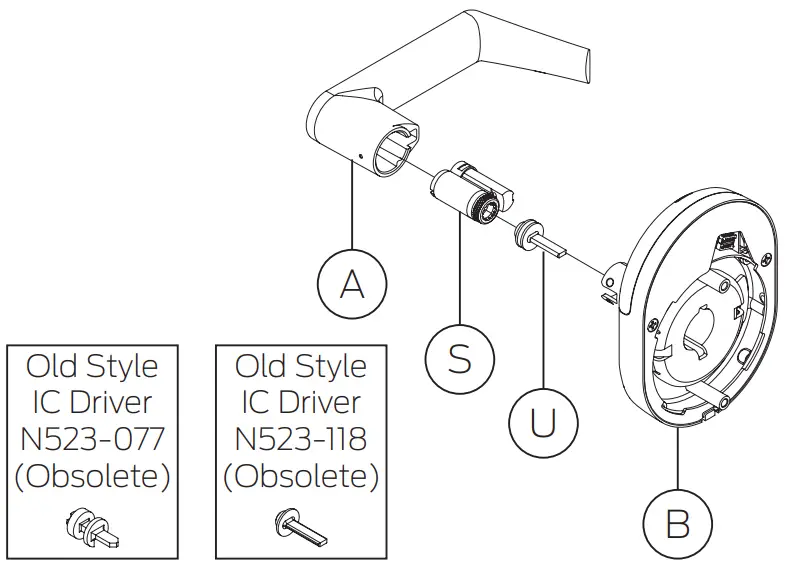

Full-size IC—outside

◊ Specify lever
+ Specify finish.

SFIC—outside

Parts and kits

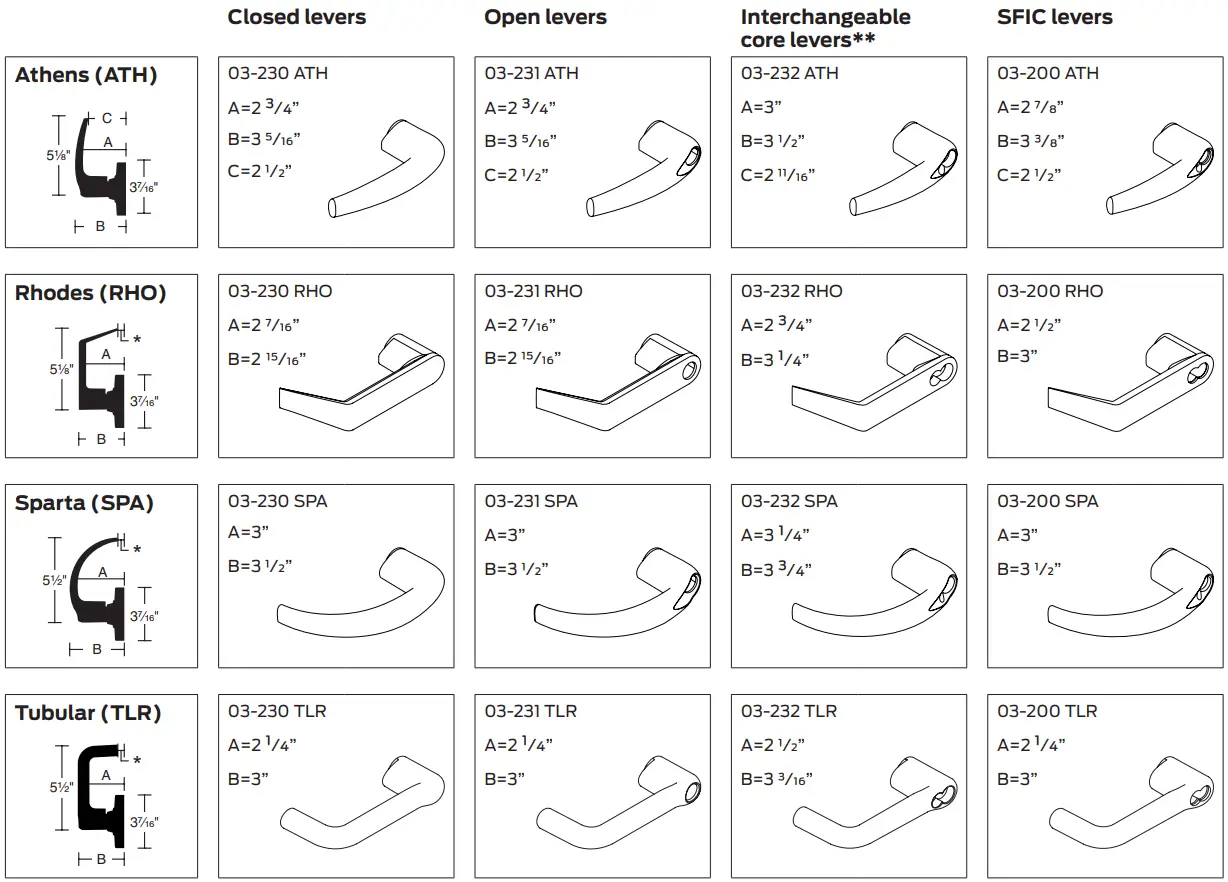

Lever designs
Athens, Sparta, Rhodes, and Tubular Specify the lever finish when ordering levers.

*  Meets California Fire Code for 1/2” or less return to the door.
**  Lever sizes available for Competitor Cylinder Options, see 8.

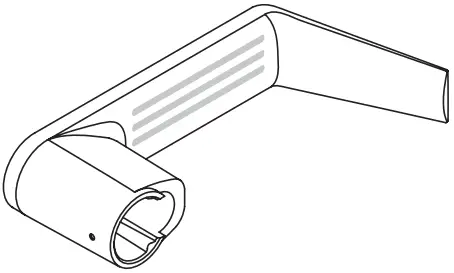

Tactile warning

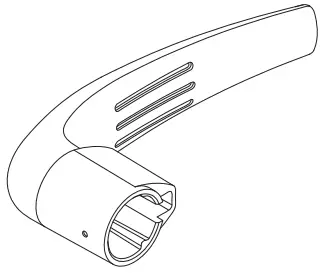

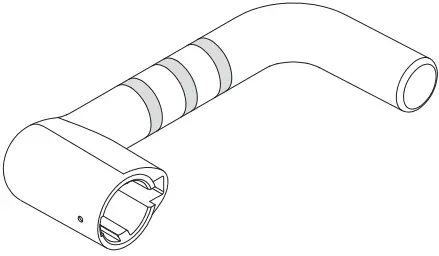

Rhodes lever	Sparta lever	Athens lever	Tubular lever

Complete levers list and related components

* Specify finish
Competitor cylinder options
Competitor lever designs are available in finishes 613, 626, and 626AM. Specify the finish when ordering.
The tactile warning is available. See Tactile warning on page 7 for details.

Cylinder	Order suffix	Description	Lever design
			Athens	Rhodes	Sparta	Tubular
	LD SAR	Sargent Key In Lever	03-244-ATH	03-244-RHO	03-244-SPA	03-244-TLR
	JD SAR	Sargent Full Size Interchangeable Core Cylinder	03-277-ATH	03-277-RHO	03-277-SPA	03-277-TLR
	JD CO6	Corbin Russwin Full Size Interchangeable Core 6 Pin Cylinder	03-266-ATH	03-266-RHO	03-266-SPA	03-266-TLR
	JD YA6	Yale 1210 6-pin or Medeco 31 Full-Size Interchangeable Core 6 Pin Cylinder	03-255-ATH	03-255-RHO	03-255-SPA	03-255-TLR
	JD CO7	Corbin Russwin Full Size Interchangeable Core 7 Pin Cylinder	03-235-ATH	03-235-RHO	03-235-SPA	03-235-TLR
	LD CO6	Corbin Russwin Key in Lever 6 Pin Cylinder	03-234-ATH	03-234-RHO	03-234-SPA	03-234-TLR
	JD YA7	Yale Full Size Interchangeable Core 7 Pin Cylinder	03-236-ATH	03-236-RHO	03-236-SPA	03-236-TLR
	JD MED	Medeco 32 Full-Size Interchangeable Core Cylinder	03-237-ATH	03-237-RHO	03-237-SPA	03-237-TLR

Tailpieces

Spring cages

* Accepts Medeco retrofit cylinder for Yale, Medeco p/n 31-0100 FSIC type

N523-218 Outside Spring cage	N523-224 Outside Spring Cage	N523-221 Inside spring cage

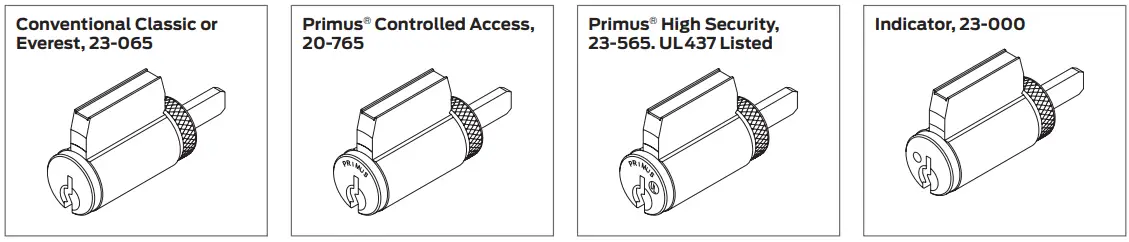

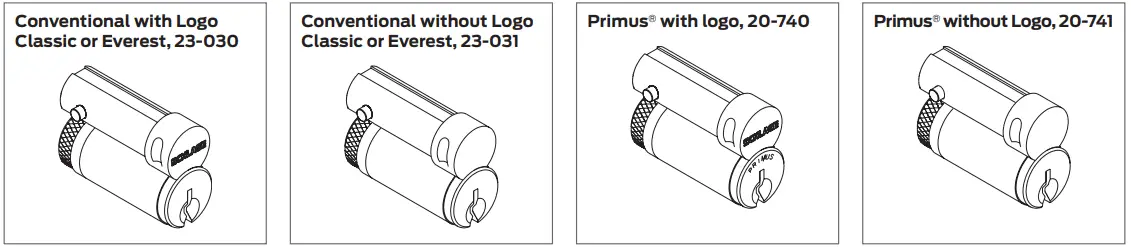

Cylinders

Standard

Full-size interchangeable cores

Parts and kits
Small format interchangeable cores

Everest® Combinated, 80-037 Also available in uncombined (80-036)	Best® Keyway 7-Pin Uncombinated, 80-033 Also available in 6-pin uncombined (80-043)

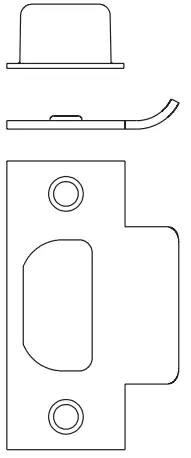

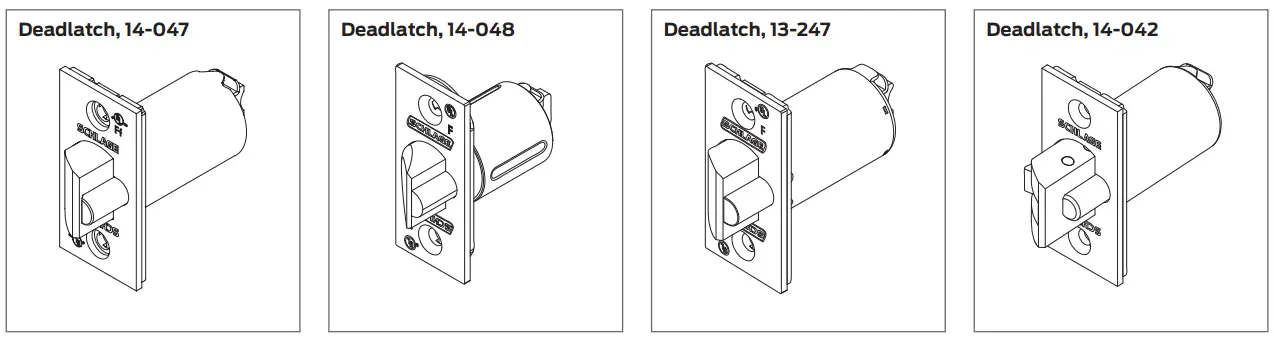

Latches
All ND-Series latches have one-inch diameter housing and adjustable faceplates for flat or beveled doors.

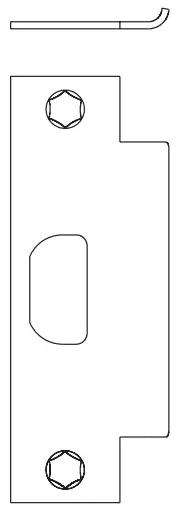

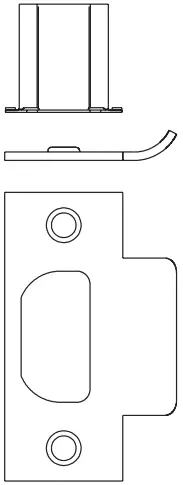

	ANSI Prep. A115.2, 10-025 Size:1 1/4” x 4 7/8” x 3/32” Lip length: 1 3⁄16” (std), 1 3⁄8” If required, the K510-066 strike must be ordered separately. Available in 605, 606, 612, 619, 625, 626, 643e, 626AM.
	ANSI Prep. A115.2, 10-130 Size:1 1/4” x 4 7/8” x 3/32” Lip length: 1 3⁄16” (std), 13⁄8”, 11/2” If required, the K510-066 strike must be ordered separately. Available in 605, 606, 612, 619, 625, 626, 643e, 626AM.
	ANSI Prep. A115.2, 10-131 Size: 1 1/8” x 2 3/4” x 3/32” Lip length: 1 3/16” (std), 1 3/8”, 1 1/2” Includes strike box K510-066 Available in 605, 606, 612, 619, 625, 626, 643e, 626AM.
	Square Corner Fire Door T-Strike, 10-132 Size: 1 1/8” x 2 3/4” x 3/32” Lip length: 1 1/8”, 1 1/2” Includes strike box K510-066 Available in 605, 606, 612, 619, 625, 626,643e, 626AM
	Square Corner Fire Door T-Strike, 10-133 Size: 1 1/8” x 2 3/4” x 3/32” Lip length: 1 1/8”, 1 1/2” Includes strike box K510-066Available in 605, 606,612, 619, 625, 626, 643e, 626AM.
	ANSI Prep. A115.2, 10-025 Size:1 1/4” x 4 7/8” x 3/32” Lip length: 1 3⁄16” (std), 1 3⁄8” If required, the K510-066 strike must be ordered separately. Available in 605, 606, 612, 619, 625, 626, 643e, 626AM.

NDE80/NDEB Conversion Kit
This converts your lock from NDE80 to NDEB. All kits will contain a spring cage and lever. Some kits will contain a button or tailpiece. When ordering, specify: function, trim, finish, and core (if applicable).

Spring Cage and Lever Conversion Kit
All kits will contain a spring cage and lever. Some kits will contain a button or tailpiece Kits are limited to the previously offered products – KIL, FSIC, SFIC, L-SAR, J-SAR, J-CO6, and J-YA6 When ordering specify: function, trim, finish, and core (if applicable).
40-400:  Inside spring cage/Lever conversion kit
40-600: Outside spring cage/Lever conversion kit

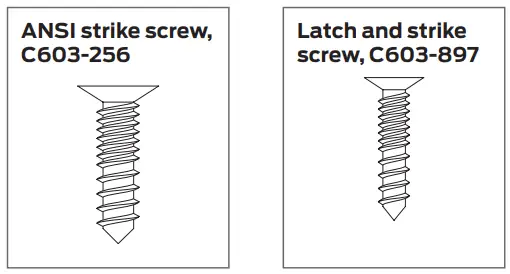

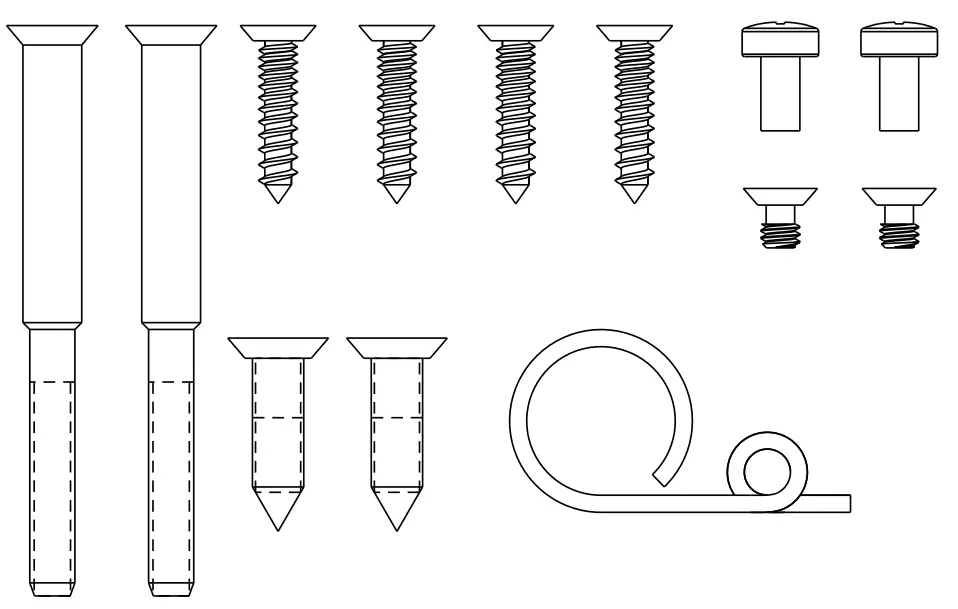

Screws, screw packs, and special parts
Specify the finish for all latch, strike, and mounting screws. Torx screw packs are furnished with appropriate T-xx installation tool(s).

Screw packs, standard
Part no.	Description		Contents
8202-517	Latch and strike screws		(4) C603-897
N223-049	Mounting kit:	Combo screws	(4) C603-897
		Pin wrench	(1)N523-108
		Mounting screws	(2)N523-021
		Battery cover screw	(1) N623-048*
		Battery cover screw, Torx	(1)N623-049*
		Machine screws	(2)C603-256
		Pan head screws	(2) 96954557
C203-736	ANSI Strike		(2) C603-256
			Mounting kit contents

* Battery cover screws

Installation tools
Boring jigs and tools are designed to provide fast and accurate lock installation. Complete kits or individual tools can be ordered for preparing doors and jambs for Schlage products.

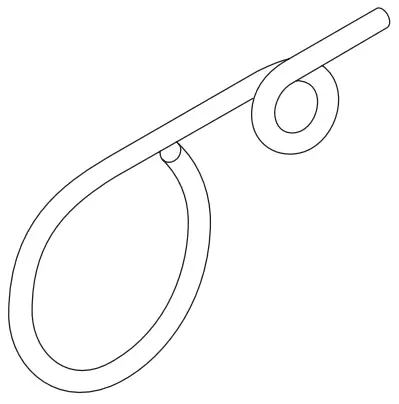

N523-108: Pin wrench

Ordering NDEBSi
If an NDEBSi is needed, a new lock will need to be ordered. Upgrading parts to make a current NDE/NDEB convert to NDEBSi is not currently possible. Please use the following to order, then add on needed options.
NDEBS:  Mobile-enabled cylindrical lock with HID credential secure sector compatibility (with interior pushbutton with indicator) with Vandlgard

Finishes

Schlage Lock finishes are durable, top-quality finishes obtained by the careful processing of solid brass, bronze, stainless steel, or other materials.
Where required, a protective clear coating is applied and cured under high temperatures. It is important that the climatic conditions and usage be taken into consideration when selecting finishes. This is especially true in areas subjected to strong corrosive vapors, humid climate, or sea air which, in a short time, may have a damaging effect on metal finishes.
The longevity and preservation of the finish appearance are determined by the base metal and finishing process. A clear protective coating or other organic finishing applications may require different methods of cleaning and care. For example, non-clear coated finishes should not be cleaned with any soaps or solvents. Organically coated surfaces should periodically be cleaned with a bar of mild non-abrasive soap and be buffed lightly with a clean cloth. The type of base metal and finished techniques must be considered when applying any cleaning or preservative method.
In some instances for customer convenience, the most appropriate BHMA (Builders Hardware Manufacturers Association) finish symbols are used to indicate similarity of appearance regardless of base metal or finishing process.
Finish numbers in the 600-Series are the BHMA industry standard. The nearest former U.S. equivalent code designations are shown in parenthesis.
Finish codes and descriptions

Finish colors
Warm tone finishes

605 Bright brass	606 Satin brass	612 Satin bronze	643e Aged bronze

Cool tone finishes

619 Satin nickel	622 Matte black	625 Bright chrome	626 Satin chrome	626AM Satin chrome with antimicrobial

Limited warranty

Product warranty: commercial applications
LIMITED WARRANTY: COMMERCIAL APPLICATIONS
12/24 Month Limited Warranty
Schlage Lock Company (the “Company”) extends a 12-month limited warranty from the original date of purchase or a 24-month limited warranty from the original order date to the Original User of the products manufactured by the Company (the “Product”) against defects in material and workmanship. Certain Products contain restrictions to this limited warranty, additional warranties, or different warranty periods. Please see below for specific Product warranty information.
The provisions of this warranty do not apply to Products: (i) used for purposes for which they are not designed or intended; (ii) which have been subjected to alteration, abuse, misuse, negligence, or accident; (iii) which have been improperly stored, installed, maintained or operated; (iv) which have been used in violation of written instructions provided by Schlage; (v) which have been subjected to improper temperature, humidity or other environmental conditions (i.e., corrosion); or (vi) which, based on Schlage’s examination, do not disclose to Schlage’s satisfaction non-conformance to the warranty. Additionally, Schlage will not warrant ANSI A156.2 Grade 2 lever Product installed in educational facilities and student housing.
Small Format Interchangeable Core (SFIC) Warranty: This limited warranty also applies to Schlage locks and housings when used with another manufacturer’s cores, or to Schlage cores (i.e. SFIC) when used in another manufacturer’s locks and housings. The use of unauthorized cylinder cams or other components with the Products shall void this warranty.
Everest® Primus® Limited Lifetime Key Breakage Warranty: A limited lifetime warranty is provided to the Original User against key breakage, subject to the restrictions of this limited warranty.
ADDITIONAL TERMS & CONDITIONS APPLY TO BOTH COMMERCIAL & RESIDENTIAL APPLICATIONS OF COMMERCIAL PRODUCTS
What the Company Will Do: Upon return of the defective Product to the Company, the Company’s sole obligation, at its option, is to either repair or replace the Product, or refund the original purchase price in exchange for the Product.
Original User: This warranty only applies to the Original User of Products. This warranty is not transferable.
What is Not Covered: The following costs, expenses, and damages are not covered by the provisions of this limited warranty: (i) labor costs including, but not limited to, such costs as the removal and reinstallation of Products; (ii) shipping and freight expenses required to return Products to Schlage; and (iii) any other incidental, consequential, indirect, special and/or punitive damages, whether based on contract, warranty, tort (including, but not limited to, strict liability or negligence), patent infringement, or otherwise, even if advised of the possibility of such damages. Some local laws do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you.
How Local Law Applies: This warranty gives you specific legal rights, and you may also have other rights as otherwise permitted by law. If this Product is considered a consumer product, please be advised that some local laws do not allow limitations on incidental or consequential damages or how long an implied warranty lasts, so the above limitations may not fully apply. Refer to your local laws for your specific rights under this warranty.
Warranty Claims: If you have a claim under this warranty, please contact Schlage Customer Service (877-677-7011) for repair, replacement, or refund of the original purchase price in exchange for the return of the Product to Schlage.
Miscellaneous: The Company does not authorize any person to create for it any obligation or liability in connection with the Product. The Company’s maximum liability hereunder is limited to the original purchase price of the Product. No action arising out of any claimed breach of this warranty by the Company may be brought by the Original User more than one (1) year after the cause of action has arisen.
About Allegion
Allegion (NYSE: ALLE) is a global pioneer in seamless access, with leading brands like CISA®, Interflex®, LCN®, Schlage®, SimonsVoss®, and Von Duprin®. Focusing on security around the door and adjacent areas, Allegion secures people and assets with a range of solutions for homes, businesses, schools, and institutions. Allegion had $2.7 billion in revenue in 2020, and its security products are sold around the world.
For more, visit www.allegion.com.

© 2022 Allegion
015478, Rev. 03/22
