Thermador Hd-22 Pro Ranges And Rangetops User Guide

Thermador HD-22 Pro Ranges and Rangetops

Legacy
In 1950 Thermador introduced the first ‘Pro’ Range, a 48″ stainless steel 6 burner with dual ovens
In 1982 Thermador introduced the first high powered burner, unmatched performance for its time with 11,500 BTUs
In 1994Thermador introduced an industry exclusive Extralow® burner
In 1998 Thermador introduced an industry exclusive Star® burner In 2011 Thermador introduced the first Pro Range with a Steam and Convection Oven In 2019 Thermador introduced the first Pro Range with gas burners and an induction module

Pro Harmony

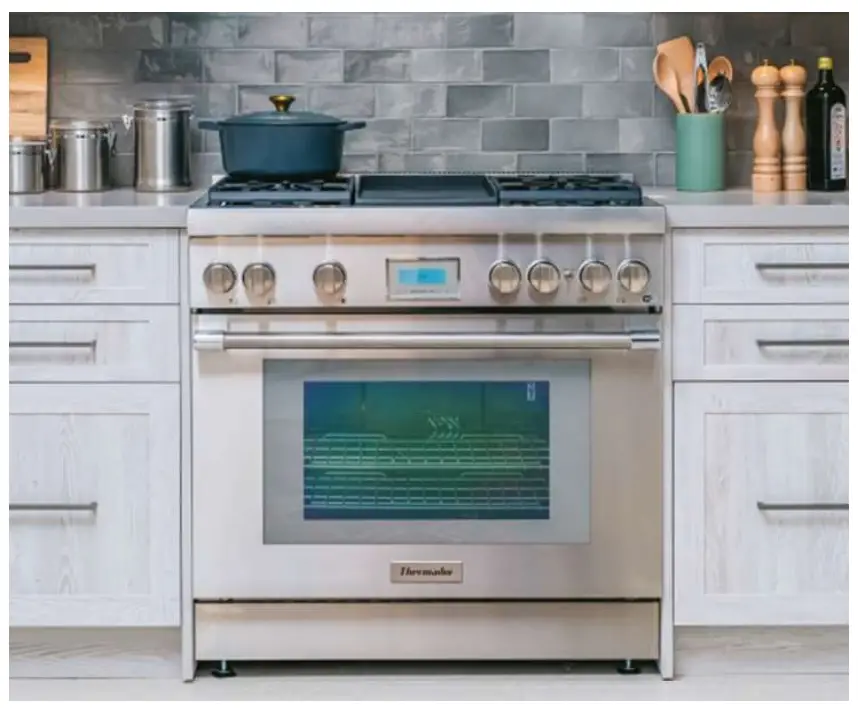

• 30″/36″/48″ width available
• Sleek styling, ranges fit in flush with cabinetry for an elegant and seamless design due to their 24″ depth
• Multiple surface cooking and oven configurations-all provide a selection of unique and patented innovations that Thermador has built its name on

Pro Grand®

• 36″ / 48″ / 60″ widths available
• Bold styling, ranges stand proud of cabinets with their 27″ commercial depth
• Variety of surface cooking and oven configurations-offering the most performance features to select from in the entire Thermador lineup

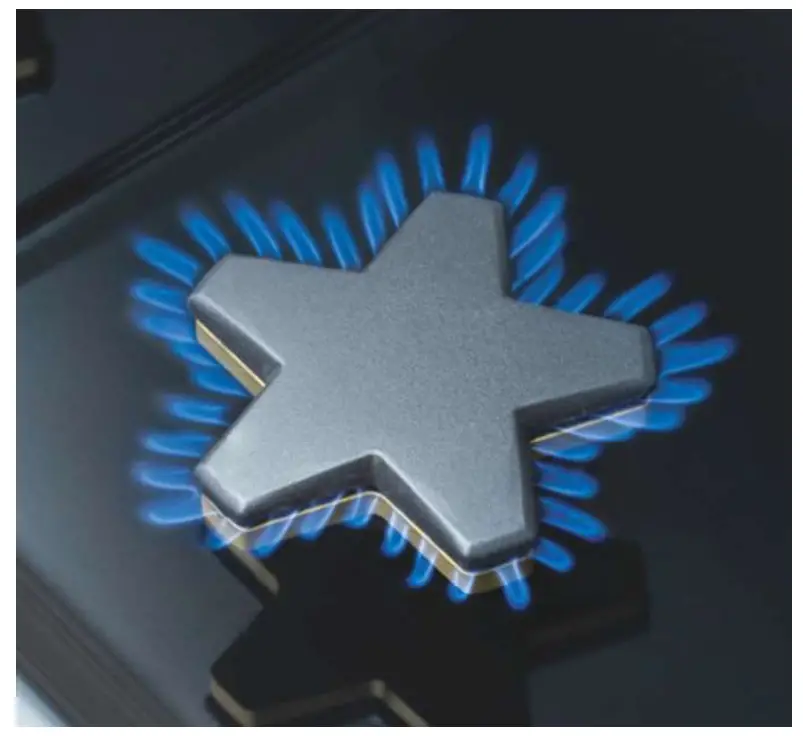

Star® Burner

• Star shape delivers superior flame spread-making it more efficient than round burners
• Reduces the cold spot for faster and more even heating, regardless of pan size
• Brass burners deliver superior cooking performance, durability & longevity compared to aluminum
• Powerboost®/XHI burner on Pro Grand® models reaches 22K BTU

ExtraLow® Burner

• Extralow® burners on every range cycle on and off to maintain temperatures as low as 100 °F
• Provides a wide range of temperate control at the lowest heat settings
• Perfect for melting chocolate, keeping food warm, or heating delicate sauces without the fear of scorching
• Pro Harmony® ranges have 2 XLO® burners on each model, while Pro Grand® ranges boast 4 XLO® burners each

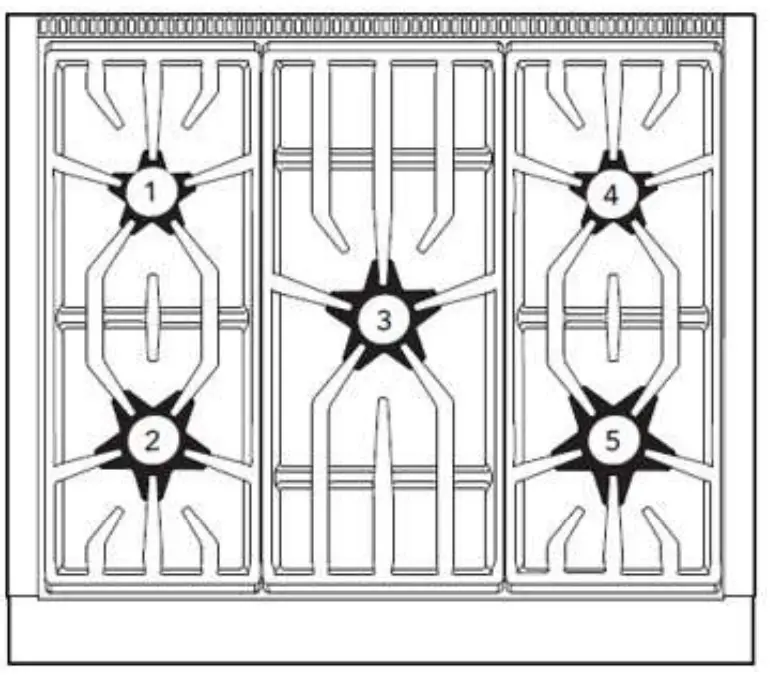

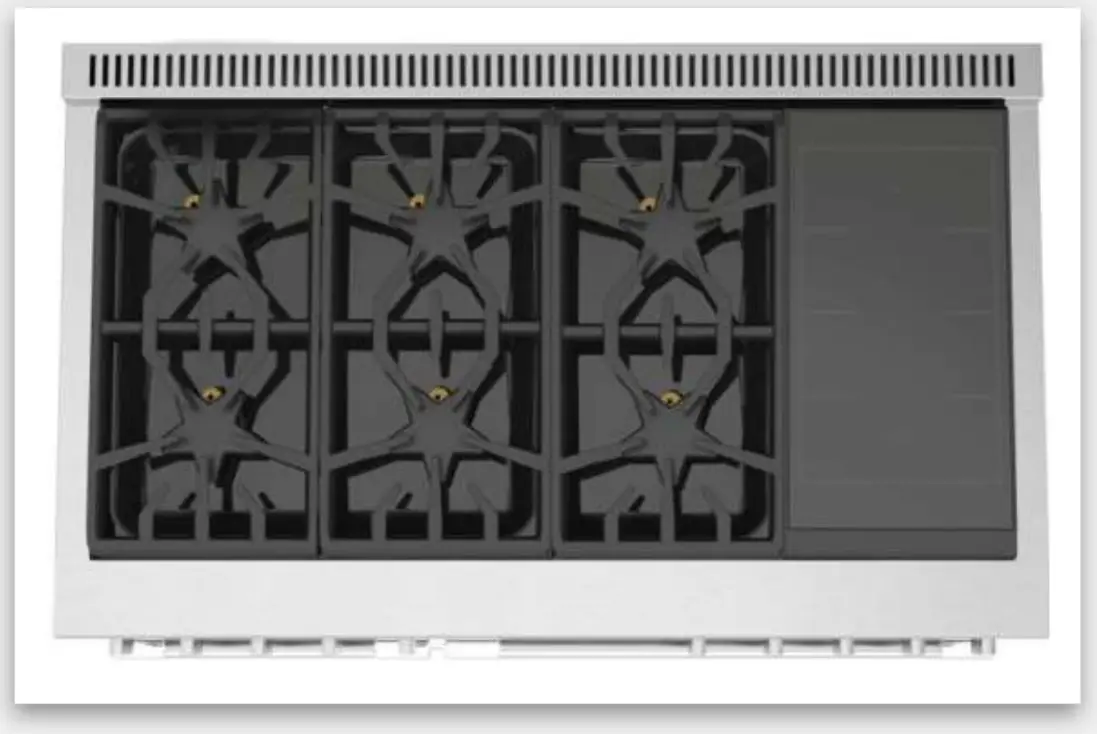

Burner Configurations

• 18K BTU Star® burners-on the front row for maximum control and flexibility where most cooking is done
• 15K BTU Star® burners-on the back row allow for reduced installation clearance to a combustible surface
• EXCEPTION!!! – The5Star® 30″
  ◊ Engineered to a total output of 59K BTUs
  ◊ Requires 300 CFM ventilation-can be paired with an OTR Microwave Ventilation system
  ◊ Great replacement opportunity

BURNER OUTPUT

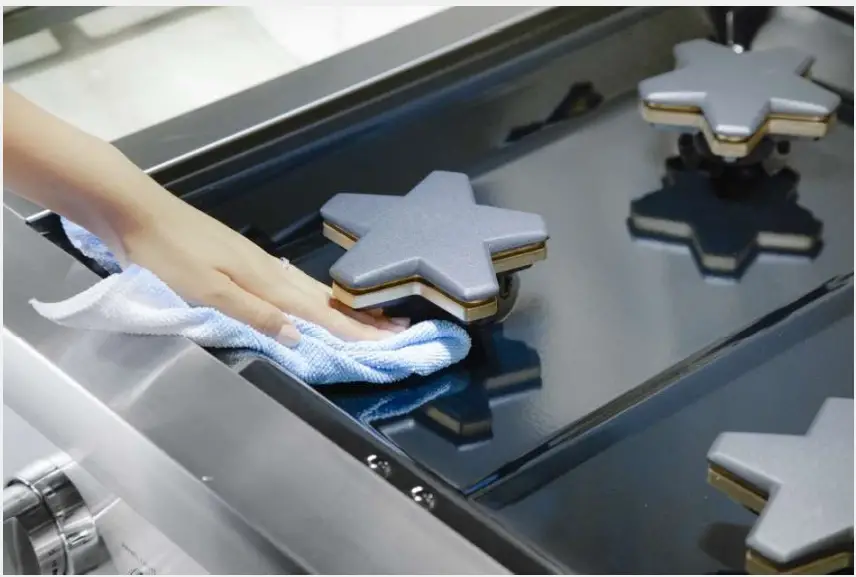

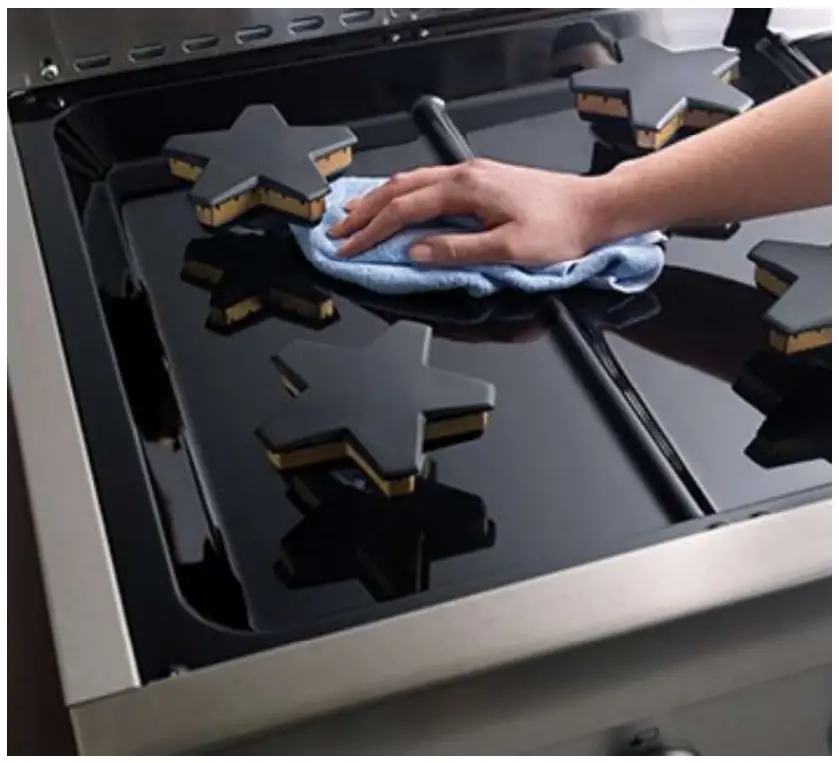

QuickClean Base®

• Pedestal burners make it easy to wipe around burners and difficult for food to bake onto the surface
• Porcelain enamel surface cleans up easily
• Teardrop emboss reduces food built up around burner base

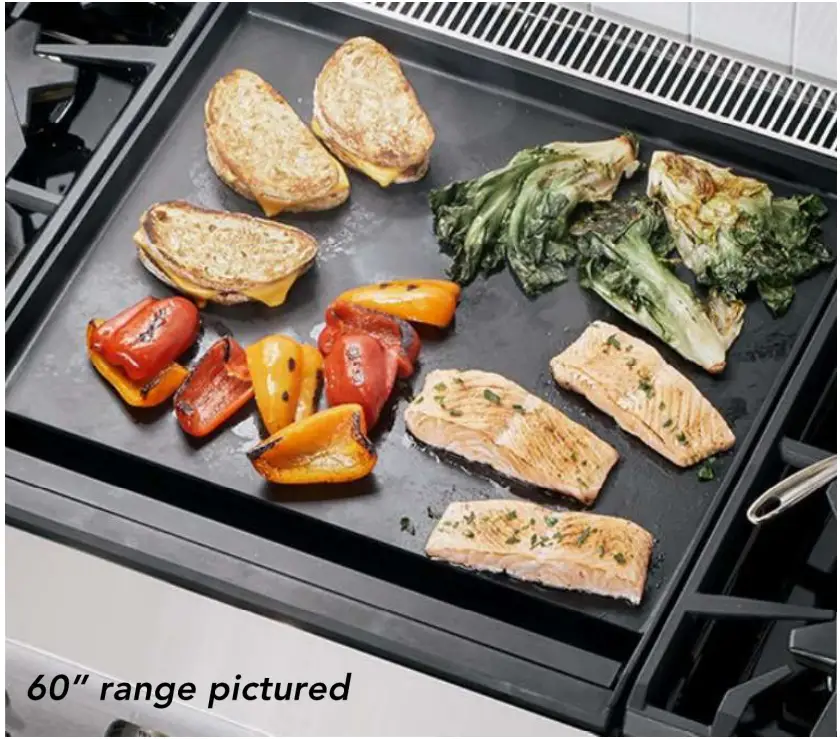

Griddle

• Cast-aluminum with non-stick coating
• Thermostatically controlled from 1 SQ°F to SOQ°F
  ◊ Use & Care includes cooking charts with recommended temperatures & times
• Electric element heats surface evenly from front to back
• Removable griddle can be interchanged with accessory grill insert (sold separately)

Liberty® Induction Module

• Two Zones-or join for 1 large zone
• HeatShift® automatically adjusts heat as pan is moved through the zone
• 9 Power levels+ PowerBoost®
• Available on 36″ and 48″ Pro Grand® Dual-Fuel

SALES TIP:
◊ Perfect solution for those wanting 8 burners on 48″
◊ Go-to “burner” for anyone wanting high heat output quickly

Thermador Connected Experience

• Powered by Home Connect™ and features recipe suggestions, cooking tips, and remote start
• Utilizes the full color TFT interface
• Available on all units except the 30″ Pro Harmony®

Explore app features at www.thermador.com/us/stardemo

Capacity & Convenience

• Starting at 4.4 cubic ft with the 30″ Pro Harmony®, there’s a fit for every Culinary Impressive
• 60″ Pro Grand® boasts the largest combined capacity on the market-10.6 cubic feet
• Fit a full size caterer’s sheet pan in any Pro Grand® main oven (excluding 48″ Steam models)

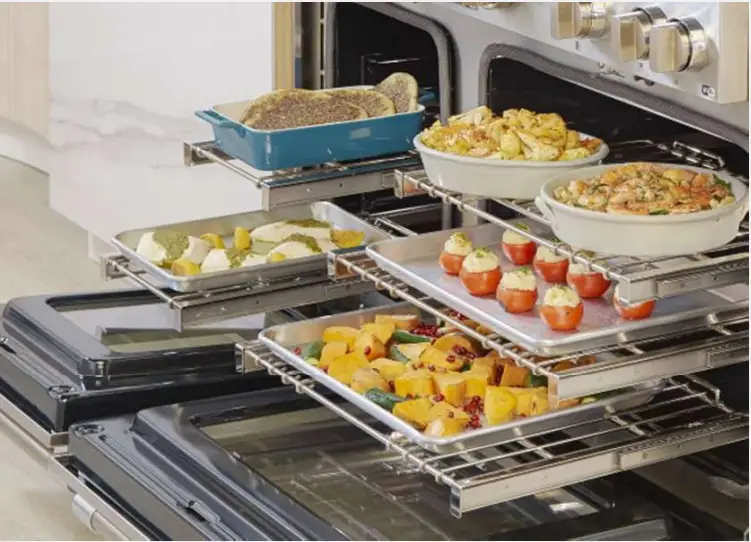

• Full Access® telescopic racks outfit each oven-one on the 30″ units, and 3 on all others (main oven)

Self Cleaning

• Super fast pyrolytic self clean mode
• 2 Self clean options:
  ◊ 1 ½ hours* for light soil
  ◊ 3 hours* for heavy soil
  *does not include cool down time
• Available on:
  ◊ Pro Harmony® Dual Fuel models
  ◊ Pro Grand® Gas models
  ◊ Pro Grand® Dual Fuel models

Oven Modes

• Gas and Electric oven profiles were developed independently to deliver optimal performance
• True Convection mode (on all dual-fuel models) was developed for multi-rack cooking
• Controlled airflow patterns optimize the transfer of heat so only a single fan is needed
• Gas models-4 Cooking Modes
• Dual-Fuel models-7 Cooking Modes

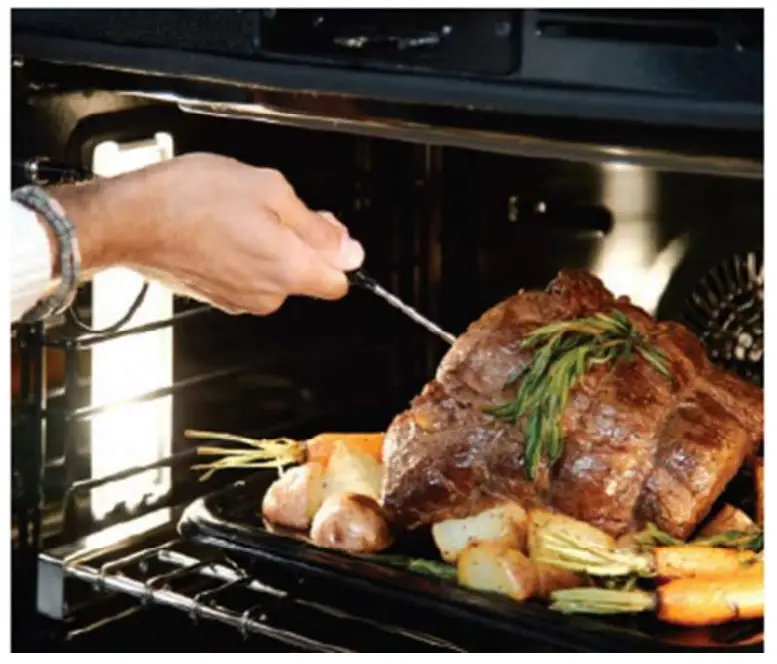

Temperature Probe

• Oven cavity turns off when set temperature is reached
• Pro Harmony® includes a standard probe
• Pro Grand® includes a multi-point probe
• Thermador Connected Experience can send push notifications to a phone or tablet when temperature is reached

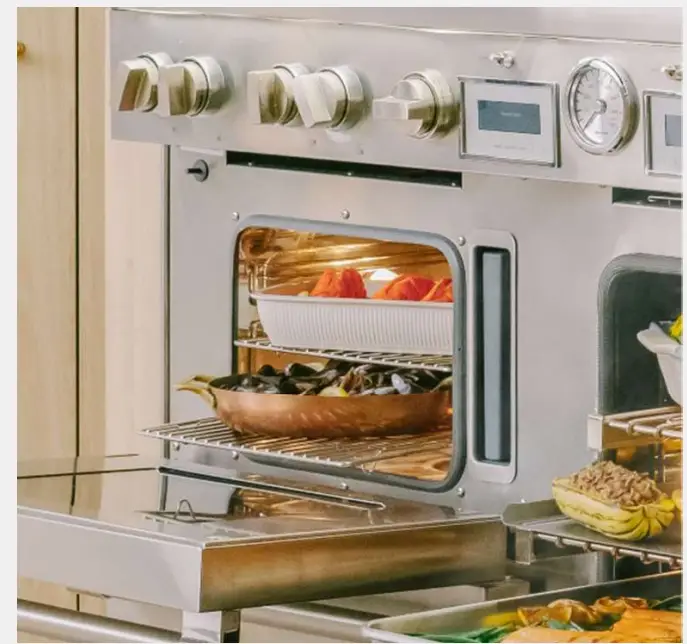

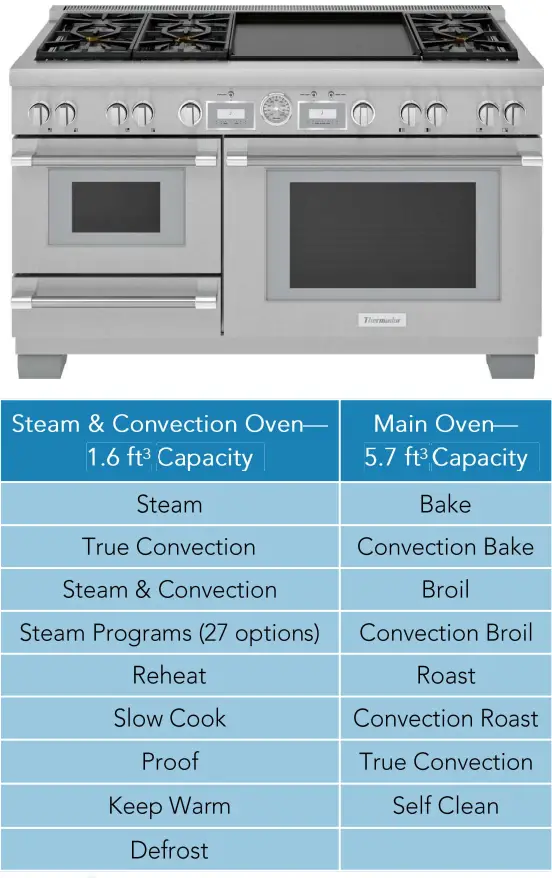

Steam & Convection Oven

• 1.6 cu ft Steam & Convection Oven in the range
• Turns the range into the most versatile cooking appliance in the kitchen
• 27 Steam Auto Programs make it easy to get started cooking with steam
• Warming drawer
• Available on 48″ and 60″ Dual-Fuel Pro Grand®

Professional Ranges

PRO HARMONY® GAS RANGES

• 24″ depth-flush mounted range
• 30″ I 36″ / 48″ widths
• Silver g lass mounted behind stainless steel door
• Toekick
• 2 Extra Low® burners
• Convection fan
• 4 Cooking modes + Sabbath (Extended Bake on 30″)
• Standard temperature probe (36″ & 48″)

PRO GRAND® GAS RANGES

• 27″ commercial depth
• 36″ / 48″ / 60″ widths
• Diamond chamfered glass mounted on top of stainless steel door
• Chamfered feet
• Knobs with blue pinhole indicator lights
• LED panel lighting
• Hydraulic SoftClose® hinges
• 4 Extra Low® burners
• 1 Powerboost®/XHI burner (22,000 BTU)
• Fits full caterer’s sheet pan (48″ steam excluded)
• Convection fan
• 4 Cooking modes + Sabbath
• Multi-point temperature probe
• Self clean

PRO HARMONv® DUAL FUEL STEP-UPS

• True convection element (main oven)
• 7 Cooking modes + Sabbath (Extended Bake on 30″)
• Self clean

PRO GRAND® DUAL FUEL STEP-UPS

• True convection element (main oven)
• Liberty® induction module (36″ and 48″ option)
• Steam & Convection Oven as secondary oven (48″ and 60″ option)
• 7 Cooking modes + Sabbath

NOTE: All ranges ship ready for Natural Gas installation-to install with LP Gas, order the appropriate LP Conversion Kit for that model

60″ PRO GRAND® RANGE

Each option offers innovation and performance that Thermador is known for.

Surface Cooking Features

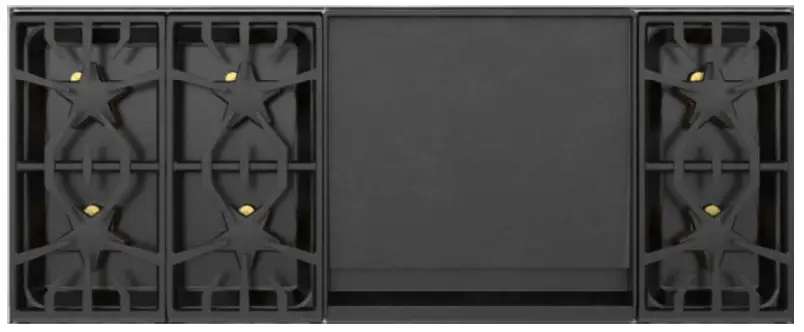

SIX BURNERS + DOUBLE GRIDDLE

• 4 ExtraLow® Star® burners
• 1 – 22K BTU Powerboost® burner
• 24″ Dual Zone, Non-Stick Griddle

Oven Configuration Options

THE ULTIMATE ENTERTAINER’S CENTER

THE ULTIMATE CULINARY CENTER

FEATURING

• Patented Pedestal Star® Burner-
  Providing more efficiency on every burner to make the most of each BTU
• 2 ExtraLow® Burners-
  Offering the widest temperature control range for delicate dishes and holding items warm
• QuickClean Base®
  Easily fit a sponge under the pedestal burner for quick clean-up of the porcelain top

* LED Lighting-
Bullnose ITghting illuminates the metal control knobs when cooking … or provides a soft accent light when searching for a midnight snack!

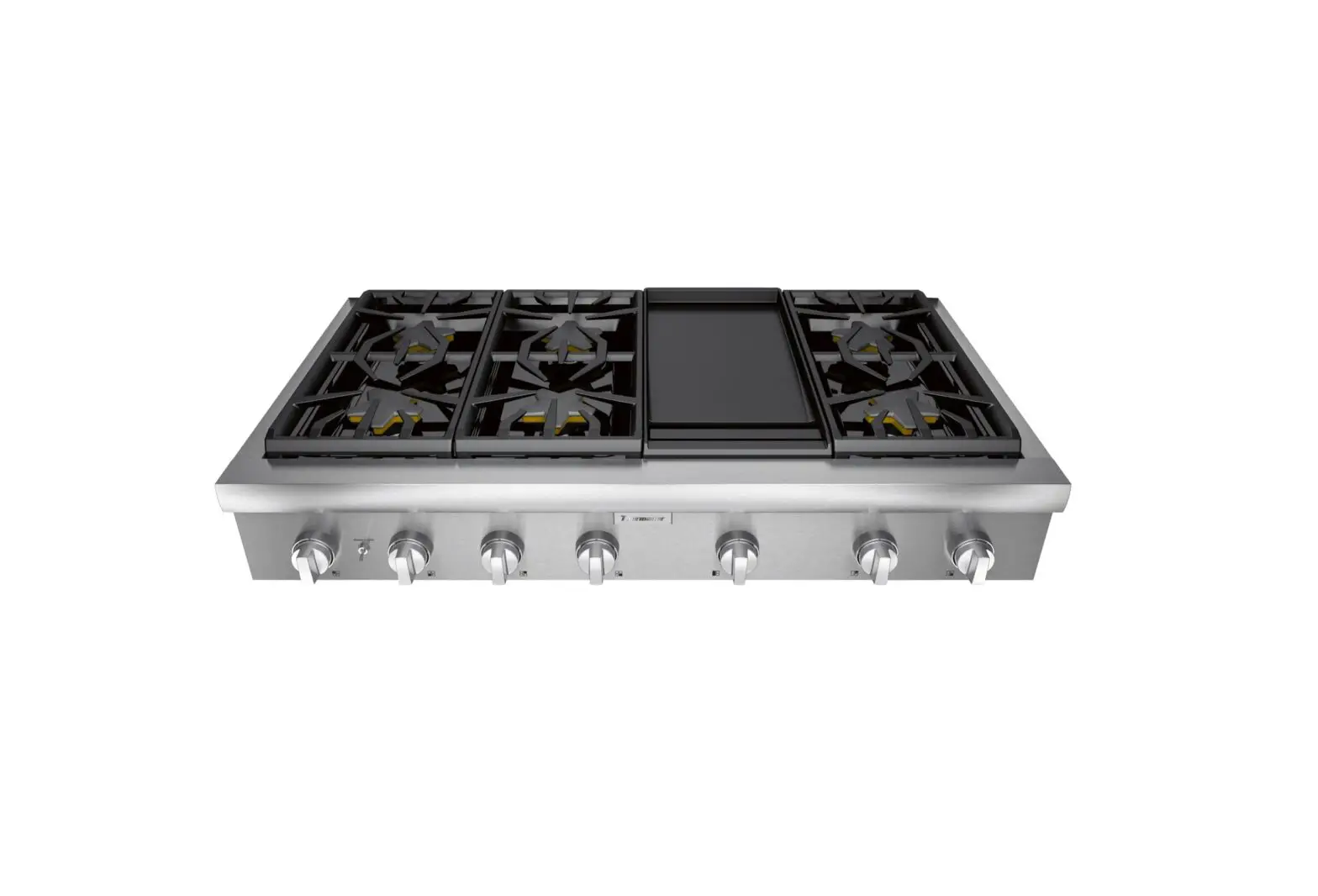

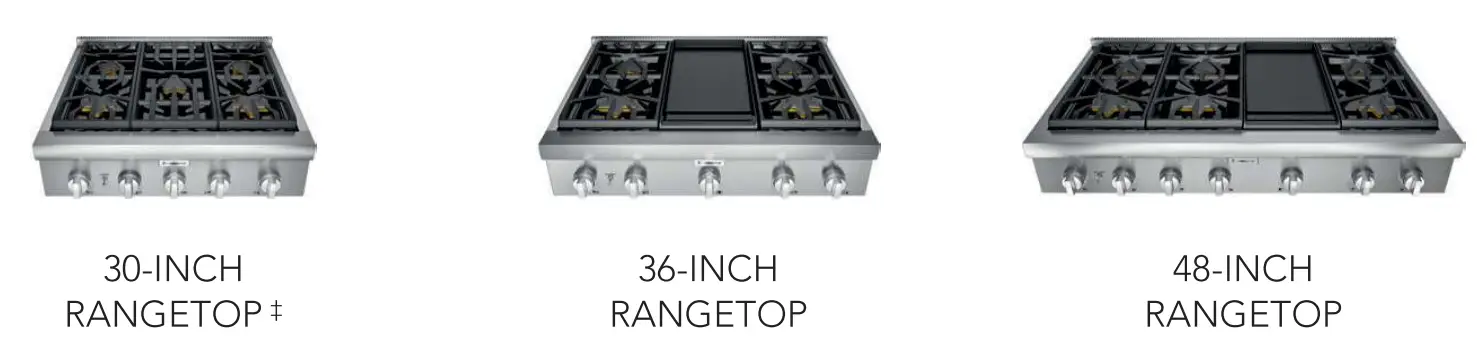

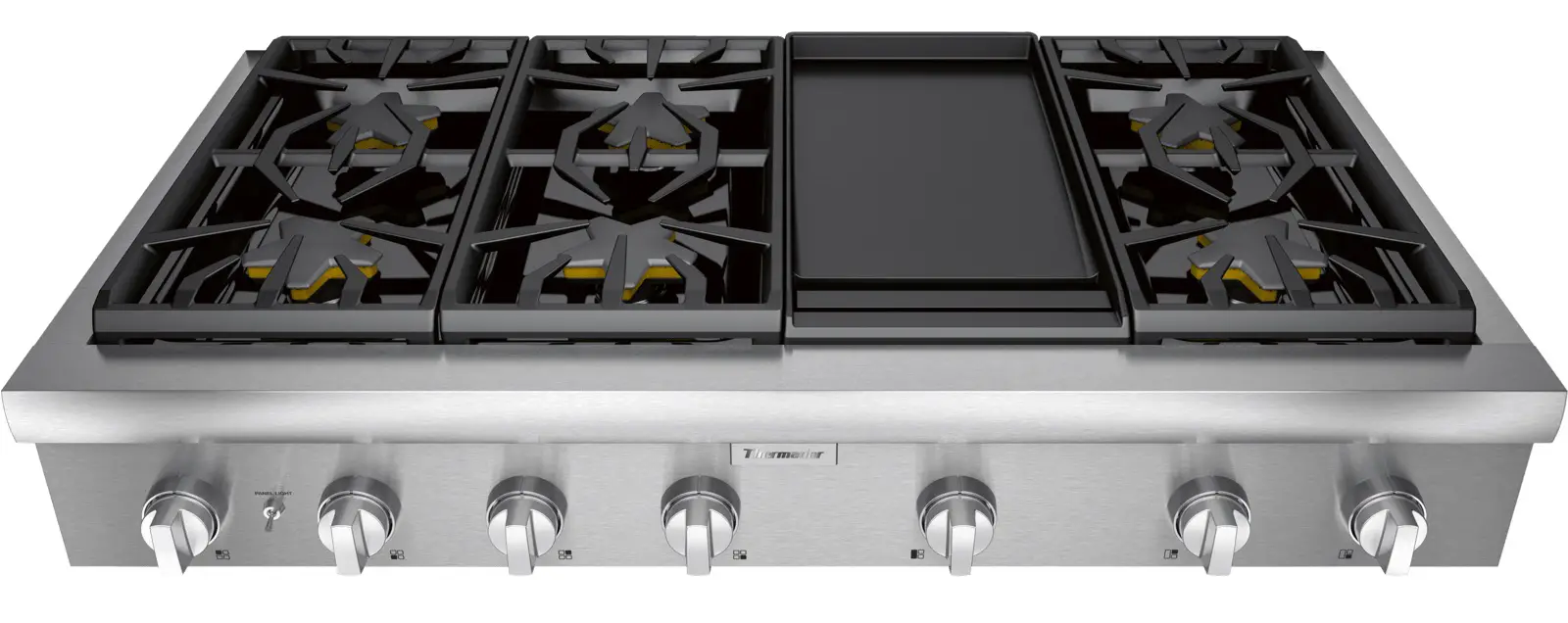

Product Assortment:

• Available in 30″ / 36″ / 48″
• 30″ available in 5 burner only
• 36″ & 48″ offer Griddle option
• LP kit available to convert from NG (sold separately)
  ◊ PALPKITHWS-for 30″
  ◊ PALPKITHW-for 36″ & 48″

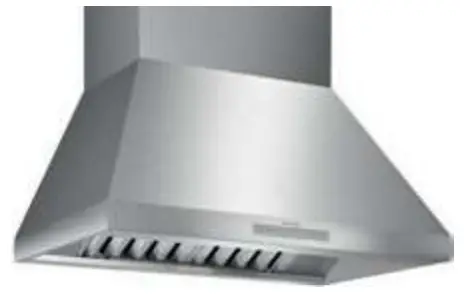

Professional Collection

✓ = PERFECT FIT	✓ = VIABLE OPTION

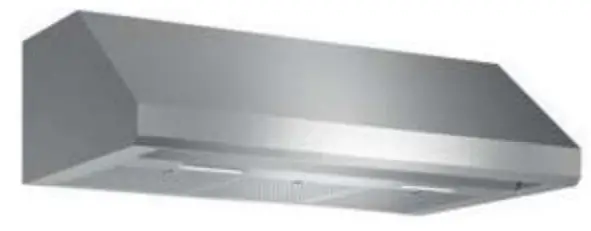

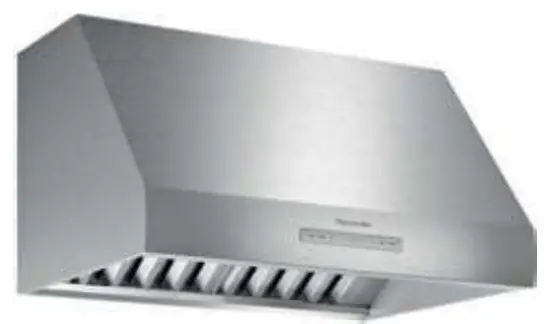

27-INCH DEPTH, 18-INCH TALL WALL HOODS	36-INCH PH36GWS	24-INCH DEPTH
	42-INCH PH42GWS	✓	✓
	48-INCH PH48GWS		✓
	54-INCH PH54GWS			✓
LOW-PROFILE WALL HOODS WITH BLOWER	36-INCH HMWB361WS			✓
	48-INCH HMWB481WS	✓	✓
24-INCH DEPTH, 18-INCH TALL WALL HOODS	30-INCH PH30HWS	✓		✓
	36-INCH PH36HWS	✓	✓
	48-INCH PH48HWS			✓
24-INCH DEPTH CHIMNEY WALL HOODS	36-INCH HPCN36WS	✓	✓
	48-INCH HPCN48WS			✓
ISLAND HOODS	42-INCH HPIN42WS	✓	✓
	54-INCH HPIN54WS			✓
CUSTOM INSERTS ~	36-INCH VCIN36GWS	✓	✓
	42-INCH VCIN42GWS		✓
	48-INCH VCIN48GWS			✓
	54-INCH VCIN54GWS			✓

For optimal performance, the width of the hood should equal that of the rangetop or exceed it by 3 inches on either side. Install these hoods only with Thermador blowers.

‡ The 30″ 5-burner is suitable to work with 30″ Masterpiecee hoods, excluding downdraft models.
∞ Rangetops can also be paired with Masterpiece® custom inserts
