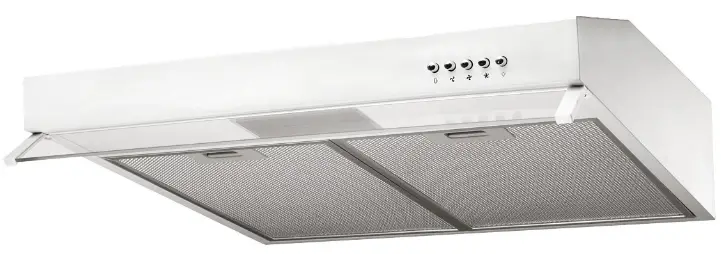

Esatto ERF60W 60cm Fixed Rangehood
The Controls
- Power Button
Press this button to turn off the fan. - Low Fan Speed Button
Suitable for simmering and cooking without much steam. - Medium Fan Speed Button
Ideal fan speed for regular cooking. - High Fan Speed Button
Use this fan speed for heavy smoke or steam to achieve maximum exhaust efficiency. - Light Button
Press this button to turn the light on and off.
For a complete guide on operating your rangehood, refer to page 14 of your user manual.
Get in Touch
Need help? Contact our friendly support team via the contact details below.
Phone / 1300 11 4357
Email / [email protected]
Product Details
- Dimensions (W, D, H mm) / 597 x 500 x 150
- Extraction / 300m3/hr
- Warranty / 2 Years
Register your Esatto product online for a free additional year esatto.house/warranty
Installation & First Use
- Before installing your new 60cm Fixed Rangehood, please ensure you have read all safety instructions in the user manual.
- The typical installation method for your fixed rangehood is into a purpose-built cupboard or by wall mounting.

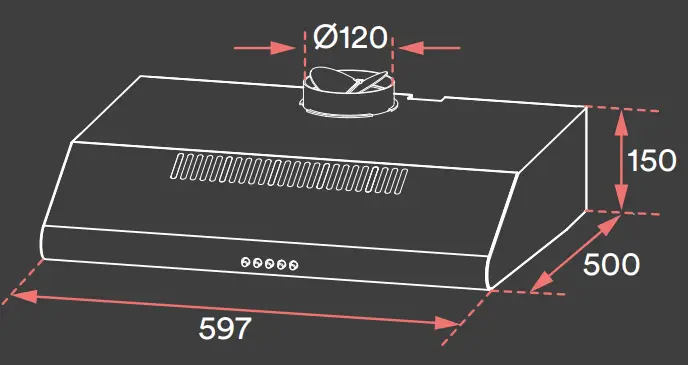

- Please refer to the dimensions of your rangehood shown in the diagram below.
Dimensions
When positioning the rangehood for installation and use, we advise that the rangehood is mounted at a height of between 650mm–750mm above the cooking surface for safety and performance of your rangehood.
For a complete installation guide, refer to user manual pages 10–13.
