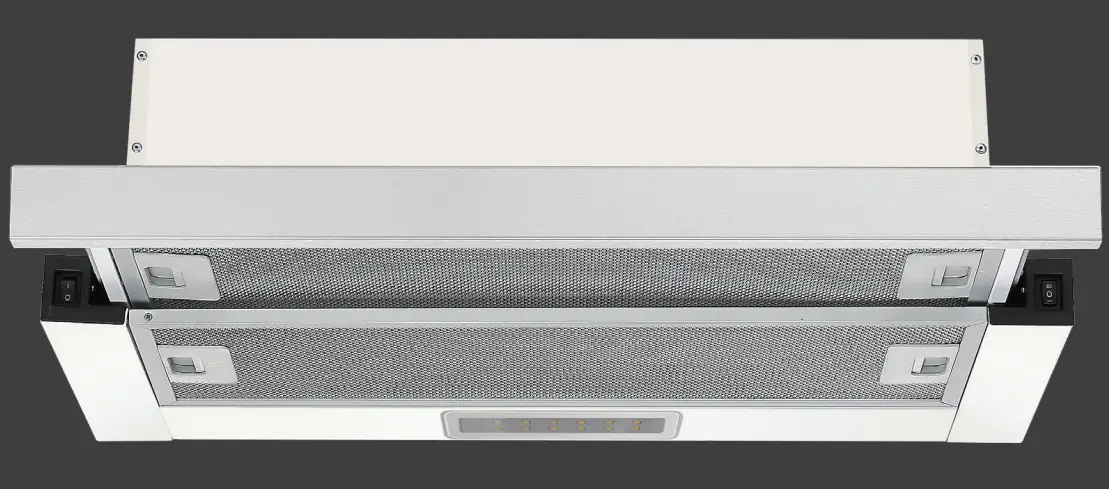

Esatto ESL60DS 60cm Slide-Out Rangehood User Guide
Operation
Your Slide-out Rangehood features switch button controls with two speed levels of extraction.

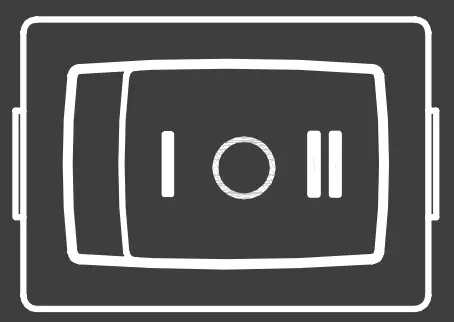

Motor Operation Switch
[ ] = Off
[ | ] = Low Power Setting
[ || ] = High Power Setting

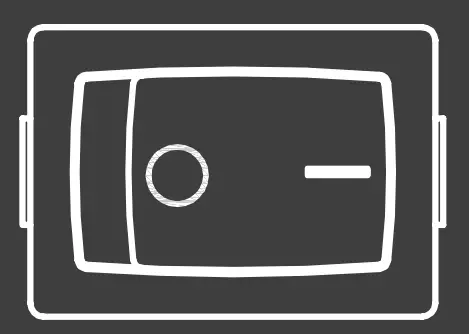

Light Operation Switch
Select this button to turn the light on and off.
[ ] = Off
[ – ] = On
Get in Touch
- Need help? Contact our friendly support team
- via the contact details below.
- Phone / 1300 11 4357
- Email / [email protected]
Product Details
Dimensions (W, D, H mm) / 600 × 300 × 200
Extraction / 450m3/hr
Warranty / 2 Years
Register your Esatto product online for a free
additional year esatto.house/warranty
Installation & First Use
Before installing your new 60cm Slide-out Rangehood, please ensure you have read all safety instructions in the user manual.
Installation

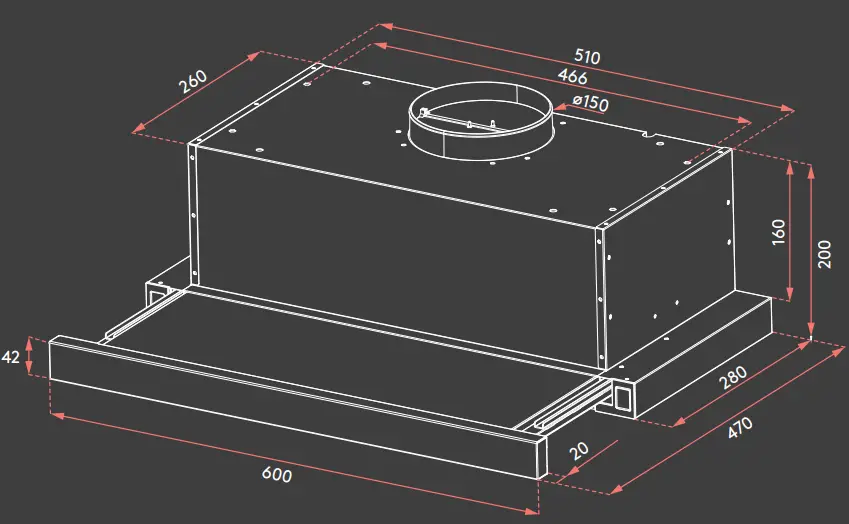

Please refer to the dimensions of your rangehood shown in the diagram below.
For safety and performance of your rangehood, adhere to the minimum and maximum distances from the rangehood base to the cooktop surface when positioning the rangehood for installation.
For a complete installation guide, refer to user manual pages 10–12.
