Burnham ALTAC Series Combi Gas Boiler

UNMATCHED SIMPLICITY

• No-touch combustion setup, engineered for a five-minute start-up
• Self-diagnostic boiler control
• Rate-based temperature reset, no outdoor sensor required –assesses environmental conditions, continually adjusting boiler operation for comfort and efficiency and long boiler life
• Three-side unobstructed service access – fast removal of front and side panels
• Simple 2-step natural gas-to-LP conversion with no kits or additional parts required
• Easy lift, wall hanging design (floor stand optional)
• Alta FastPipe (primary/secondary piping) included on combi models

NEXT-GENERATION ADAPTIVE COMBUSTION

• Continuous high-efficiency combustion without manual throttle or offset adjustments
• Low gas pressure capability (2.5 in. wc gas, 8.0 in. wc LP)
• Automatic self-calibration adjusts to variables in the environment, component wear, gas & vent pressure

HIGH-PERFORMANCE COMBI MODELS

• The world’s first 10:1, gas adaptive combi boiler – conserves fuel and extends boiler life
• Virtually instantaneous DHW response time
• Selectable economy or comfort/recirculation modes
• DHW temperature maintained under all demand conditions
• Integrated DHW hydro block with quick-disconnect flat plate DHW heat exchanger, boiler circulator, 3-way valve, and instantaneous DHW flow sensor

INDUSTRY-LEADING VALUE

• 5-year parts warranty, 12-year limited warranty on heat exchanger
• Universal vent connection for CPVC, polypropylene
• Boiler flow safety switch (UL353)
• 95% AFUE

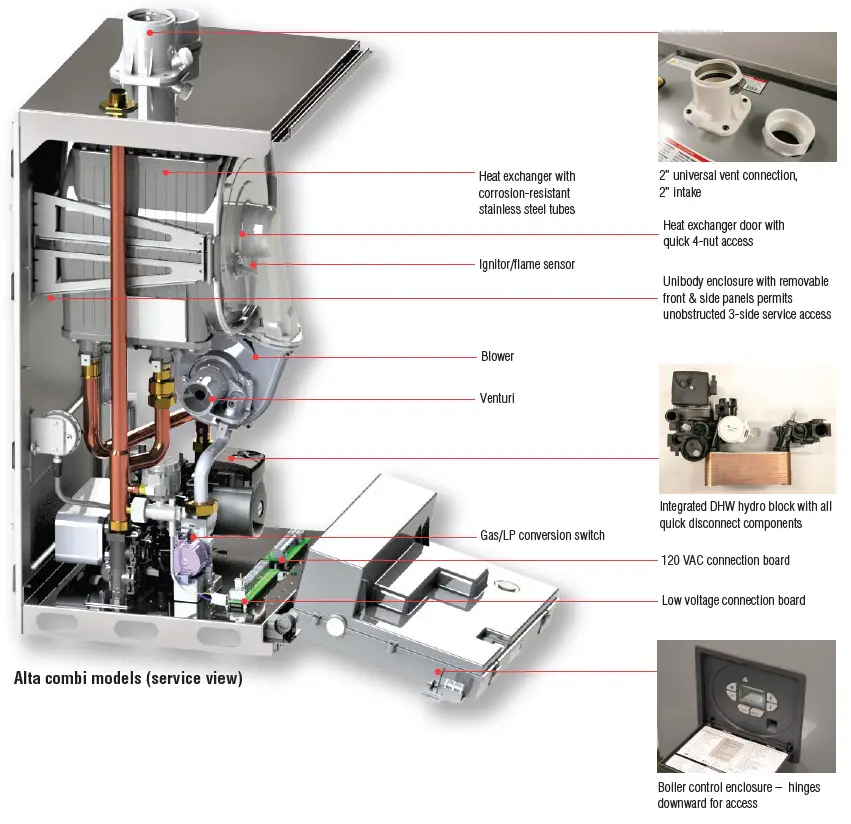

Overview Component

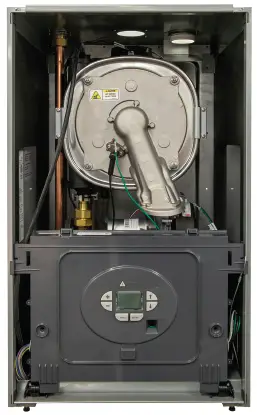

Alta heating-only models (service view)

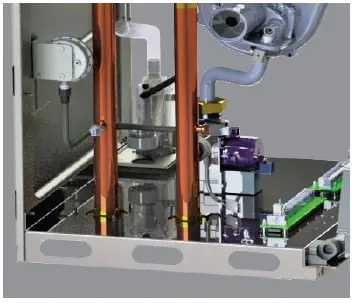

Near Boiler Piping
AltaFastPipe (primary/secondary header) is included with Alta combi boilers. This single-piece copper component includes a temperature/pressure gauge and 1-1/4” supply/return connections.

Technical Information

Standard Equipment – All Models

• Direct vent, high turndown, sealed combustion appliance
• Altitude capability to 10,100 ft. (“G00” suffix)
• Stainless steel 316L heat exchanger, corrosion resistant
• Alta Control System
  • Automatic “no-touch” combustion management
  • Built-in self-diagnostics
  • 2 inputs (T-stat, DHW)
  • Warm weather shutdown
  • Two-step LP conversion at gas valve switch and display – no kit purchase required
  • Sensor-less, rate-based reset
  • Fuse-protected, spare fuses provided
  • Separated high and low-voltage connections
• Boiler flow safety switch (UL353)
• Low gas pressure capability;
  Min: 2.5 in. WC (nat gas), 8.0 in. wc (LP gas)
• Three-side, unobstructed service access jacket
• Vent connection for CPVC/PVC, polypropylene
• Pre-installed hanging bracket and wall mount kit
• Circulator
  • Grundfos 26-99 (heating-only models)
  • Grundfos UPS-78 Special (combi models)

Combi Models

• Integrated hydro block system with flat plate heat exchanger, boiler circulator, and 3-way valve
• AltaFastPipe (pre-made primary/secondary manifold)

Ratings & Specifications

Net AHRI Water Ratings shown are based on a piping and pickup allowance of 1.15. The manufacturer should be consulted before selecting a boiler for installations having unusual piping and pickup requirements, such as intermittent operation, extensive piping systems, etc.

Safety Relief Valve Pressure, Water – 30 PSI std. ASME certified “H”. Maximum Allowable Working Pressure at 50 PSI. Max allowable temperature setting 210ºF. The target setpoint is 180°F, manual reset high limit setpoint is 210°F. Boilers shipped set for natural gas. Boiler SKUs with the “G00” suffix may be installed and set for altitudes up to 10,100 ft.

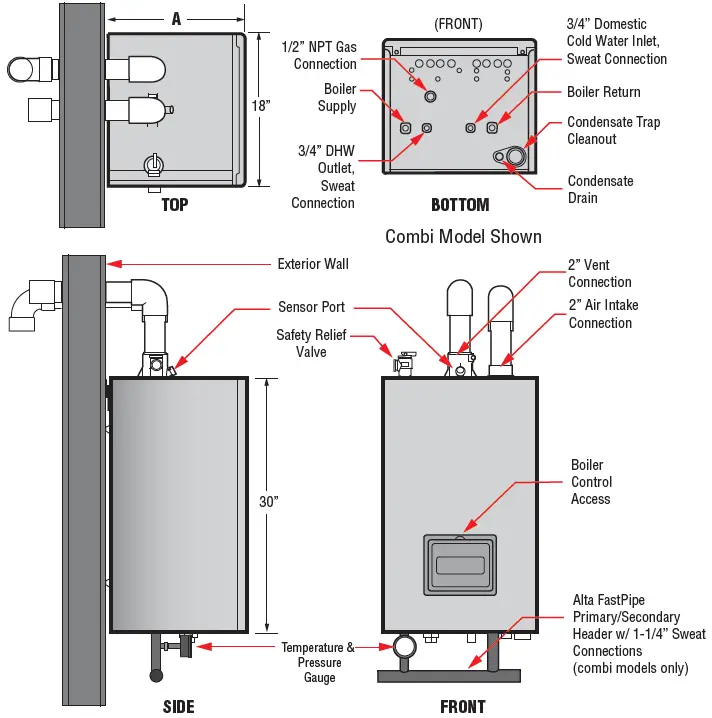

Boiler Depth

Accessories

• Floor stand kit (P/N: 111576-01)
• Service part kit (P/N 111419-01)
• Kit, CPVC starter and PVC vent terminations: (2” P/N: 107039-01)
• LP altitude electrode – ALTA-150, 180, 200 only: (P/N 111745-01)

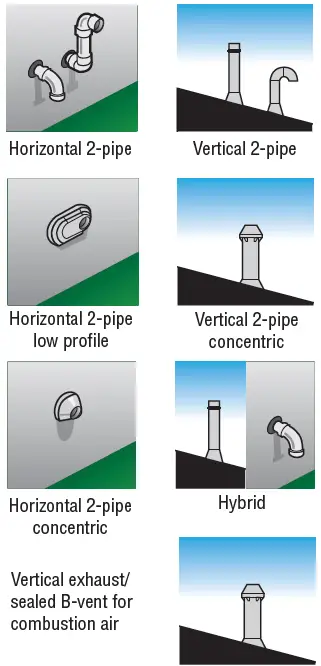

Typical Venting Configurations

(Horizontal and Vertical)
Illustrations are for representation only. For complete venting information, please see Installation, Operating and Service Instructions.
