Qudo Typhoon Strike Gb11 4 In 1 Gaming Bundle Set Instruction Manual

Strike GB11 4 In 1 Gaming Bundle Set
Instruction ManualINSTRUCTION MANUAL
4-IN-1 GAMING BUNDLE
MODEL: STRIKE GB11

Compatible with: Windows ®XPor later

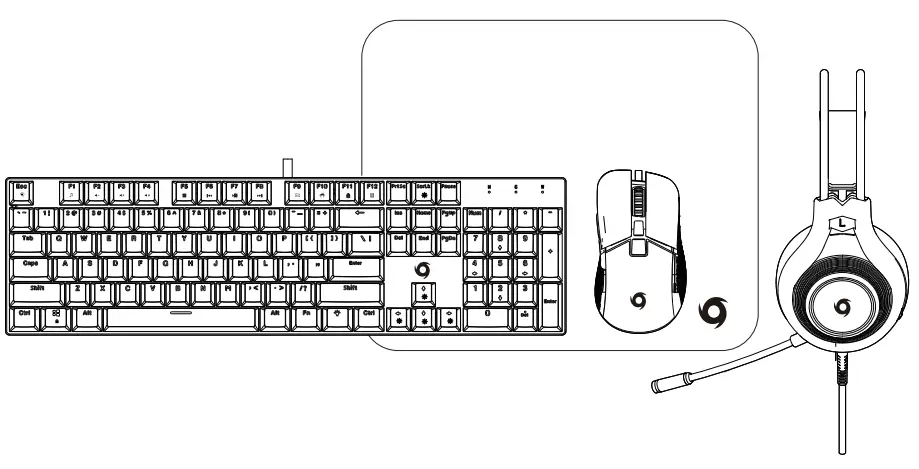

Product Functions

Keyboard Mouse padHeadset   Mouse

Usage Instructions

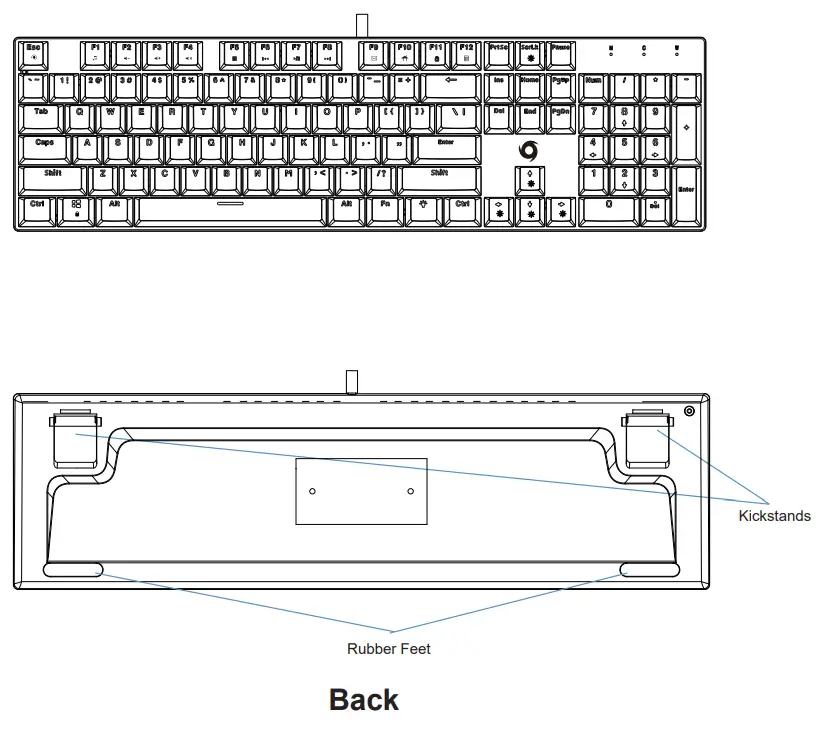

Keyboard
Installation

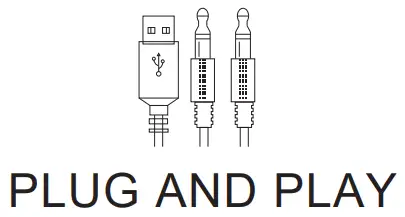

Plug USB cable into computer USB port, the keyboard lights will illuminate.
: Adjust keyboard backlight, total 12 light modes.
* Keyboard backlight brightness adjustment:
FN+ ( ↑↓ ) for backlight brightness adjustment under fixed light mode.
FN+ ( ←→ ) for backlight speed adjustment, total 3 levels under applicable light mode.
1.Multi-media keys (FN+F1-F12)

* FN+SCRLK= off backlight
* FN+ESC= Back to default mode

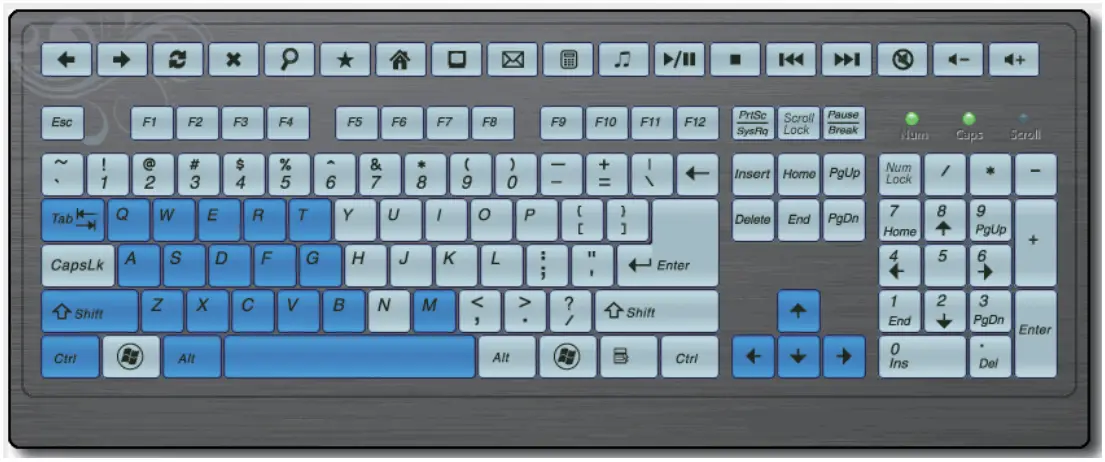

2. 25 keys anti-ghostingMouse pad
We recommend to clean the mouse pad with a damp cloth. A small amount of detergent can be added to the water. Squeeze all excess water out of the cloth prior to cleaning. Wipe the mouse pad to dry.

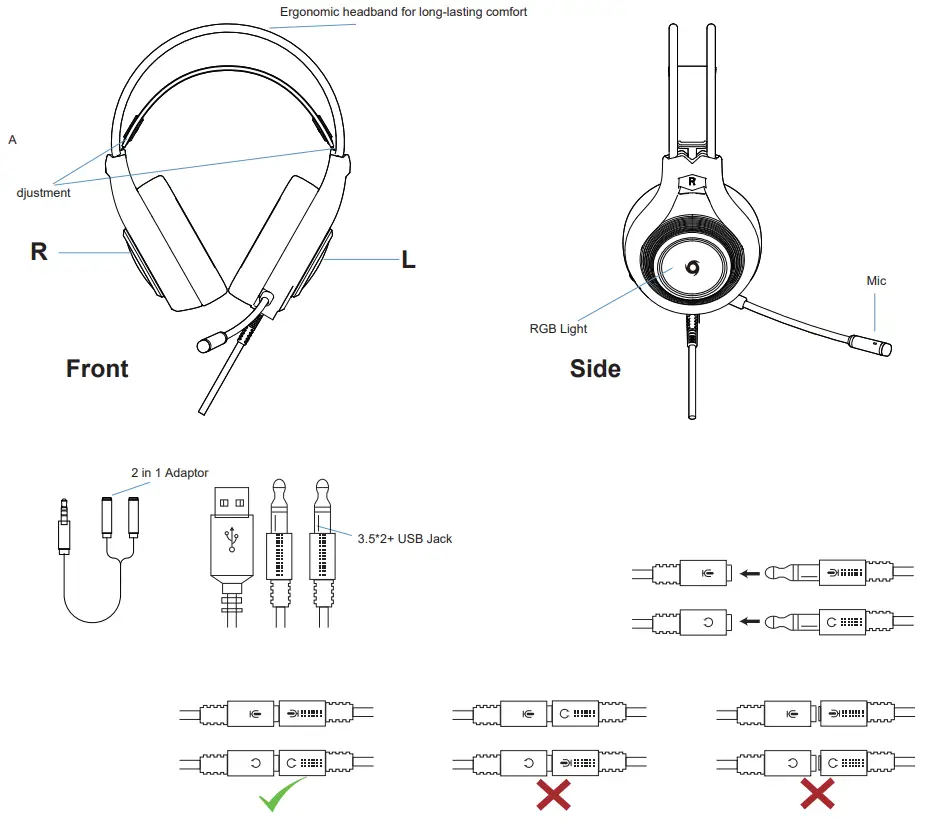

HeadsetInstallation
Note: You need to plug in the 3.5mm audio cable into computer for audio and microphone. The USB powers the LED lighting only.

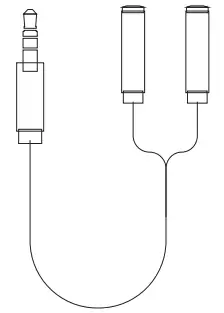

2 in 1 Adaptor
Solving the problem that the headphone can not be connected to a computer that only has a single 3.5mm earphone jack.

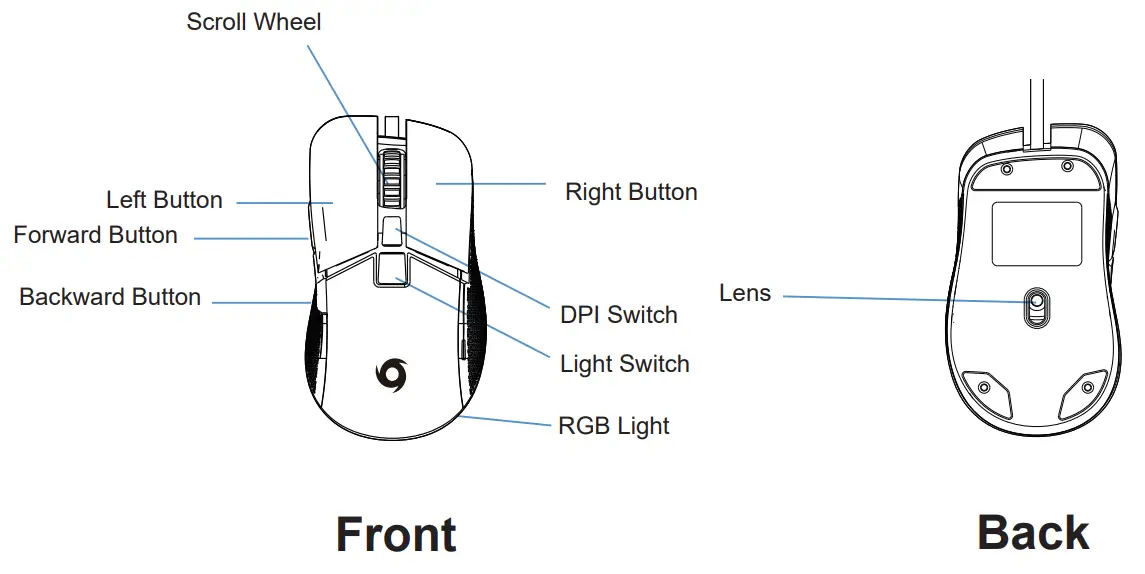

Mouse

Installation
Plug USB cable into computer USB port, the mouse lights will illuminate.

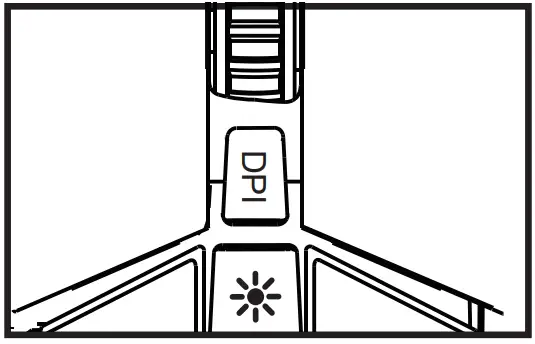

DPI
Press key to adjust DPI. Press 3 seconds to turn on/off side light.

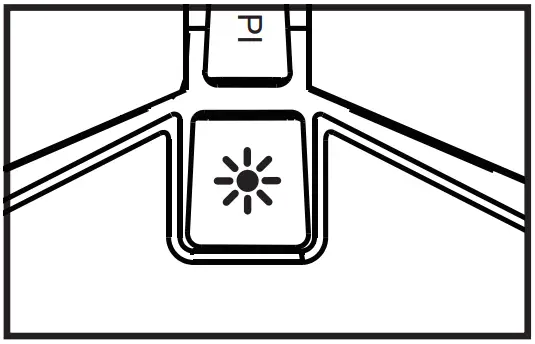

Light
Press light key for 1 second to switch light mode. There are 13 light modes.

Product Specifications

Model: STRIKE GB11
Office works Product Code: TYPGMBND
Keyboard :
* Blue switch, 50 million clicks
* Double injection US layout
* 1.5M PVC cable with magnet
* Working Voltage: USB 5V
* Plug and play
* Dimension: 425*120*32mm
* Weight: 770g ± 20g
Mouse pad :
* Rubber+Cloth
* 300*250mm
* Black stitching
Headset :
* Material: ABS
* Speaker Size: 50mm
* Horn Sensitivity: 102+/-3dB
* Mic Sensitivity: -38dB ± 3dB
* Cable Length: 2.0m
* Frequency: 20Hz-20kHz
* Plug Type: USB 2.0 + 2*3.5 mm Jack
* Speaker Impedance: 32Ω
* Mic Impedance: 2.2kΩ
* Directivity: Omnidirectional
* RGB Light
Mouse :
* 7D RGB gaming mouse
* Instant725F chipset , up to 7200DPI
* HUANO switches, 5 million click lifetime for both left and right key
* 1.5m USB PVC cable with magnet ring
* Polling Rate: 125-250-500-1000Hz
* Maximum Acceleration: 20G
* Rating: 5V 100mA
* Max. Speed: 152.4cm/sec
* Plug and play

Packaging Contents

1. Mechanical Gaming Keyboard x 1
2. Mouse pad x 1
3. RGB Gaming Headset x 1
4. 2 in 1 Adaptor x 1
5. RGB Gaming Mouse x 1
6. Instruction Manual x 1

WARNING
TO PREVENT POSSIBLE HEARING DAMAGE, DO NOT LISTEN AT HIGH VOLUMES FOR LONG PERIODS.
WARNING
To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet, refer to service agent or qualified engineer only.

Product Warranty ­ Valid for Australian Customers Only

Officeworks Ltd warrants that this product will be free from defects and work as intended for 3 years from the date of purchase by the original customer.
If the product has any defects or does not work as specified during the Warranty Period, Officeworks will, at its election and at its expense, repair or replace the product.
This warranty does not apply:

• to cosmetic damage;
• to damage caused by consumables used in connection with the product;
• where the product has not been used in accordance with all provided instructions;
• to damage arising from fair wear and tear;
• where the product has not been subject to reasonable use;
• where the product has been intentionally or negligently damaged; and/or
• if the customer has attempted to repair the product.

To make a claim under this warranty, please return your product with your receipt or proof of purchase to your nearest Officeworks store or contact 1300 633 423.
This warranty is provided in addition to any rights you may be entitled to under the Competition & Consumer Act 2010. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
OFFICEWORKS LTD 236-262 EAST BOUNDARY ROAD EAST BENTLEIGH VIC 3165 AUSTRALIA
Windows is a trademark of the Microsoft Corporation in the United States and other countries.

MADE IN CHINA
