QUICK REFERENCE GUIDE > RS2484FRJK1
Integrated Column Freezer,
24″, Ice
Series 11 | Integrated
Panel Ready | Right Hinge

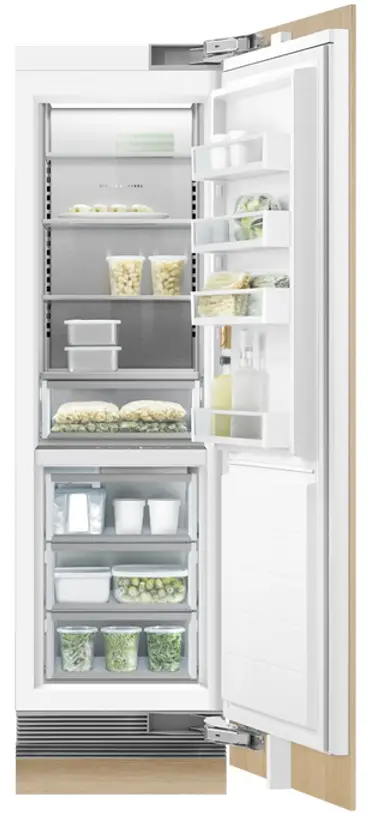

Install it separately or pair it with another Column for seamless integration – this model is right hinge with stainless steel interior.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature
- Two separate Variable Temperature Zones: each with Freeze, Soft Freeze, or Deep Freeze
- Internal ice maker with boost for busy times
- Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory

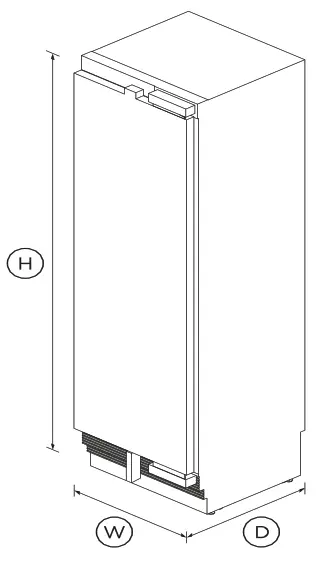

DIMENSIONS
| Height | 84″ |
| Width | 23 3/4″ |
| Depth | 24″ |
FEATURES & BENEFITS
Variable Temperature Zones
Food is stored in two separate zones. You have the choice of three food modes: Freeze -7°F to 7°F, Soft Freeze 14°F to 18°F, and Deep Freeze fixed at -13°F.
Mix & match
Integrated Column Refrigeration gives you the freedom to mix and match. Different sized Column Fridges and Freezers can be installed separately or paired. Finish them with our stainless steel door panels or customize them to match your own kitchen cabinetry.
Clever energy
Our Energy Star certified ActiveSmart™ Foodcare Fridges &Freezers adapt to daily use by cooling and defrosting only when needed. This means your refrigerator uses the energy it needs without compromising on food care.
Appealing illumination
Bright LEDs light up the ceiling, shelves, bins, and trays in both refrigerator and freezer, making it easy to find your food and creating a welcoming glow in your kitchen for those midnight snacks.
Design quality
The premium design and quality finish include a steel interior lining as well as full extension metal shelf runners for easy access and robust glass shelving.
Easy install
Integrated Column Refrigerators and Freezers have been developed to make their installation easy. The joiner kit is included when pairing refrigerators and freezers. All models come with front adjustable leveling feet and they’ve been designed to easily slide into place as separate units.
Perfect fit
These models fit flush and have only ⅛” / 3mm gaps around them with no visible hinges or grilles. Our Integrated Column models can be seamlessly hidden behind your cabinetry or you can purchase our stainless steel door panel.
SPECIFICATIONS
Accessories
| 24″ Stainless steel toe kick | AKRS2404 |
| 42″ Stainless steel toe kick | AKRS4204 |
| 48″ Stainless steel toe kick | AKRS4804 |
| 54″ Stainless steel toe kick | AKRS5404 |
| 60″ Stainless steel toe kick | AKRS6004 |
| 66″ Stainless steel toe kick | AKRS6604 |
| 72″ Stainless steel toe kick | AKRS7204 |
| 78″ Stainless steel toe kick | AKRS7804 |
| 84″ Stainless steel toe kick | AKRS8404 |
| Contemporary round handle | AHS-RD84 |
| Contemporary square handle | AHD3-RD84 |
| Hinge change (from the left hinge | 848188 |
| Hinge change (from right hinge | 848187 |
| Joiner kit | AJ-RS84LR |
| Professional round flush handle | AHP3RDSF |
| Professional round handle kit | AHC-RD84 |
| Professional square handle kit | AHV2-RD84 |
| Square fine aluminum handle | AHD5RDSF |
| Square fine black handle kit | AHD5RDSFB |
| Stainless steel door panel | RD2484R4D |
Capacity
| Volume | 11.9cu ft |
| Volume freezer | 11.9cu ft |
Consumption
| Energy rating | Energy star |
| Energy usage | 439kWh/year |
Features
| Adjustable door shelves | 4 |
| Adjustable glass cantilevered | • |
Freezer Features
| Automatic ice maker | • |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Freezer bins | 4 |
| Ice Boost | • |
| LED bin lighting | • |
| LED ceiling lighting | • |
| LED side lighting | • |
| SmartTouch interface at | • |
Performance
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| Dual evaporator | • |
| Frost free | • |
| Inverter controlled compressor | • |
| Sabbath mode | • |
| Variable temperature zones | 2 |
Power requirements
| Rated current | 10A |
| Supply frequency | 60Hz |
| Supply voltage | 115V |
Product dimensions
| Depth | 24″ |
| Height | 84″ |
| Width | 23 3/4″ |
Safety and Compliance
| ADA compliant | • |
Warranty
| Parts and labor | 2 years |
| Sealed system parts only | 5 years |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
