QUICK REFERENCE GUIDE > RS3084FLJK1

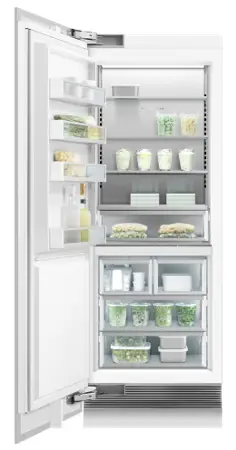

Integrated Column Freezer,
30″, Ice
Series 11 | Integrated
Panel Ready | Left hinge

Install it separately or pair it with another Column for seamless integration – this model is a left hinge with stainless steel interior.

ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature
Two separate Variable Temperature Zones: each with Freeze, Soft Freeze or Deep Freeze
Internal ice maker with boost for busy times
Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory

Contents hide

1 DIMENSIONS

2 FEATURES & BENEFITS

3 SPECIFICATIONS

4 Safety and Compliance

5 Documents / Resources

5.1 References

6 Related Posts

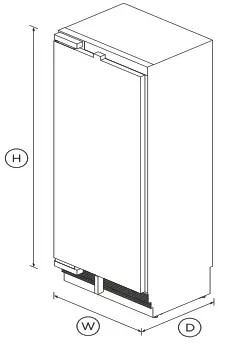

DIMENSIONS

Height	84″
Width	29 3/4″
Depth	24″

FEATURES & BENEFITS

Variable Temperature Zones
Food is stored in two separate zones. You have the choice of three food modes: Freeze -7°F to 7°F, Soft Freeze from 14°F to 18°F, and Deep Freeze is fixed at -13°F.
Mix & match
Integrated Column Refrigeration gives you the freedom to mix and match. Different sized Column Fridges and Freezers can be installed separately or paired. Finish them with our stainless steel door panels or customize them to match your own kitchen cabinetry.
Clever energy
Our Energy Star certified ActiveSmart™ Foodcare Fridges & Freezers adapt to daily use by cooling and defrosting only when needed. This means your refrigerator uses the energy it needs without compromising on food care.
Appealing illumination
Bright LEDs light up the ceiling, shelves, bins, and tray in both refrigerator and freezer, making it easy to find your food and creating a welcoming glow in your kitchen for that midnight snacks.
Design quality
The premium design and quality finish include a steel interior lining as well as full extension metal shelf runners for easy access and robust glass shelving.
Easy install
Integrated Column Refrigerators and Freezers have been developed to make their installation easy. The joiner kit is included when pairing refrigerators and freezers. All models come with front adjustable leveling feet and they’ve been designed to easily slide into place as separate units.
Perfect fit
These models fit flush and have only ⅛” / 3mm gaps around them with no visible hinges or grilles. Our Integrated Column models can be seamlessly hidden behind your cabinetry or you can purchase our stainless steel door panel.

SPECIFICATIONS

Accessories

30″ Stainless steel toe kick	AKRS3084
48″ Stainless steel toe kick	AKRS4804
54″ Stainless steel toe kick	AKRS5404
60″ Stainless steel toe kick	AKRS6004
66″ Stainless steel toe kick	AKRS6604
72″ Stainless steel toe kick	AKRS7204
78″ Stainless steel toe kick	AKRS7804
84″ Stainless steel toe kick	AKRS8404
Contemporary round handle	AHS-RD84
Contemporary square handle	AHD3-RD84
Hinge change (from the left hinge	848190
Hinge change (from right hinge	848189
Joiner kit	AJ-RS84LR
Matching Replacement Water	847200
Professional round flush handle	AHP3RDSF
Professional round handle kit	AHC-RD84
Professional square handle kit	AHV2-RD84
Square fine aluminum handle	AHD5RDSF
Square fine black handle kit	AHD5RDSFB
Stainless steel door panel	RD3084L4D

Capacity

Volume	15.6cu ft
Volume freezer	15.6cu ft

Consumption

Energy rating	Energy star
Energy usage	491kWh/year

Features

Adjustable door shelves	4
Adjustable glass cantilevered	•

Freezer Features

Automatic ice maker	•
Bottle chill	•
Door alarm	•
Fast freeze	•
Freezer bins	4
Ice Boost	•
LED bin lighting	•
LED ceiling lighting	•
LED side lighting	•
SmartTouch interface at	•

Performance

ActiveSmart™ Foodcare	•
Adaptive defrost	•
Dual evaporator	•
Frost free	•
Inverter controlled compressor	•
Sabbath mode	•
Variable temperature zones	2
