Fisher Paykel Rs1884flj1 Integrated Column Freezer User Guide (+ PDF)

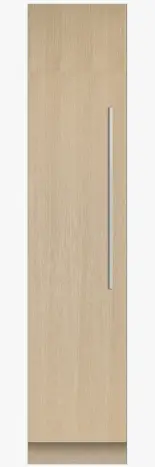

Integrated Column Freezer, 18″, Ice
Series 9/Integrated/Panel Ready/Left hinge

Install it separately or pair it with another Column for seamless kitchen integration this model is left hinge with a white interior.

ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature
Two separate Variable Temperature Zones: each with Freeze, Soft Freeze, or Deep Freeze
Internal ice maker with boost for busy times

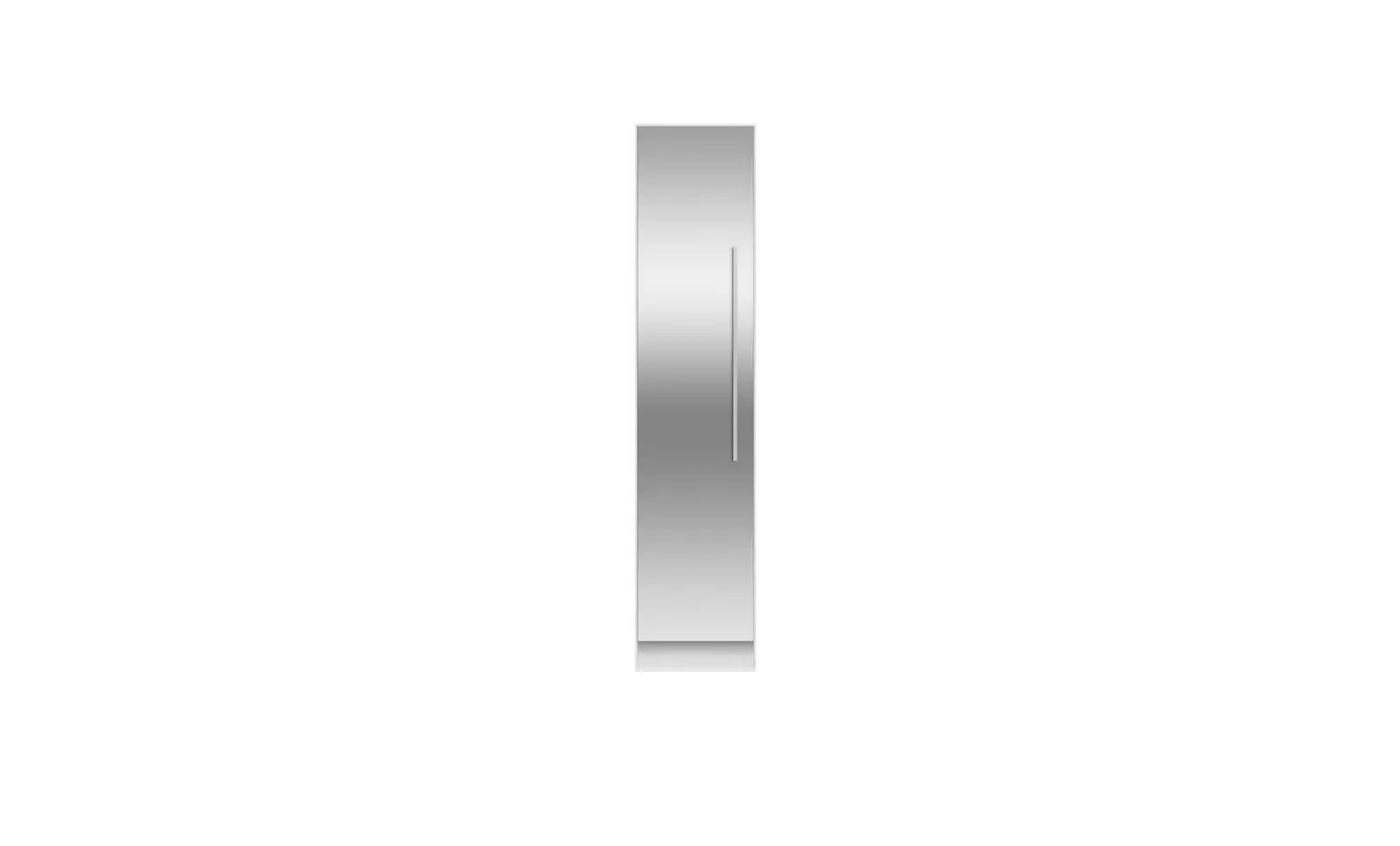

Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory

Contents hide

1 DIMENSIONS

2 FEATURES & BENEFITS

3 SPECIFICATIONS

4 Documents / Resources

4.1 References

5 Related Posts

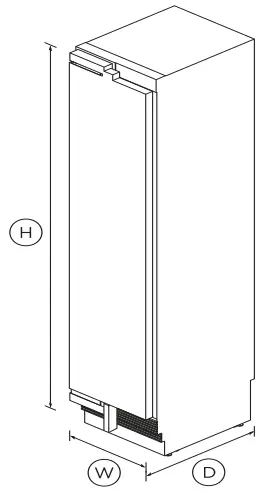

DIMENSIONS

Height	84″
Width	17 3/4″
Depth	24″

FEATURES & BENEFITS

Variable Temperature Zones
Food is stored in two separate zones. You have the choice of three food modes: Freeze -7°F to 7°F, Soft Freeze from 14°F to 18°F, and Deep Freeze is fixed at -13°F.
Mix & match
Integrated Column Refrigeration gives you the freedom to mix and match. Different sized Column Fridges and Freezers can be installed separately or paired. Finish them with our stainless steel door panels or Customize them to match your own kitchen cabinetry.
Clever energy
Our Energy Star-certified ActiveSmartTM Refrigerators & Freezers adapt to daily use by cooling and defrosting only when needed. This means your refrigerator uses the energy it needs without compromising on food care.
Appealing illumination
Bright LEDs light up the ceiling, shelves, bins, and trays in both refrigerator and freezer, making it easy to find your food and creating a welcoming glow in your kitchen for those midnight snacks.
Design quality
The premium design and quality finish include a white or stainless steel interior lining, as well as full-extension metal shelf runners for easy access and robust glass shelving.
Easy install
Integrated Column Refrigerators and Freezers have been developed to make their installation easy. The joiner kit is included when pairing refrigerators and freezers. All models come with front adjustable leveling feet and they’ve been designed to easily slide into place as separate units.
Perfect fit
These models fit flush and have only ” / 3mm gaps around them with no visible hinges or grilles. Our Integrated Column models can be seamlessly hidden behind your cabinetry or you can purchase our stainless steel door panel.

SPECIFICATIONS

Accessories

18″ Stainless steel toe kick	AKRS1804
42″ Stainless steel toe kick	AKRS4204
48″ Stainless steel toe kick	AKRS4804
54″ Stainless steel toe kick	AKRS5404
60″ Stainless steel toe kick	AKRS6004
66″ Stainless steel toe kick	AKRS6604
72″ Stainless steel toe kick	AKRS7204
78″ Stainless steel toe kick	AKRS7804
84″ Stainless steel toe kick	AKRS8404
Contemporary round handle	AHS-RD84
Contemporary square handle	AHD3-RD84
Hinge change (from the left hinge	848186
Hinge change (from right hinge	848185
Joiner kit	AJ-RS84LR
Professional round flush handle	AHP3RDSF
Professional round handle kit	AHC-RD84
Professional square handle kit	AHV2-RD84
Square fine aluminum handle	AHD5RDSF
Square fine black handle kit	AHD5RDSFB
Stainless steel door panel	RD1884L4D

Capacity

Volume	7.8cu ft
Volume freezer	7.8cu ft

Consumption

Energy rating	Energy star
Energy usage	415kWh/year

Features

Adjustable door shelves	4
Adjustable glass cantilevered	•
Adjustable glass shelves	3

Freezer Features

Automatic ice maker	•
Bottle chill	•
Door alarm	•
Fast freeze	•
Freezer bins	4
Glass shelves	3
Ice Boost	•
LED bin lighting	•
LED ceiling lighting	•
LED side lighting	•
SmartTouch interface at	•

Performance

ActiveSmart™ Foodcare	•
Adaptive defrost	•
Dual evaporator	•
Frost free	•
Inverter controlled compressor	•
Sabbath mode	•
Variable temperature zones	2
