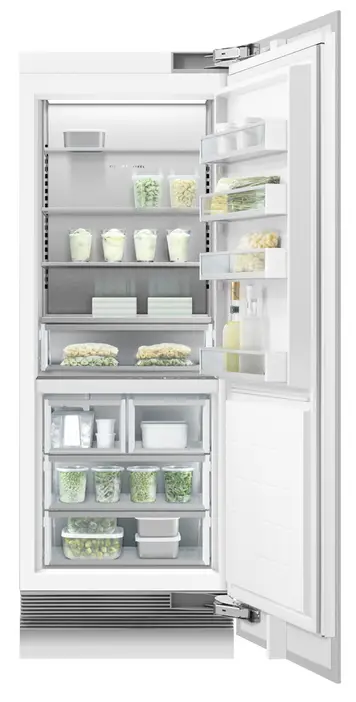

FISHER PAYKEL RS3084FRJK1 Integrated Column Freezer User Guide
Install it separately or pair with another Column for seamless integration – this model is right hinge with stainless steel interior.
- Active Smart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature
- Two separate Variable Temperature Zones: each with Freeze, Soft Freeze or Deep Freeze
- Internal ice maker with boost for busy times
- Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory

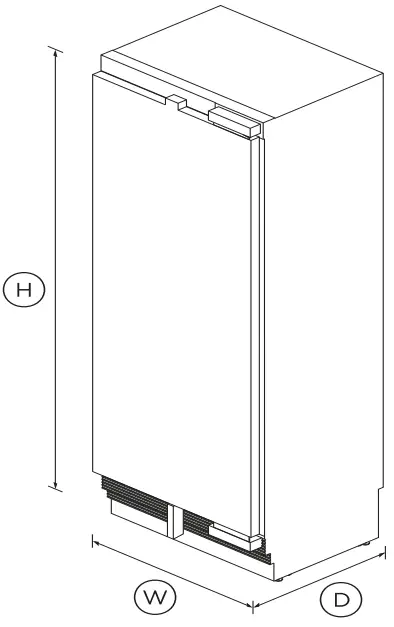

DIMENSIONS
Height 84″
Width 29 3/4″
Depth 24″
FEATURES & BENEFITS
Variable Temperature Zones
Mix & match
Integrated Column Refrigeration gives you the freedom to mix and match. Different sized Column Fridges and Freezers can be installed separately or paired. Finish them with our stainless steel door panels or customize to match your own kitchen cabinetry.
Clever energy
Our Energy Star certified Active Smart™ Food care Fridges & Freezers adapt to daily use by cooling and defrosting only when needed. This means your refrigerator uses the energy it needs without compromising on food care.
Appealing illumination
Bright LED’s light up the ceiling, shelves, bins and tray in both refrigerator and freezer, making it easy to find your food and creating a welcoming glow in your kitchen for those midnight snacks.
Design quality
The premium design and quality finish includes a steel interior lining as well as full extension metal shelf runners for easy access and robust glass shelving.
Easy install
Integrated Column Refrigerators and Freezers have been developed to make their installation easy. The joiner kit is included when pairing refrigerator and freezers. All models come with front adjustable levelling feet and they’ve been designed to easily slide into place as separate units.
Perfect fit
These models fit flush and have only ⅛” / 3mm gaps around them with no visible hinges or grilles. Our Integrated Column models can be seamlessly hidden behind your cabinetry or you can purchase our stainless steel door panel.
SPECIFICATIONS
Accessories
- 30″ Stainless steel toe kick AKRS3084
- 48″ Stainless steel toe kick AKRS4804
- 54″ Stainless steel toe kick AKRS5404
- 60″ Stainless steel toe kick AKRS6004
- 66″ Stainless steel toe kick AKRS6604
- 72″ Stainless steel toe kick AKRS7204
- 78″ Stainless steel toe kick AKRS7804
- 84″ Stainless steel toe kick AKRS8404
- Contemporary round handle AHS-RD84
- Contemporary square handle AHD3-RD84
- Hinge change (from left hinge 848190
- Hinge change (from right hinge 848189
- Joiner kit AJ-RS84LR
- Matching Replacement Water 847200
- Professional round flush handle AHP3RDSF
- Professional round handle kit AHC-RD84
- Professional square handle kit AHV2-RD84
- Square fine aluminium handle AHD5RDSF
- Square fine black handle kit AHD5RDSFB
- Stainless steel door panel RD3084R4D
Capacity
- Volume 15.6cu ft
- Volume freezer 15.6cu ft
Consumption
- Energy rating Energy star
- Energy usage 491kWh/year
Features
- Adjustable door shelves 4
- Adjustable glass cantilevered •
Freezer Features
- Automatic ice maker •
- Bottle chill •
- Door alarm •
- Fast freeze •
- Freezer bins 4
- Ice Boost •
- LED bin lighting •
- LED ceiling lighting •
- LED side lighting •
- Smart Touch interface at •
Performance
- Active Smart™ Food care •
- Adaptive defrost •
- Dual evaporator •
- Frost free •
- Inverter controlled compressor •
- Sabbath mode •
- Variable temperature zones 2
Power requirements
- Rated current 10A
- Supply frequency 60Hz
- Supply voltage 115V
Product dimensions
- Depth 24″
- Height 84″
- Width 29 3/4″
Safety and compliance
ADA compliant •
Warranty
- Parts and labour 2 years
- Sealed system parts only 5 years
SKU 26134
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
QUICK REFERENCE GUIDE
Other product downloads available at fisherpaykel.com .
Install Guide – Water Filter Replacement
Guide d’installation – Instructions
Specification Guide Integrated Column Freezer
Data Sheet Integrated Column Freezer Data Sheet Integrated Column Freezer Dual Install (18″ + 30″)
Data Sheet Integrated Column Freezer Dual Install (24″ + 30″)
Data Sheet Integrated Column Freezer Dual Install (30″ + 30″)
Planning Guide Integrated Column Freezer
Key Purchase Decisions integrated Column Freezer
