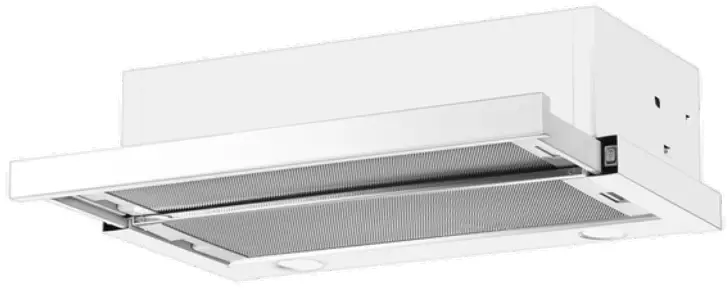

FISHER PAYKEL HS60XW4 Wall Rangehood, 60cm, Telescopic User Guide
Introduction
The wall chimney rang hood has contemporary styling, extracting steam, grease and cooking odours quietly and efficiently.
- With two fan speeds, select the ideal extraction rate for your cooking
- Slides out for use when you need it, with maximum air movement of 340m³/hr
- Dishwasher safe filters that are easy to remove and clean

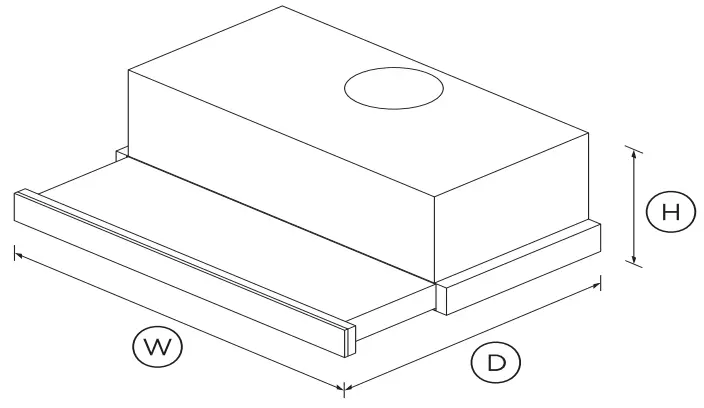

DIMENSIONS
| Height | 181-185mm |
| Width | 598mm |
| Depth | 280-460mm |
FEATURES & BENEFITS
EASY INSTALLATION
This range hood can be either externally ducted through the top or back or can recirculate air internally through its filters, making it perfect for apartments.
EASY TO USE
Simply flick a switch to turn this range hood on or off, or to change the extraction speed. A separate switch controls the bright halogen lights to provide illumination over your cooking surface.
EASY CLEANING
Two filters, consisting of layers of aluminum mesh, effectively trap grease particles during extraction. They are easy to remove and dishwasher safe, or can be cleaned by hand in hot soapy water.
SEAMLESS INTEGRATION
This range hood can be built into your cabinetry for a seamless look. Its stainless steel finish is designed to match the rest of Fisher & Paykel’s kitchen appliance family.
SPECIFICATIONS
| Accessories | |
| 40mm Stainless handle | 792405 (included installed) |
| 40mm white glass handle | 792394 (included) |
| Aluminium filter | 792391 |
| Eave ducting kit | PD-RHK125E |
| Light bulb | 791822 |
| Recirculation carbon filter | 792390 |
| Roof ducting kit | PD-RHK125T |
| Side wall ducting kit | PD-RHK125W |
| Fan ratings | |
| Maximum air movement | 340m³/hr |
| Maximum sound rating | 66dBA |
| Installation and cleaning | |
| Dishwasher safe filters | 2 |
| Ducted | Top extraction only |
| Performance | |
| Extraction type | Surface |
| Fan speeds | 2 |
| Filter type | Mesh |
| Number of filter | 2 |
| Power requirements | |
| Supply frequency | 50Hz |
| Supply voltage | 220-240V |
| Product dimensions | |
| Depth | 280-460mm |
| Height | 181-185mm |
| Width | 598mm |
| Product information | |
| Control type | Switch |
| Ventilation features | |
| Light type | LED |
| Warranty | |
| Parts and labor | 2 years |
| SKU | 50016 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
