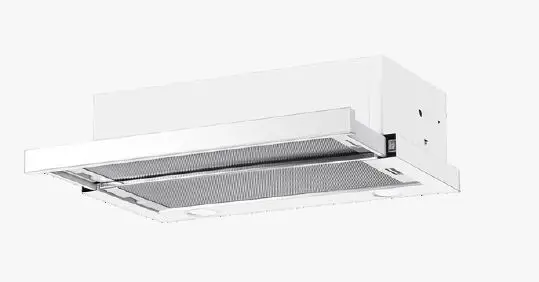

FISHER PAYKEL HS60LXW4 60cm Wall Rangehood Telescopic
The wall chimney rangehood has contemporary styling, extracting steam, grease and cooking odours quietly and efficiently.
- With two fan speeds, select the ideal extraction rate for your cooking
- Slides out for use when you need it, with maximum air movement of 180m³/hr
- Dishwasher safe filters that are easy to remove and clean

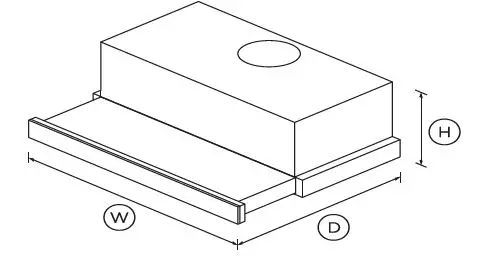

DIMENSIONS
| Height | 181-185mm |
| Width | 598mm |
| Depth | 280 – 460mm |
FEATURES & BENEFITS
EASY INSTALLATION
This rangehood can be either externally ducted through the top or back or can recirculate air internally through its filters, making it perfect for apartments.
SIMPLE TO USE
Intuitive controls responds to the touch of your finger. Two halogen spotlights provide clear illumination over the entire cooking surface.
EASY CLEANING
Two filters, consisting of layers of aluminium mesh, effectively trap grease particles during extraction. They are easy to remove and dishwasher safe, or can be cleaned by hand in hot soapy water.
SEAMLESS INTEGRATION
With the white glass front panel handles and a brushed stainless steel finish, this rangehood is designed to match the rest of the Fisher & Paykel’s kitchen appliance family.
SPECIFICATIONS
Accessories
| 40mm Stainless handle | 792405 (included installed) |
| 40mm white glass handle | 792394 (included) |
| 70mm Stainless handle | 792399 (not included) |
| Aluminium filter | 792391 |
| Eave ducting kit | PD-RHK125E |
| Handle required for | HS60 Part No.792399 |
| Light bulb | 791822 |
| Recirculation carbon filter | 792390 |
| Roof ducting kit | PD-RHK125T |
| Side wall ducting kit | PD-RHK125W |
Fan ratings
| Maximum air movement | 180m³/hr |
| Maximum sound rating | 64dBA |
installation and cleaning
| Dishwasher safe filters | 2 |
| Ducted | Top and back extraction |
| Recirculation | Optional – top and back |
Performance
| Extraction type | Surface |
| Fan speeds | 2 |
| Filter type | Mesh |
| Number of filters | 2 |
Power requirements
| Supply frequency | 50Hz |
| Supply voltage | 220-240V |
Product dimensions
| Depth | 280 – 460mm |
| Height | 181-185mm |
| Width | 598mm |
Product information
| Control type | Switch |
Ventilation features
| Light type | LED |
Warranty
| Parts and labour | 2 years |
| SKU | 50015 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
