Date: 14.07.2022

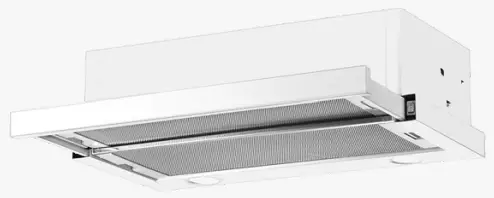

QUICK REFERENCE GUIDE > HS60XW4
Wall Rangehood, 60cm, Telescopic
Series 3 | Contemporary
White
The wall chimney rangehood has contemporary styling, extracting steam, grease and cooking odours quietly and efficiently.
- With two fan speeds, select the ideal extraction rate for your cooking
- Slides out for use when you need it, with maximum air movement of 340m³/hr
- Dishwasher safe filters that are easy to remove and clean

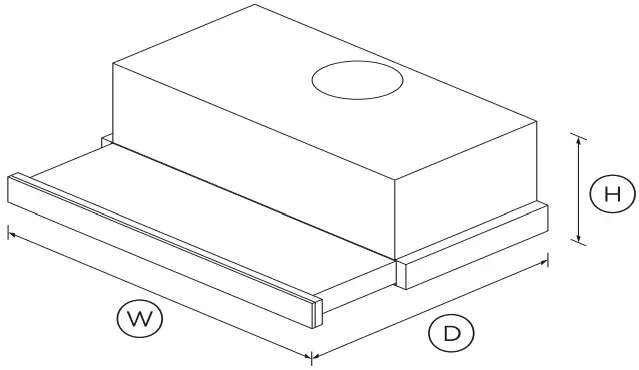

DIMENSIONS
Height 181-185mm
Width 598mm
Depth 280-460mm
FEATURES & BENEFITS
Easy installation
This rangehood can be either externally ducted through the top or back or can recirculate air internally through its filters, making it perfect for apartments.
Easy to use
Simply flick a switch to turn this rangehood on or off, or to change the extraction speed. A separate switch controls the bright halogen lights to provide illumination over your cooking surface.
Easy cleaning
Two filters, consisting of layers of aluminium mesh, effectively trap grease particles during extraction. They are easy to remove and dishwasher safe, or can be cleaned by hand in hot soapy water.
Seamless integration
This rangehood can be built into your cabinetry for a seamless look. Its stainless steel finish is designed to match the rest of Fisher & Paykel’s kitchen appliance family.
SPECIFICATIONS
Accessories
40mm Stainless handle 792405 (included installed)
40mm white glass handle 792394 (included)
Aluminium filter 792391
Eave ducting kit PD-RHK125E
Light bulb 791822
Recirculation carbon filter 792390
Roof ducting kit PD-RHK125T
Side wall ducting kit PD-RHK125W
Fan ratings
Maximum air movement 340m³/hr
Maximum sound rating 66dBA
Installation and cleaning
Dishwasher safe filters 2
Ducted Top extraction only
Performance
Extraction type Surface
Fan speeds 2
Filter type Mesh
Number of filters 2
Power requirements
Supply frequency 50Hz
Supply voltage 220-240V
Product dimensions
Depth 280-460mm
Height 181-185mm
Width 598mm
Product information
Control type Switch
Ventilation features
Light type LED
Warranty
Parts and labour 2 years
SKU 50016
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
Service & Warranty User Guide Installation Guide
