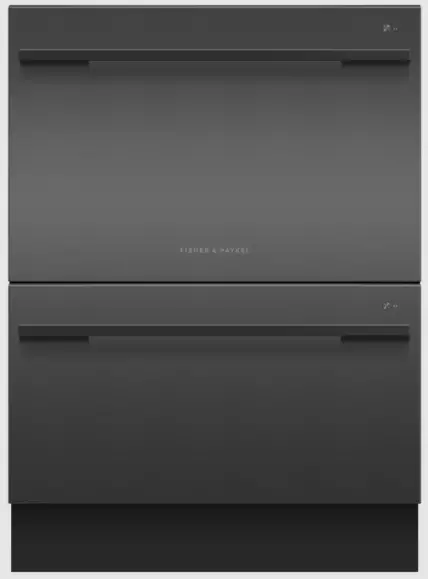

FISHER PAYKEL DD60DDFB9 Double DishDrawer Dishwasher, Sanitise User Guide
Introduction
Wash one drawer while you load the other, with minimal bending and room in each drawer for full-size dinner plates.
- Six wash programs, as well as additional Quick wash, Sanities and Extra Dry options
- Flexible racking allows you to customize internal shelves to suit your needs
DIMENSIONS
| Height | 820 – 880mm |
| Width | 599mm |
| Depth | 573mm |
FEATURES & BENEFITS
QUICK, SANITISE AND EXTRA DRY OPTIONS
The Quick wash modifier delivers a faster wash while maintaining performance. The Sanities option provides extra protection,
killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
EASE OF USE
Dish Drawer™ Dishwashers are as easy to open and close as kitchen drawers, and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
INDEPENDENT WASHING
With the ability to use both drawers independently and select different wash programs, the Dish Drawer™ Dishwasher can wash
everything from fine glass and crystal to heavily soiled pots and pans.
BEAUTY OF CHOICE
As much a design component as a high performance appliance, the black Dish Drawer™ Dishwasher brings a touch of
sophistication to your kitchen, on its own or part of a matching kitchen appliance set.
TRUE HALF LOAD
Each drawer holds a true half load for small, fast dish washing that won’t waste water. Both drawers operate independently so
two wash cycles can operate simultaneously to allow for varying loads.
QUIET PERFORMER
Running at a very low decibel rating, these Dish Drawer™ Dishwashers do their job without making a fuss. The combination
of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
SPECIFICATIONS
| Accessories | |
| Cutlery basket | • |
| Kick strip | • |
| Knife clip and multipurpose | • |
| Capacity and loading | |
| Accommodates round plates | 280mm |
| Adjustable height, foldable | • |
| Fold down tines | • |
| Pitch adjustable tines | • |
| Place settings | 14 |
| Consumption | |
| Energy rating | 3.5 star |
| Energy usage | 136kWh/year |
| Water rating | 4.5 star (WELS) |
| Water usage (per wash cycle) | 6.9L |
| Controls | |
| Child lock | • |
| Electronic fault/Diagnostic | • |
| End of cycle beeps | • |
| Energy saving delay start | • |
| Internal wash selector | • |
| Rinse aid indicator light | • |
| Wi-Fi connectivity | • |
| Features | |
| Fan assisted drying | • |
| Flood protection | • |
| Flow through detergent | • |
| Quiet operation | • |
| SmartDrive™ technology | • |
| Performance | |
| Noise on standard cycle top | 43dBA |
| Power requirements | |
| Amperage | 8.5A |
| Product dimensions | |
| Depth | 573mm |
| Height | 820 – 880mm |
| Width | 599mm |
| Warranty | |
| Parts and labour | 2 years |
| Wash Program Modifiers | |
| Extra Dry | • |
| Quick | • |
| Sanities | • |
| Wash modifiers | 3 |
| Wash Programs | |
| Delicate | • |
| Eco | • |
| Fast | • |
| Heavy | • |
| Medium | • |
| Rinse | • |
| Wash programs | 6 |
| SKU | 82326 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model
currently available. ? Fisher & Paykel Appliances Ltd 2020
