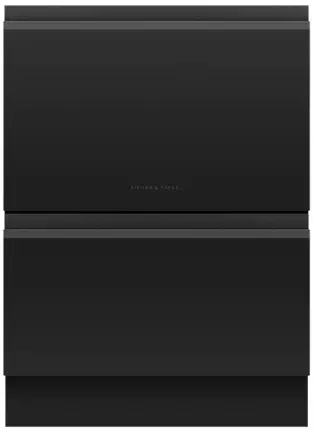

DD60D4HZB9 Built Under Double Dishdrawer Dishwasher Sanitise
User Guide
Series 9 | Contemporary
Black Glass
DD60D4HZB9 Built Under Double Dish drawer Dishwasher Sanities
Wash one drawer while you load the other, with room in each drawer for full-size dinner plates.
- Designed to be installed under your benchtop, with recessed handles for a seamless look
- Six wash programs, as well as additional Quick wash, Sanities and Extra Dry modifiers
- Flexible racking allows you to customize internal shelves to suit your needs
- Wi-Fi enabled and works with the SmartHQ™ app for remote control and notifications
DIMENSIONS
| Height | 820 – 880mm |
| Width | 599mm |
| Depth | 573mm |
FEATURES & BENEFITS
CONSIDERED DESIGN
Designed to match our Contemporary style black glass family of products, this built-under dishwasher has a tactile matte black glass finish that pairs perfectly with recessed handles.
SEAMLESS FIT
Our built-under DishDrawer™ Dishwashers are installed flush under your benchtop with the option of a custom kickstrip, ensuring minimal gaps.
EASE OF USE
DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
QUICK, SANITISE
The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitise option provides extra protection, killing 99.9% of bacteria* in the final rinse. The Extra Dry setting is perfect for plastic dishes.
KNOCK TO PAUSE
For ease-of-use, these DishDrawer™ Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher, which can be restarted by using the start button.
TRUE HALF LOAD
Each drawer holds a true half load for small, fast washing that won’t waste water. Both drawers operate independently so two wash cycles can operate simultaneously to allow for varying loads.
QUIET PERFORMER
Running at a very low decibel rating, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
SPECIFICATIONS
| Accessories | |
| Cutlery basket | • |
| Knife clip and multipurpose | • |
| Capacity and loading | |
| Accommodates round plates | 280mm |
| Adjustable height, foldable | • |
| Fold down tines | • |
| Pitch adjustable tines | • |
| Place settings | 12 |
| Place settings per drawer | 6 |
| Consumption | |
| Energy rating | E |
| Energy usage | 54 kWh per 100 cycles |
| Water usage (per wash cycle) | 7.8L |
| Controls | |
| Child lock | • |
| Energy saving delay start | • |
| Internal wash selector | • |
| Intuitive capacitive touch | • |
| Knock to pause | • |
| Rinse aid indicator light | • |
| Wi-Fi connectivity | • |
| Features | |
| Built-in water softener | • |
| Fan assisted drying | • |
| Flood protection | • |
| Flow through detergent | • |
| Motor type | BLDC |
| Quiet operation | • |
| SmartDrive™ technology | • |
| Performance | |
| Noise on standard cycle top | 45dBA |
| Power requirements | |
| Rated current | 8.5A |
| Supply frequency | 50Hz |
| Supply voltage | 220V |
| Product dimensions | |
| Depth | 573mm |
| Height | 820 – 880mm |
| Width | 599mm |
| Warranty | |
| Parts and labour | 5 years |
| Wash Program Modifiers | |
| Extra Dry | • |
| Quick | • |
| Sanitise | • |
| Wash modifiers | 3 |
| Wash Programs | |
| Delicate | • |
| Eco | • |
| Heavy | • |
| Medium | • |
| Rinse | • |
| Wash programs | 6 |
| Water connection | |
| Water pressure | 100kPa – 1000kPa |
| Water supply | 3/4″ BSP (20mm) Connector |
| SKU | 82896 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
