Single DishDrawer™
Dishwasher, Tall, Sanitise
Series 9 | Contemporary
Black Stainless Steel
User Guide

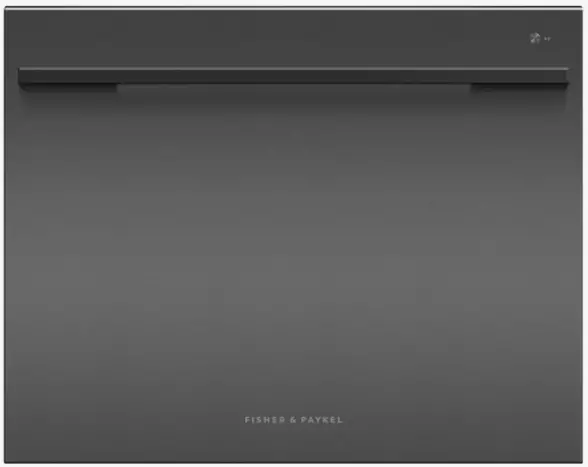

DD60SDFTB9 Sanitise Single DishDrawer Dishwasher
Created with extra height for large dishes and designed to be placed anywhere in your kitchen, for loading dishes with less bending.
- With extra height for taller dishes, and customizable internal shelving
- Six wash programs, as well as additional Quick wash, Sanitise, and Extra Dry options

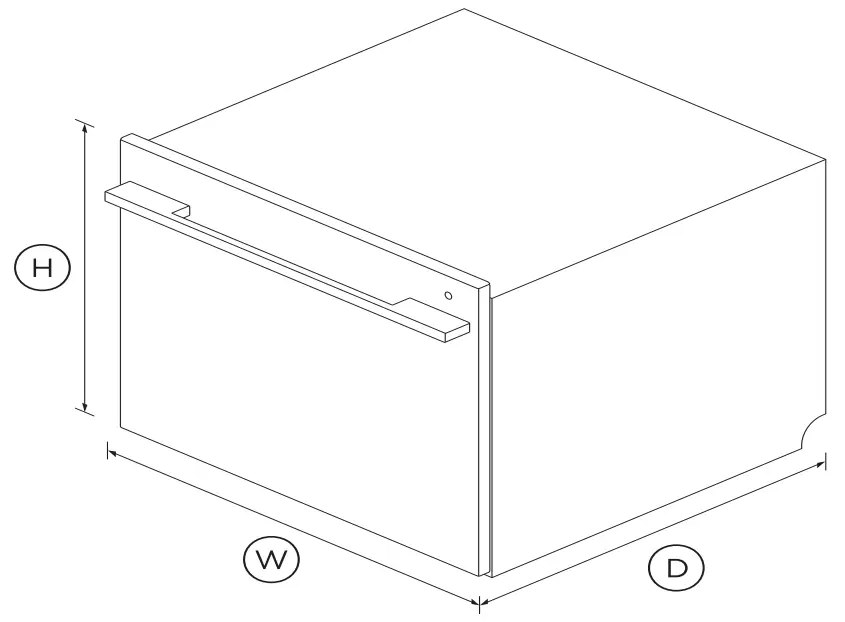

DIMENSIONS
| Height | 478mm |
| Width | 599mm |
| Depth | 573mm |
FEATURES & BENEFITS
Ease of use
DishDrawer™ Dishwashers are easy to open and close and can be positioned at bench height for effortless loading and minimal bending. Flexible racking allows you to make adjustments to fit in all kinds of dishes.
Quick, Sanitize, and Extra Dry options
The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitise option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
Quiet performer
Running at a very low decibel rate, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
Beauty of choice
As much a design component as a high-performance appliance, the black DishDrawer™ Dishwasher brings a touch of sophistication to your kitchen, on its own or as part of a matching kitchen appliance set.
SPECIFICATIONS
| Accessories | |
| Cutlery basket | • |
| Knife clip and multipurpose | • |
| Capacity and loading | |
| Accommodates round plates | 310mm |
| Adjustable height, foldable | • |
| Fold down tines | • |
| Pitch adjustable tines | • |
| Consumption | |
| Energy rating | 3.5 star |
| Water rating | 4.5 star (WELS) |
| Controls | |
| Child lock | • |
| Electronic fault/Diagnostic | • |
| End of cycle beeps | • |
| Energy saving delays start | • |
| Internal wash selector | • |
| Rinse aid indicator light | • |
| Features | |
| Fan assisted drying | • |
| Flow through detergent | • |
| Quiet operation | • |
| SmartDrive™ technology | • |
| Performance | |
| Noise on standard cycle top | 43dBA |
| Power requirements | |
| Amperage | 4.2A |
| Product dimensions | |
| Depth | 573mm |
| Height | 478mm |
| Width | 599mm |
| Warranty | |
| Parts and labor | 2 years |
| Wash Program Modifiers | |
| Extra Dry | • |
| Quick | • |
| Sanitise | • |
| Wash Programs | |
| Delicate | • |
| Fast | • |
| Heavy | • |
| Medium | • |
| Normal eco | • |
| Rinse | • |
| Water connection | |
| Water pressure | 0.1 Mpa – 1 Mpa |
| SKU | 82327 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
Quick Start GuideUser GuideService & WarrantyInstallation Guide
