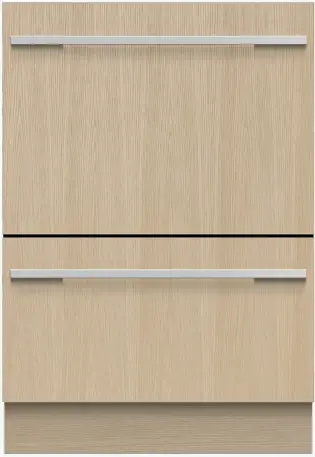

FISHER PAYKEL DD60DTX6I1 Integrated Double DishDrawer Dishwasher Tall Sanitise User Guide
Integrates seamlessly into kitchen cabinetry. Each drawer features a premium stainless steel interior and operates independently, for flexible washing.
- Eight wash cycles from Heavy to Light, including Auto, 60min and Glassware
- Fits plates up to 310mm, with flexible racking to accommodate other large cookware
- With soft-close drawers, and knock to pause convenience
DIMENSIONS
| Height | 865 – 925mm |
| Width | 599mm |
| Depth | 571mm |
FEATURES & BENEFITS
Seamless integration
Install your DishDrawer™ Dishwasher into an existing kitchen space or integrate into kitchen cabinetry. The touch-sensitive control panel is located inside this Integrated model, leaving an uninterrupted exterior that blends seamlessly with surrounding cabinetry.
Ease of use
DishDrawer™ Dishwashers are beautiful to use with soft-close drawers. The tall top drawer fits your larger plates and dishes up to 310mm, while the bottom drawer is ideal for small washes. Flexible racking includes height-adjustable cup racks and wine glass supports.
True half load
Both drawers fit a true half load. Each drawer operates independently, so you can wash one load while stacking the other drawer, or wash simultaneously on separate cycles.
Flexible wash options
Eight wash programs including Auto, 60min and Glassware, while modifiers such as Sanitise, Dry+ and Quiet provide added wash flexibility. The Quiet wash modifier reduces the noise on some cycles while maintaining performance – perfect for late night washing.
Design quality
Every detail has been carefully crafted using quality materials, from the easy-to-clean stainless steel interior to the spray arm sensor that detects jams for increased wash confidence.
Knock to pause
For ease-of-use, these DishDrawer™ Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher, which can be restarted by using the start button.
Efficient performance
With a 3 tick rating, this DishDrawer™ Dishwasher uses the water it needs without compromising on wash performance.
SPECIFICATIONS
Accessories
| Contemporary round handle | AHS-OBDD-60S |
| Contemporary square fine | AHD5-OBDD-60S |
| Contemporary square handle | AHD3-OBDD-60S |
| Cutlery basket | • |
| Kickstrip | Recessed |
| Knife clip and multipurpose | • |
| Optional stainless steel door kit | 82399 Doors DD60DT |
Capacity and loading
| Accommodates round plates | 310mm |
| Adjustable height, foldable | • |
| Fold down tines | • |
| Pitch adjustable tines | • |
| Place settings | 14 |
| Wine glass supports with | • |
Consumption
| Energy rating | 3 ticks |
| Energy usage | 115kWh/year |
| Water rating | 3 ticks |
| Water usage (per wash cycle) | 5.7L |
Controls
| Child lock | • |
| Electronic fault/Diagnostic | • |
| End of cycle beeps | • |
| Energy saving delay start | • |
| Internal wash selector | • |
| Knock to pause | • |
| Rinse aid indicator light | • |
| Spray arm sensing | • |
| Wi-Fi connectivity | • |
Features
| Fan assisted drying | • |
| Flow through detergent | • |
| Internal tub material | Stainless steel |
| Quiet operation | • |
| SmartDrive™ technology | • |
| Soft close drawer | • |
Performance
| Noise on standard cycle top | 43dBA |
Power requirements
| Amperage | 8.5A |
| Supply frequency | 50Hz |
| Supply voltage | 240V |
Product dimensions
| Depth | 571mm |
| Height | 865 – 925mm |
| Width | 599mm |
Warranty
| Parts and labour | 2 years |
Wash Program Modifiers
| Dry + | • |
| Quiet | • |
| Sanitise | • |
| Wash modifiers | 3 |
Wash Programs
| 60 min | • |
| Auto | • |
| Eco | • |
| Glassware | • |
| Heavy | • |
| Light | • |
| Medium | • |
| Rinse | • |
| Wash programs | 8 |
Water connection
| Water pressure | 0.1 Mpa – 1 Mpa |
| Water supply | 3/4″ BSP (GB20) |
| SKU | 82180 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
