QUICK REFERENCE GUIDE > DD60STX6I1
Integrated Single DishDrawer™ Dishwasher, Tall, Sanitise
Series 11 | Integrated Panel Ready
DD60STX6I1 Integrated Single DishDrawer™ Dishwasher, Tall, Sanitise
Place anywhere in your kitchen at bench height for easy loading and seamless integration. Features a premium stainless steel interior.
- Eight wash cycles from Heavy to Light, including Auto, 60min and Glassware
- Fits plates up to 310mm, with flexible racking to accommodate other large cookware
- With soft-close drawers, and knock to pause convenience
- Wi-Fi capability and a SmartHQ™ app for remote control and notifications

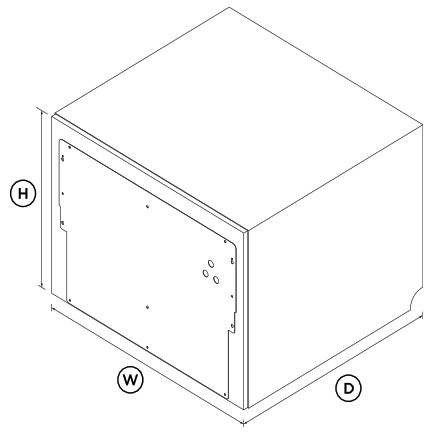

DIMENSIONS
| Height | 454mm |
| Width | 599mm |
| Depth | 571mm |
FEATURES & BENEFITS
Seamless integration
With the flexibility of ergonomic placement and function, single DishDrawer™ Dishwashers can be distributed throughout the kitchen to support patterns of use. The touch-sensitive control panel is located inside this Integrated model, leaving an uninterrupted exterior that blends seamlessly with surrounding cabinetry.
Ease of use
DishDrawer™ Dishwashers are beautiful to use with soft-close drawers, and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking includes height-adjustable cup racks and wine glass supports.
Flexible wash options
Eight wash programs including Auto, 60min and Glassware, while modifiers such as Sanitise, Extra Dry and Quiet provide added wash flexibility. The Quiet wash modifier reduces the noise on some cycles while maintaining performance perfect for late night washing.
Design quality
Every detail has been carefully crafted using quality materials, from the easy-to-clean stainless steel interior to the spray arm sensor that detects jams for increased wash confidence.
Knock to pause
For ease-of-use, these DishDrawer™ Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher, which can be restarted by using the start button.
Quiet performer
Running at a low decibel rating of 43dBA, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
Efficient performance
With 3.5 star energy rating and 5.5 star (WELS) water rating, this DishDrawer™ Dishwasher uses the energy it needs without compromising on wash performance.
SPECIFICATIONS
Accessories
| Contemporary round handle | AHS-OBDD-60S |
| Contemporary square fine | AHD5-OBDD-60S |
| Contemporary square handle | AHD3-OBDD-60S |
| Cutlery basket | • |
| Knife clip and multipurpose | • |
| Optional stainless steel door kit | 81255 Door DD60ST |
Capacity and loading
| Accommodates round plates | 310mm |
| Adjustable height, foldable | • |
| Fold down tines | • |
| Pitch adjustable tines | • |
| Place settings | 7 |
| Wine glass supports with | • |
Consumption
| Energy rating | 3.5 star |
| Water rating | 5.5 star (WELS) |
| Water usage (per wash cycle) | 5.7L |
Controls
| Child lock | • |
| Electronic fault/Diagnostic | • |
| End of cycle beeps | • |
| Energy saving delay start | • |
| Internal wash selector | • |
| Knock to pause | • |
| Rinse aid indicator light | • |
| Spray arm sensing | • |
| Wi-Fi connectivity | • |
Features
| Fan assisted drying | • |
| Flow through detergent | • |
| Internal tub material | Stainless steel |
| Quiet operation | • |
| SmartDrive™ technology | • |
| Soft close drawer | • |
Performance
| Noise on standard cycle top | 43dBA |
Power requirements
| Amperage | 4.2A |
| Supply frequency | 50Hz |
| Supply voltage | 240V |
Product dimensions
| Depth | 571mm |
| Height | 454mm |
| Width | 599mm |
Warranty
| Parts and labour | 2 years |
Wash Program Modifiers
| Dry + | • |
| Quiet | • |
| Sanitise | • |
| Wash modifiers | 3 |
Wash Programs
| 60 min | • |
| Auto | • |
| Eco | • |
| Glassware | • |
| Heavy | • |
| Light | • |
| Medium | • |
| Rinse | • |
| Wash programs | 8 |
Water connection
| Water pressure | 0.1 Mpa – 1 Mpa |
| Water supply | 3/4″ BSP (GB20) |
| SKU | 82182 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
