EA15

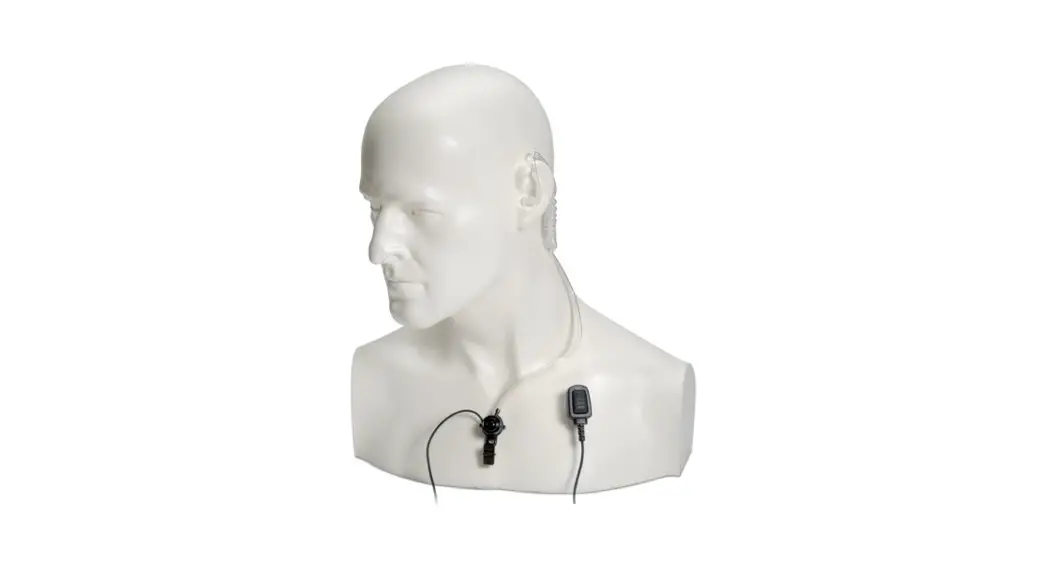

COVERT EARPIECE MICROPHONE
Designed in the United Kingdom
Quick Start User Guide
EA15
Thank you for purchasing the Entel earpiece microphone. With care, this product should provide years of trouble-free use.

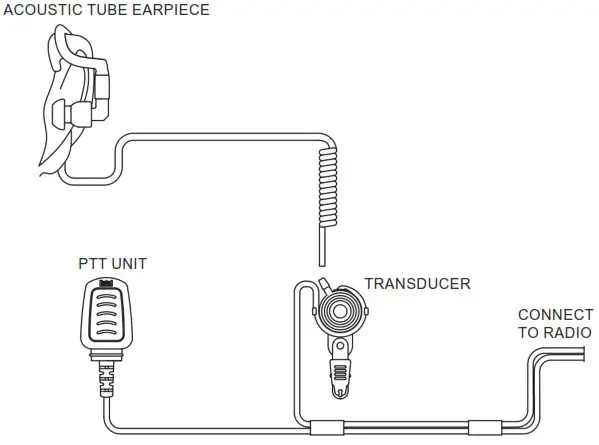

FITTING

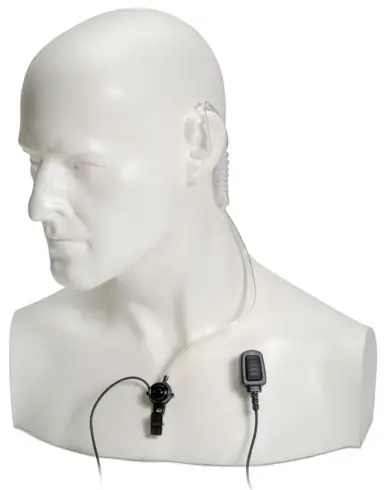

Carefully press the earbud into the opening of your ear canal, so it is comfortable and secure. Train the clear transparent acoustic tube around the back of the ear. The combination microphone/PTT button should be attached around the lapel area about 10cm from your mouth.
OPERATING INSTRUCTIONS
- Press the PTT button to transmit and release to receive.
- Speak normally, do not shout directly into the microphone.
IMPORTANT
Always switch the radio off before attaching an audio accessory. Models that are certified by ATEX & IECEx have been clearly labeled. Should, in the course of use, any labels e removed or become illegible please return the accessory to Entel for relabelling.
SPECIFICATIONS
| EARPIECE MICROPHONE | |
| Mic. element | Electret condenser |
| Speaker impedance | 16 ohm |
| Output sound level pressure | <85 dBA |
| Weight | 53g |
Only use Entel original accessories, use of non-approved 3rd party accessories will invalidate your intrinsically safe approval.
Above approvals apply to specific models only
| Model | Series | Intrinsically safe cert. no. | Approval |
| EA15/950 | HT500 HT800, HT900 | IECEx SIR 10.0097X Sira 10ATEX2066X | IECEx ATEX |
| EA15/750 | HT700 | None | None |
| EA15/DX | DX-IS | SUW-CERT220100006 | UL 913, 5th Ed |
| EA15/DX | DX, DN | None | None |
Contact
For more information about our products please contact us:
+44 (0)20 8236 0032
[email protected]
entel.co.uk
All Rights Reserved. Copyright Entel UK Ltd.
Entel – Manufacturers of professional two-way radio equipment
