CHP SERIES
V1.3
HEAVY-DUTY EAR DEFENDER HEADSET
Quick Start User Guide
Designed in the United Kingdom

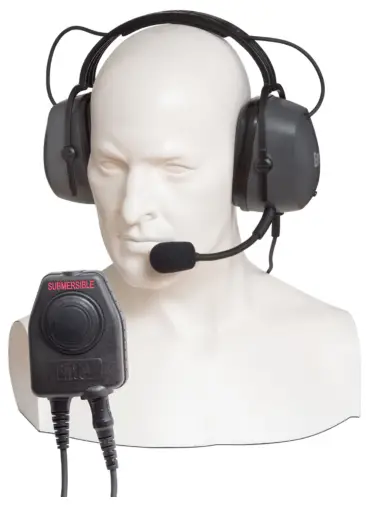

CHP SERIES
Thank you for purchasing the Entel CHP ear defender headset. This user guide will explain the features of your headset, which with care should provide many years of trouble-free operation. The CHP Series headset provides hands-free communications in high ambient noise environments.
FITTING
Place the ear defenders over your ear with the comfort headband (or hardhat) on top of your head. Position the adjustable boom microphone to sit as close to your mouth as possible. Attach the remote PTT unit to your clothing around the lapel area.
OPERATING INSTRUCTIONS
- Ensure the radio is switched off, remove the rubber dust cover and insert the CHP connector onto the accessory socket. Secure by turning the connector screw clockwise until finger-tight (do not over-tighten). You can now turn on your radio.
- Press the PTT button to transmit and release to receive.
- If you detach the CHP accessory, please always replace the dust cover to protect your radio’s accessory connector.
IMPORTANT
Always switch the radio off before attaching an audio accessory. Models that are certified to ATEX and IECEx have been clearly labelled. Should, in the course of use, any labels be removed or become illegible please return the accessory to Entel for relabelling.
SPECIFICATIONS
EAR DEFENDER HEADSET
| Mic. element | Electret condenser |
| Speaker impedance | 32 ohm |
| Microphone impedance | Max 2.2k ohm |
| Output sound pressure level | 117dBA +/- 10dB |
| Rated input | 10 mW |
| Maximum input | 20 mW |
PTT UNIT
| Submersible | IP67 (1 meter for 30 minutes) |
| Dimension | 76mm x 60mm x 24mm |
| Weight | 142g |
PACKING LIST
CHP headset
PTT unit
Only use Entel original accessories, use of non-approved 3rd party accessories will invalidate your intrinsically safe approval.

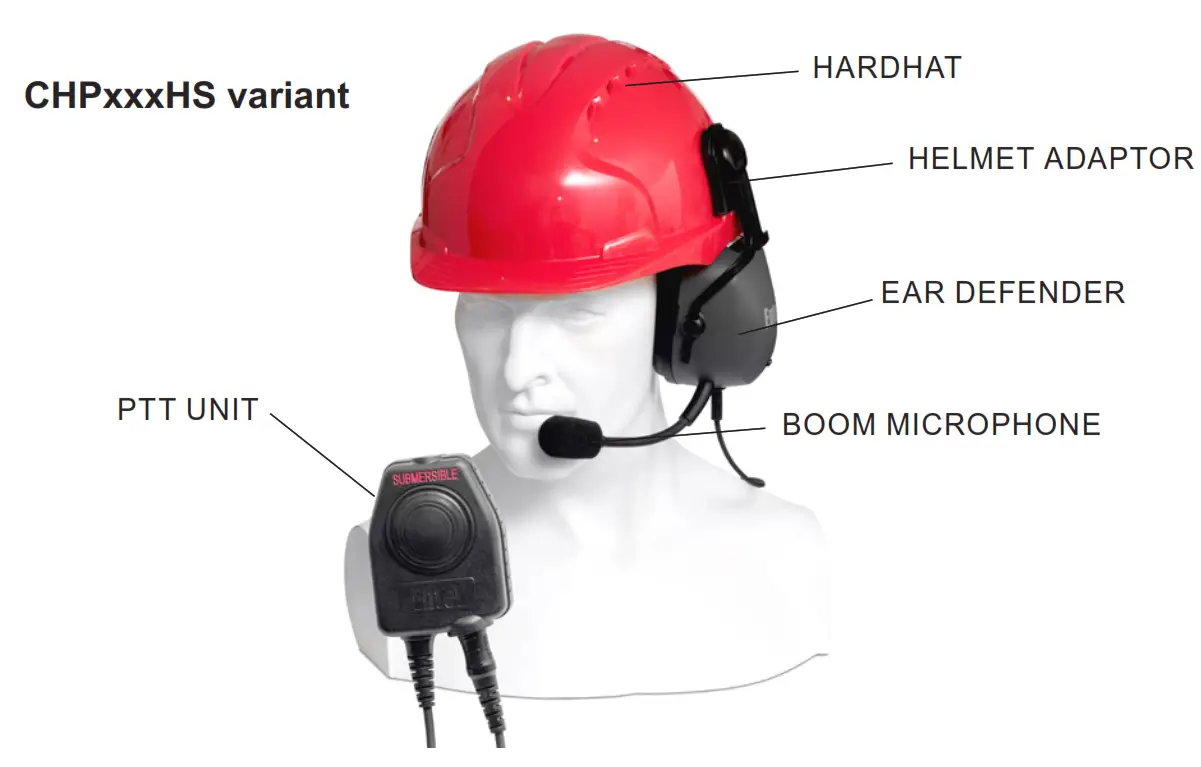

CHPxxxHS variant
Above approvals apply to specific models only
| Model | Series | PTT model no. | IS cert. no. | Approval |
| CHP950D | DT500 DT800, DT900 HT500 HT800, HT900 | PTT-E/DT9 PTT-E/DT9 PTT950E PTT950E | IECEx BAS 18.0094X Baseefa18ATEX0152X IECExSIR10.0097X Sira 10ATEX2066X | IECEx ATEX IECEx ATEX |
| CHP950HD | DT500 DT800, DT900 HT500 HT800, HT900 | PTT-E/DT9 PTT-E/DT9 PTT950E PTT950E | IECEx BAS 18.0094X Baseefa18ATEX0152X IECExSIR10.0097X Sira 10ATEX2066X | IECEx ATEX IECEx ATEX |
| CHP950HS | DT500 DT800, DT900 HT500 HT800, HT900 | PTT-E/DT9 PTT-E/DT9 PTT950E PTT950E | IECEx BAS 18.0094X Baseefa18ATEX0152X IECExSIR10.0097X Sira 10ATEX2066X | IECEx ATEX IECEx ATEX |
| CHP750D | HT700 | PTT750E | None | None |
| CHP750HD | HT700 | PTT750E | None | None |
| CHP750HS | HT700 | PTT750E | None | None |
| CHP450D/DX | DX-IS | PTT450E/DX | SUW-CERT220100006 | UL 913, 5th Ed |
| CHP450HD/DX | DX-IS | PTT450E/DX | SUW-CERT220100006 | UL 913, 5th Ed |
| CHP450HS/DX | DX-IS | PTT450E/DX | SUW-CERT220100006 | UL 913, 5th Ed |
| CHP450D/DX | DX/DN | PTT450E/DX | None | None |
| CHP450HD/DX | DX/DN | PTT450E/DX | None | None |
| CHP450HS/DX | DX/DN | PTT450E/DX | None | None |
