Entel EA12 Earpiece Microphone With In-Line Ptt
Thank you for purchasing the Entel earpiece microphone. With care, this product should provide years of trouble free use.
FITTING

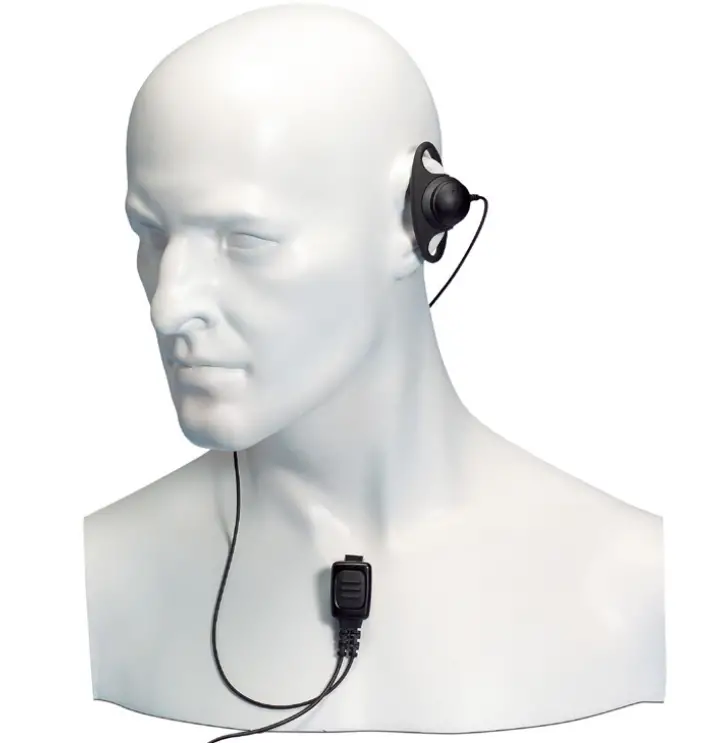

Place the D-shaped shell comfortably and securely over your left ear. The combination microphone/PTT button should be attached around the lapel area about 10cm from your mouth.
OPERATING INSTRUCTIONS
- Press the PTT button to transmit and release to receive.
- Speak normally, do not shout directly into the microphone.
IMPORTANT
Always switch the radio off before attaching an audio accessory. Models that are certified to ATEX & IECEx have been clearly labelled. Should, in the course of use, any labels be removed or become illegible please return the accessory to Entel for relabeling.
SPECIFICATIONS
| EARPIECE MICROPHONE | |
| Mic. element | Electret condenser |
| Speaker impedance | 16 ohm |
| Output sound pressure level <85 dBA | |
| Weight | 60g |
Only use Entel original accessories, use of non-approved 3rd party accessories will invalidate your intrinsically safe approval.

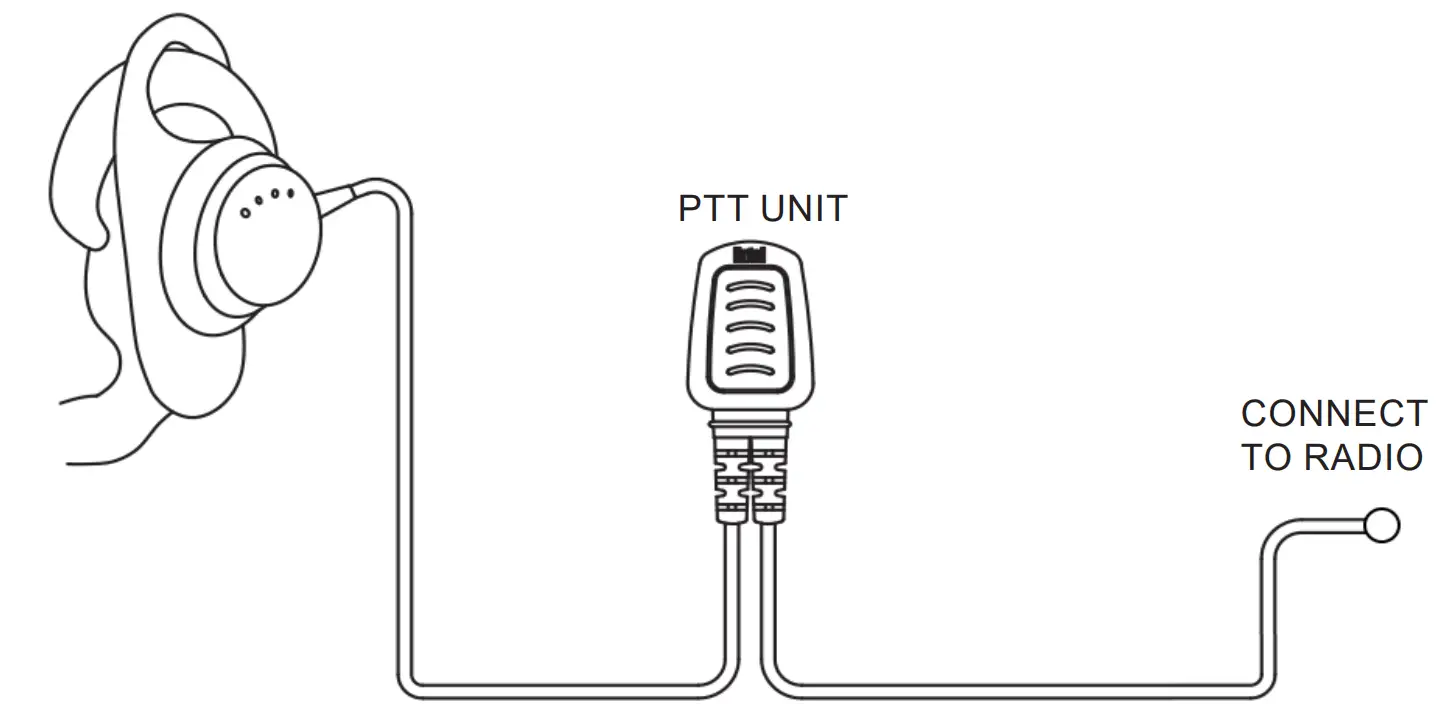

D-SHAPE EARPIECE
Above approvals apply to specific models only
| Model | Series | Intrinsically safe cert. no. | Approval |
| EA12/950 | HT500, HT800, HT900 | IECEx SIR 10.0097X Sira 10ATEX2066X | IECEx ATEX |
| EA12/750 | HT700 | None | None |
| EA12/DX | DX-IS | SUW-CERT220100006 | UL 913, 5th Ed |
| EA12/DX | DX, DN | None | None |
| EA12/DT9 | DT500DT800, DT900 | IECEx BAS 18.0094X Baseefa18ATEX0152X | IECEx ATEX |
