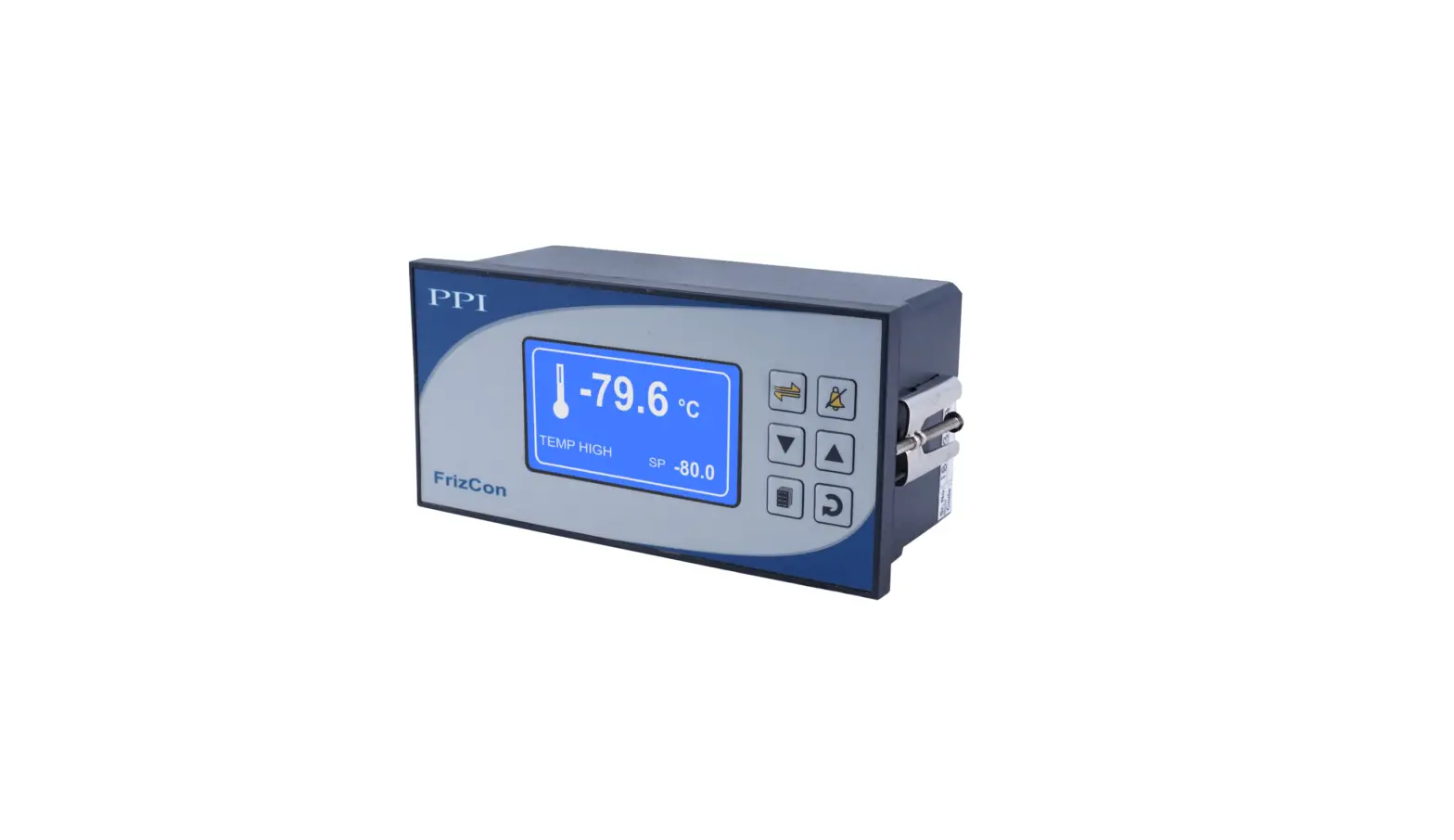

PPI FrizCon Deep Freezer Controller with Graphic Display
OPERATOR PARAMETERS

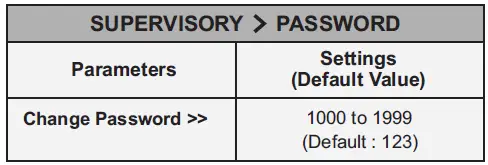

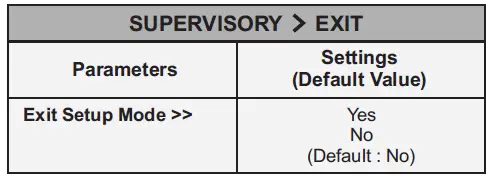

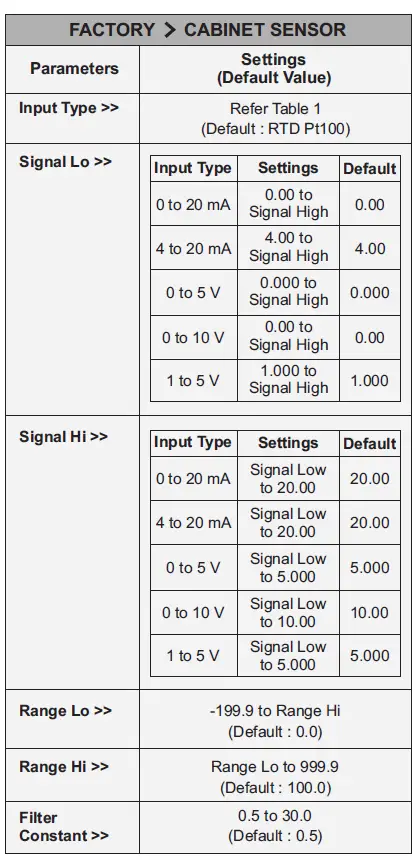

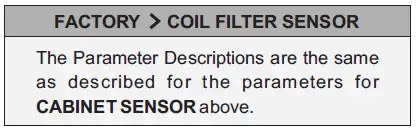

| OPERATOR PARAMETERS | |
| Parameters | Settings (Default Value) |
| Filter Repair Ack >> | Yes No (Default : No) |
| Cascade HPLP Ack >> Cabinet HPLP Ack >> | Yes No (Default : No) |
| Ctrl Setpoint >> | Setpoint Low Limit to Setpoint High Limit (Default : -80.0) |
| Ctrl Lo Deviation >> | 0.2 to 99.9 (Default : 2.0) |
| Ctrl Hi Deviation >> | 0.2 to 99.9 (Default : 2.0) |
| Ctrl Zero Offset >> | -50.0 to 50.0 (Default : 0.0) |
| Filter Zero Offset >> or Coil Zero Offset >> | -50.0 to 50.0 (Default : 0.0) |
| Defrost Start >> Defrost Stop >> | Start Stop (Default : NA) |
| Change Password >> | 1 to 100 (Default : 0) |
| SUPERVISORY | SERIAL PARAMETERS |
| Parameters | Settings (Default Value) |
| Device Id >> | 1 to 127 (Default : 1) |
| Baud Rate >> | 2400, 4800, 9600, 19200, 38400, 57600 (Default : 9600) |
| Parity >> | None Even Odd (Default : Even) |
| Serial Write >> | No Yes (Default : No) |
| SUPERVISORY CONTROL | |
| Parameters | Settings (Default Value) |
| Setpoint Lo Limit >> | -100.0 to Setpoint HI Limit (Default : -100.0) |
| Setpoint Hi Limit >> | ‘Single’ or ‘Single with Filter’ Compressor Mode Setpoint LO Limit to 100.0 ‘Cascade’ or ‘Cascade with Filter’ or ‘Cascade with Coil’ Compressor Mode Setpoint LO Limit to Cascade SP (Default : -10.0) |
| Comp On Offset >> | 0.1 to 99.9 (Default : 1.0) |
| Comp Off Offset >> | 0.1 to 99.9 (Default : 0.1) |
| FACTORY ALARM PARAMETERS | |
| Parameters | Settings (Default Value) |
| Low Alarm Hyst >> | 0.1 to 99.9 (Default : 0.2) |
| Low Alarm Inhibit >> | Disable Enable (Default : Enable) |
| High Alarm Hyst >> | 0.1 to 99.9 (Default : 0.2) |
| High Alarm Inhibit >> | Disable Enable (Default : Enable) |
| FACTORY COMPRESSOR OPERATION | |
| Parameters | Settings (Default Value) |
| Operation Mode>> | Single Single with Filter Cascade Cascade with Filter Cascade with Coil (Default : Cascade with Coil) |
| Cascade Sp>> | -70.0 to 10.0 (Default : -30.0) |
| Off To On Delay>> | 0 to 1000 Sec (Default : 200 Sec) |
| Switching Delay>> | 0 to 1000 Sec (Default : 15 Sec) |
| Cascade Comp Hyst >> | 1 to 50.0 (Default : 20) |
| FACTORY FILTER OPERATION | |
| Parameters | Settings (Default Value) |
| Filter Alarm Sp >> | -100.0 to 100.0 (Default : 55.0) |
| Filter Alarm Hyst >> | 0.1 to 99.9 (Default : 0.2) |
| Filter Cut-off Sp >> | Alarm SP to 100.0 (Default : 60.0) |
| FACTORY DEFROST OPERATION | |
| Parameters | Settings (Default Value) |
| Operation >> | Disable Automatic Manual (Default : Disable) |
| Defrost Time [M:S] >> | 1 to 99.59 (Min:Sec) (Default : 5 Sec) |
| Defrost Interval [H:M] >> | 1 to 99.59 (Hour:Min) (Default : 8 Min) |
| Parameters | Settings (Default Value) |
| Switch Logic >> | Open : Door Open Close : Door Open (Default : Close : Door Open) |
| Door Alrm Dly (sec) >> | 0 to 1000 Sec (Default : 60 Sec) |
| FACTORY CASCADE COMP HPLP (Available only for Cascade Operation Mode) | |
| Parameters | Settings (Default Value) |
| Enable >> | No Yes (Default : No) |
| Switch Logic >> | Open : HP-LP Close : HP-LP (Default : Close : HP-LP) |
| FACTORY | CABINET COMP HPLP |
| Parameters | Settings (Default Value) |
| Enable >> | No Yes (Default : No) |
| Switch Logic >> | Open : HP-LP Close : HP-LP (Default : Close : HP-LP) |
| FACTORY | FACTORY DEFAULT |
| Parameters | Settings (Default Value) |
| Set To Default >> | No Yes (Default : No) |
| FACTORY PASSWORD | |
| Parameters | Settings (Default Value) |
| Change Password >> | 2000 to 2999 (Default : 321) |
| FACTORY EXIT | |
| Parameters | Settings (Default Value) |
| Exit Setup Mode >> | No Yes (Default : No) |
| Table 1 | ||
| What it means | Range (Min. to Max.) | Resolution |
| 3-wire, RTD Pt100 | -199.9 to 600.0°C | Fixed 0.1°C |
| 0 to 20mA DC current | -199.9 to 999.9 units | Fixed 0.1 unit |
| 4 to 20mA DC current | ||
| 0 to 5.0V DC voltage | ||
| 0 to 10.0V DC voltage | ||
| 1 to 5.0V DC voltage | ||

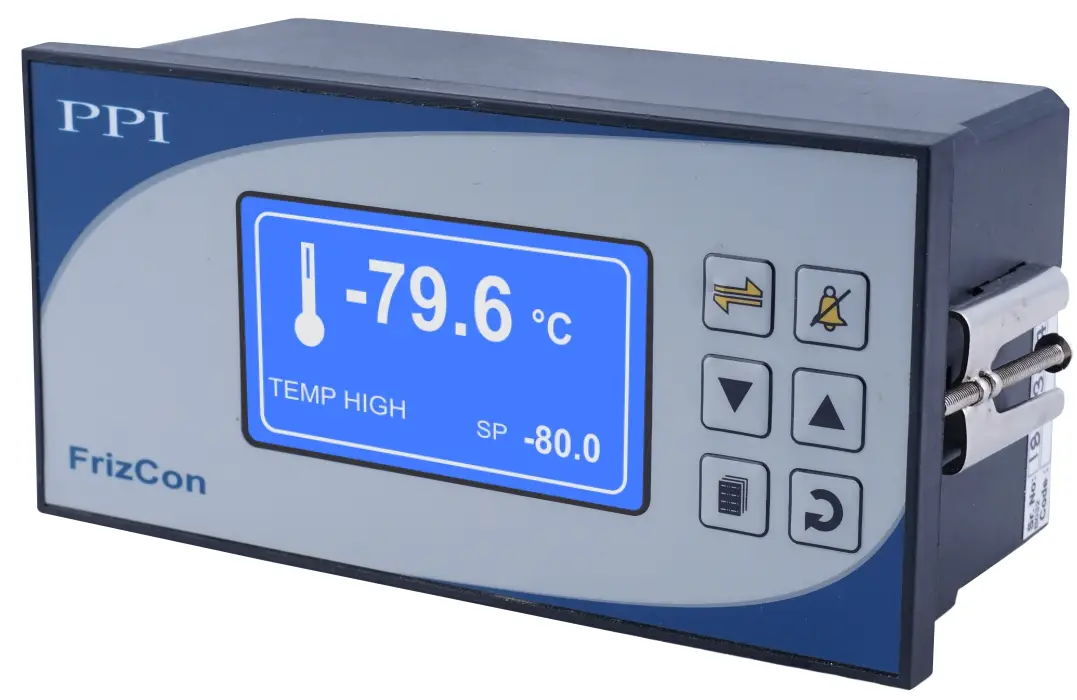

FRONT PANEL LAYOUT
Keys Operation
PV Error Indications
| Message | Error Type | Cause | ||
 | Sensor Open | RTD Pt100 Sensor/Cable is Broken / Open | ||
 | Over-range | Temperature above Max. Specified Range | ||
 | Under-range | Temperature below Min. Specified Range | ||
ELECTRICAL CONNECTIONS

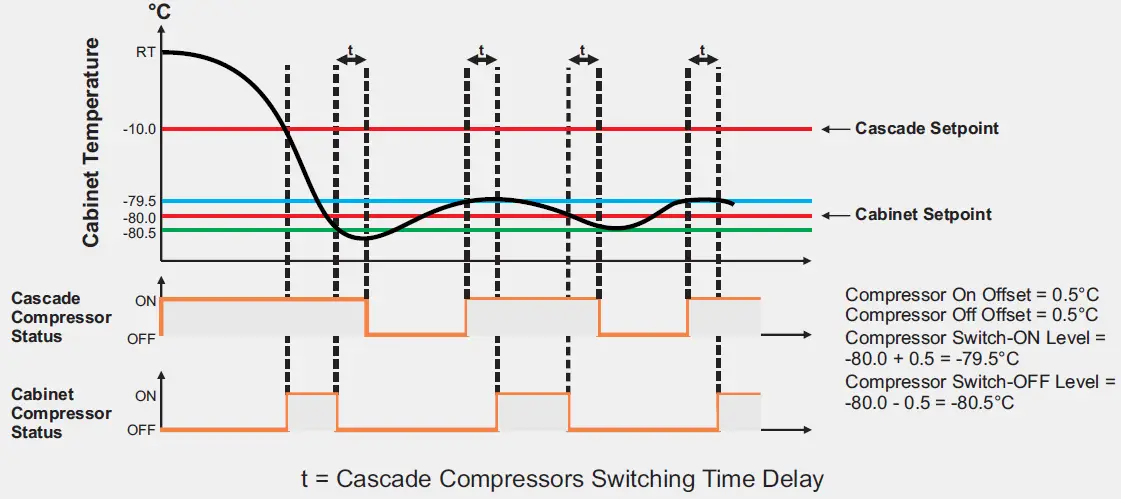

CASCADE OPERATION MODE
* For more Information refer User Manual
Cascade Compressors Operation Mode (with Coil Sensor)
Cascade Compressors Operation Mode (without Coil Sensor)
This brief manual is primarily meant for quick reference to wiring connections and parameter searching. For more details on operation and application; please log on to www.ppiindia.net
