Acuity Brands Bhl Tuwh Tunable White Instruction Manual

Acuity Brands BHL TUWH Tunable White
Instruction Manual

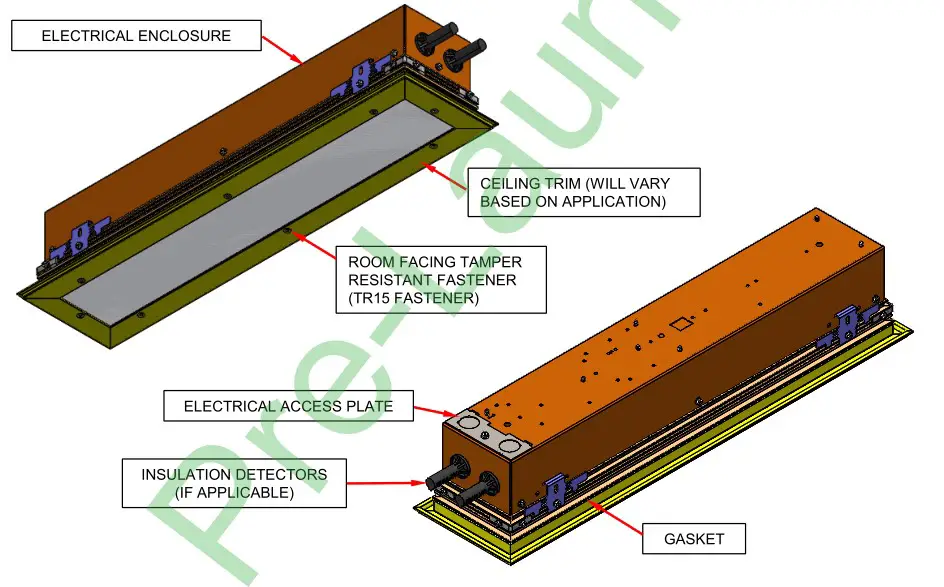

A. General Identification of BHL Luminaire

IMPORTANT: Wear cotton gloves AND lift and handle the luminaire from the ends to avoid damaging or soiling the lens surface. Should the lens surface become smudged or otherwise blemished, clean using only a soft, microfiber cotton cloth.

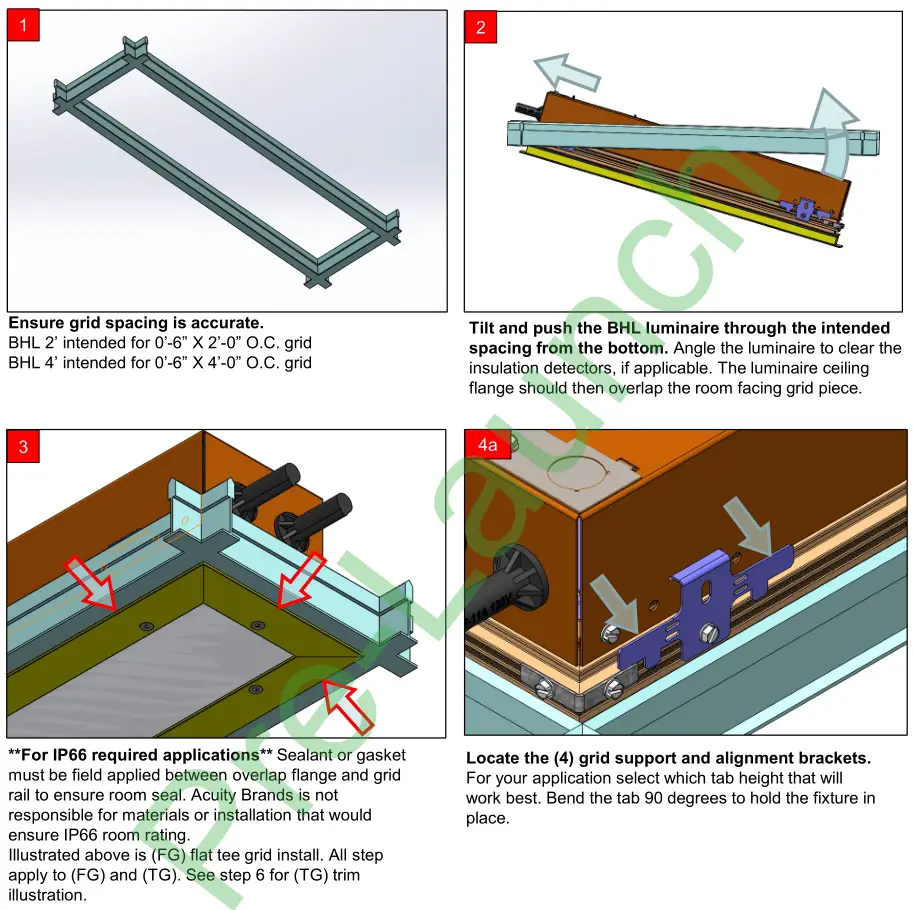

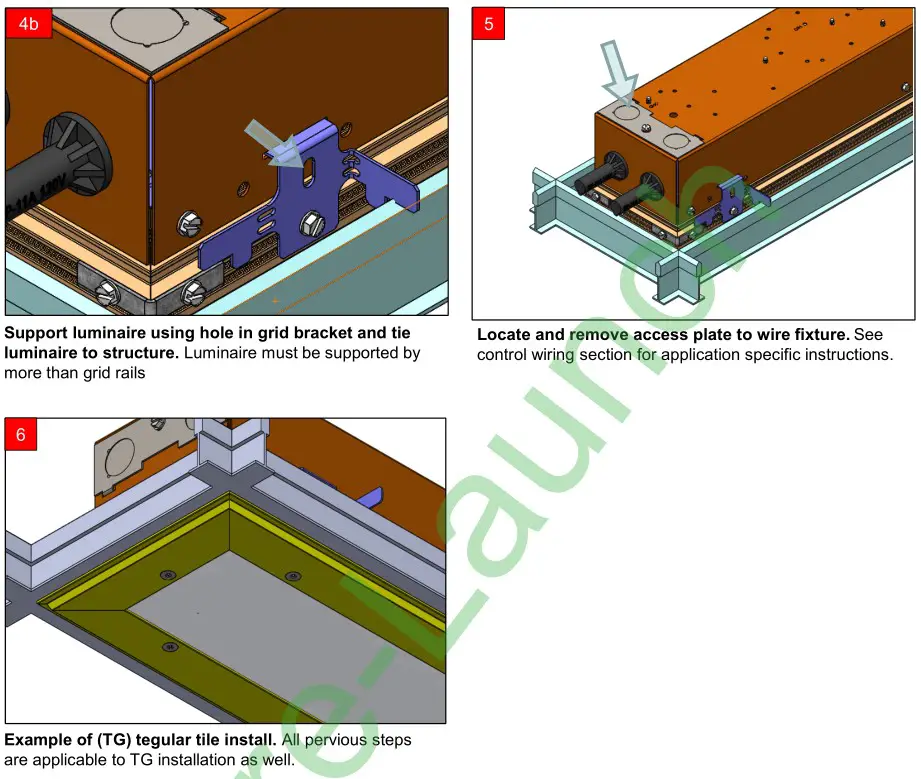

B. Grid Ceiling Install (FG,TG)

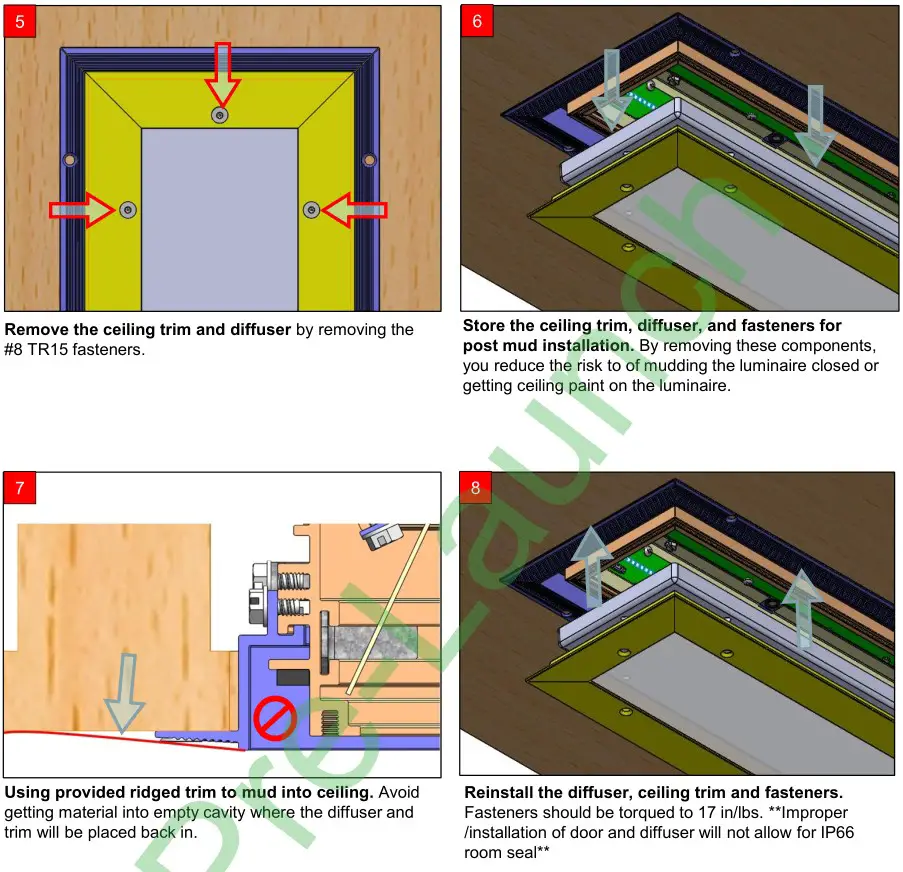

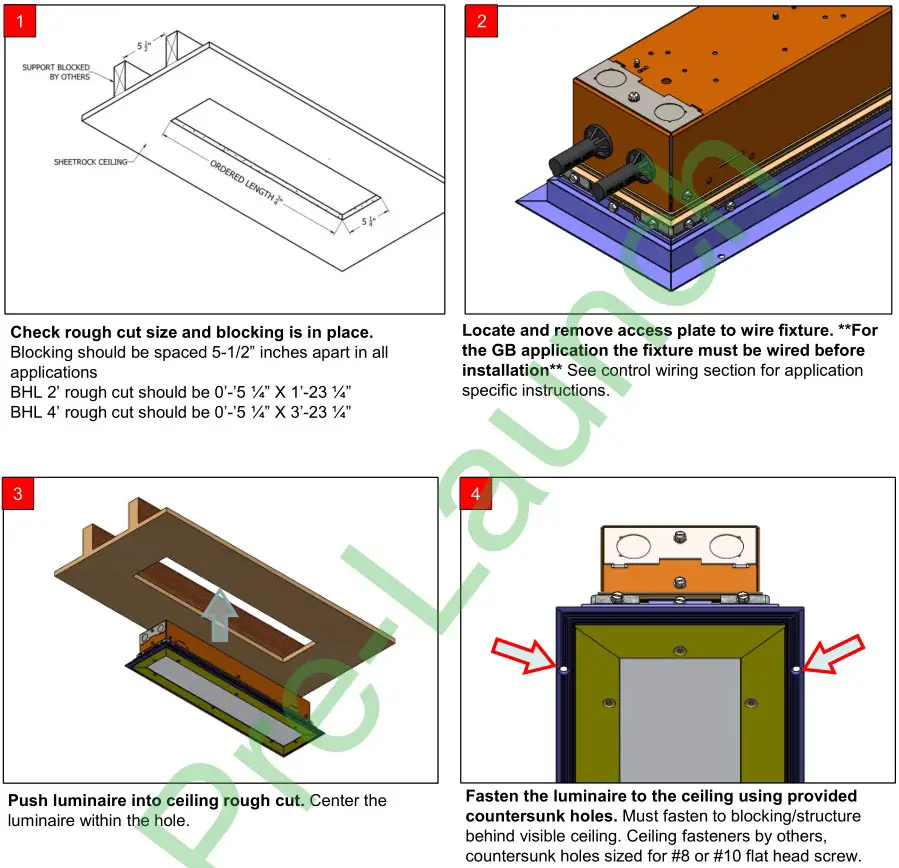

C. Mud in Hard Ceiling Install (GB)

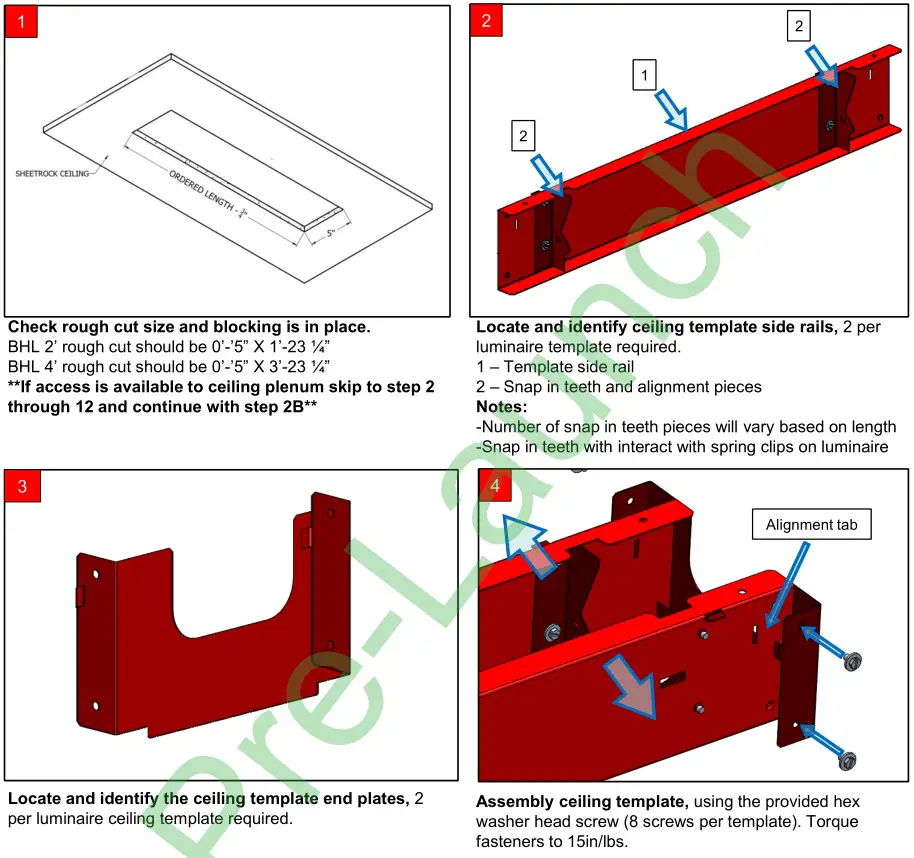

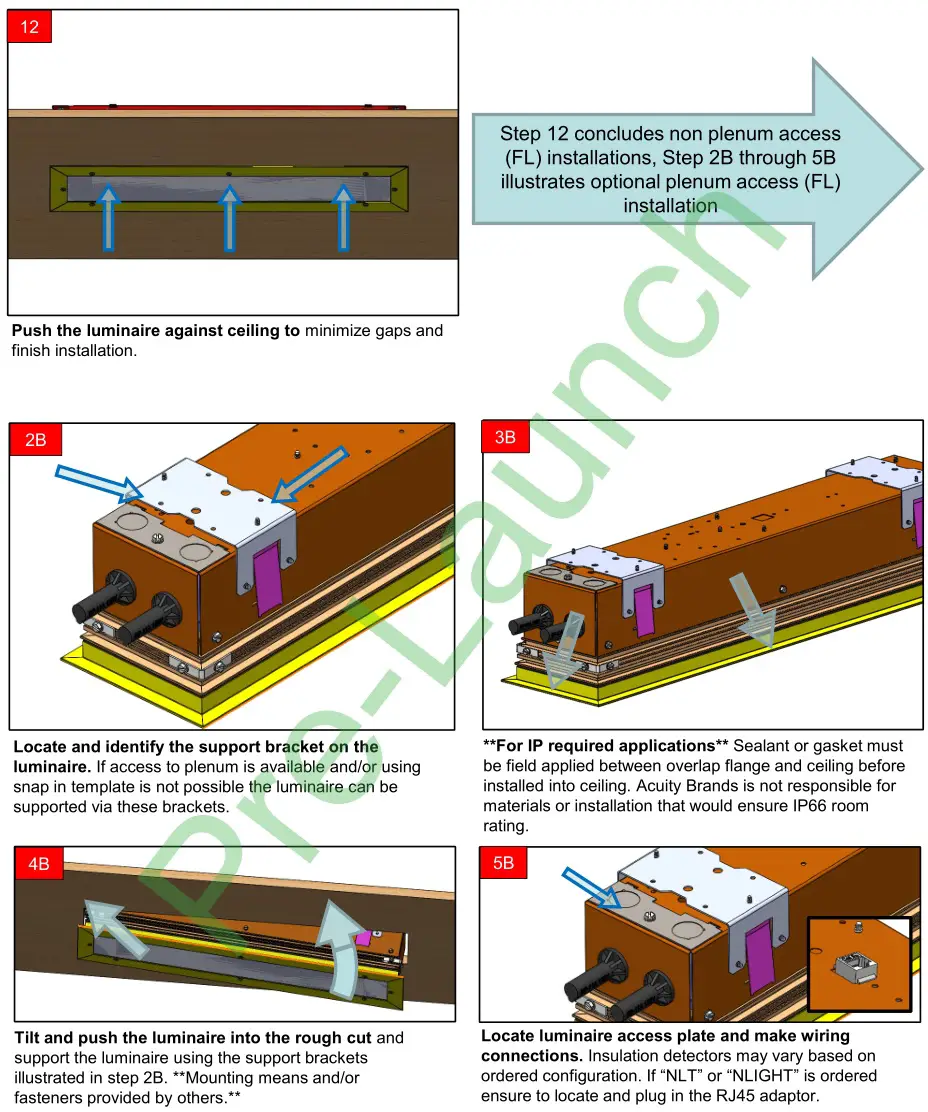

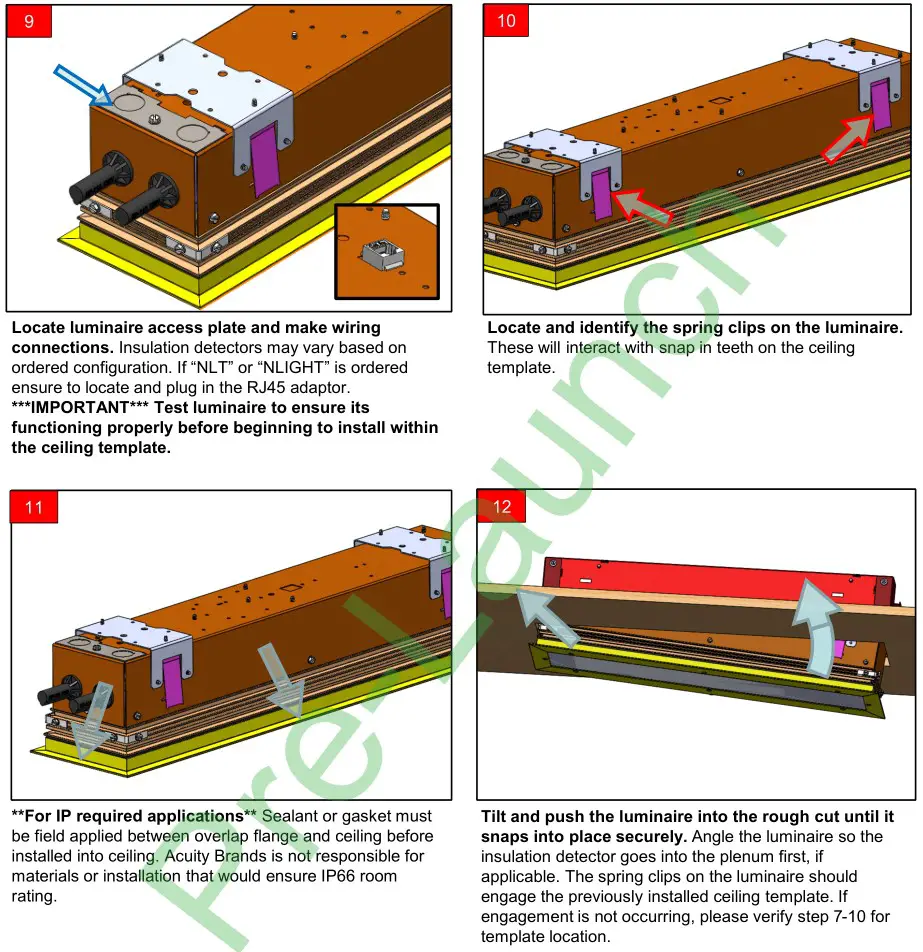

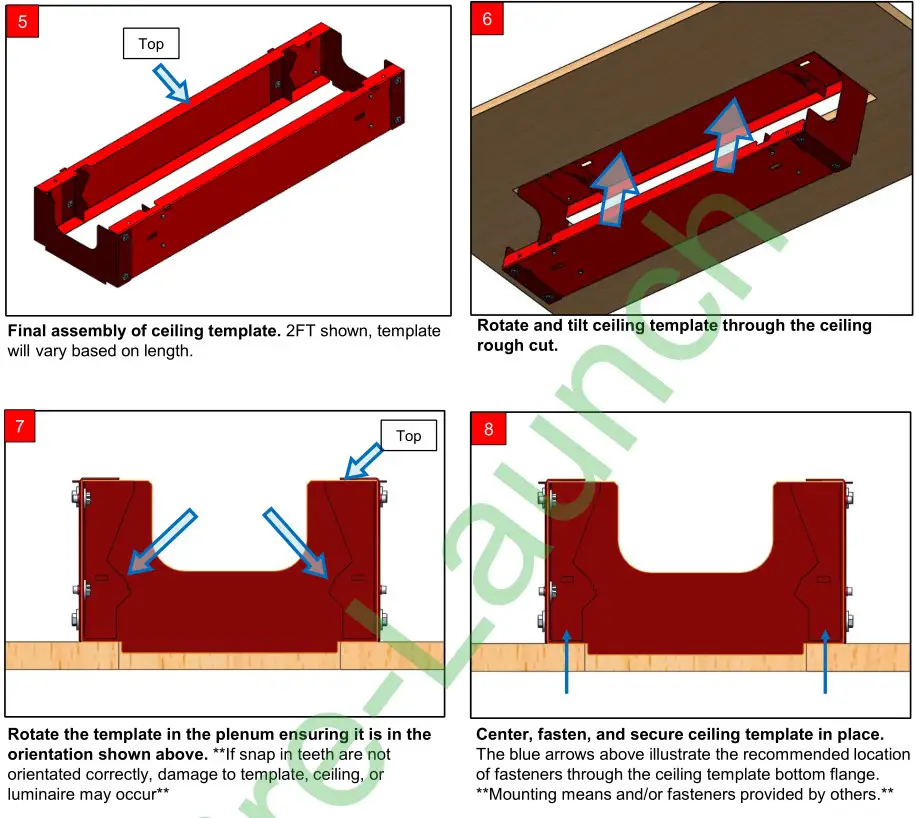

D. Flanged Hard Ceiling Install (FL)

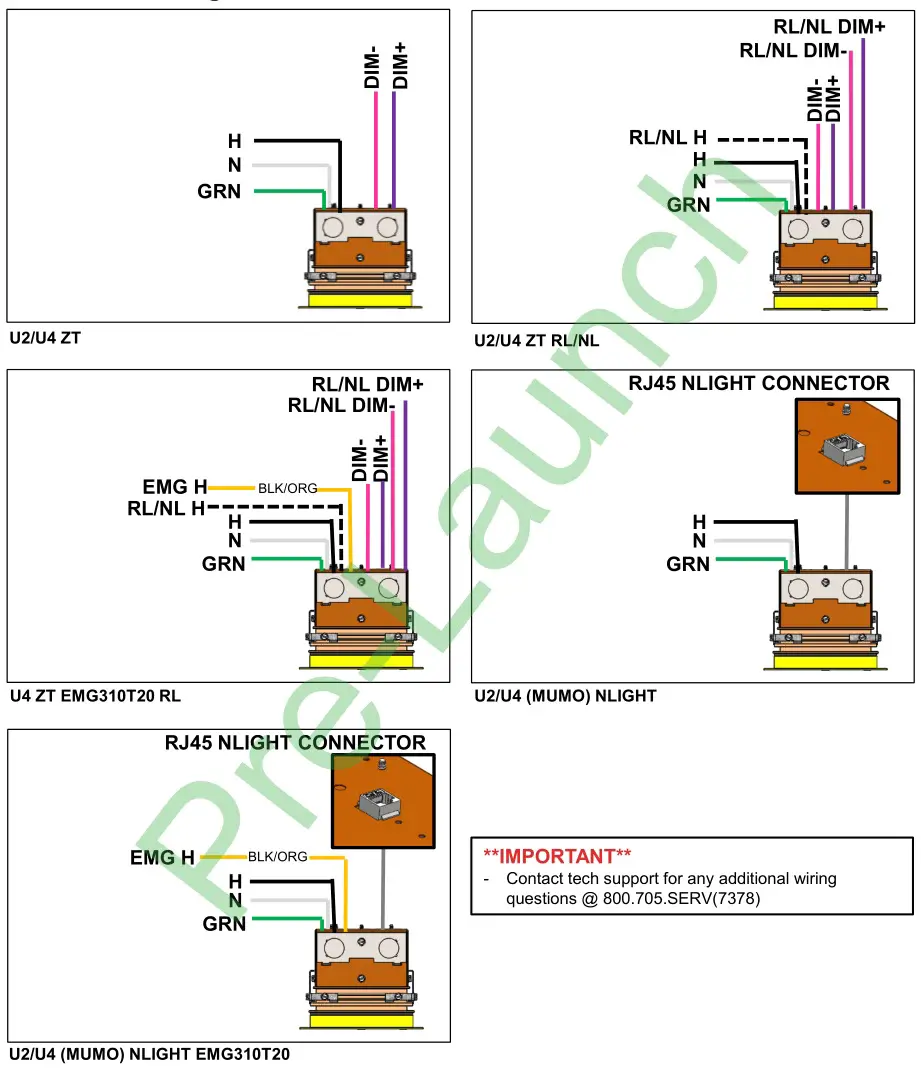

E. Control Wiring

1400 Lester Rd NW, Conyers, GA 30012
· Tel: 800.705.SERV(7378)
· Email:
·Website: https://luminaireled.acuitybrands.com/

© 2021 Acuity Brands Lighting, Inc. All Rights Reserved. “LuminaireLED” is a registered trademark of Acuity Brands Lighting. Products in this document may be covered by one or more U.S. Patents and Patents Pending. Specifications subject to change without notice. Limited warranty applies. Complete warranty terms located at www.AcuityBrands.com/CustomerResources/Terms_and_Conditions.aspx
