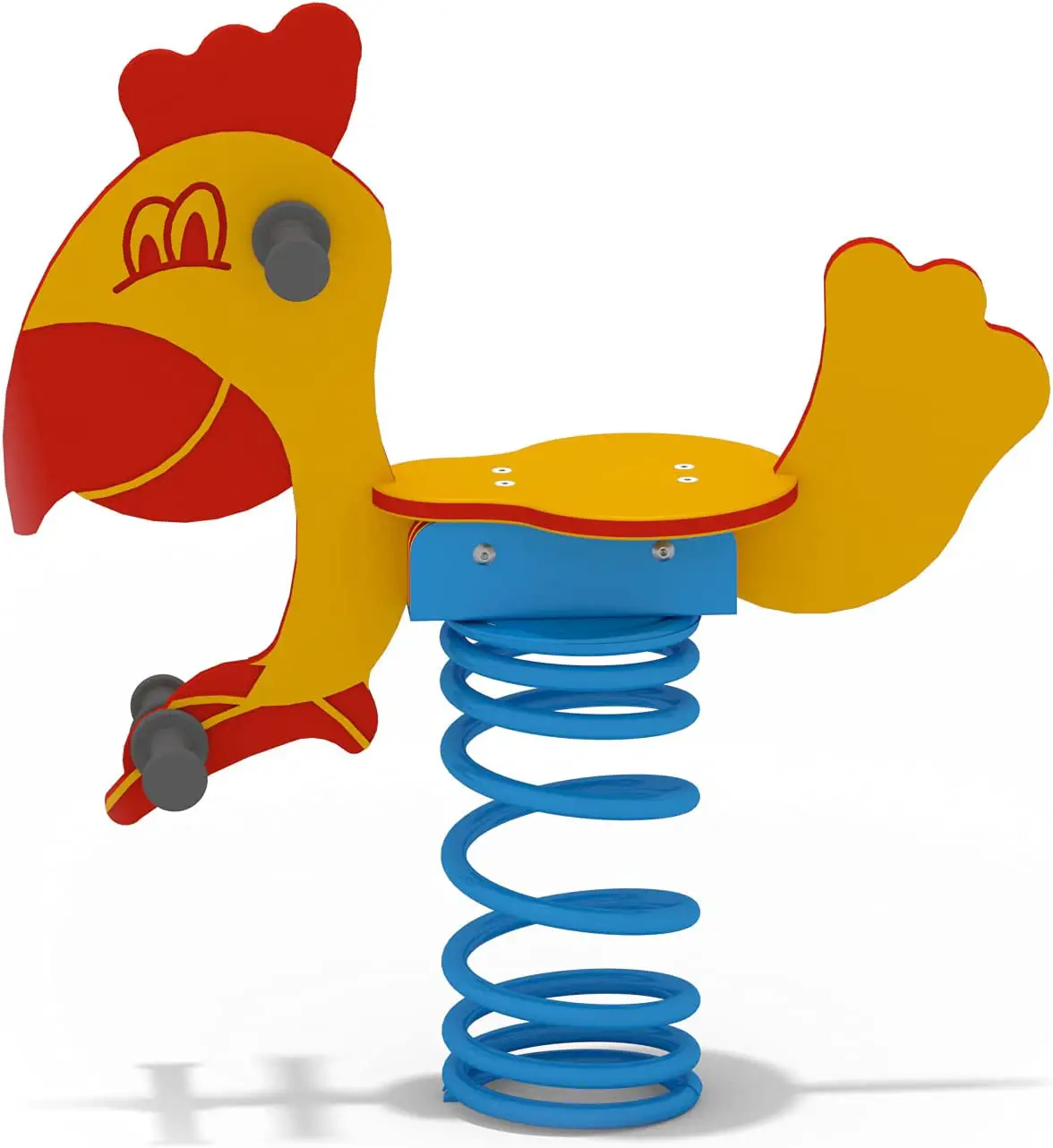

SAPEKOR 15090 Spring Rocker Hen

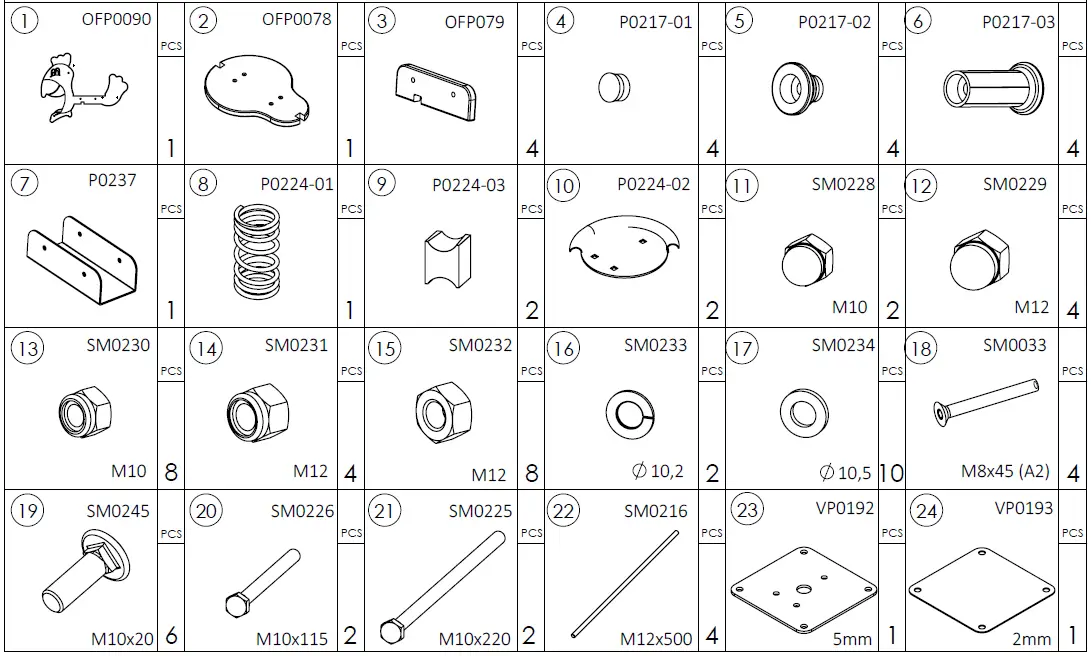

Parts

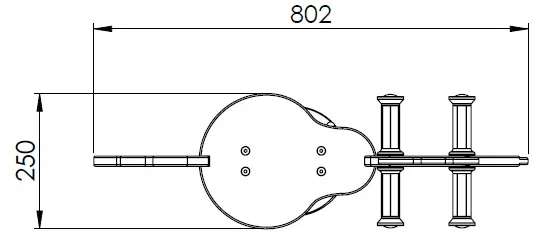

DIMENSIONS

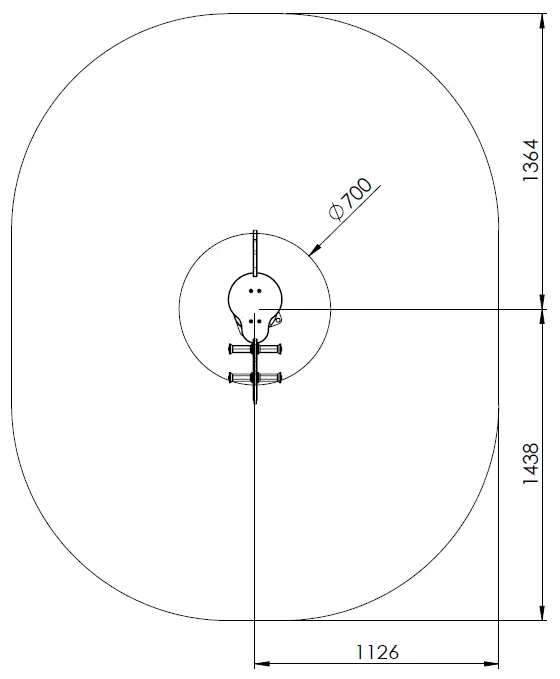

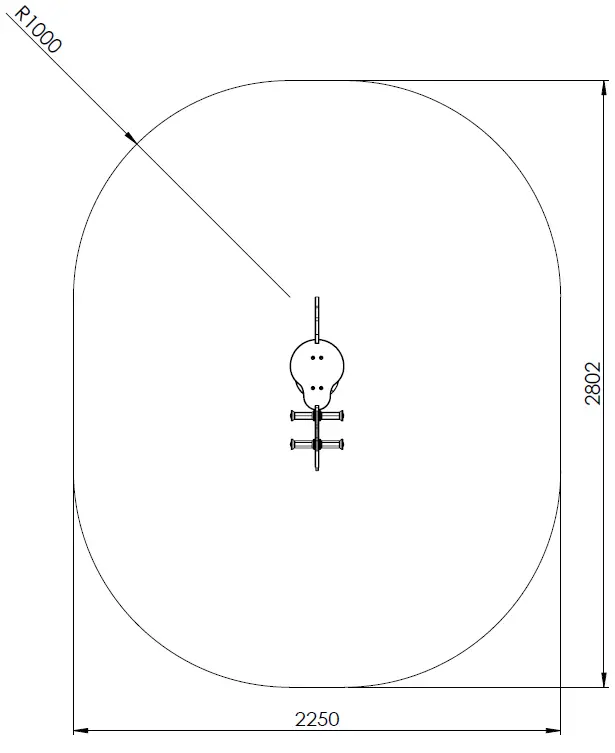

SAFETY ZONE

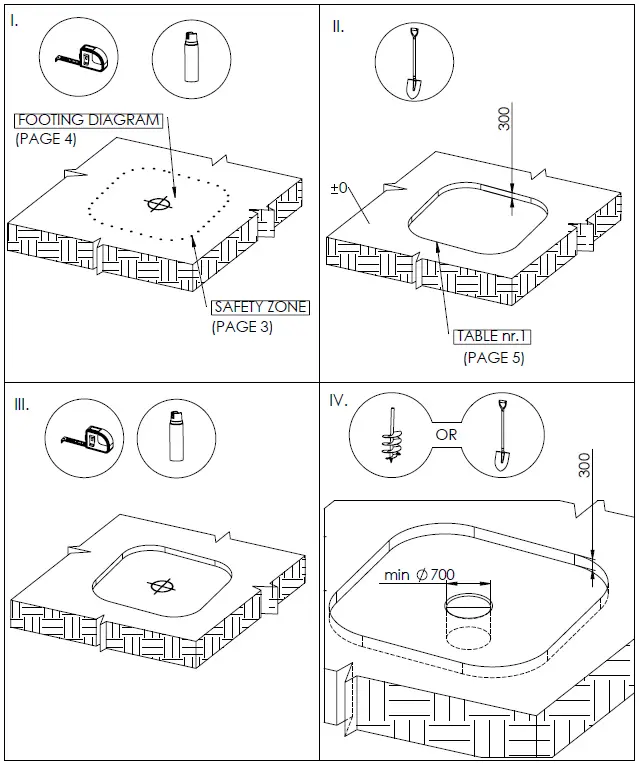

FOOTING DIAGRAM
TABLE nr.1
Examples of commonly used impact attenuating materials and corresponding critical fall heights.
| Material* | Description (mm) | Minimum dept (mm) ** | Maximum height of fall (mm) |
| Turf/Topsoil
| – | – | ≤1000 |
| Bark | Grain size 20 to 80
| 200 | ≤2000 |
| 300 | ≤3000 | ||
| Woodchip | 5 to 30 Grain size
| 200 | ≤2000 |
| 300 | ≤3000 | ||
| Sand / Gravel*** | Grain size 0,25 to 8
| 200 | ≤2000 |
| 300 | ≤3000 | ||
| Other materials | As tested to HIC | Critical fall height as tested | |
- Materials properly prepared for use in children’s playgrounds
- For loose particulate material, add 100 mm to the minimum depth to compensate for displacement
- No silty or clay particles EN 933-1

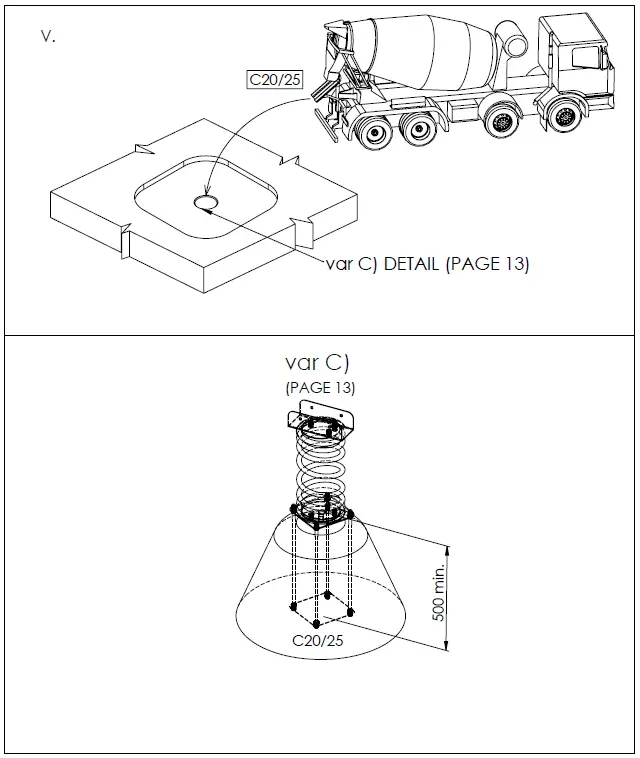

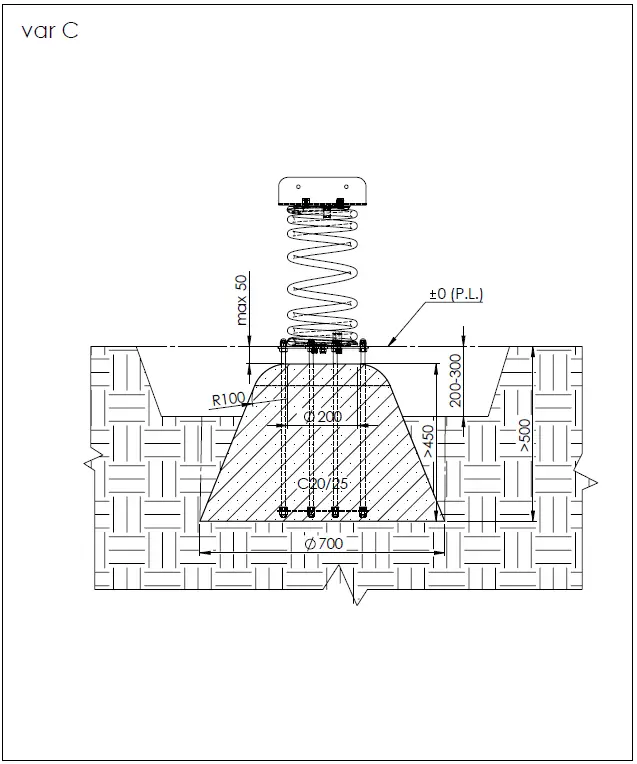

var C

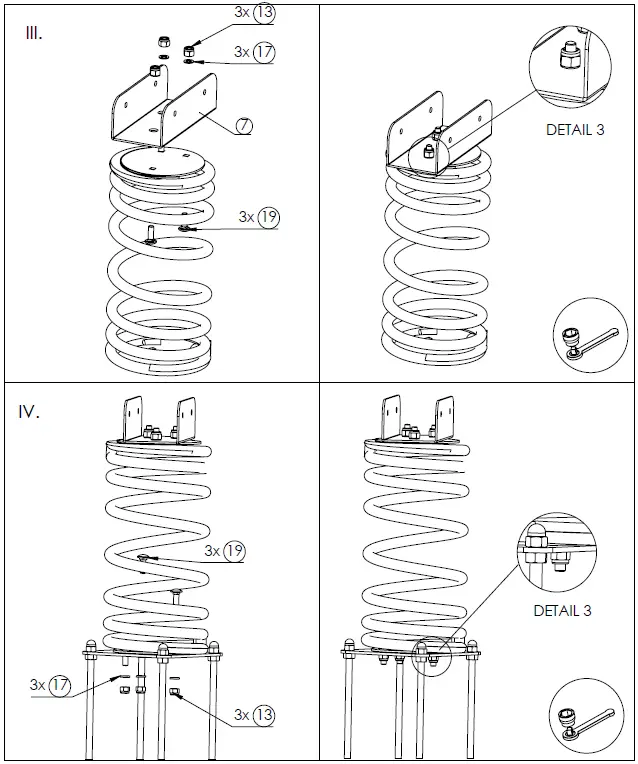

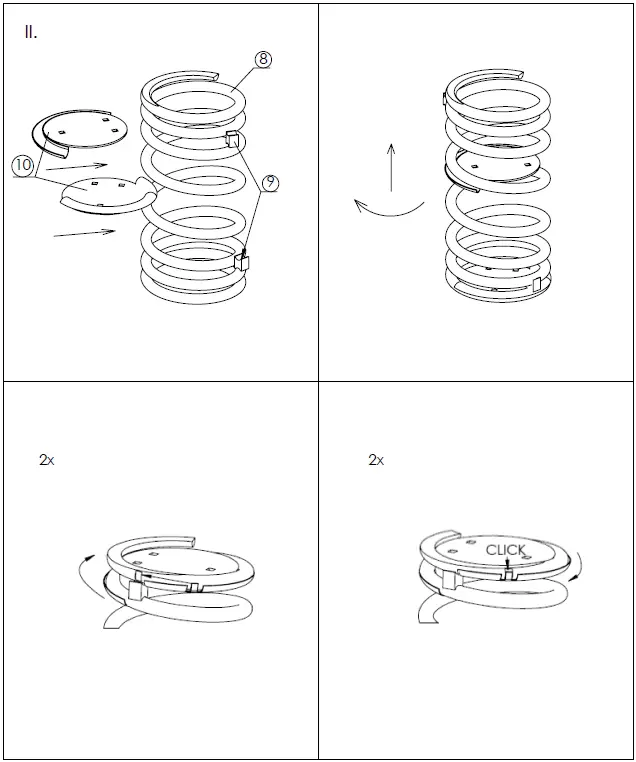

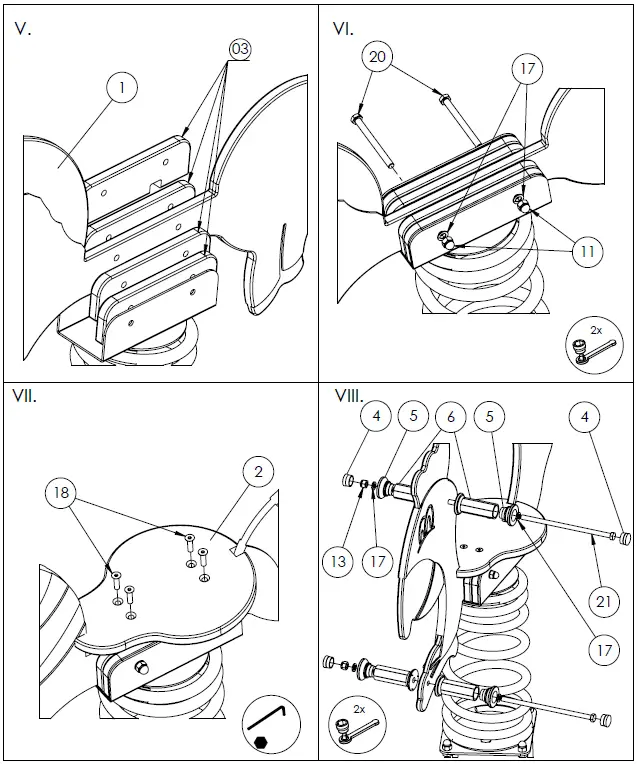

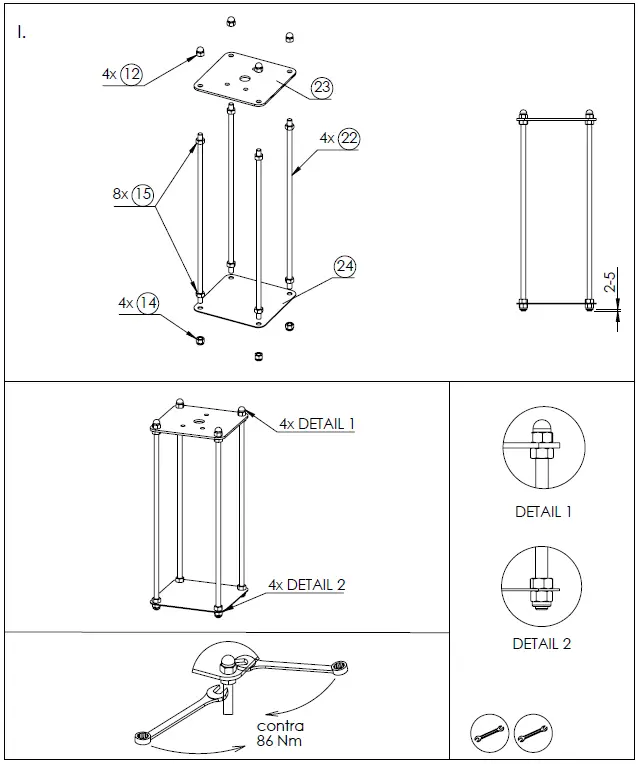

ASSEMBLY OF THE GAME ELEMENT
var A,B,C
var C
