SAPEKOR 15106 Rocker Girafee

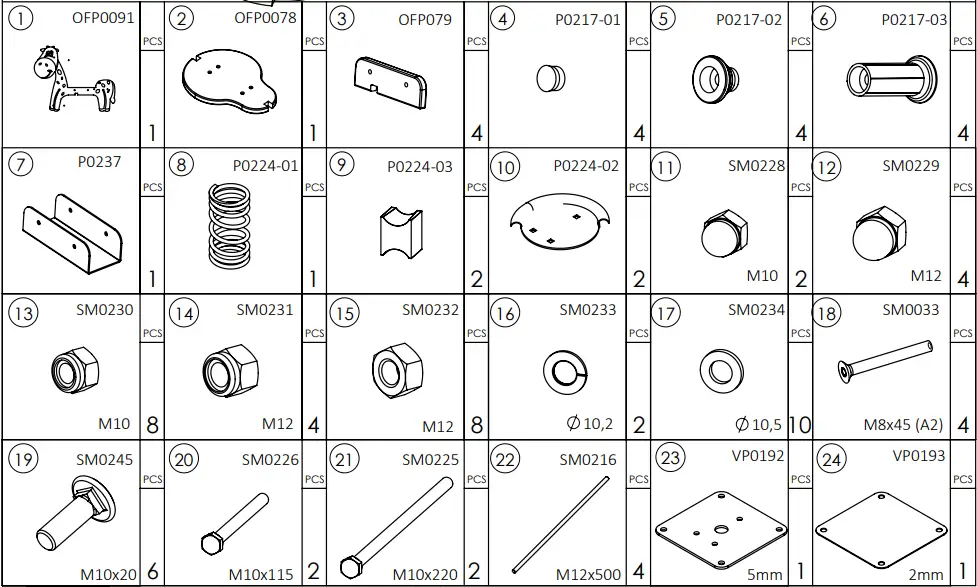

PARTS

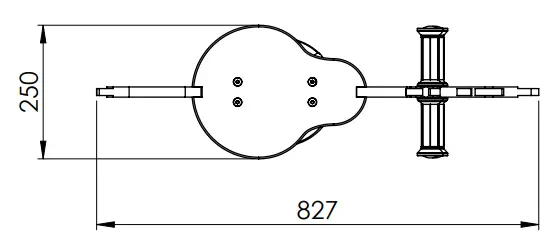

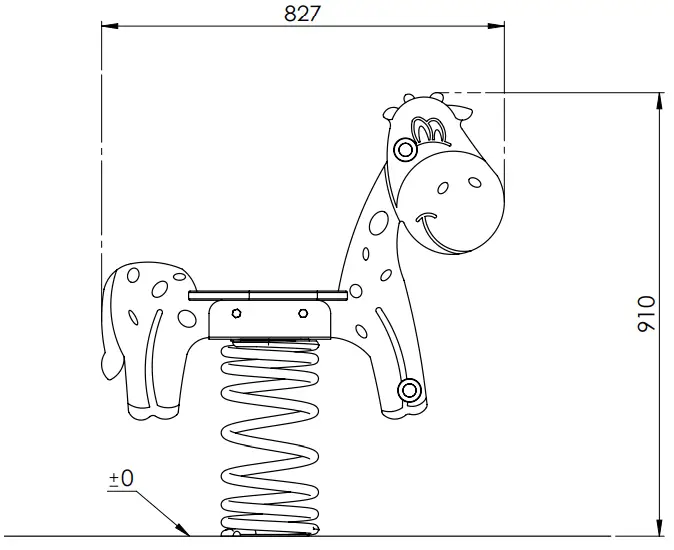

DIMENSIONS

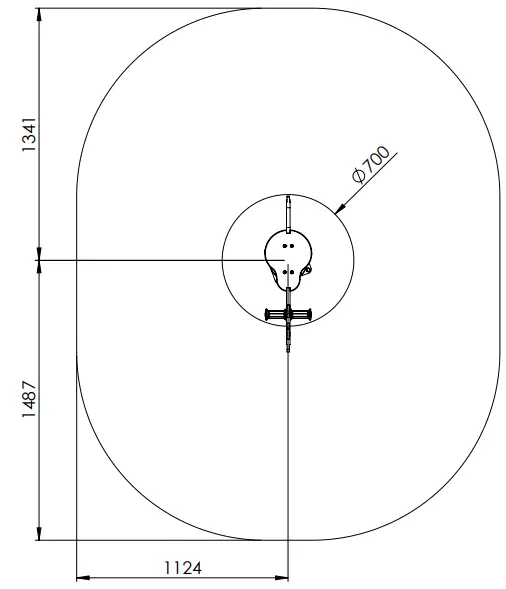

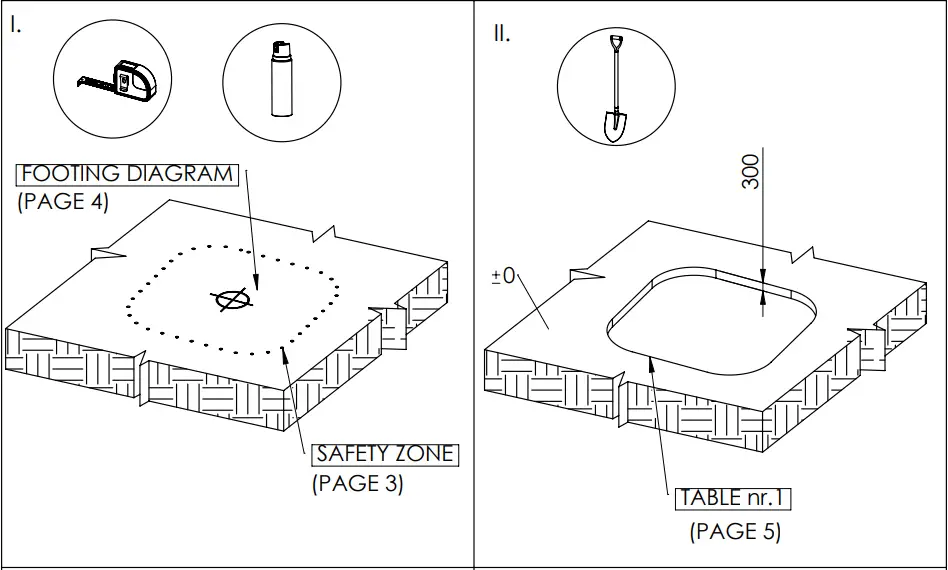

SAFETY ZONE

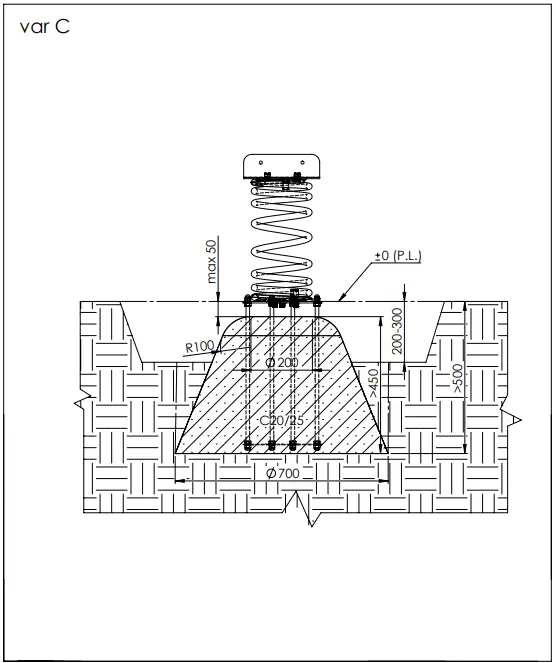

FOOTING DIAGRAM
TABLE
Examples of commonly used impact attenuating materials and corresponding critical fall heights.
| Material* | Description (mm) | Minimum dept (mm) ** | Maximum height of fall (mm) |
| Turf/Topsoil | – | – | ≤1000 |
| Bark | Grain size 20 to 80 | 200 | ≤2000 |
| 300 | ≤3000 | ||
| Woodchip | 5 to 30 Grain size | 200 | ≤2000 |
| 300 | ≤3000 | ||
| Sand / Gravel | Grain size 0,25 to 8 | 200 | ≤2000 |
| 300 | ≤3000 | ||
| Other materials | As tested to HIC | Critical fall height as tested | |
- Materials properly prepared for use in childres playgrounds
- For loose particulate material, add 100 mm to the minimum depth to compensate for displacement
- No silty or clay particles EN 933-1

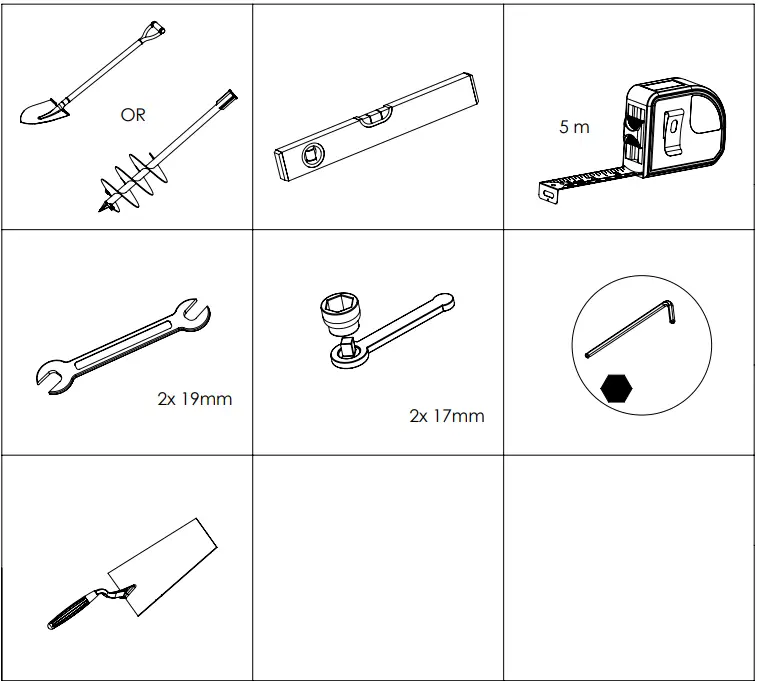

TOOLS REQUIRED

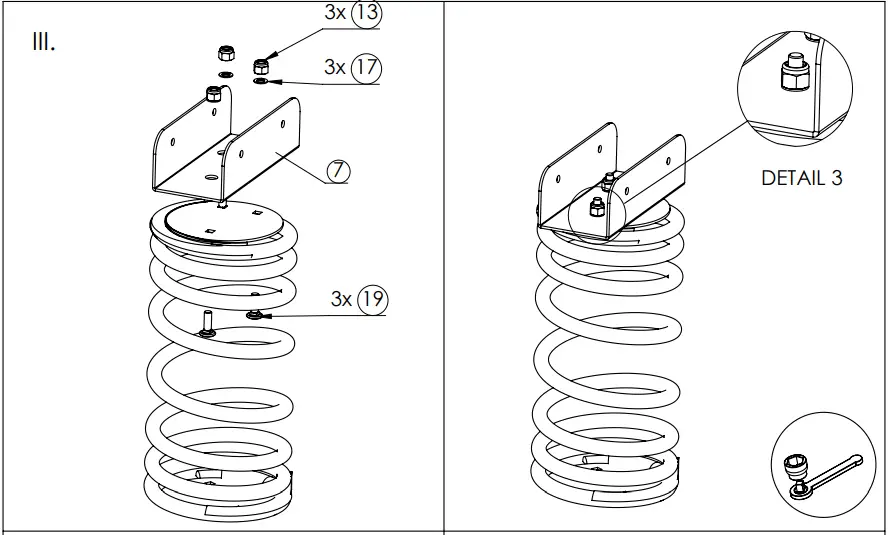

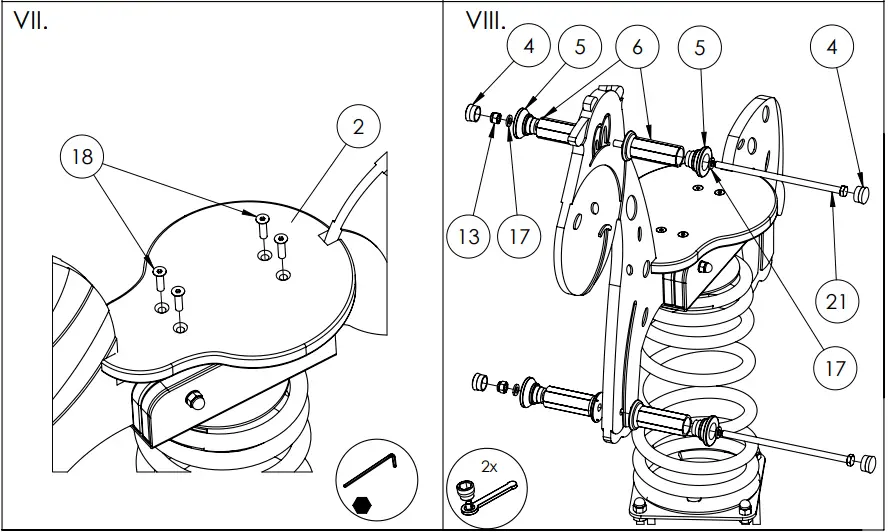

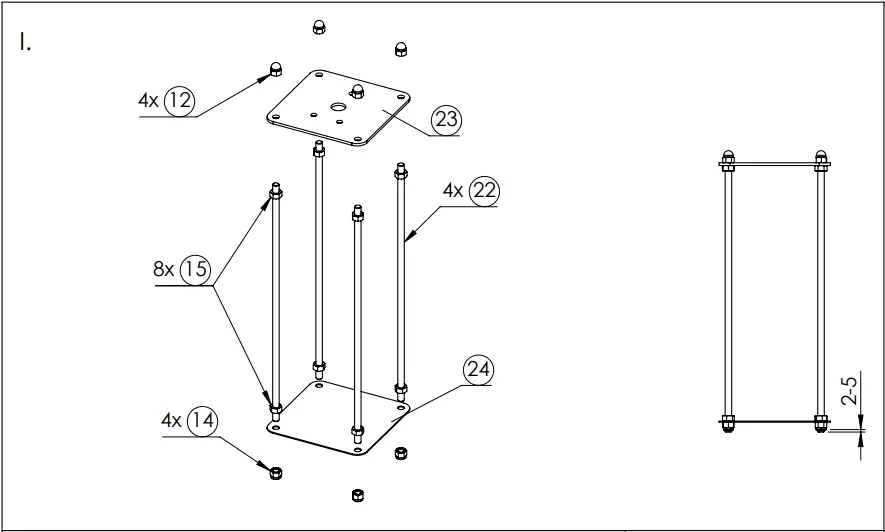

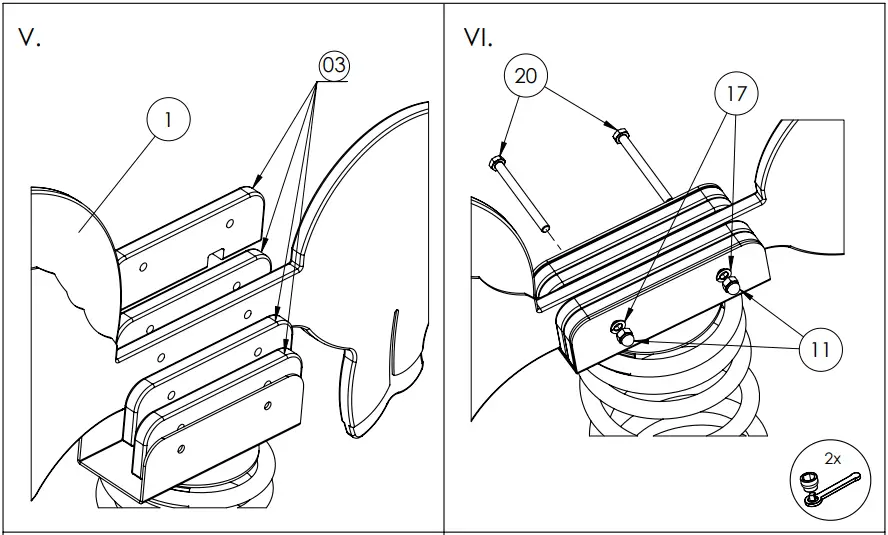

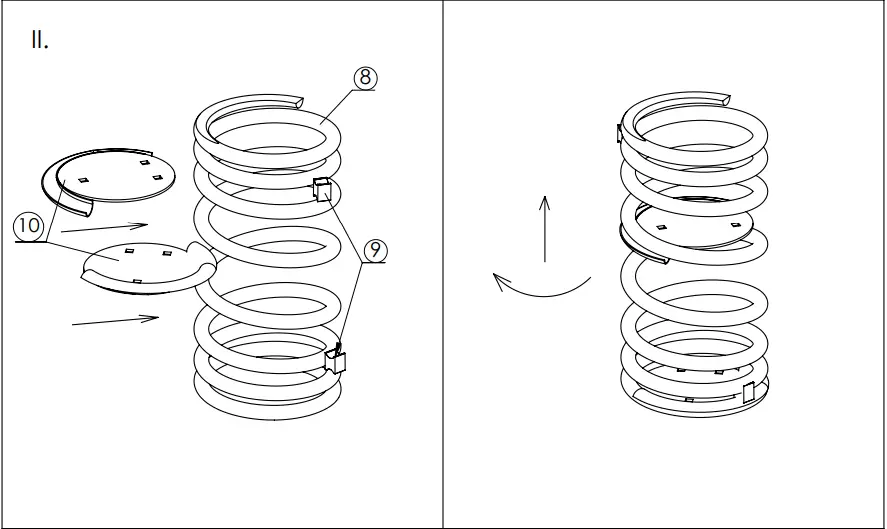

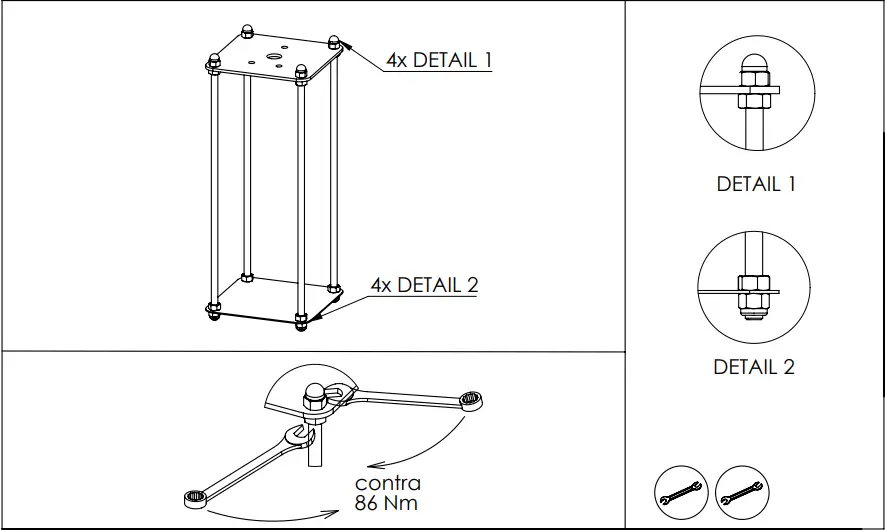

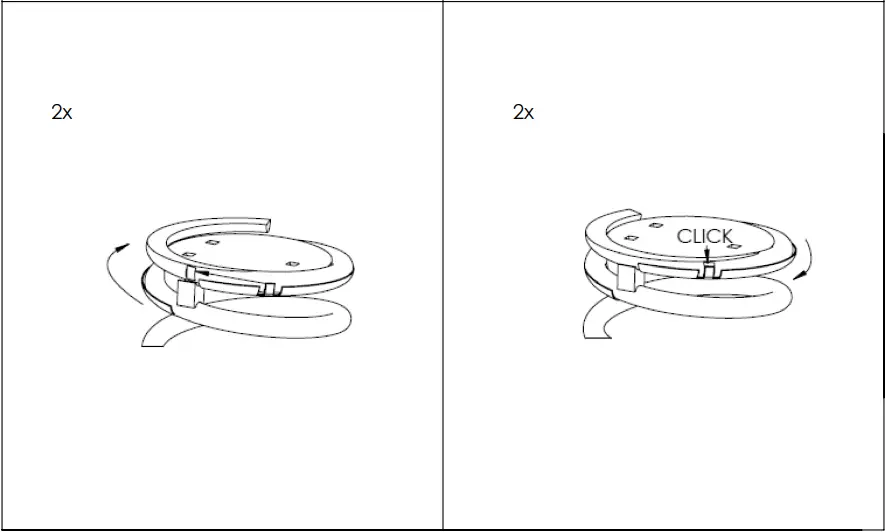

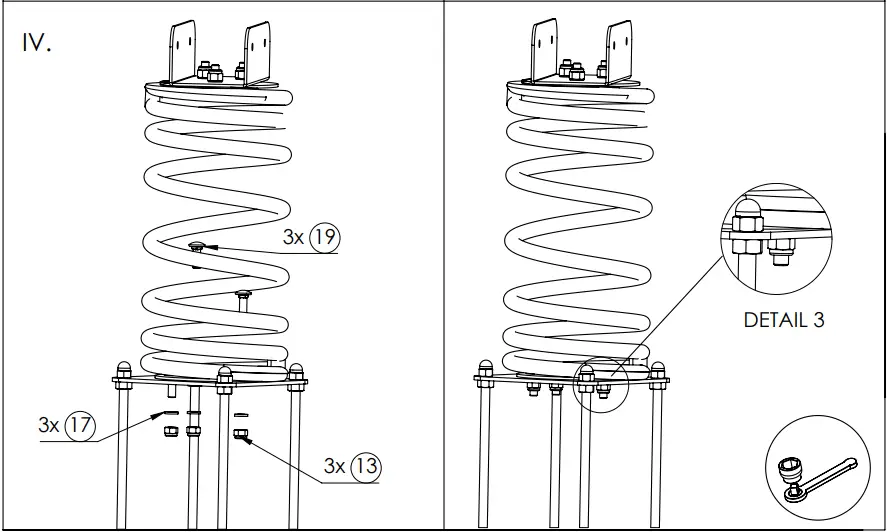

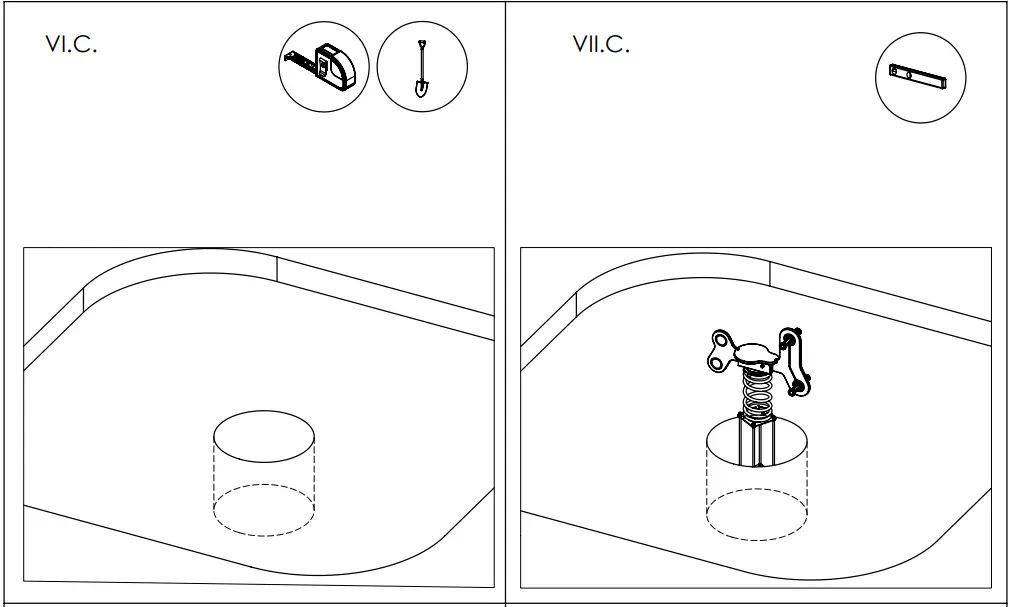

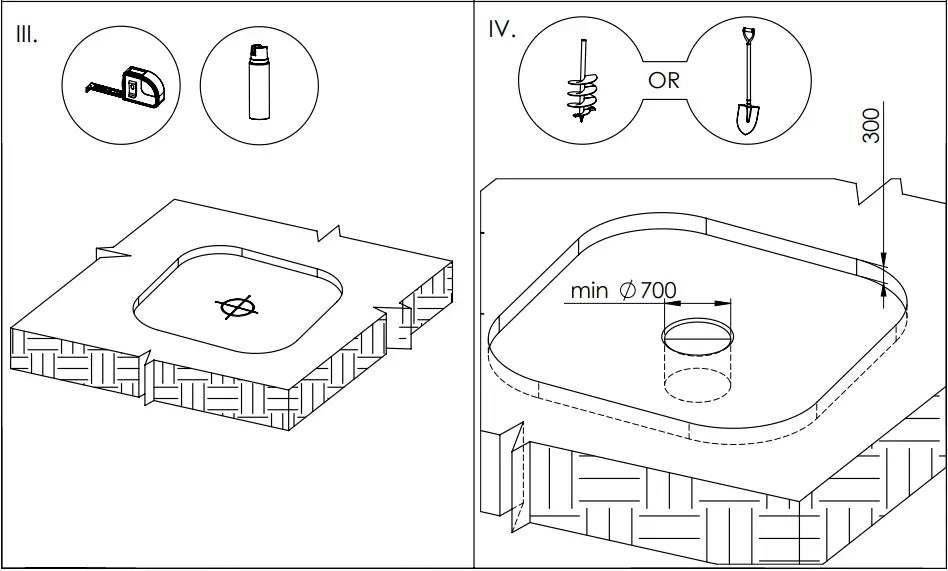

ASSEMBLY OF THE GAME ELEMENT

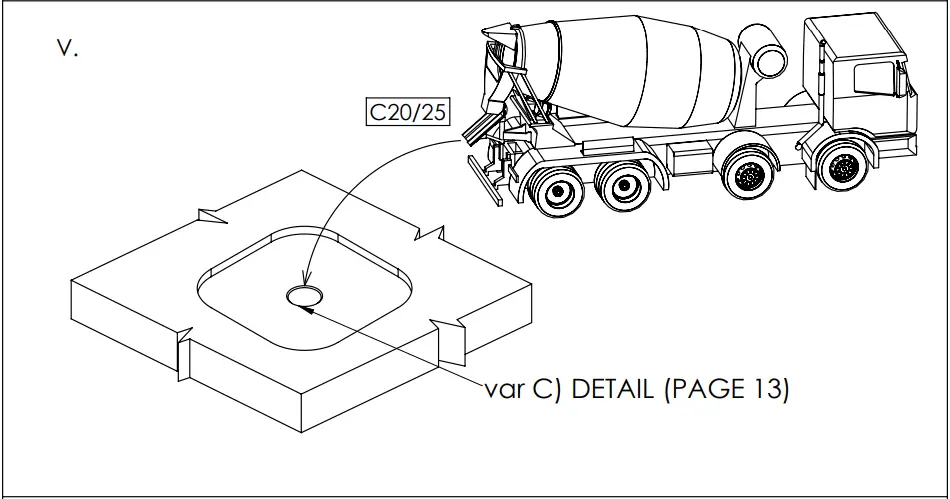

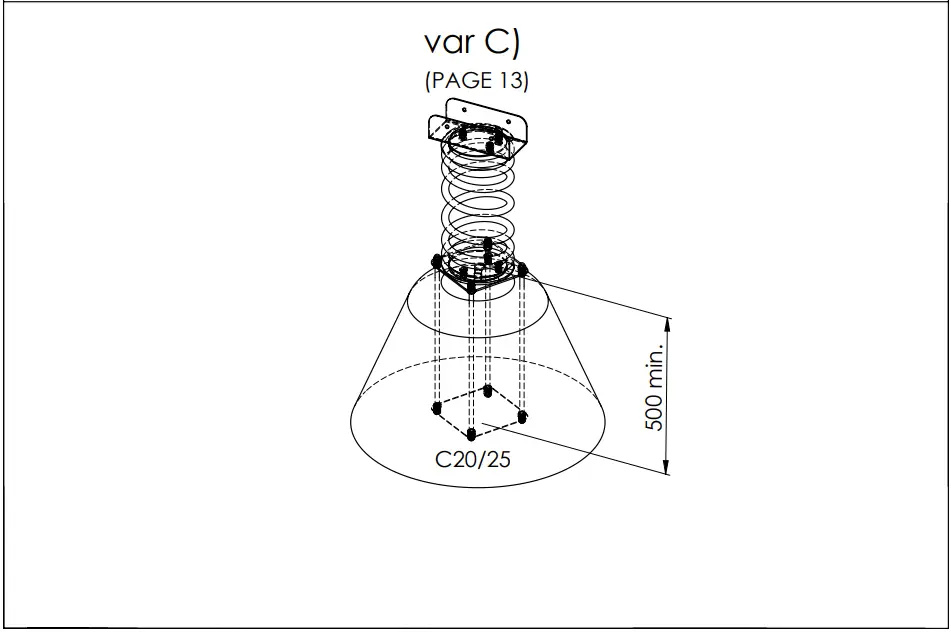

var A,B,C
varC
