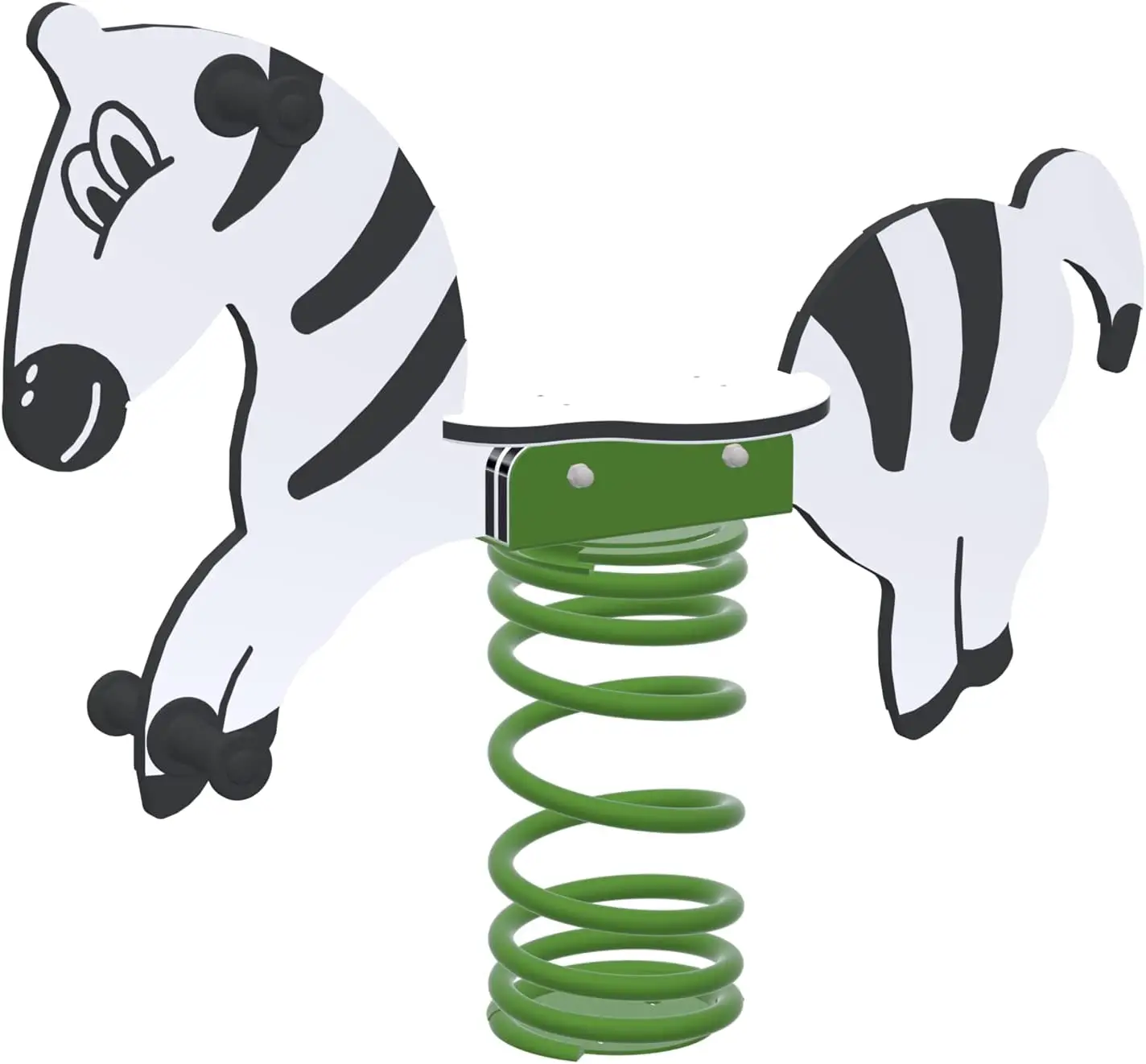

SAPEKOR 15038 Spring Rocker Zebra

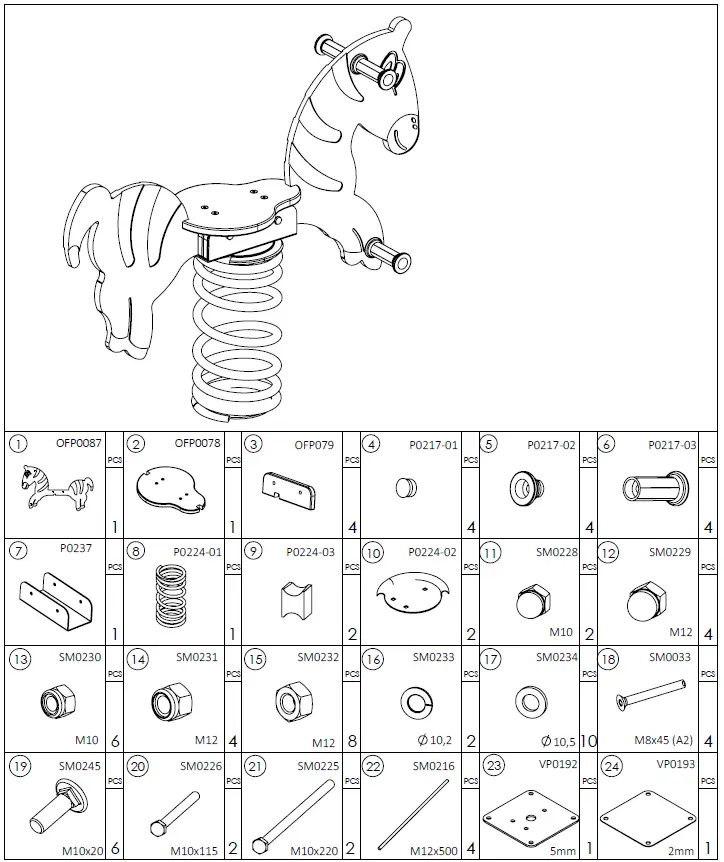

What’s In Box
DIMENSIONS

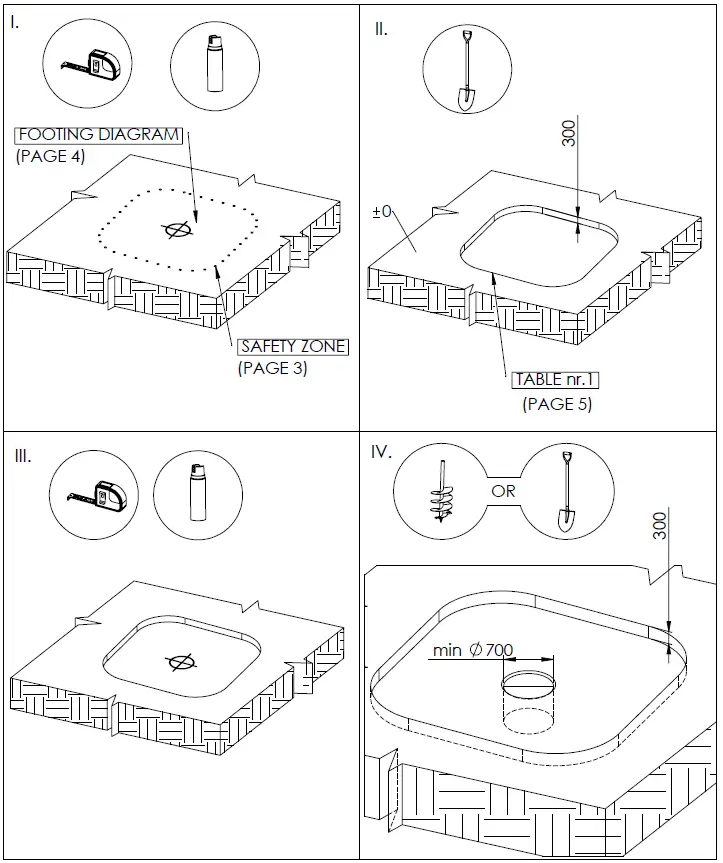

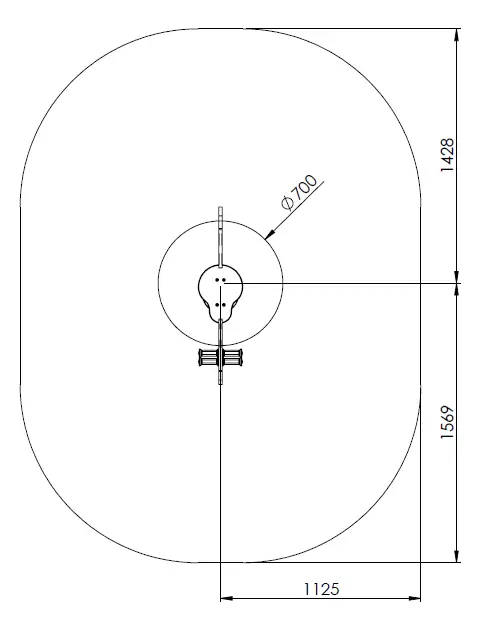

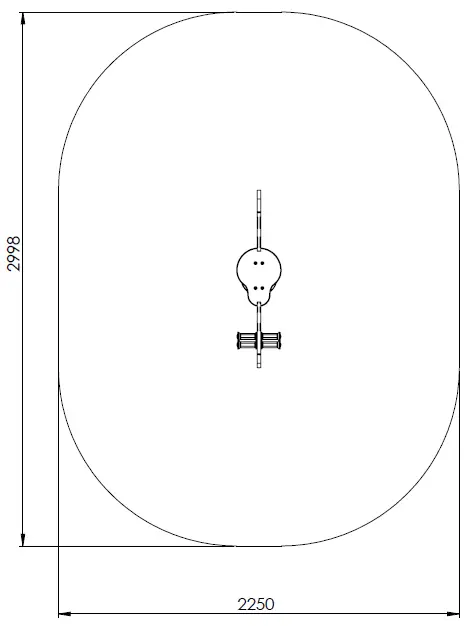

SAFETY ZONE

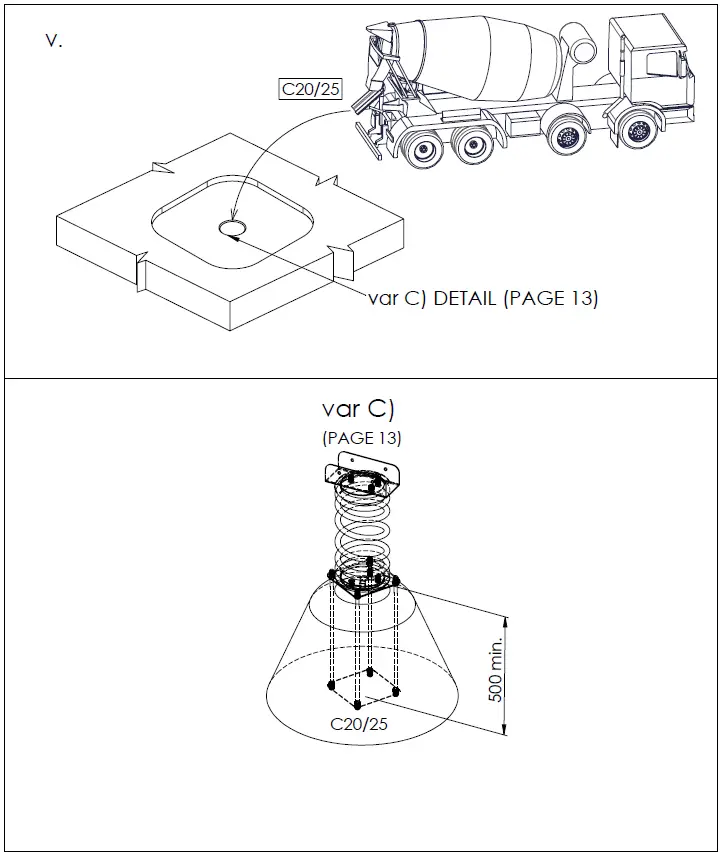

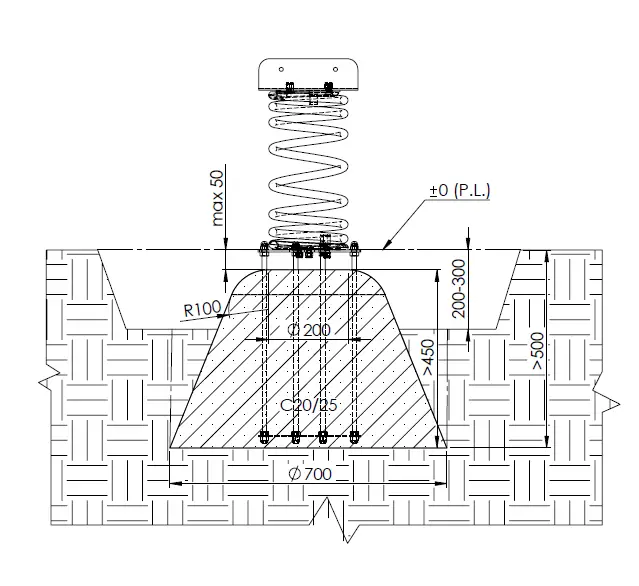

FOOTING DIAGRAM
Examples of commonly used impact attenuating materials and corresponding critical fall heights
| Material | Description (mm) | Minimum dept | Maximum height of fall (mm) |
| Turf/Topsoil | – | – | ≤1000 |
| Bark | Grain size 20 to 80 | 200 | ≤2000 |
| 300 | ≤3000 | ||
| Woodchip | 5 to 30 Grain size | 200 | ≤2000 |
| 300 | ≤3000 | ||
| Sand | Grain size 0,25 to 8 | 200 | ≤2000 |
| 300 | ≤3000 | ||
| Other materials | As tested to HIC/ Nach HIC/ Dle HIC | Critical fall height as tested | |
- Materials properly prepared for use in childres playgrounds
- For loose particulate material, add 100 mm to the minimum depth to compensate for displacement
- No silty or clay particles
