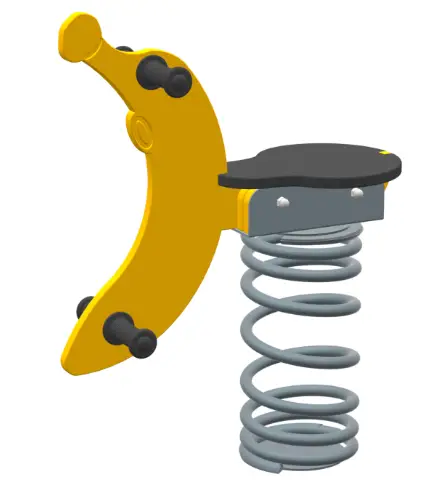

SAPEKOR 15267 spring rocker banana, yellow/black
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
DIMENSIONS

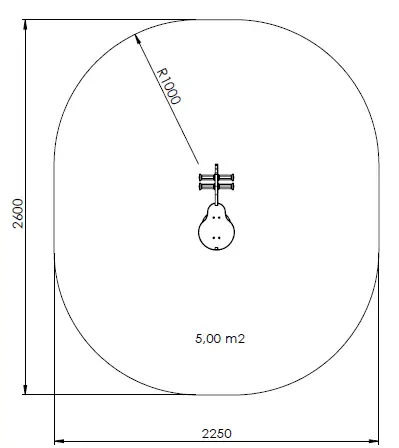

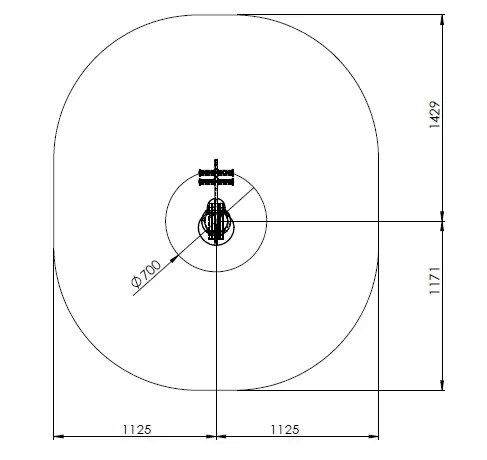

SAFETY ZONE

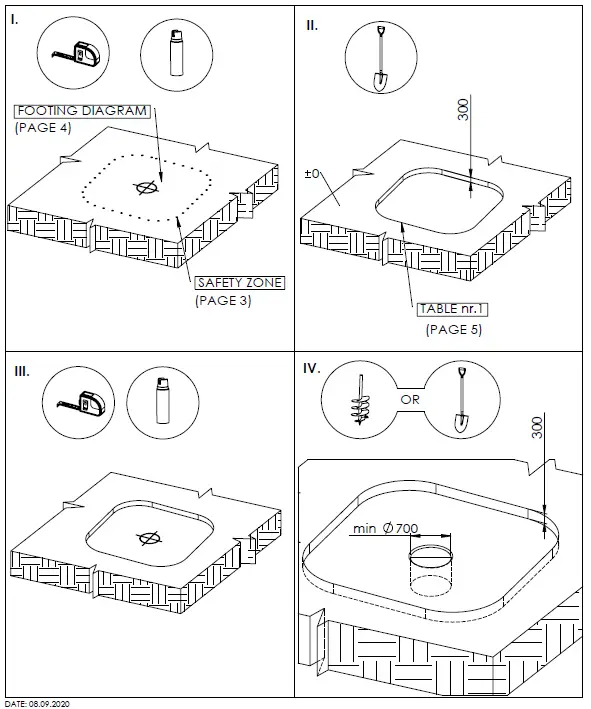

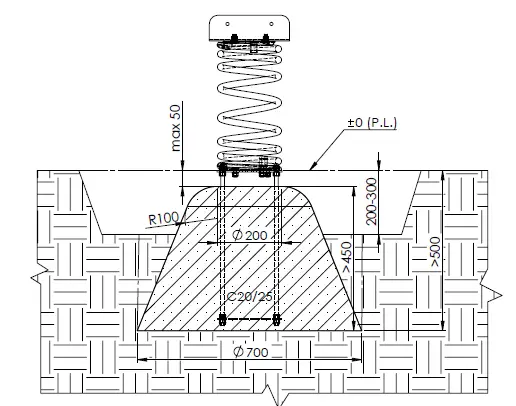

FOOTING DIAGRAM
TABLE nr.1
Examples of commonly used impact attenuating materials and corresponding critical fall heights.
| Material* | Description | Minimum dept | Maximum height of fall
|
| Turf/Topsoil | – | – | ≤1000 |
| Bark Rindenmulch | Grain size 20 to 80 | 200 | ≤2000 |
| 300 | ≤3000 | ||
| Woodchip | Grain size 5 to 30 | 200 | ≤2000 |
| 300 | ≤3000 | ||
| Sand / Gravel*** | Grain size 0,25 to 8
| 200 | ≤2000 |
| 300 | ≤3000 | ||
| Other materials | As tested to HIC/ Nach HIC/ Dle HIC | Critical fall height as tested by Kritische | |
Materials properly prepared for use in children’s playgrounds
For loose particulate material, add 100 mm to the minimum depth to compensate for displacement
No silty or clay particles EN 933-1

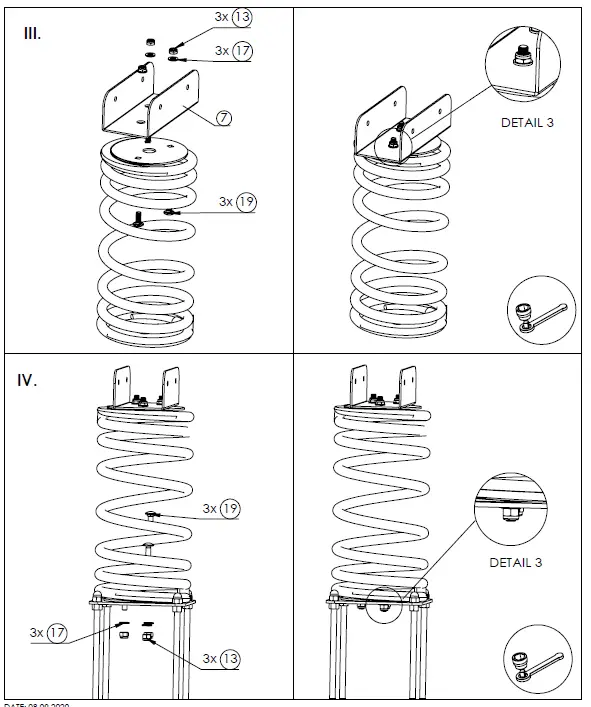

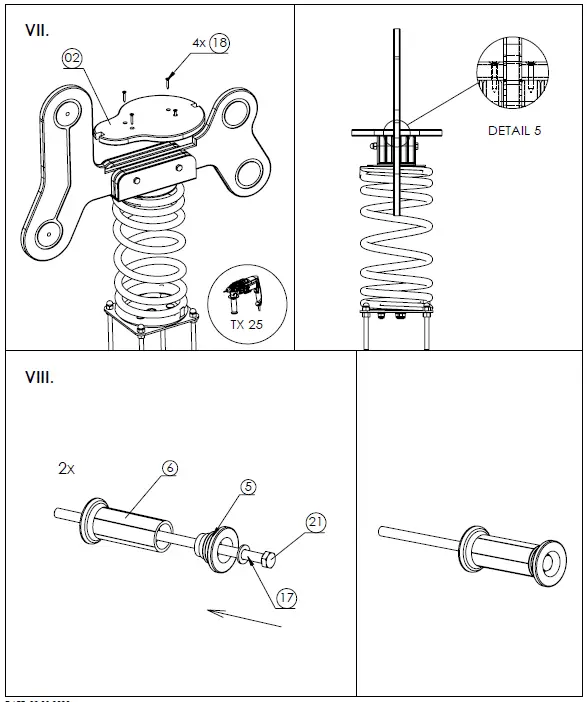

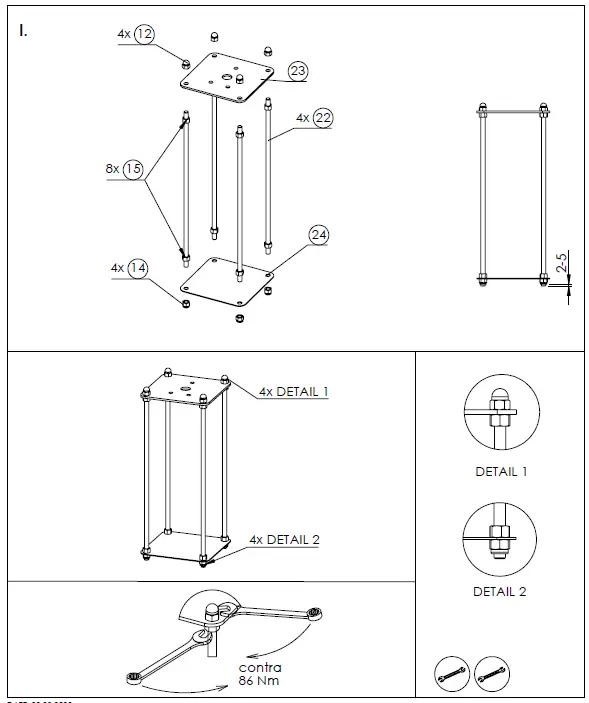

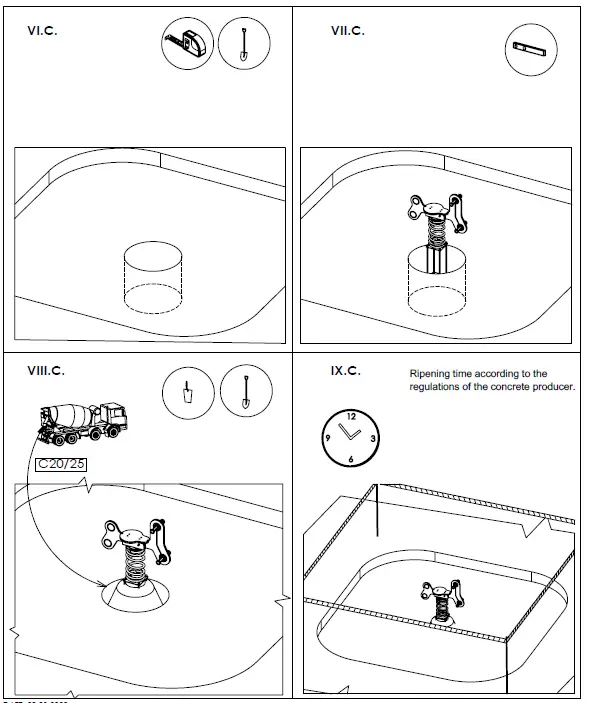

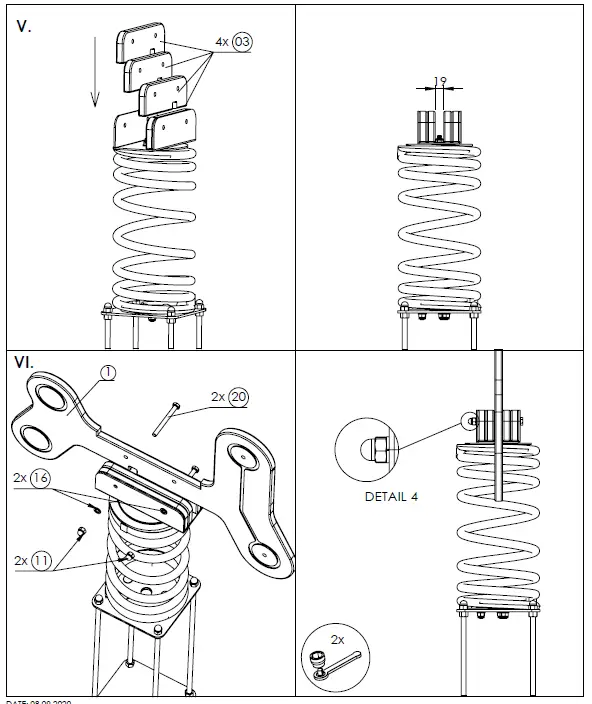

ASSEMBLY OF THE GAME ELEMENT

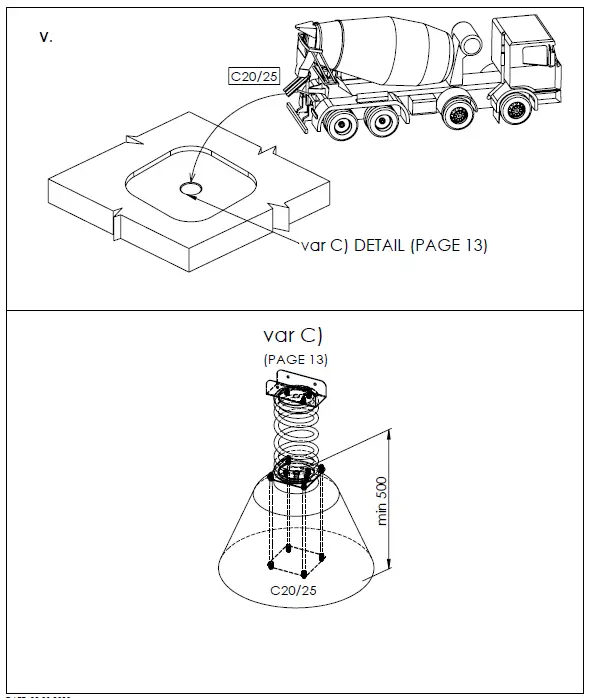

var A,B,C
var C
