hidealite 7019640 Sky OP

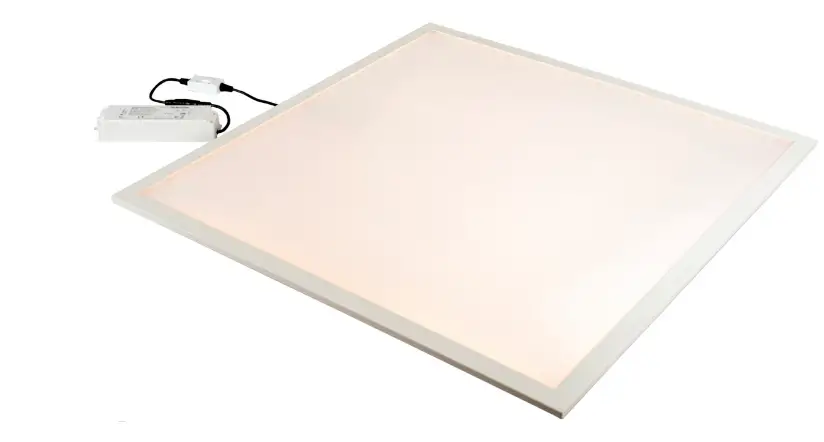

Sky

E-nr	Snro	El.nr	GTIN	Name	LED color	Unit effect	mA	Lumen	Beam angle
7019640	4143802	3207079	7392971143675	Sky OP 830/840 DIM	3000K/4000K	30W	750mA	3800	120°
7019641	4143803	3207080	7392971143682	Sky OP 830/840 DIM 5-pack	3000K/4000K	30W	750mA	3800	120°
7019642	4143804	3207081	7392971143699	Sky OP 830/840 DIM Linect	3000K/4000K	30W	750mA	3800	120°
7019643	4143805	3207082	7392971143705	Sky OP 830/840 DIM Q-Box Mini	3000K/4000K	30W	750mA	3800	120°
7019644	4143806	3207083	7392971143712	Sky OP 830/840 DALI Linect	3000K/4000K	42W	1050mA	5050	120°
7019645	4143807	3207084	7392971143729	Sky OP 830/840 DALI Q-Box Mini	3000K/4000K	42W	1050mA	5050	120°
7019646	4143808	3207085	7392971143736	Sky MP 830/840 DIM	3000K/4000K	30W	750mA	3700	90°
7019647	4143809	3207086	7392971143743	Sky MP 830/840 DIM 5-pack	3000K/4000K	30W	750mA	3700	90°
7019648	4143810	3207087	7392971143750	Sky MP 830/840 DIM Linect	3000K/4000K	30W	750mA	3700	90°
7019649	4143811	3207088	7392971143767	Sky MP 830/840 DIM Q-Box Mini	3000K/4000K	30W	750mA	3700	90°
7019650	4143812	3207089	7392971143774	Sky MP 830/840 DALI Linect	3000K/4000K	42W	1050mA	4850	90°
7019651	4143813	3207090	7392971143781	Sky MP 830/840 DALI Q-Box Mini	3000K/4000K	42W	1050mA	4850	90°

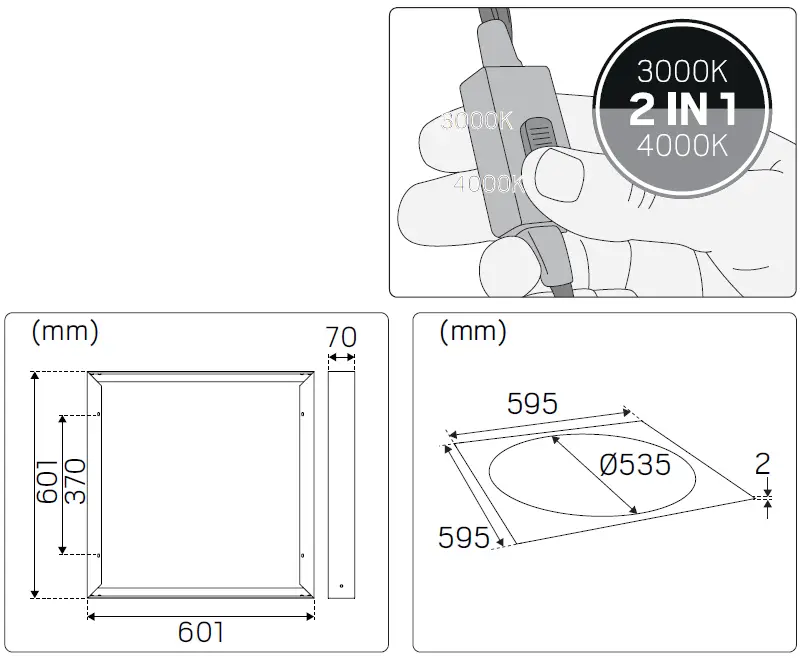

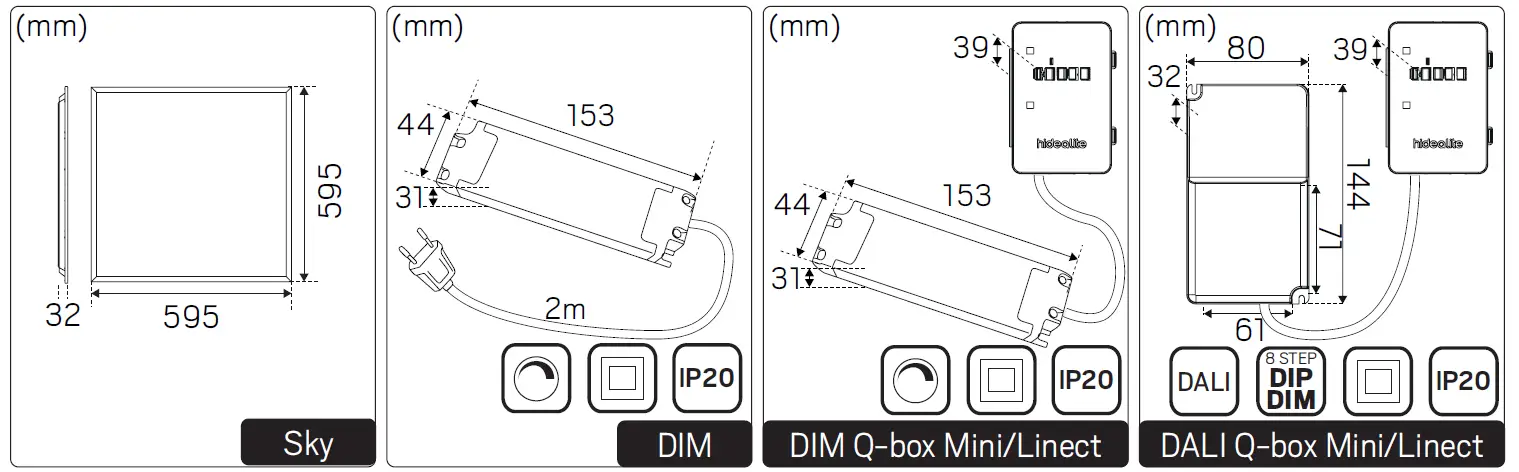

DIMENSIONS

For explanation of symbols see www.hidealite.com LED and control gear replaceable by professional

SAFETY INSTRUCTIONS

Read these instructions carefully before commencing installation and retain for future reference. The luminaire should be installed by a licensed electrician and in accordance with local regulations. Make sure that the power is off before installation or maintenance.

Accessories

E-nr	Snro	El.nr	GTIN	Name
7019652	4143814	3207091	7392971143798	Surfacemount frame Sky
7012483	4289493	3212071	7392971128566	Cover plate Panel Round

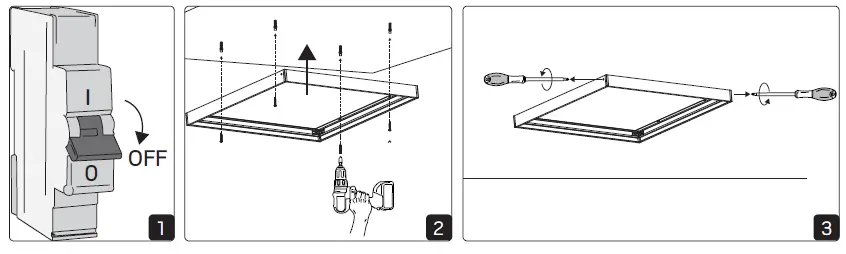

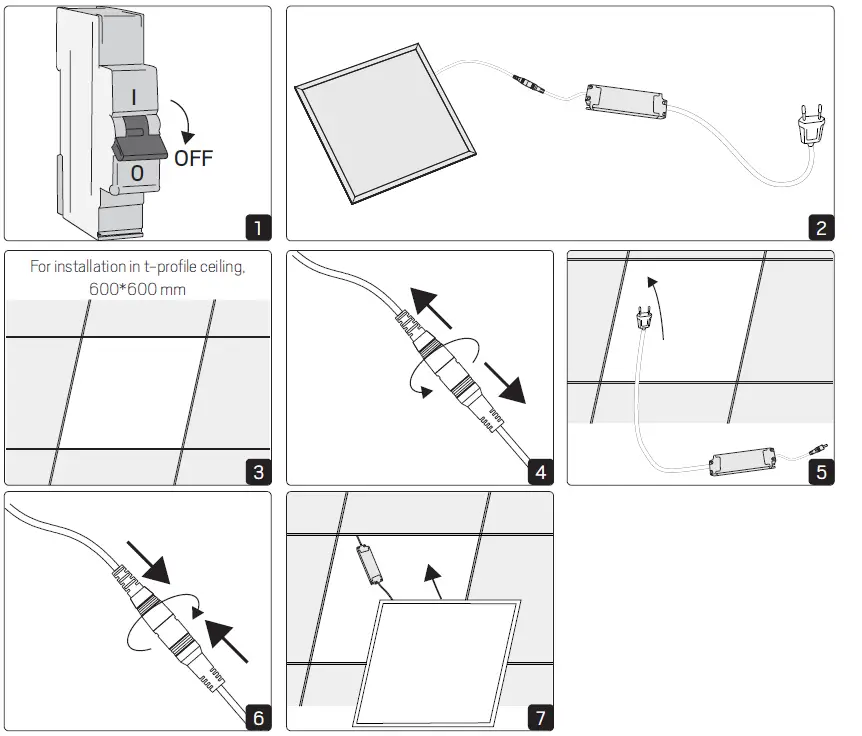

Installation

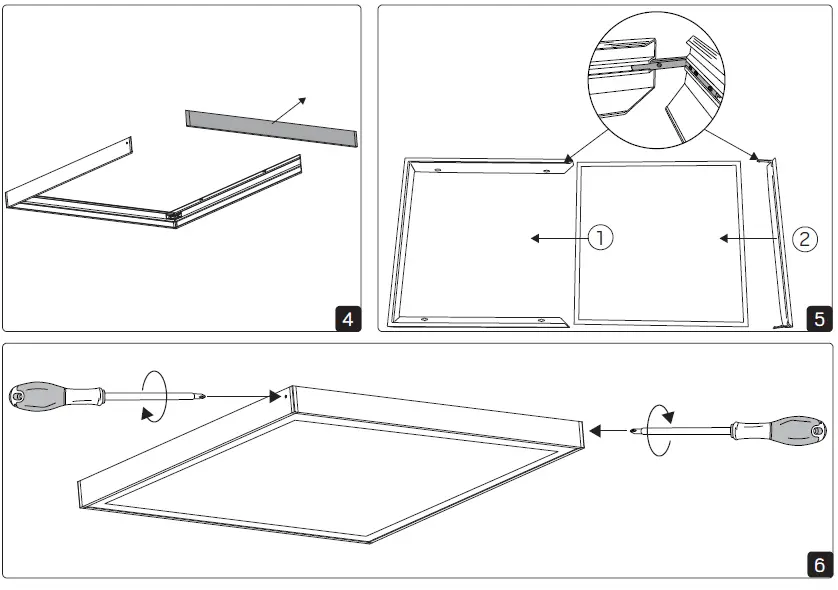

Installation – Surfacemount frame

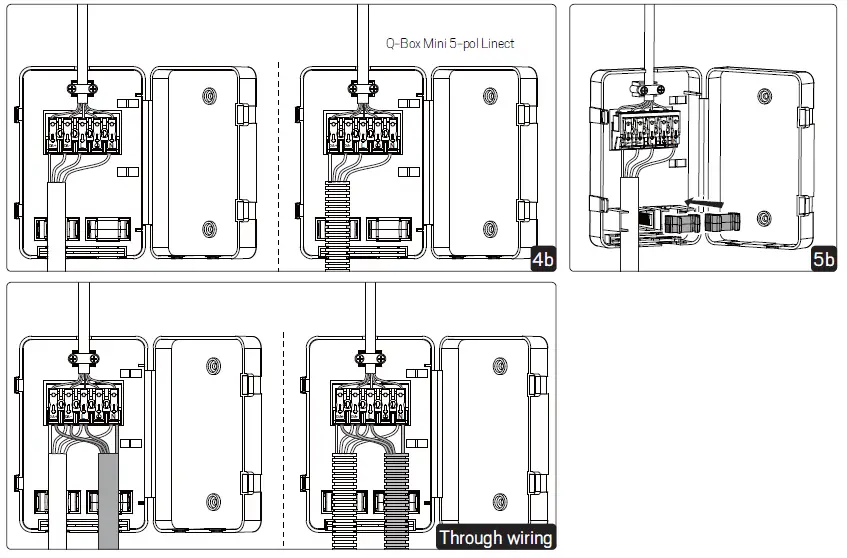

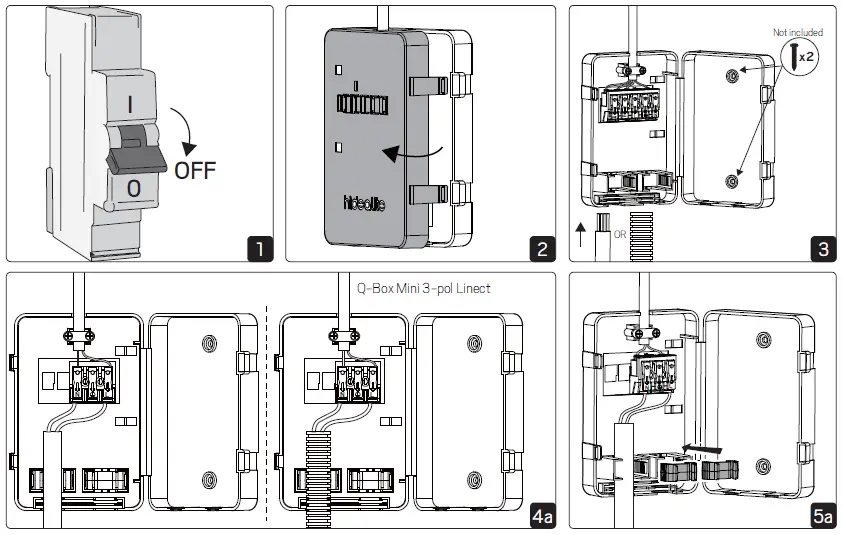

Installation with Q-box Mini

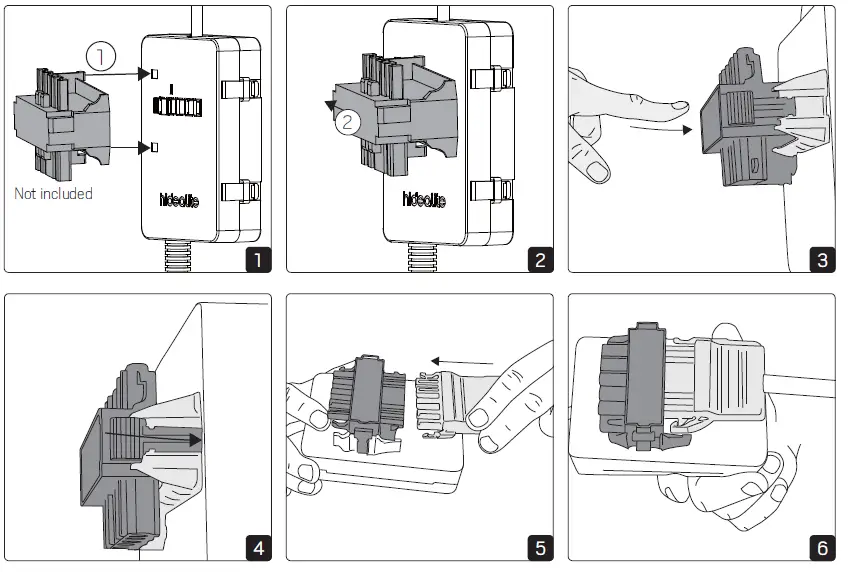

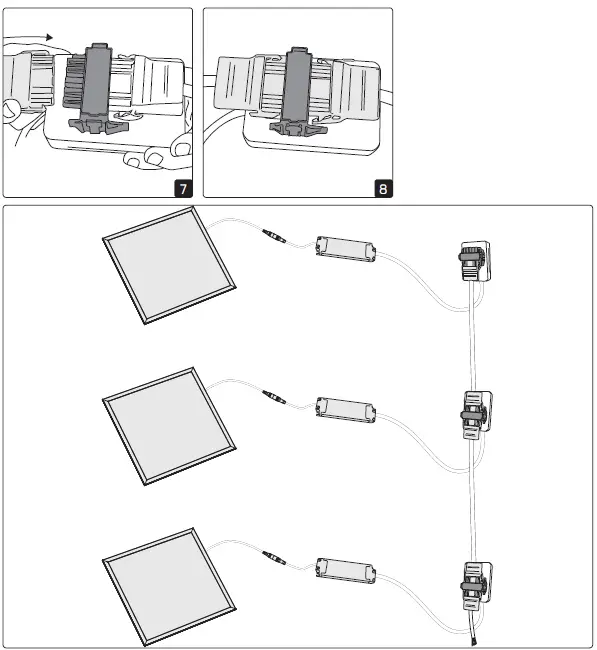

Installation with Linect

Linect works with Wago Winsta, Ensto, Wieland etc.

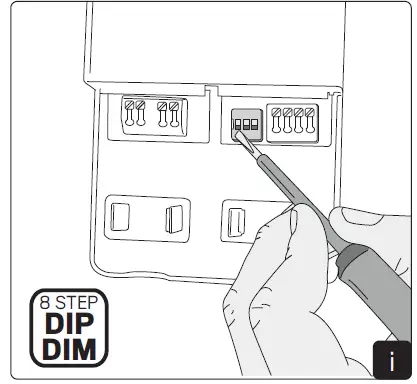

DIP on DALI driver

Sky OP

mA	Lumen 3000K	Lumen 4000K	Effect
600mA	2950lm	3050lm	24W
700mA	3450lm	3500lm	28W
750mA	3650lm	3750lm	30W
800mA	3800lm	3900lm	32W
850mA	4150lm	4250lm	34W
900mA	4300lm	4400lm	36W
950mA	4500lm	4600lm	38W
1050mA	4950lm	5050lm	42W

Sky MP

mA	Lumen 3000K	Lumen 4000K	Effect
600mA	2850lm	2950lm	24W
700mA	3300lm	3350lm	28W
750mA	3500lm	3600lm	30W
800mA	3650lm	3750lm	32W
850mA	3950lm	4050lm	34W
900mA	4100lm	4200lm	36W
950mA	4300lm	4400lm	38W
1050mA	4750lm	4850lm
