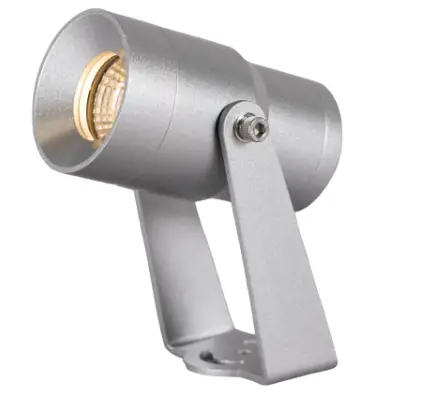

hidealite 7766694 Spot It S Spotlight

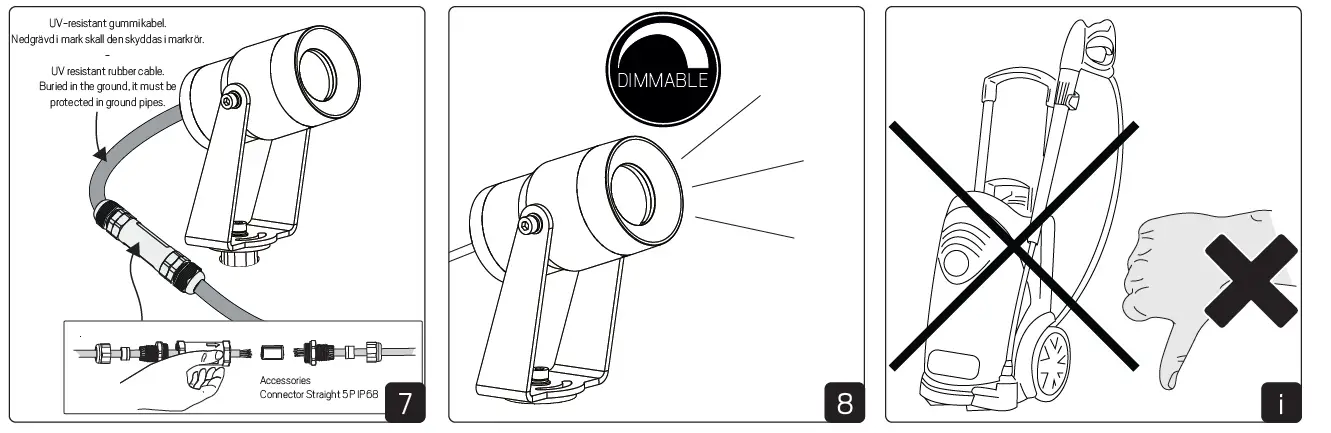

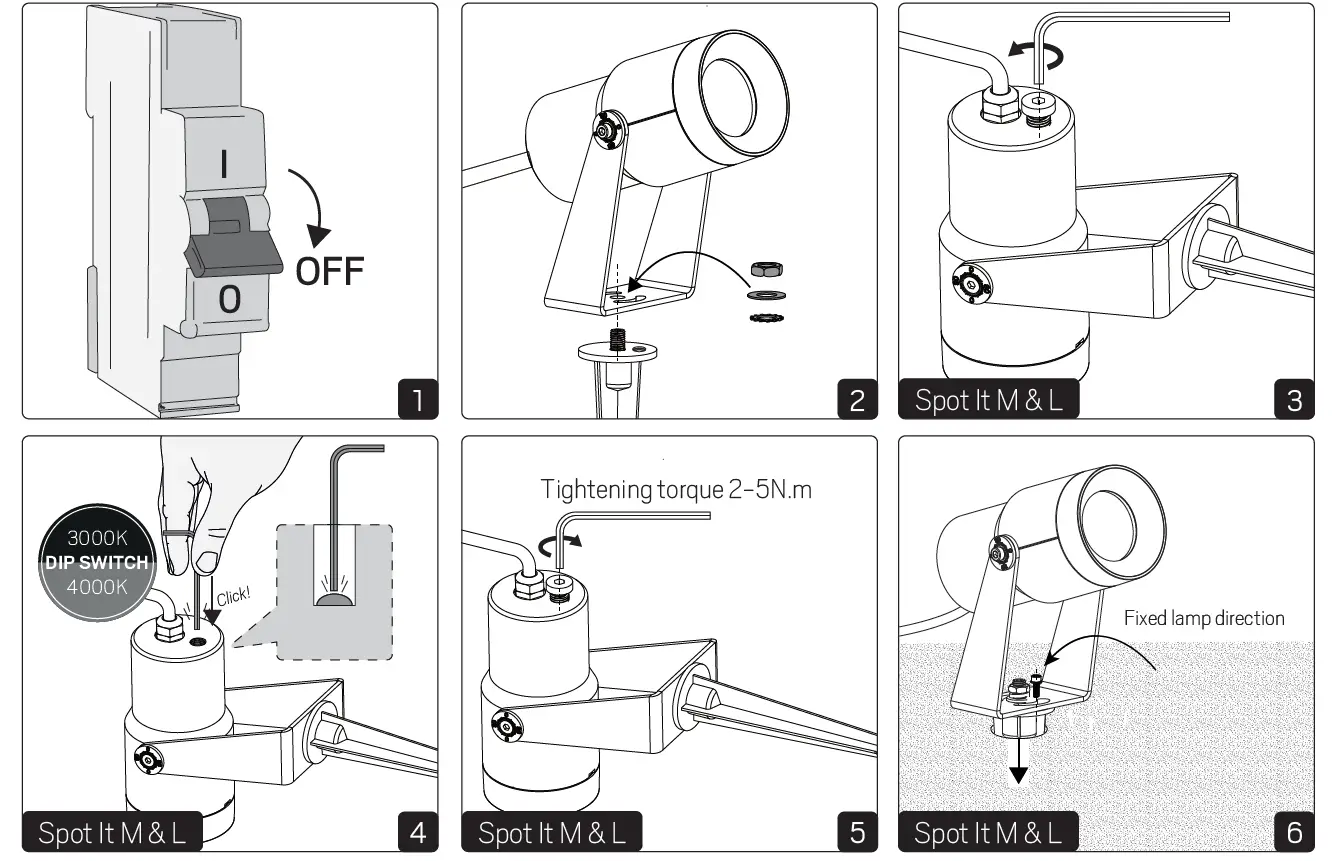

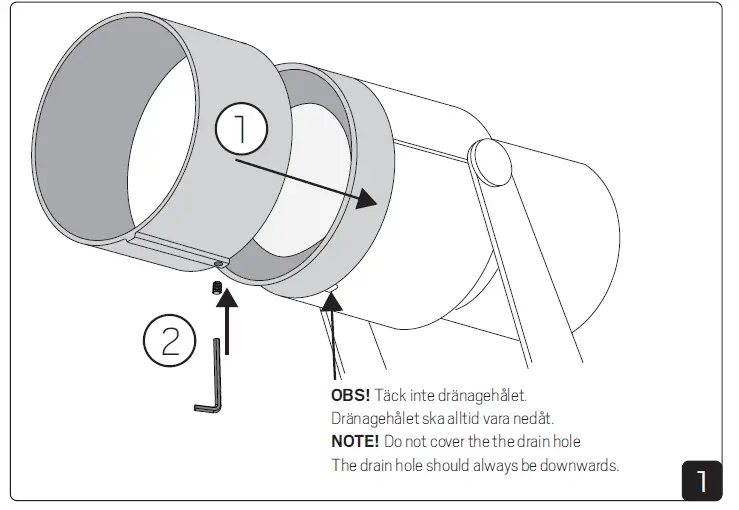

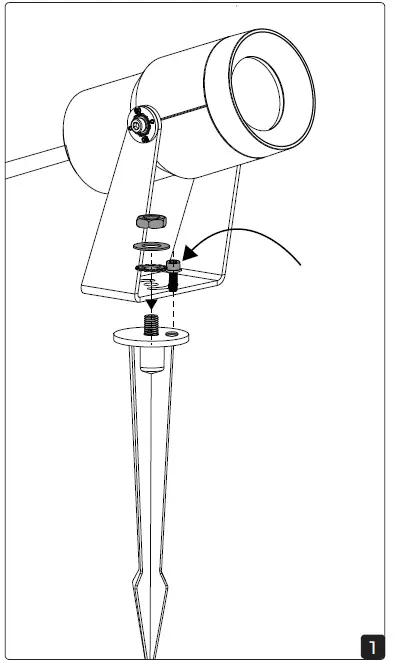

Installation

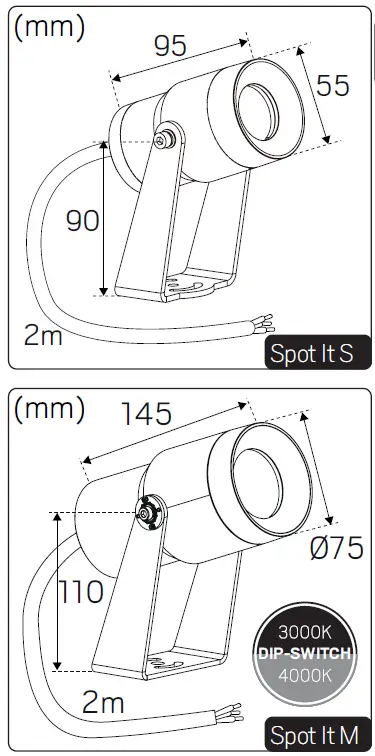

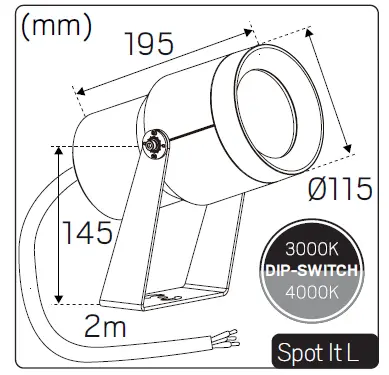

DIMENSION

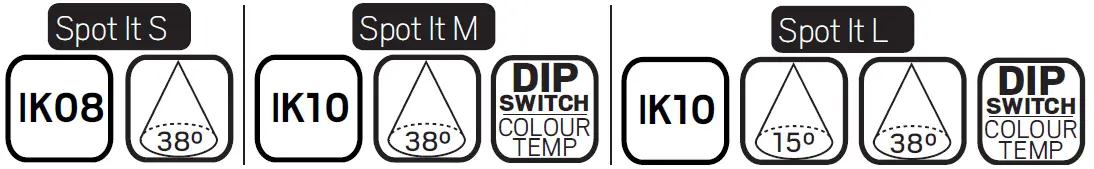

SPECIFICATIONS

E-nr	Snro	El.nr	GTIN	Name	LED color	Color	Effect
7766694	4528177	3102173	7392971141589	Spot It S	3000K	Aluminium	5,5W
7766695	4528178	3102186	7392971141596	Spot It S	4000K	Aluminium	5,5W
7766696	4528179	3102187	7392971141602	Spot It S	3000K	Black	5,5W
7766697	4528180	3102188	7392971141619	Spot It S	4000K	Black	5,5W
7766980	4528191	3105400	7392971143460	Spot It M 38°	Factory setting 3000K, 4000K	Black	15W
7766981	4528192	3105401	7392971143477	Spot It L 15°	Factory setting 3000K, 4000K	Black	25W
7766982	4528193	3105402	7392971143484	Spot It L 38°	Factory setting 3000K, 4000K	Black	25W

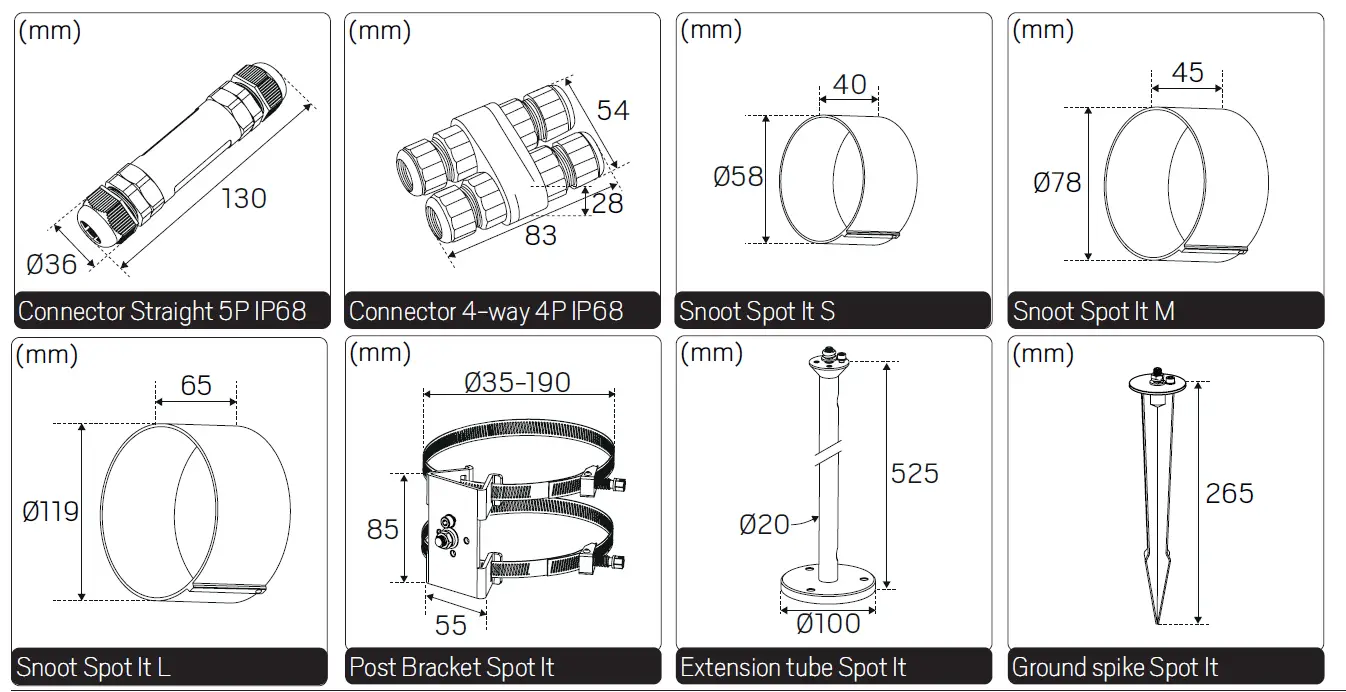

ACCESSORIES

E-nr	Snro	El.nr	GTIN	Name
7764691	4523485	3105913	7392971134918	Connector Straight 5P IP68
7764692	4523486	3105914	7392971134925	Connector 4-way 4P IP68
7766983	4528194	3101686	7392971143491	Snoot Spot It S Alu
7766984	4528195	3101687	7392971143507	Snoot Spot It S Black
7766985	4528196	3101688	7392971143514	Snoot Spot It M Black
7766986	4528197	3101689	7392971143521	Snoot Spot It L Black

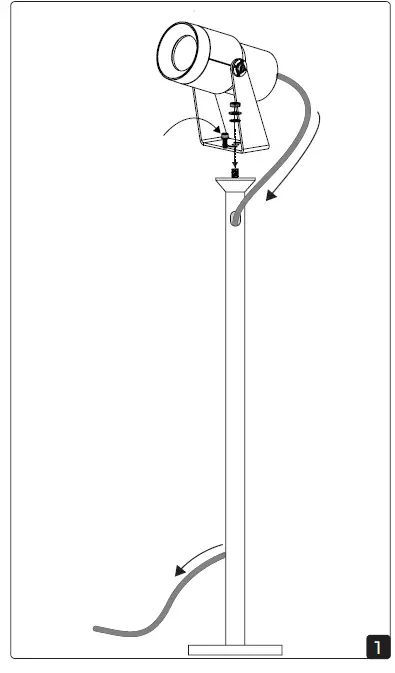

7766987	4528198	3105403	7392971143538	Post Bracket Spot It
7766988	4528199	3105404	7392971143545	Extension tube Spot It Black
7766989	4528800	3105405	7392971143552	Ground spike Spot It Black

SAFETY INSTRUCTIONS

Read these instructions carefully before commencing installation and retain for future reference. The luminaire should be installed by a licensed electrician and in accordance with local regulations. Make sure that the power is off before installation or maintenance. List of recommended dimmers can be found at www.hidealite.uk

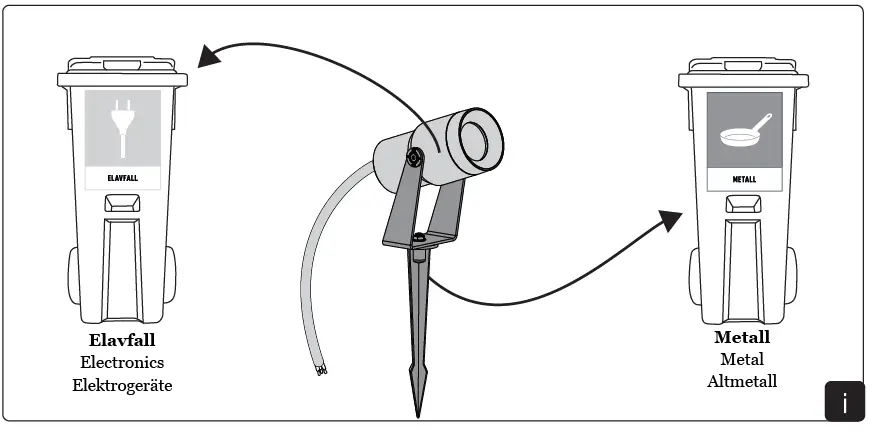

Recycle
