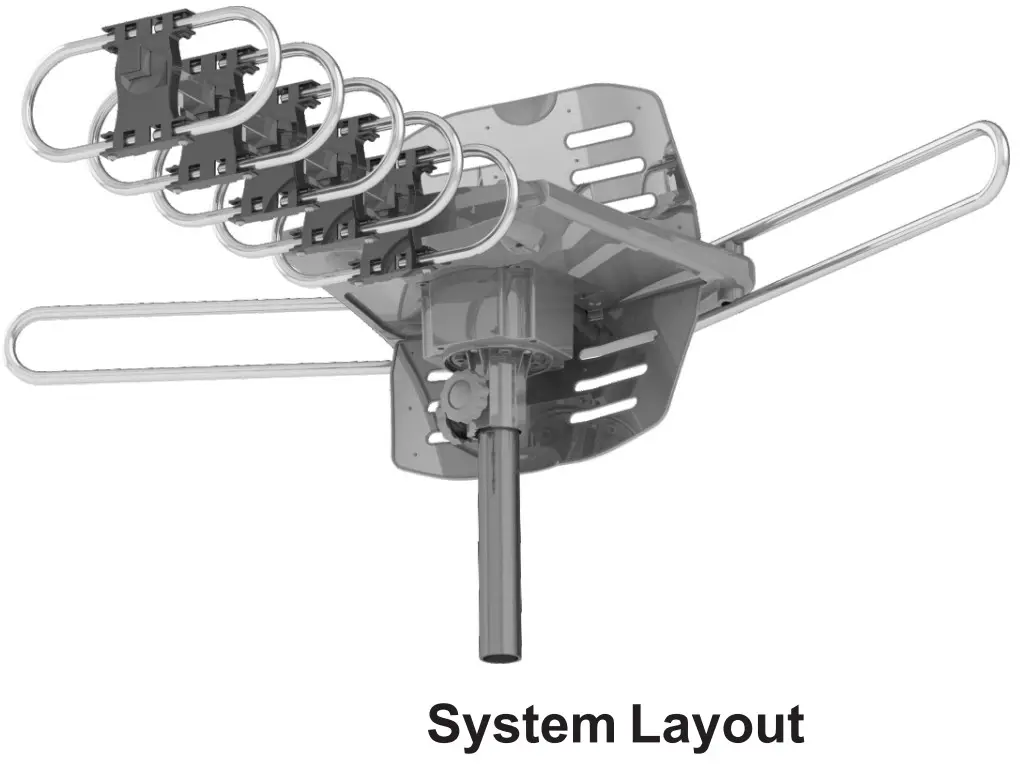

Rotating Remote Controlled TV Antenna
FSA5809
Product Manual
Package Contents
| NO. | NAME | Qty. | Image |
| 1 | Main Unit | 1 |  |
| 2 | Main Pole Column | 1 |  |
| 3 | Motor-Fixed Bolster | 1 |  |
| 4 | U-Frequency Vibrator | 1 |  |
| 5 | Screw(4x12mm) | 9 |  |
| 6 | Control box | 1 |  |
| 7 | Remote Controller | 1 |  |
| 8 | 40 ft Coaxial Cable | 1 |  |
| 9 | Coaxial Cable Gasket | 1 |  |
| 10 | Instruction | 1 |  |
| 11 | nylon cable ties | 3 |  |
| 12 | cable nails | 15 |  |
| 13 | splitter | 1 |  |
| 14 | Power adapter | 1 |  |
| 15 | Optional support rod accessories | 1 |  |
It has one year warranty and the customer will bear the freight for the return and replacement.

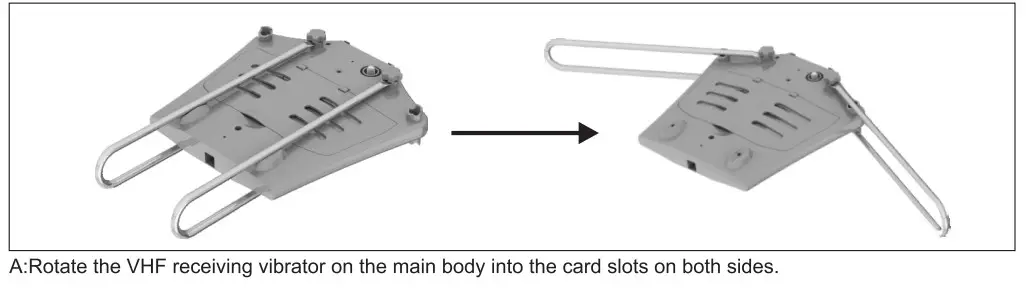

P1: Install U-Frequency Vibrators

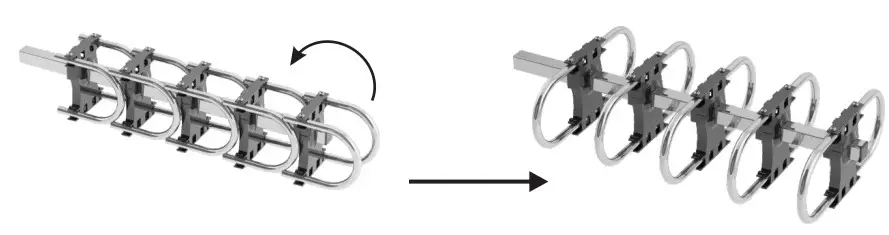

B: Rotate the five directors counterclockwise in turn.
P2: Open Reflection Panel
Open the Reflection Panel as shown.

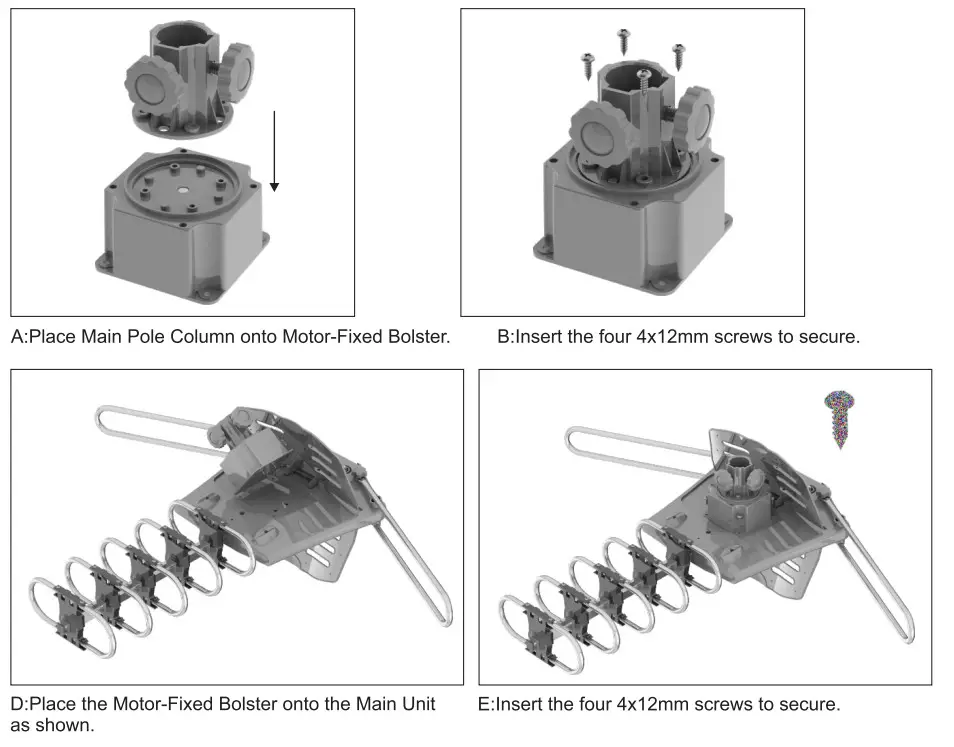

P3: Install Motor Rotor

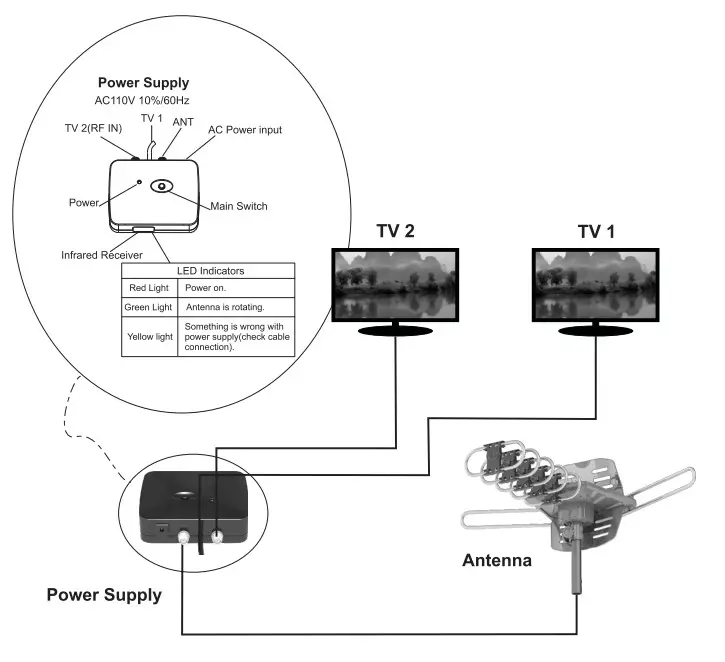

P4: Connect Signal Line
P5: Secure Antenna
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by the manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) the device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.
MADE IN CHINA
