USB Wide Angle WDR
Camera Module
2MP AR0230
(SKU:B0203)
QUICK START GUIDE
INTRODUCTION
- About Arducam
Arducam has been a professional designer and manufacturer of SPI, MIPI, DVP, and USB cameras since 2012. We also offer customized turnkey design and manufacturing solution services for customers who want their products to be unique. - About this USB Camera

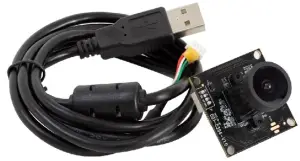

The B0203 is a new member of Arducam’s USB camera family. It’s a 2MP, UVC compliant, wide-angle, wide dynamic range (WDR) USB 2.0 camera. This USB camera is based on the 1/2.7” AR0230 image sensor, and you can read more about its specs in the next chapter. Arducam also provides a sample application that demonstrates some of the features of this camera. - About UVC
The B0203 is a VC- compliant camera. The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed. - About customer Service
If you need our help or want to customize other models of USB cameras, feel free to contact us at [email protected]
SPECS
| Camera | |
| Sensor | 1/2.7” AR0230 |
| Resolution | 2MP 1928H x 1080V |
| Data Format | MJPG/YUY2/H.264 |
| Frame Rate | H.264 25fps@1920 x 1080; MJPG 25fps@1920 x 1080; YUY2 25fps@640 x 360. |
| Dynamic Range | Max 105 dB |
| Lens | |
| Field of View (FOV) | 100°(D) |
| Lens Mount | M12 |
| Focusing Range | 3.3ft (1M) to infinity |
| IR Sensitivity | Integral IR filter, visible light only |
| Functionality and Compatibility | |
| Auto Controlled Features | Saturation, Contrast, Acutance, White balance, Exposure. |
| System Compatibility | Win7/8/10, Linux, Mac, and Andri- od with UVC |
| Power | |
| Power Supply | DC 5V |
| Working Current | MAX 300mA |
| Physic | |
| Operating Temp. | -4°F~158°F (-20°C~+70°C) |
| Dimension | 32x32mm |
| Cable Length | 3.3ft (1M) |
QUICKSTART
How to download the program
- Download the APP Amcap from the following link https://www.arducam.com/downloads/app/AMCap.exe
NOTE:
1. If used with the Andriod device, USB Camera APP and connect adapter are needed.
2. For Mac OS, please open the native software facetime and select the video camera “USB Camera” . - How to connect the camera Connect the one end of the USB 2.0 cable to the USB 2.0 connector provided on the back of B0203, and connect the other end to the USB 2.0 host controller on the computer.
How to use the program (Windows demo only)
The Menu bar at the top of the shown image contains a few menu items and the current preview resolution and the frame rate are displayed on the bottom bar when the application is running. The following sections describe each of the menu items in detail.

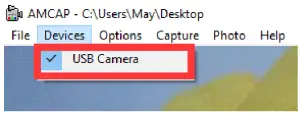

- Menu>Devices
This menu will show the available video devices to host PC.

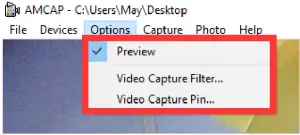

Menu>Options
The options menu can be used to select the preview and image parameters supported by this camera.
Menu>Options
How to use the program (Windows demo only)

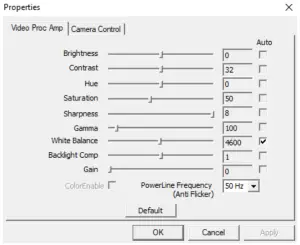

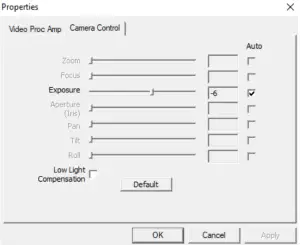

- Video Capture Filter -> Video Proc Amp/Camera Control
How to use the program (Windows demo only)

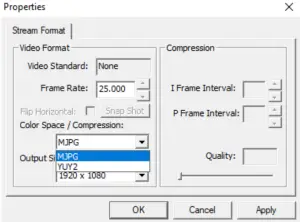

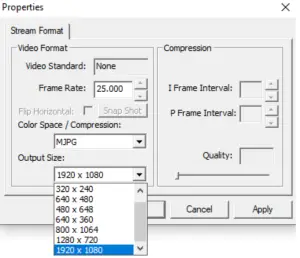

- Video Capture Pin
How to use the program (Windowsdemo only)

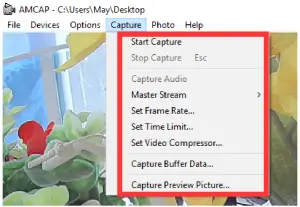

- Menu> Capture
The capture menu is used to capture the still image and video by using this application. You can also select the related parameters.
