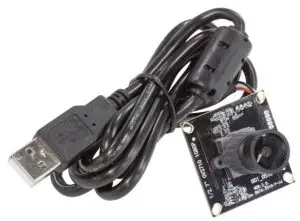

ArduCam 2MP OV2710 Wide Angle USB Camera Module User Guide
INTRODUCTION
About Arducam
Arducam has been a professional designer and manufacturer of SPI, MIPI, DVP and USB cameras since 2012. We also offer customized turnkey design and manufacturing solution services for customers who want their products to be unique.
About this USB Camera
The UB0234 is a new member of the Arducam’s USB camera family. It’s a 2MP, UVC compliant, wide angle USB 2.0 camera. This USB camera is based on the 1/2.7” OV2710 image sensor, and you can read more about its specs in the next chapter. Arducam also provides the sample application that demonstrates some of the features of this camera.
About UVC
The UB0234 is a UVC-compliant camera. The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.
About Customer Service
If you need our help or want to customize other models of USB cameras, feel free to contact us at [email protected]
QUICK START
How to download the program
Download the APP Amcap from the following link https://www.arducam.com/downloads/app/
AMCap.exe
NOTE
- If used with the Andriod device, USB Camera APP and connect adapter are needed.
- For Mac OS, please open the native software facetime and select the video camera “hRQCamera”.
How to connect the camera
Connect the one end of the USB 2.0 cable to the USB 2.0 connector provided on the back of UB0234, and connect the other end to the USB 2.0 host controller on the computer.
How to use the program (Windows demo only)

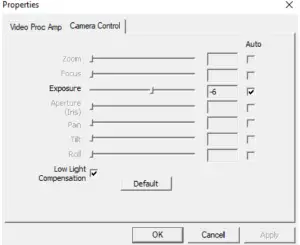

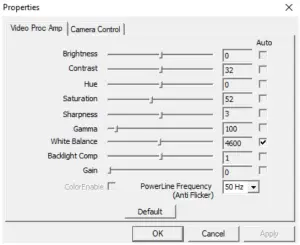

Video Capture Filter -> Video Proc Amp/Camera Control
How to use the program (Windows demo only)

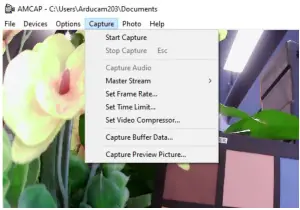

Menu> Capture
The capture menu is used to capture the still image and video by using this application. You can also select the related parameters.
SPECS
Camera | |
| Sensor | 1/2.7” OV2710 |
| Resolution | 2MP 1920H x 1080V |
| Data Format | MJPG/YUY2 |
| Dynamic Range | 69DB@ 8x gain |
| Frame Rate | MJPG 30fps@1080P/720P/640 x 360/800 x 600/960 x 720/432 x 240/800 x 600/320 x 184; YUY2 5fps@1080P/720P/1024 x 768/1280 x 960; 30fps@432 x 240. |
Lens | |
| Field of View (FOV) | 105°(H) |
| Lens Mount | M12*P0.5 mm |
| IR Sensitivity | Integral IR filter, visible light only |
Functionality and Compatibility | |
| Auto Controlled Features | Contrast/ Saturation/ Exposure / White balance / Acutance |
| System Compatibility | Win 7/8/10, Linux and Mac with UVC |
Power | |
| Power Supply | DC 5V |
| Working Current | MAX 200mA |
Physical | |
| Operating Temp. | -4°F~158°F (-20°C~+70°C) |
| Dimension | 32x32mm |
| Hole Pitch | 28x28mm |
| Connector No. | ZHR-4 |
| Cable Length | 3.3ft (1M) |
How to use the program (Windows demo only)
The Menu bar at the top of the shown image contains few menu items and the current preview resolution and the frame rate are displayed on the bottom bar when the application is running. The following sections describe each of the menu items in detail.

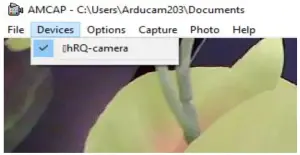

Menu>Devices
This menu will show the available video devices to host PC. The UB0234 named “hRQ- Camera”.

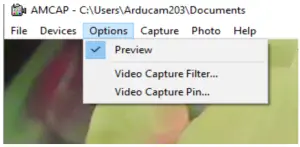

Menu>Options
The options menu can be used to select the preview and image parameters supported by this camera.
How to use the program (Windows demo only)

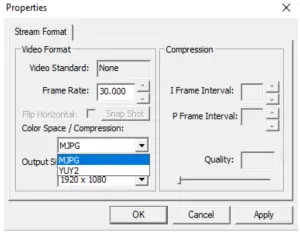

Video Capture Pin
