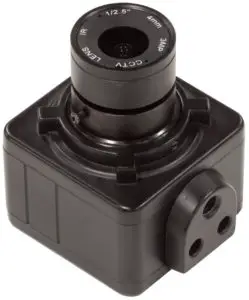

ArduCam B0363 4mm Manual Focus USB Camera Module User Guide
SPECS
Camera | |
| Sensor | 1/2.8” IMX291 |
Resolution | 2MP 1945H x 1109V |
| Data Format | MJPG/YUY2/H.264 |
Dynamic Range | 80 dB |
| Minimum illumination | 0.001Lux |
Frame rate | MJPG 30fps@1080P/720P/1024×576; YUY2 10fps@720P; 5fps@1080P; 30fps@640×360; H.264 30fps@1920×1080/1280×720. |
Lens | |
Field of View (FOV) | 70°(H) |
| Lens Mount | CS |
Focal Length | 4mm |
| IR Sensitivity | Integral IR filter, visible light only |
Functionality and Compatibility | |
Auto Controlled Features | Contrast/ Saturation/ Exposure / White balance /Acutance |
Audio | Single microphone |
| System Compatibility | Win7/8/10, Linux and Mac with UVC |
Power | |
Power Supply | DC 5V |
| Working Current | MAX 300mA |
Physical | |
Operating Temp. | -4°F~158°F (-20°C~+70°C) |
| Dimension | 50x56x65mm |
Connector No. | USB 2.0-Type B |
| Cable Length | 6.56ft (2M) |
How to use the program (Windows demo only)
The Menu bar at the top of the shown image contains few menu items and the current preview resolution and the frame rate are displayed on the bottom bar when the application is running. The following sections describe each of the menu items in detail.

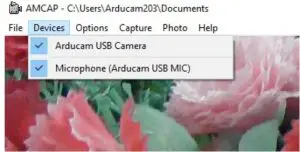

Menu>Devices
This menu will show the available video devices to host PC. The B0363 named “Arducam USB Camera”.
This camera support capturing audio, so the menu shows the “Microphone (Arducam USB MIC)”.

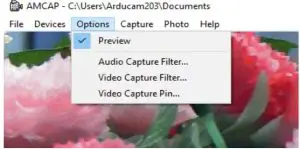

Menu>Options
The options menu can be used to select the preview and audio and image parameters supported by this camera.

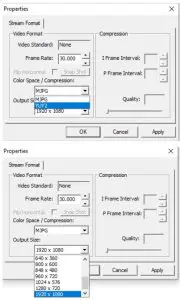

- Video Capture Pin

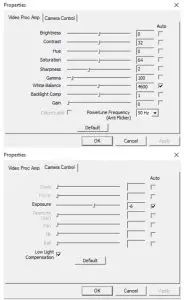

- Video Capture Filter -> Video Proc Amp/Camera Control

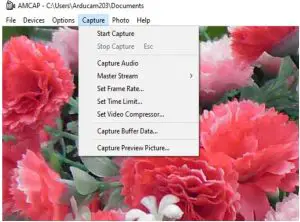

- Menu> Capture
The capture menu is used to capture the still image and video by using this application. You can also select the related parameters.
Note: If you want to get the voice from the microphone, you need to select the option “Capture Audio” before capturing video.
INTRODUCTION
- About Arducam
Arducam has been a professional designer and manufacturer of SPI, MIPI, DVP and USB cameras since 2012. We also offer customized turnkey design and manufacturing solution services for customers who want their products to be unique. - About this USB Camera
The B0363 is a new member of the Arducam’s USB camera family. It’s a 2MP, UVC compliant, manual focus USB 2.0 camera. This USB camera is based on the 1/2.8” IMX291 image sensor, and you can read more about its specs in the next chapter. Arducam also provides the sample application that demonstrates some of the features of this camera. - About UVC
The B0363 is a UVC-compliant camera. The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed. - About Customer Service
If you need our help or want to customize other models of USB cameras, feel free to contact us at [email protected]
LENS DIAGRAM

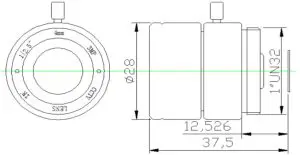

QUICK START
- How to download the program
Download the APP Amcap from the following link https://www.arducam.com/downloads/app/AMCap.exe
NOTE:- For Mac OS, please open the native software facetime and select the video camera “USB Camera” .
- Please feel free to contact us if you need H264 software.
- How to connect the camera
Connect the one end of the USB cable to the connector provided on the back of B0363, and connect the other end to the USB 2.0 host controller on the computer.
